Product Details | ROTATING COUNTER

6680-01-113-5062 An instrument actuated by means of a rotating shaft and designed to register and total numerically in units proportional to one complete revolution of its shaft. It may have a fixed type mounting or designed to be hand held. See also COUNTER, ELECTRICAL.

Part Alternates: 7889919037, 78-8991-9037, 78899190371, 78-8991-9037-1, 6680-01-113-5062, 01-113-5062, 6680011135062, 011135062

Instruments and Laboratory Equipment | Liquid and Gas Flow, Liquid Level, and Mechanical Motion Measuring Instruments

Supply Group (FSG) NSN Assign. NIIN
66 28 MAY 1981 01-113-5062

Drawings & Photos | NSN 6680-01-113-5062


Cross Reference | NSN 6680-01-113-5062

Part Number Cage Code Manufacturer
78-8991-9037 39711 IMATION CORP. DBA IMATION DIV DOCUMENT IMAGING
78-8991-9037 94862 MINNESOTA MINING AND MFG CO DOCUMENT SYSTEMS DIV
78-8991-9037-1 39711 IMATION CORP. DBA IMATION DIV DOCUMENT IMAGING
78-8991-9037-1 94862 MINNESOTA MINING AND MFG CO DOCUMENT SYSTEMS DIV

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 6680-01-113-5062

Technical Data | NSN 6680-01-113-5062

Characteristic Specifications
STYLE DESIGNATOR B2 UNENCLOSED SQUARE OR RECTANGULAR
OVERALL LENGTH 1.522 INCHES NOMINAL
OVERALL HEIGHT 2.181 INCHES NOMINAL
REGISTER QUANTITY 1
REGISTER FUNCTION ADD AND SUBTRACT SINGLE REGISTER SINGLE TIER
REGISTER RESET METHOD TOTAL COUNTER MANUAL SINGLE REGISTER SINGLE TIER
FIGURE QUANTITY PER REGISTER 3 SINGLE REGISTER SINGLE TIER
COLOR BLACK SINGLE REGISTER SINGLE TIER FIGURE WHITE SINGLE REGISTER SINGLE TIER FIGURE BACKGROUND
ACTUATING DEVICE LOCATION LEFT SIDE SINGLE REGISTER SINGLE TIER
NUMERAL DISPLAY METHOD DRUM
NUMERAL READOUT 000 MINIMUM AND 999 MAXIMUM SINGLE REGISTER SINGLE TIER
MOUNTING TYPE FOR WHICH DESIGNED BASE SINGLE REGISTER SINGLE TIER
MOUNTING FACILITY TYPE AND QUANTITY 3 THREADED HOLE

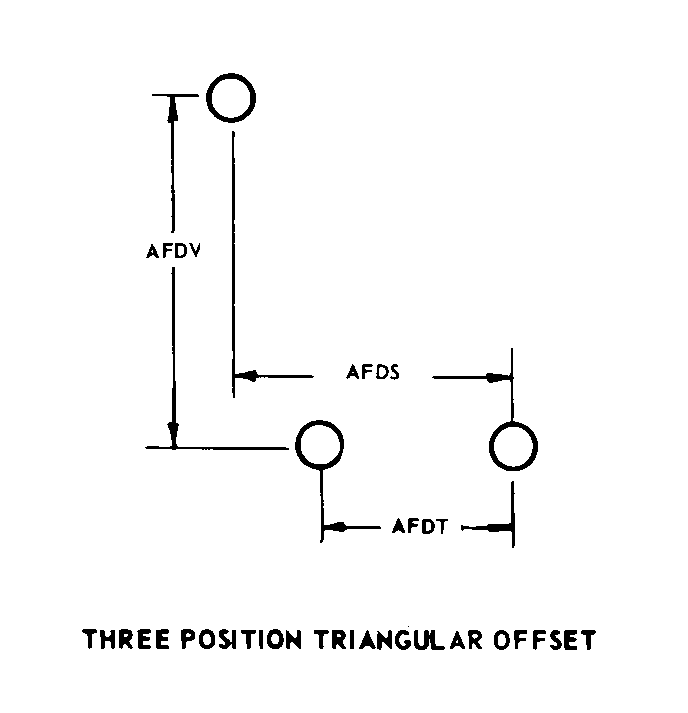

MOUNTING ARRANGEMENT STYLE A7 THREE POSITION TRIANGULAR OFFSET
LONGEST HORIZONTAL DISTANCE BETWEEN MOUNTING CENTERS 0.625 INCHES NOMINAL
LONGEST VERTICAL DISTANCE BETWEEN MOUNTING CENTERS 0.625 INCHES NOMINAL
III END ITEM IDENTIFICATION 3M CO,SERIES 400 READER-PRINTER

Restrictions/Controls & Freight Information | NSN 6680-01-113-5062

Category Code Description
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:QStrategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.”
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
No Freight Information
