NSN 6680-00-618-2421 FE1759, 175900-101, 346C199H01
Product Details | ROTATING COUNTER
6680-00-618-2421 An instrument actuated by means of a rotating shaft and designed to register and total numerically in units proportional to one complete revolution of its shaft. It may have a fixed type mounting or designed to be hand held. See also COUNTER, ELECTRICAL.
Part Alternates: FE1759, 175900-101, 346C199H01, 346C199H01REVA, 44Y40333400, 44Y40333-400, 44Y9626, 4-4Y9626, 6680-00-618-2421, 00-618-2421, 6680006182421, 175900101, 006182421
Instruments and Laboratory Equipment | Liquid and Gas Flow, Liquid Level, and Mechanical Motion Measuring Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 01 JAN 1963 | 00-618-2421 | 30762 ( COUNTER, ROTATING ) |
Drawings & Photos | NSN 6680-00-618-2421
Cross Reference | NSN 6680-00-618-2421
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 175900-101 | 79142 | DYNAPAR CORPORATION DBA DANAHER CONTROLS |
| 346C199H01 | 97942 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN SYSTEMS |
| 346C199H01REVA | 79500 | WESTINGHOUSE ELECTRIC CORP |
| 4-4Y9626 | 18911 | EATON CORP COUNT CONTROL/SYSTEMS DIV |
| 44Y40333-400 | 18911 | EATON CORP COUNT CONTROL/SYSTEMS DIV |
| FE1759 | 79142 | DYNAPAR CORPORATION DBA DANAHER CONTROLS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6680-00-618-2421
Technical Data | NSN 6680-00-618-2421
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | B2 UNENCLOSED SQUARE OR RECTANGULAR |
| OVERALL LENGTH | 2.950 INCHES NOMINAL |
| OVERALL HEIGHT | 1.140 INCHES NOMINAL |
| OVERALL WIDTH | 2.000 INCHES NOMINAL |
| SHAFT DIAMETER | 0.156 INCHES NOMINAL |
| SHAFT LENGTH | 0.641 INCHES NOMINAL |
| REGISTER QUANTITY | 2 |
| REGISTER FUNCTION | ADD AND SUBTRACT ALL REGISTERS ALL TIERS |
| FIGURE QUANTITY PER REGISTER | 4 ALL REGISTERS ALL TIERS |
| FIGURE HEIGHT | 0.188 INCHES NOMINAL ALL REGISTERS ALL TIERS |
| NUMERAL DISPLAY METHOD | DRUM |
| NUMERAL READOUT | 0000 MINIMUM AND 9999 MAXIMUM ALL REGISTERS ALL TIERS |
| SHAFT REVOLUTIONS PER COUNT | 0.10 ALL REGISTERS ALL TIERS |
| MOUNTING TYPE FOR WHICH DESIGNED | PANEL REAR ALL REGISTERS ALL TIERS |

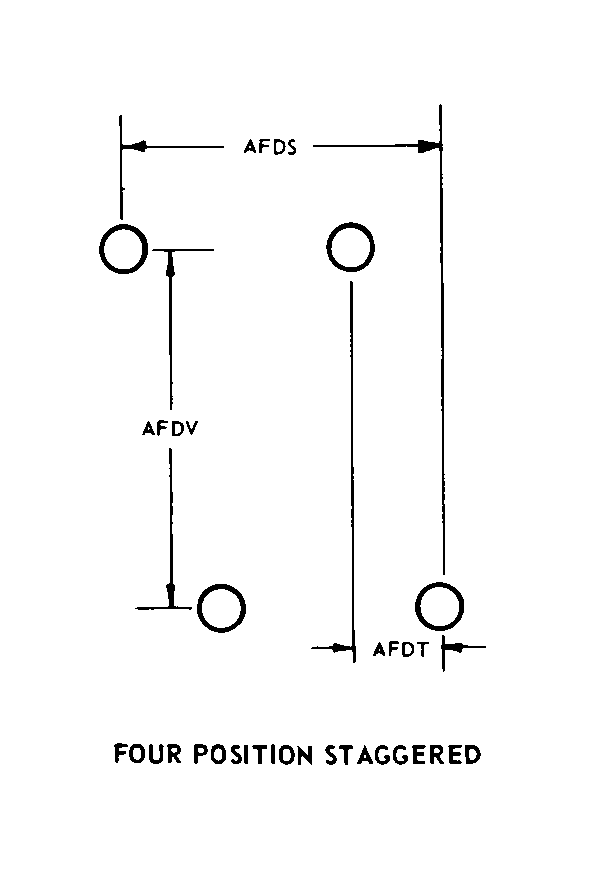

| MOUNTING ARRANGEMENT STYLE | A1 FOUR POSITION STAGGERED |
| MANUFACTURERS CODE | 97942 |
| DESIGN CONTROL REFERENCE | 346C199H01 |
Restrictions/Controls & Freight Information | NSN 6680-00-618-2421
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 136740 | METERS ELEC/PARTS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 653 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6680-00-618-2421
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
