NSN 6680-00-587-7213 2177571, 00-587-7213, 005877213
Product Details | ROTATING COUNTER
6680-00-587-7213 An instrument actuated by means of a rotating shaft and designed to register and total numerically in units proportional to one complete revolution of its shaft. It may have a fixed type mounting or designed to be hand held. See also COUNTER, ELECTRICAL.
Part Alternates: 2177571, 6680-00-587-7213, 00-587-7213, 6680005877213, 005877213
Instruments and Laboratory Equipment | Liquid and Gas Flow, Liquid Level, and Mechanical Motion Measuring Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 01 JAN 1963 | 00-587-7213 | 30762 ( COUNTER, ROTATING ) |
Drawings & Photos | NSN 6680-00-587-7213
Cross Reference | NSN 6680-00-587-7213
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2177571 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6680-00-587-7213
Technical Data | NSN 6680-00-587-7213
| Characteristic | Specifications |
|---|---|

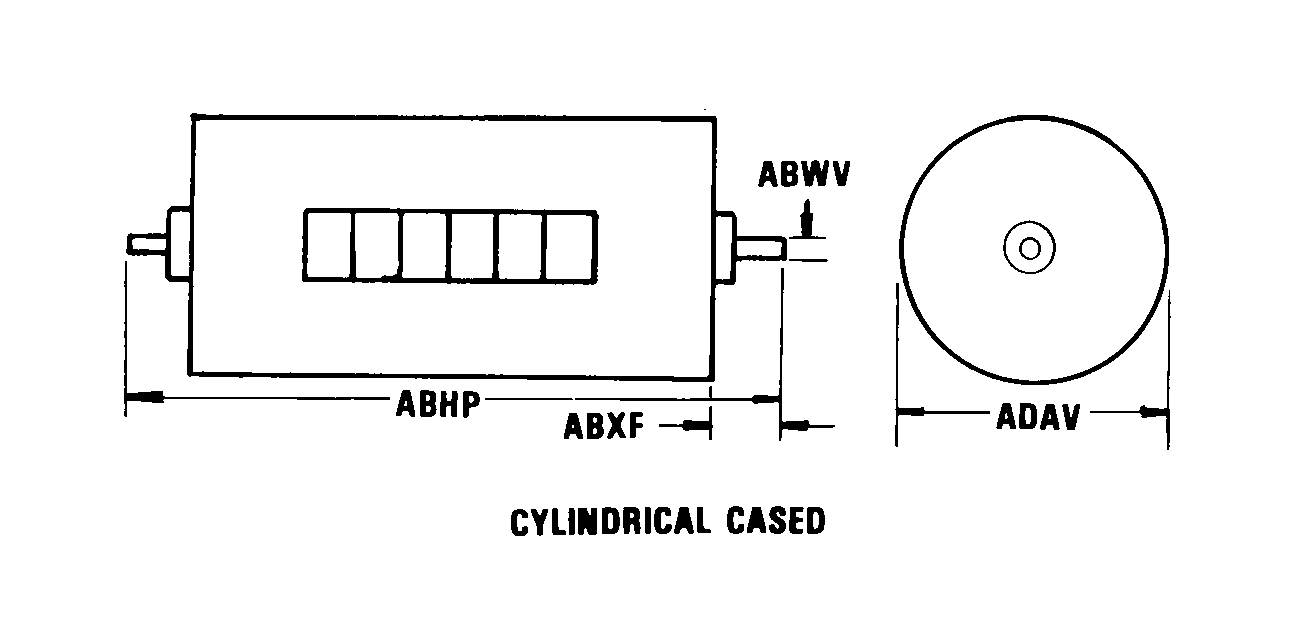

| STYLE DESIGNATOR | B7 CYLINDRICAL CASED |
| OVERALL LENGTH | 1.125 INCHES NOMINAL |
| SHAFT DIAMETER | 0.250 INCHES NOMINAL |
| OVERALL DIAMETER | 1.938 INCHES NOMINAL |
| FIGURE HEIGHT | 0.156 INCHES NOMINAL SINGLE REGISTER SINGLE TIER |
| COLOR | WHITE SINGLE REGISTER SINGLE TIER FIGURE BLACK SINGLE REGISTER SINGLE TIER FIGURE BACKGROUND |
| MOUNTING TYPE FOR WHICH DESIGNED | SHAFT SINGLE REGISTER SINGLE TIER |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 THREADED STUD |
| SPECIAL FEATURES | BACKPLATE OF ALUMINUM ALLOY A-380,ANODIZED; KNOB ALUMINUM ALLOY 2024-T351,ANODIZED |
| MANUFACTURERS CODE | 10001 |
| DESIGN CONTROL REFERENCE | 2177571 |
Restrictions/Controls & Freight Information | NSN 6680-00-587-7213
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 058240 | RECORDING DEVICES GAUGES/METERS NOI |
| Less than car load rating | ||
| Less than truck load rating | F | 150.0 |
| Water commodity Code | 652 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6680-00-587-7213
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
