NSN 6680-00-165-5881 C1823030001, C182-303-0001, 3Y40244446RCL
Product Details | ROTATING COUNTER
6680-00-165-5881 An instrument actuated by means of a rotating shaft and designed to register and total numerically in units proportional to one complete revolution of its shaft. It may have a fixed type mounting or designed to be hand held. See also COUNTER, ELECTRICAL.
Part Alternates: C1823030001, C182-303-0001, 3Y40244446RCL, 3Y40244-446RCL, 6680-00-165-5881, 00-165-5881, 6680001655881, 001655881
Instruments and Laboratory Equipment | Liquid and Gas Flow, Liquid Level, and Mechanical Motion Measuring Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 01 OCT 1971 | 00-165-5881 | 30762 ( COUNTER, ROTATING ) |
Drawings & Photos | NSN 6680-00-165-5881
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6680-00-165-5881
Technical Data | NSN 6680-00-165-5881
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | B2 UNENCLOSED SQUARE OR RECTANGULAR |
| OVERALL LENGTH | 1.938 INCHES NOMINAL |
| OVERALL HEIGHT | 1.094 INCHES NOMINAL |
| OVERALL WIDTH | 0.812 INCHES NOMINAL |
| SHAFT DIAMETER | 0.155 INCHES MINIMUM AND 0.156 INCHES MAXIMUM |
| SHAFT LENGTH | 0.500 INCHES NOMINAL |
| REGISTER QUANTITY | 1 |
| REGISTER FUNCTION | ADD AND SUBTRACT SINGLE REGISTER SINGLE TIER |
| REGISTER RESET METHOD | ANY ACCEPTABLE SINGLE REGISTER SINGLE TIER |
| FIGURE QUANTITY PER REGISTER | 3 SINGLE REGISTER SINGLE TIER |
| FIGURE HEIGHT | 0.190 INCHES NOMINAL SINGLE REGISTER SINGLE TIER |
| COLOR | WHITE SINGLE REGISTER SINGLE TIER FIGURE BLACK SINGLE REGISTER SINGLE TIER FIGURE BACKGROUND |
| ACTUATING DEVICE LOCATION | RIGHT SIDE SINGLE REGISTER SINGLE TIER |
| NUMERAL DISPLAY METHOD | DRUM |
| NUMERAL READOUT | 000 MINIMUM AND 999 MAXIMUM SINGLE REGISTER SINGLE TIER |
| SHAFT ROTATION DIRECTION AND MAXIMUM SPEED IN RPM | 2500.0 CLOCKWISE AND 2500.0 COUNTERCLOCKWISE SINGLE REGISTER SINGLE TIER |
| SHAFT REVOLUTIONS PER COUNT | 0.10 SINGLE REGISTER SINGLE TIER |
| MAXIMUM COUNT RATE | 25000.0 PER MINUTE SINGLE REGISTER SINGLE TIER |
| MOUNTING TYPE FOR WHICH DESIGNED | BASE SINGLE REGISTER SINGLE TIER |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 THREADED HOLE |

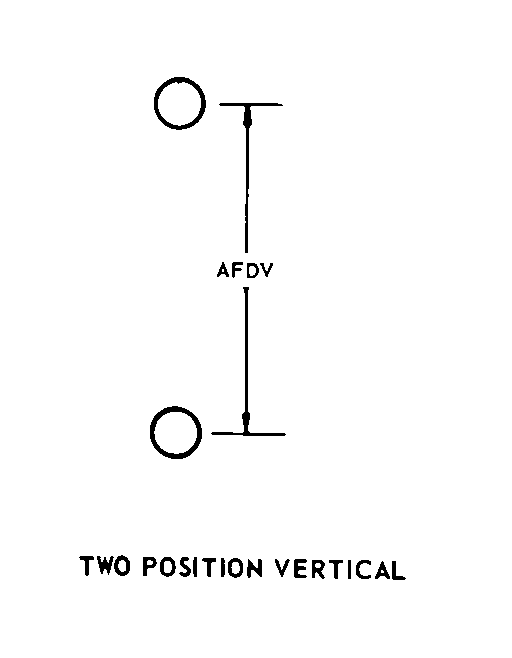

| MOUNTING ARRANGEMENT STYLE | A10 TWO POSITION VERTICAL |
| LONGEST VERTICAL DISTANCE BETWEEN MOUNTING CENTERS | 0.609 INCHES NOMINAL |
| SPECIAL FEATURES | NONRESETTABLE |
Restrictions/Controls & Freight Information | NSN 6680-00-165-5881
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 177220 | SPEED INDICATORS/HEADS/ODOMETERS |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 653 | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6680-00-165-5881
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
