NSN 6680-00-124-8964 MS5107119, MS51071-19, M10215F119
Product Details | FLEXIBLE SHAFT ASSEMBLY
6680-00-124-8964 An item consisting of a casing with fittings and attachments on each end and a spirally wound wire core with formed end(s) and/or crimped on end fittings. It is designed to transmit rotary motion around bends from a motor or other power source to drive various types of equipment, such as tachometers, speedometers, remote controls, instruments, and the like, which are located at an angle and/or distance from the power source. See also CONTROL ASSEMBLY, PUSH-PULL.20316800049Miscellaneous Aircraft Accessories and Components30400042Miscellaneous Power Transmission Equipment66800078Liquid and Gas Flow, Liquid Level, and Mechanical Motion Measuring Instruments
Part Alternates: MS5107119, MS51071-19, M10215F119, MILDTL10215, MIL-DTL-10215, MILPRF10215, MIL-PRF-10215, 6680-00-124-8964, 00-124-8964, 6680001248964, 001248964
Instruments and Laboratory Equipment | Liquid and Gas Flow, Liquid Level, and Mechanical Motion Measuring Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 08 NOV 1968 | 00-124-8964 | 20315 ( SHAFT ASSEMBLY, FLEXIBLE ) |

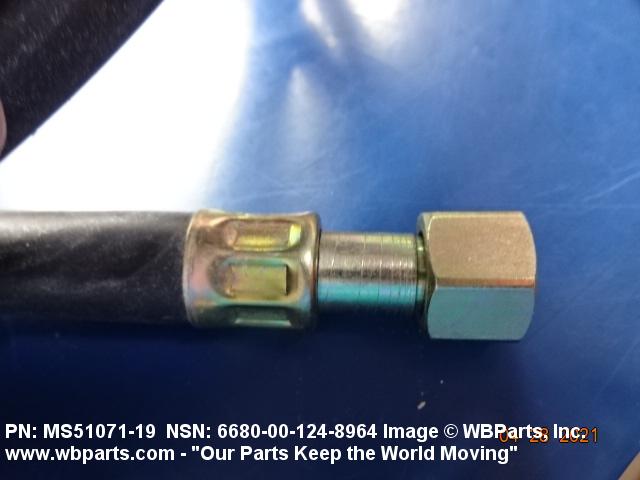

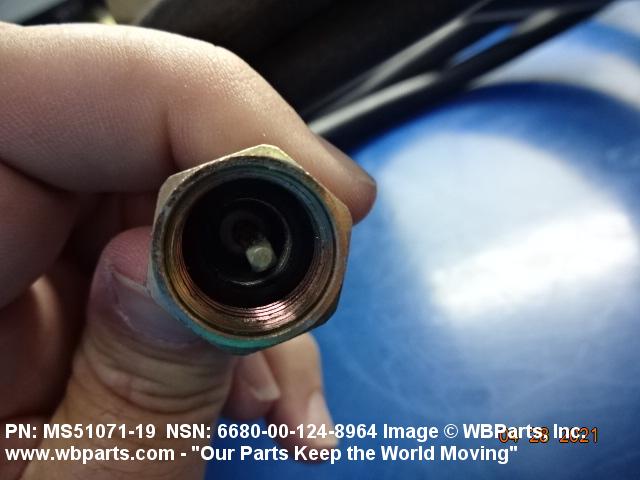

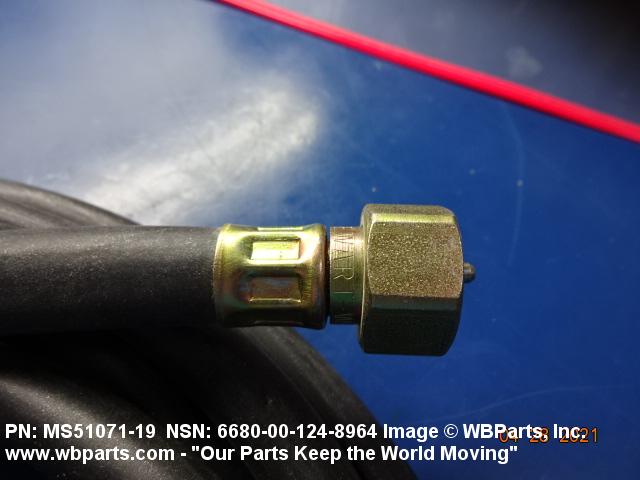

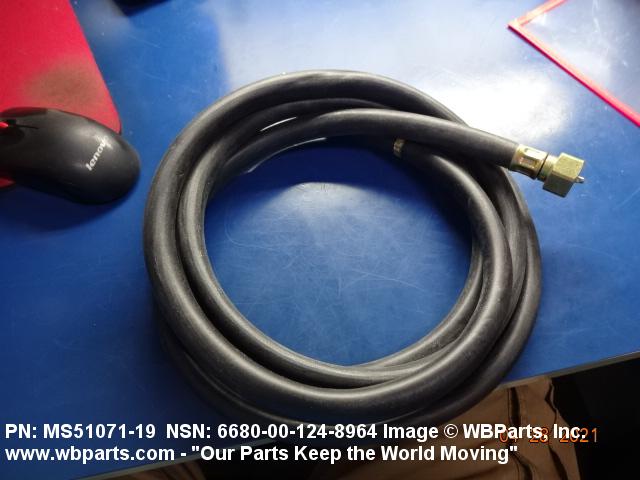

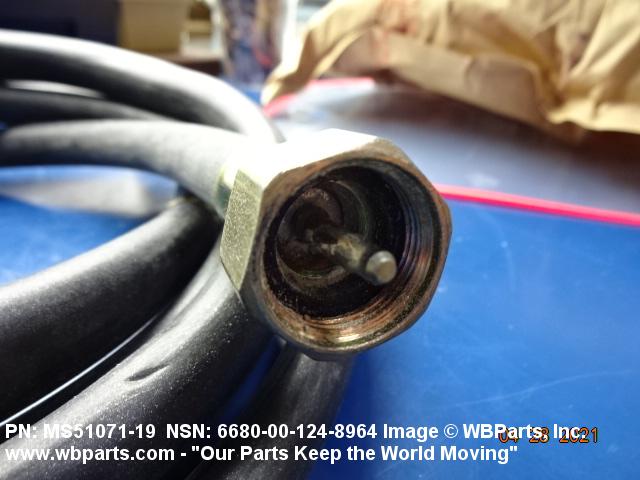

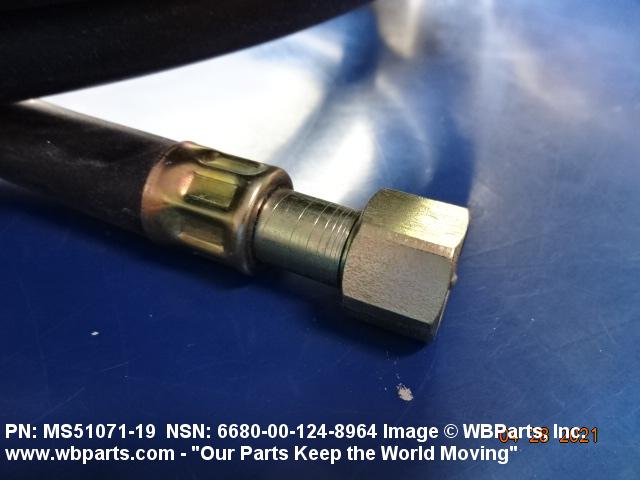

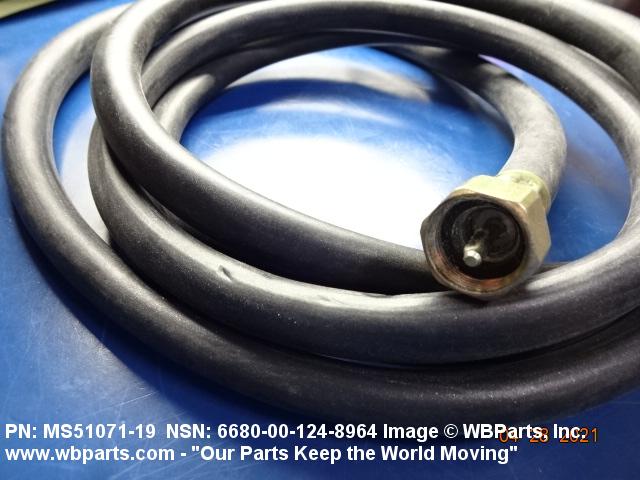

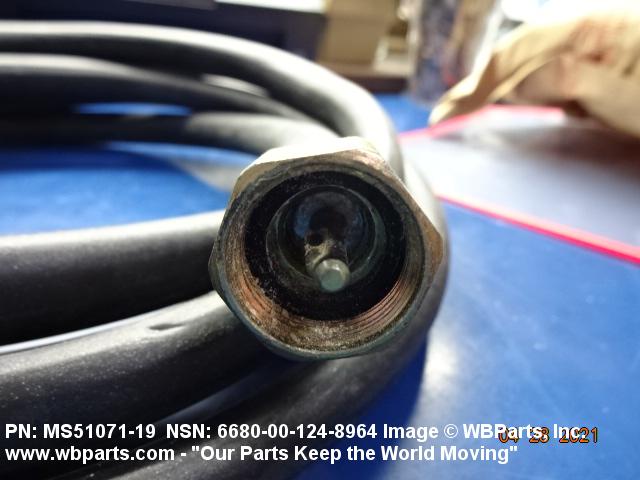

Drawings & Photos | NSN 6680-00-124-8964
Demand History | NSN 6680-00-124-8964
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6680-00-124-8964 | 2024-07-205 | 46 | DIBBS |
| 6680-00-124-8964 | 2023-10-295 | 57 | DIBBS |
| 6680-00-124-8964 | 2022-07-182 | 40 | DIBBS |
| 6680-00-124-8964 | 2022-06-167 | 40 | DIBBS |
| 6680-00-124-8964 | 2022-03-79 | 22 | DIBBS |
| 6680-00-124-8964 | 2021-11-322 | 27 | DIBBS |
| 6680-00-124-8964 | 2021-07-203 | 106 | DIBBS |
| 6680-00-124-8964 | 2021-04-102 | 10 | us |
| 6680-00-124-8964 | 2021-01-24 | 29 | DIBBS |
| 6680-00-124-8964 | 2018-10-283 | 132 | DIBBS |
| 6680-00-124-8964 | 2016-10-286 | 98 | DIBBS |
| 6680-00-124-8964 | 2010-05-147 | 240 | DIBBS |
Cross Reference | NSN 6680-00-124-8964
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 6680001248964 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| M10215F119 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-DTL-10215 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-PRF-10215 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS51071-19 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6680-00-124-8964
Related Products | NSN 6680-00-124-8964
Technical Data | NSN 6680-00-124-8964
| Characteristic | Specifications |
|---|---|
| CASING MATERIAL | RUBBER AND STEEL |
| CASING SURFACE TREATMENT | ANY ACCEPTABLE |
| CASING LENGTH BETWEEN FERRULES | 120.000 INCHES NOMINAL |
| CASING OUTSIDE DIAMETER | 0.300 INCHES MINIMUM AND 0.500 INCHES MAXIMUM |
| CASING PROTECTIVE DEVICE TYPE | PLASTIC COVER OR RUBBER COVER |
| END CONNECTION TYPE | THREADED INTERNAL BOTH ENDS |
| THREAD LOCATION | INTERNAL BOTH ENDS |
| SCREW THREAD SERIES DESIGNATOR | UNS FIRST END UNF SECOND END |
| THREAD DIRECTION | RIGHT-HAND BOTH ENDS |
| THREAD CLASS | 2B BOTH ENDS |
| THREAD DEPTH | 0.327 INCHES NOMINAL FIRST END 0.375 INCHES NOMINAL SECOND END |
| END OVERALL DIAMETER | 1.188 INCHES NOMINAL FIRST END 0.875 INCHES NOMINAL SECOND END |
| SWIVEL END | NOT PROVIDED BOTH ENDS |
| WRENCHING FACILITY TYPE | HEXAGON BOTH ENDS |
| WIDTH ACROSS FLATS | 1.000 INCHES NOMINAL FIRST END 0.750 INCHES NOMINAL SECOND END |
| LUBRICATION FITTING | NOT PROVIDED BOTH ENDS |
| CORE MATERIAL | ANY ACCEPTABLE |
| CORE OVERALL LENGTH | 121.156 INCHES NOMINAL |
| CORE DIAMETER | 0.150 INCHES NOMINAL |
| CORE ROTATION DIRECTION | CLOCKWISE |
| END TYPE | ROUND KEYED FIRST END SQUARE MALE SECOND END |
| TIP LENGTH | 1.018 INCHES MINIMUM AND 1.022 INCHES MAXIMUM FIRST END 0.950 INCHES MINIMUM AND 1.010 INCHES MAXIMUM SECOND END |
| CROSS SECTION SIZE AND LOCATION | 0.150 INCHES MINIMUM DIAMETER AND 0.153 INCHES MAXIMUM DIAMETER FIRST END 0.101 INCHES MINIMUM ACROSS FLATS AND 0.104 INCHES MAXIMUM ACROSS FLATS SECOND END |
| SETSCREW | NOT INCLUDED BOTH ENDS |
| CORE REMOVABILITY | REMOVABLE |
| OVERALL LENGTH | 121.156 INCHES NOMINAL |
| MINIMUM OPERATING RADIUS | 5.000 INCHES |
| SPECIAL FEATURES | COUNTERCLOCKWISE CORE ROTATION DIRECTION |
| III END ITEM IDENTIFICATION | LANCE M667/CHAPARRAL M730A1/M730A2 CARRIER GME |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-PRF-10215 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M102151B119 |
Restrictions/Controls & Freight Information | NSN 6680-00-124-8964
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 129920 | SHAFTS/SHAFTING,FLEX NOI STL |
| Less than car load rating | ||
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6680-00-124-8964
Army
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 2 | Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Echelon Identification Code | B | Consumable Repair Parts |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
