NSN 6680-00-115-0976 B173633, 616531, 61653-1
Product Details | ROTATING COUNTER
6680-00-115-0976 An instrument actuated by means of a rotating shaft and designed to register and total numerically in units proportional to one complete revolution of its shaft. It may have a fixed type mounting or designed to be hand held. See also COUNTER, ELECTRICAL.
Part Alternates: B173633, 616531, 61653-1, 6680-00-115-0976, 00-115-0976, 6680001150976, 001150976
Instruments and Laboratory Equipment | Liquid and Gas Flow, Liquid Level, and Mechanical Motion Measuring Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 20 SEP 1968 | 00-115-0976 | 30762 ( COUNTER, ROTATING ) |
Drawings & Photos | NSN 6680-00-115-0976
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6680-00-115-0976
Related Products | NSN 6680-00-115-0976
Technical Data | NSN 6680-00-115-0976
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | B2 UNENCLOSED SQUARE OR RECTANGULAR |
| OVERALL LENGTH | 0.881 INCHES MINIMUM AND 0.907 INCHES MAXIMUM |
| OVERALL HEIGHT | 1.040 INCHES MINIMUM AND 1.041 INCHES MAXIMUM |
| OVERALL WIDTH | 0.870 INCHES MINIMUM AND 0.880 INCHES MAXIMUM |
| SHAFT DIAMETER | 0.0775 INCHES MINIMUM AND 0.0780 INCHES MAXIMUM |
| SHAFT LENGTH | 0.247 INCHES MINIMUM AND 0.267 INCHES MAXIMUM |
| REGISTER QUANTITY | 1 |
| REGISTER FUNCTION | ADD AND SUBTRACT SINGLE REGISTER SINGLE TIER |
| REGISTER RESET METHOD | ANY ACCEPTABLE SINGLE REGISTER SINGLE TIER |
| FIGURE QUANTITY PER REGISTER | 3 SINGLE REGISTER SINGLE TIER |
| FIGURE HEIGHT | 0.220 INCHES NOMINAL SINGLE REGISTER SINGLE TIER |
| COLOR | WHITE SINGLE REGISTER SINGLE TIER FIGURE BLACK SINGLE REGISTER SINGLE TIER FIGURE BACKGROUND |
| ACTUATING DEVICE LOCATION | RIGHT SIDE SINGLE REGISTER SINGLE TIER |
| NUMERAL DISPLAY METHOD | DRUM |
| NUMERAL READOUT | 000 MINIMUM AND 999 MAXIMUM SINGLE REGISTER SINGLE TIER |
| SHAFT ROTATION DIRECTION AND MAXIMUM SPEED IN RPM | 300.0 CLOCKWISE SINGLE REGISTER SINGLE TIER |
| SHAFT REVOLUTIONS PER COUNT | 1.00 SINGLE REGISTER SINGLE TIER |
| MAXIMUM COUNT RATE | 300.0 PER MINUTE SINGLE REGISTER SINGLE TIER |
| MOUNTING TYPE FOR WHICH DESIGNED | BASE SINGLE REGISTER SINGLE TIER |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 THREADED HOLE |

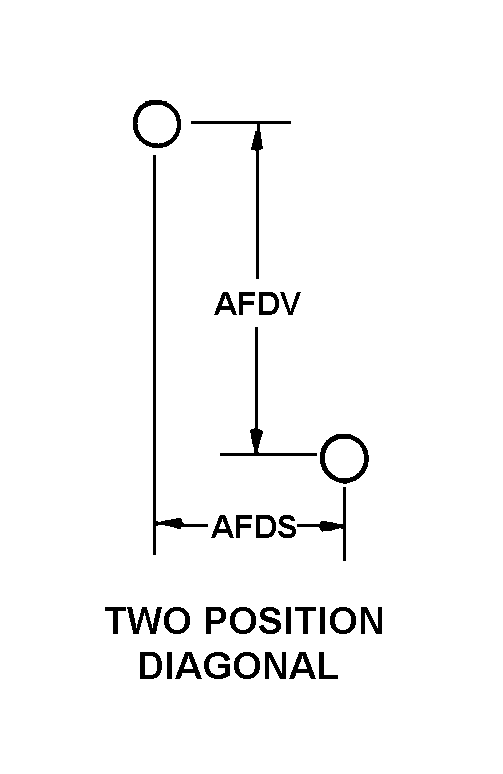

| MOUNTING ARRANGEMENT STYLE | A5 TWO POSITION DIAGONAL |
| LONGEST HORIZONTAL DISTANCE BETWEEN MOUNTING CENTERS | 0.245 INCHES MINIMUM AND 0.255 INCHES MAXIMUM |
| LONGEST VERTICAL DISTANCE BETWEEN MOUNTING CENTERS | 0.370 INCHES MINIMUM AND 0.380 INCHES MAXIMUM |
| SPECIAL FEATURES | NONRESETTABLE |
| MANUFACTURERS CODE | 22525 |
| DESIGN CONTROL REFERENCE | 61653-1 |
Restrictions/Controls & Freight Information | NSN 6680-00-115-0976
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 058240 | RECORDING DEVICES GAUGES/METERS NOI |
| Less than car load rating | ||
| Less than truck load rating | F | 150.0 |
| Water commodity Code | 653 | unknown |
| Originating Activity Code | HH | Navy ICP Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | S | Office, School, and Household Supplies/Equipment including Office Machines, Furniture/Stationary, Films, Synthetic/Special Training Films, Non-Hazardous Household Cleaning Products, Non-Hazardous Personal Hygiene Products, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6680-00-115-0976
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
