NSN 6680-00-097-0147 763624-003, 00-097-0147, 763624003
Product Details | ROTATING COUNTER
6680-00-097-0147 An instrument actuated by means of a rotating shaft and designed to register and total numerically in units proportional to one complete revolution of its shaft. It may have a fixed type mounting or designed to be hand held. See also COUNTER, ELECTRICAL.
Part Alternates: 763624-003, 6680-00-097-0147, 00-097-0147, 6680000970147, 763624003, 000970147
Instruments and Laboratory Equipment | Liquid and Gas Flow, Liquid Level, and Mechanical Motion Measuring Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 13 DEC 1972 | 00-097-0147 | 30762 ( COUNTER, ROTATING ) |
Drawings & Photos | NSN 6680-00-097-0147
Demand History | NSN 6680-00-097-0147
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 763624-003 | 2020-11-307 | 3 | DIBBS |
| 763624-003 | 2020-10-299 | 3 | DIBBS |
Cross Reference | NSN 6680-00-097-0147
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 763624-003 | 79142 | DYNAPAR CORPORATION DBA DANAHER CONTROLS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6680-00-097-0147
Related Products | NSN 6680-00-097-0147
Technical Data | NSN 6680-00-097-0147
| Characteristic | Specifications |
|---|---|

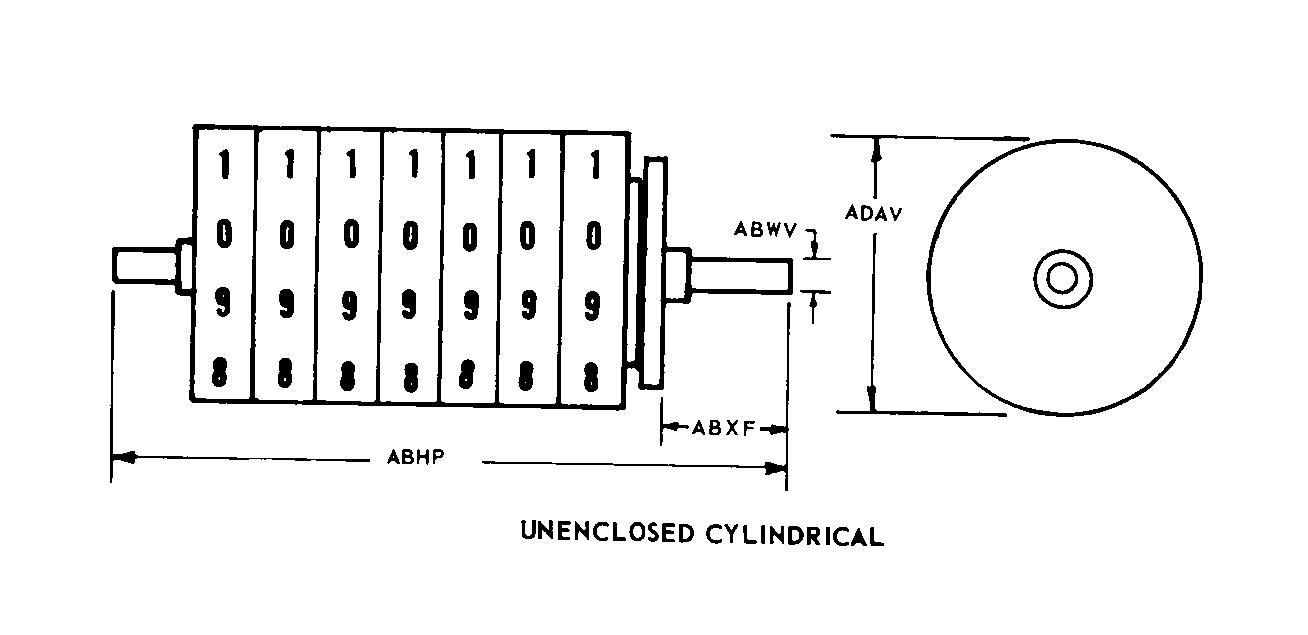

| STYLE DESIGNATOR | B1 UNENCLOSED CYLINDRICAL |
| OVERALL LENGTH | 1.083 INCHES NOMINAL |
| SHAFT DIAMETER | 0.199 INCHES NOMINAL |
| SHAFT LENGTH | 0.254 INCHES NOMINAL |
| OVERALL DIAMETER | 0.672 INCHES NOMINAL |
| REGISTER QUANTITY | 1 |
| REGISTER FUNCTION | ADD SINGLE REGISTER SINGLE TIER |
| FIGURE QUANTITY PER REGISTER | 4 SINGLE REGISTER SINGLE TIER |
| FIGURE HEIGHT | 0.158 INCHES NOMINAL SINGLE REGISTER SINGLE TIER |
| COLOR | WHITE SINGLE REGISTER SINGLE TIER FIGURE BLACK SINGLE REGISTER SINGLE TIER FIGURE BACKGROUND |
| ACTUATING DEVICE LOCATION | LEFT SIDE SINGLE REGISTER SINGLE TIER |
| NUMERAL DISPLAY METHOD | DRUM |
| NUMERAL READOUT | 0000 MINIMUM AND 9999 MAXIMUM SINGLE REGISTER SINGLE TIER |
| SHAFT ROTATION DIRECTION AND MAXIMUM SPEED IN RPM | 500.0 CLOCKWISE AND 500.0 COUNTERCLOCKWISE SINGLE REGISTER SINGLE TIER |
| SHAFT REVOLUTIONS PER COUNT | 0.10 SINGLE REGISTER SINGLE TIER |
| MAXIMUM COUNT RATE | 5000.0 PER MINUTE SINGLE REGISTER SINGLE TIER |
| MOUNTING TYPE FOR WHICH DESIGNED | PANEL SINGLE REGISTER SINGLE TIER |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 THREADED HOLE |
| MOUNTING ARRANGEMENT STYLE | A10 TWO POSITION VERTICAL |
| LONGEST VERTICAL DISTANCE BETWEEN MOUNTING CENTERS | 0.350 INCHES NOMINAL |
| SPECIAL FEATURES | NONRESETTABLE |
| III END ITEM IDENTIFICATION | T-45 SIMULATOR |
Restrictions/Controls & Freight Information | NSN 6680-00-097-0147
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 058240 | RECORDING DEVICES GAUGES/METERS NOI |
| Less than car load rating | ||
| Less than truck load rating | F | 150.0 |
| Water commodity Code | 653 | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | S | Office, School, and Household Supplies/Equipment including Office Machines, Furniture/Stationary, Films, Synthetic/Special Training Films, Non-Hazardous Household Cleaning Products, Non-Hazardous Personal Hygiene Products, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
