NSN 6680-00-080-8587 MS510718, MS51071-8, M102151B108

Product Details | FLEXIBLE SHAFT ASSEMBLY

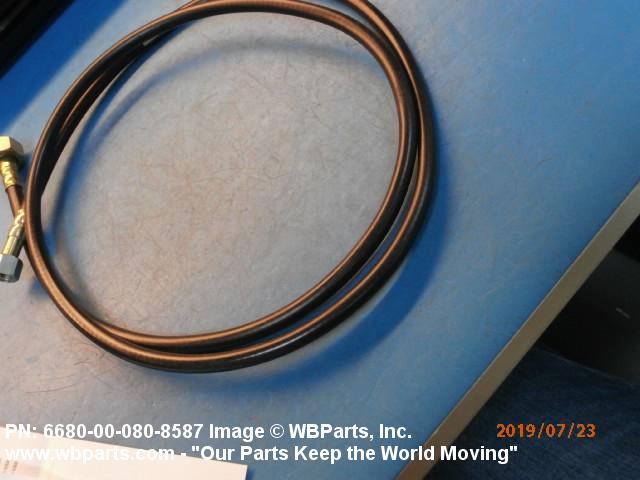

6680-00-080-8587 An item consisting of a casing with fittings and attachments on each end and a spirally wound wire core with formed end(s) and/or crimped on end fittings. It is designed to transmit rotary motion around bends from a motor or other power source to drive various types of equipment, such as tachometers, speedometers, remote controls, instruments, and the like, which are located at an angle and/or distance from the power source. See also CONTROL ASSEMBLY, PUSH-PULL.20316800049Miscellaneous Aircraft Accessories and Components30400042Miscellaneous Power Transmission Equipment66800078Liquid and Gas Flow, Liquid Level, and Mechanical Motion Measuring Instruments

Part Alternates: MS510718, MS51071-8, M102151B108, M10215-1B108, M102151F108, M10215-1F108, MILDSL10215K, MIL-DSL-10215K, MILDTL10215K, MIL-DTL-10215K, MILPRF10215J, MIL-PRF-10215J, 6680PL0895780 , 7418498, 6680-00-080-8587, 00-080-8587, 6680000808587, 6680005079979, 000808587

Instruments and Laboratory Equipment | Liquid and Gas Flow, Liquid Level, and Mechanical Motion Measuring Instruments

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
66	01 JAN 1963	00-080-8587	20315 ( SHAFT ASSEMBLY, FLEXIBLE )

Drawings & Photos | NSN 6680-00-080-8587

Part Number	Request Date	QTY	Origin
6680-00-080-8587	2024-10-281	20	UA
6680-00-080-8587	2024-08-228	10	United Arab Emirates
6680-00-080-8587	2024-07-199	1	PL
6680-00-080-8587	2023-10-288	292	DIBBS
6680-00-080-8587	2023-06-170	95	DIBBS
6680-00-080-8587	2022-06-173	162	DIBBS
6680-00-080-8587	2021-10-290	155	DIBBS
6680-00-080-8587	2021-10-280	155	DIBBS
6680-00-080-8587	2021-09-269	155	DIBBS
6680-00-080-8587	2021-02-46	155	DIBBS
6680-00-080-8587	2020-12-355	155	DIBBS
MILDTL10215K	2019-10-287	160	United States
6680-00-080-8587	2019-07-192	1	United States
6680-00-080-8587	2019-01-12	1	DIBBS-RFPs
6680-00-080-8587	2018-05-135	1	United States
6680-00-080-8587	2014-07-190	447	DIBBS
6680-00-080-8587	2013-07-185	130	DIBBS
6680-00-080-8587	2013-05-137	89	DIBBS
6680-00-080-8587	2013-05-129	89	DIBBS
6680-00-080-8587	2013-04-101	142	DIBBS
6680-00-080-8587	2013-03-64	106	DIBBS
6680-00-080-8587	2012-10-288	79	DIBBS
6680-00-080-8587	2011-04-106	950	Turkey
6680-00-080-8587	2009-07-203	8	Belgium

Cross Reference | NSN 6680-00-080-8587

Part Number	Cage Code	Manufacturer
6680000808587	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
6680005079979	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
6680PL0895780	9009H	INSPEKTORAT WSPARCIA SIL ZBROJNYCH
7418498	19207	U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM
M10215-1B108	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
M10215-1F108	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MIL-DSL-10215K	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-DTL-10215K	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-PRF-10215J	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS51071-8	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 6680-00-080-8587

Compare

Related Products | NSN 6680-00-080-8587

6680-00-080-8837, 6680-00-081-0016, 6680-00-081-2042, 6680-00-081-2916, 6680-00-081-5076

Technical Data | NSN 6680-00-080-8587

Characteristic	Specifications
CASING MATERIAL	RUBBER AND STEEL
CASING SURFACE TREATMENT	ANY ACCEPTABLE
CASING LENGTH BETWEEN FERRULES	72.500 INCHES NOMINAL
CASING OUTSIDE DIAMETER	0.300 INCHES MINIMUM AND 0.500 INCHES MAXIMUM
CASING PROTECTIVE DEVICE TYPE	PLASTIC COVER OR RUBBER COVER
END CONNECTION TYPE	THREADED INTERNAL BOTH ENDS
THREAD LOCATION	INTERNAL BOTH ENDS
SCREW THREAD SERIES DESIGNATOR	UNS FIRST END UNF SECOND END
THREAD DIRECTION	RIGHT-HAND BOTH ENDS
THREAD CLASS	2B FIRST END 2B SECOND END
THREAD DEPTH	0.327 INCHES NOMINAL FIRST END 0.375 INCHES NOMINAL SECOND END
END OVERALL DIAMETER	1.188 INCHES NOMINAL FIRST END 0.875 INCHES NOMINAL SECOND END
SWIVEL END	NOT PROVIDED BOTH ENDS
WRENCHING FACILITY TYPE	HEXAGON BOTH ENDS

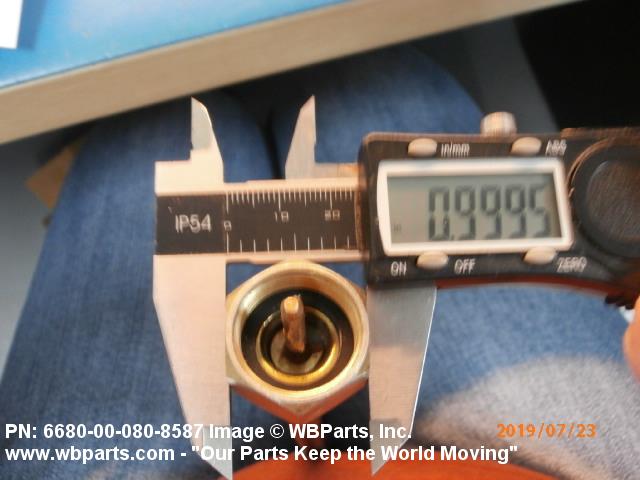

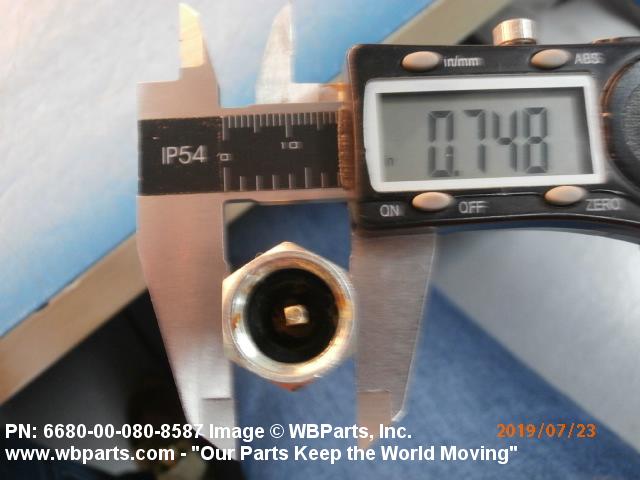

WIDTH ACROSS FLATS	1.000 INCHES NOMINAL FIRST END 0.750 INCHES NOMINAL SECOND END
LUBRICATION FITTING	NOT PROVIDED BOTH ENDS
CORE MATERIAL	STEEL
CORE SURFACE TREATMENT	CADMIUM PLATED
CORE OVERALL LENGTH	73.8125 INCHES NOMINAL
CORE DIAMETER	0.150 INCHES NOMINAL
CORE ROTATION DIRECTION	CLOCKWISE

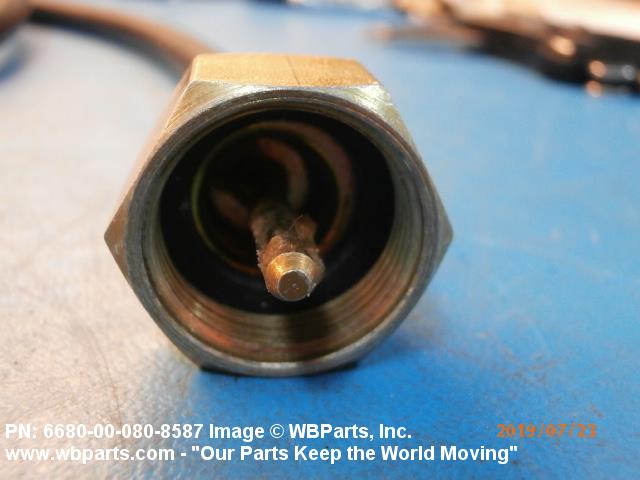

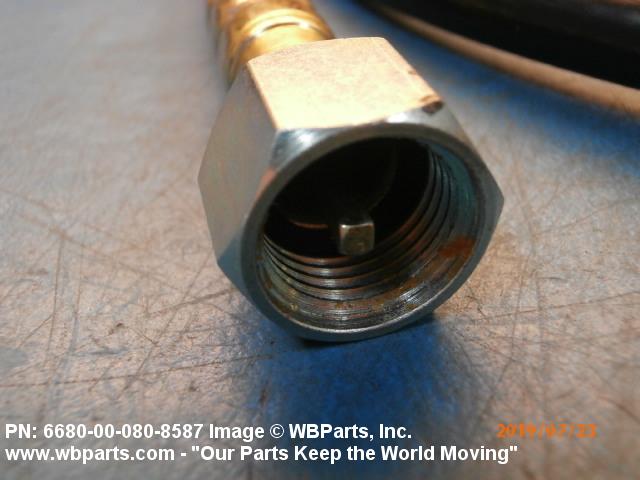

END TYPE	ROUND KEYED FIRST END SQUARE MALE SECOND END
TIP LENGTH	1.018 INCHES MINIMUM AND 1.022 INCHES MAXIMUM FIRST END 0.950 INCHES MINIMUM AND 1.010 INCHES MAXIMUM SECOND END
CROSS SECTION SIZE AND LOCATION	0.153 INCHES NOMINAL DIAMETER FIRST END 0.104 INCHES NOMINAL ACROSS FLATS SECOND END
SETSCREW	NOT INCLUDED BOTH ENDS
CORE REMOVABILITY	REMOVABLE
OVERALL LENGTH	73.8125 INCHES NOMINAL
SPECIAL FEATURES	COUNTERCLOCKWISE CORE ROTATION DIRECTION
III END ITEM IDENTIFICATION	CARRIER, PERS M-113A1, M-113A2, M-113A3; TACSATCOM, AN/TSC-85 AND AN/TSC-93
III FSC APPLICATION DATA	1. A. TACHOMETER
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-DSL-10215K
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	M10215-1F108
