NSN 6650-01-064-1372 SMD805769, SM-D-805769, 01-064-1372
Product Details | OPTICAL INSTRUMENT LENS
6650-01-064-1372 An unmounted, transparent, color free lens which may be treated with a low reflection coating to increase light transmission. Includes single and compound elements. For items having two plane parallel surfaces, see WINDOW, OPTICAL INSTRUMENT. Excludes RETICLE, OPTICAL INSTRUMENT.20258550055Night Vision Equipment, Emitted and Reflected Radiation66500063Optical Instruments, Test Equipment, Components and Accessories
Part Alternates: SMD805769, SM-D-805769, 6650-01-064-1372, 01-064-1372, 6650010641372, 010641372
Instruments and Laboratory Equipment | Optical Instruments, Test Equipment, Components and Accessories
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 18 AUG 1978 | 01-064-1372 | 21884 ( LENS, OPTICAL INSTRUMENT ) |
Drawings & Photos | NSN 6650-01-064-1372
Cross Reference | NSN 6650-01-064-1372
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| SM-D-805769 | 80063 | US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6650-01-064-1372
Technical Data | NSN 6650-01-064-1372
| Characteristic | Specifications |
|---|---|
| MATERIAL | GLASS, OPTICAL, MIL-G-174, CLASS 1 |

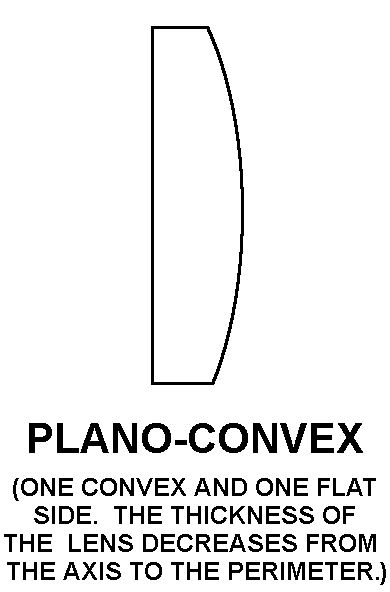

| SINGLE LENS STYLE | D2 PLANO-CONVEX |
| DIAMETER | 1.750 INCHES NOMINAL |
| AXIAL THICKNESS | 0.363 INCHES NOMINAL |
| SPECIAL FEATURES | MATERIAL USED IN THE MANUFACTURE OF THIS OPTICAL PART SHALL CONTAIN THORIUM,OTHER RADIOACTIVE MATERIAL,OR ANYCOMBINATION OF NUCLEAR MATERIAL IN EXCESS OF 0.05 PERCENT BY WEIGHT AS DEFINED BY THE TITLE 10,CODE OF FEDERAL REGULATIONS,PART 40 |
| MANUFACTURERS CODE | 80063 |
| DESIGN CONTROL REFERENCE | SM-D-805769 |
Restrictions/Controls & Freight Information | NSN 6650-01-064-1372
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 058110 | OPTICAL GOODS OR INSTRUMENTS NOI |
| Less than car load rating | ||
| Less than truck load rating | D | 200.0 |
| Water commodity Code | 744 | unknown |
| Originating Activity Code | CL | U.S. Army Communications-Electronics Fort Monmouth, NJ 07703-5006 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | 2 | Arms/Weapons (all types including Inert Component Parts). When a 2 is indicated in the first position, then the special handling code must be determined from table 85 , part 1. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
