NSN 6650-01-064-3277 8570831, 857083-1, 01-064-3277
Product Details | OPTICAL INSTRUMENT LENS
6650-01-064-3277 An unmounted, transparent, color free lens which may be treated with a low reflection coating to increase light transmission. Includes single and compound elements. For items having two plane parallel surfaces, see WINDOW, OPTICAL INSTRUMENT. Excludes RETICLE, OPTICAL INSTRUMENT.20258550055Night Vision Equipment, Emitted and Reflected Radiation66500063Optical Instruments, Test Equipment, Components and Accessories
Part Alternates: 8570831, 857083-1, 6650-01-064-3277, 01-064-3277, 6650010643277, 010643277
Instruments and Laboratory Equipment | Optical Instruments, Test Equipment, Components and Accessories
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 22 AUG 1978 | 01-064-3277 | 21884 ( LENS, OPTICAL INSTRUMENT ) |
Drawings & Photos | NSN 6650-01-064-3277
Cross Reference | NSN 6650-01-064-3277
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 857083-1 | 96214 | RAYTHEON COMPANY DBA RAYTHEON |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6650-01-064-3277
Technical Data | NSN 6650-01-064-3277
| Characteristic | Specifications |
|---|---|

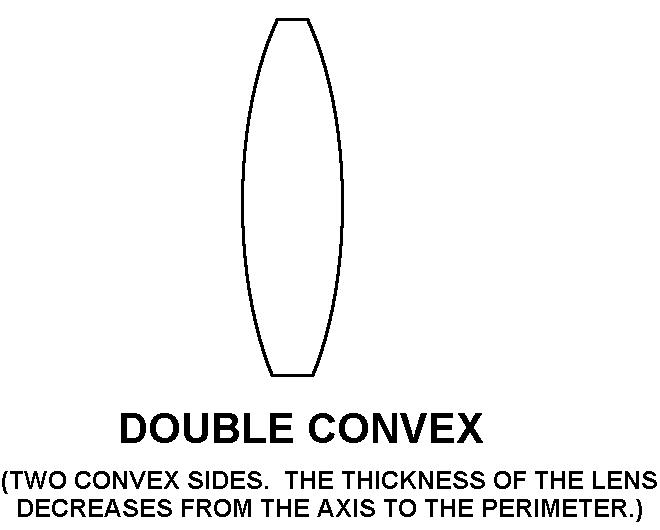

| SINGLE LENS STYLE | D1 DOUBLE CONVEX |
| DIAMETER | 1.700 INCHES NOMINAL |
| AXIAL THICKNESS | 0.179 INCHES NOMINAL |
| III FSC APPLICATION DATA | AFOCAL LENS ASSEMBLY,INFRARED |
| MANUFACTURERS CODE | 96214 |
| DESIGN CONTROL REFERENCE | 857083-1 |
Restrictions/Controls & Freight Information | NSN 6650-01-064-3277
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | Q | Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.” |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 057940 | LENSES OPTICAL NOI |
| Less than car load rating | W | Rating Variable |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 744 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | M | Medical supplies, equipment, samples records, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6650-01-064-3277
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Special Material ID | TA | ATTACKAIRCRAFT(A7E) |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
