NSN 6640-00-494-3923 MS362571, MS36257-1, 153232
Product Details | LABORATORY GLASSWARE ADAPTER
6640-00-494-3923 An item with standard tapered male and/or female joint(s) designed to adapt to various sizes of laboratory apparatus, such as flasks or condensers.
Part Alternates: MS362571, MS36257-1, 153232, 15-323-2, 5738HB2, 82360100, 82-3601-00, 8980, 898024, 8980-24, 6640-00-494-3923, 00-494-3923, 6640004943923, 004943923
Instruments and Laboratory Equipment | Laboratory Equipment and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 01 JAN 1963 | 00-494-3923 | 18247 ( ADAPTER, LABORATORY GLASSWARE ) |

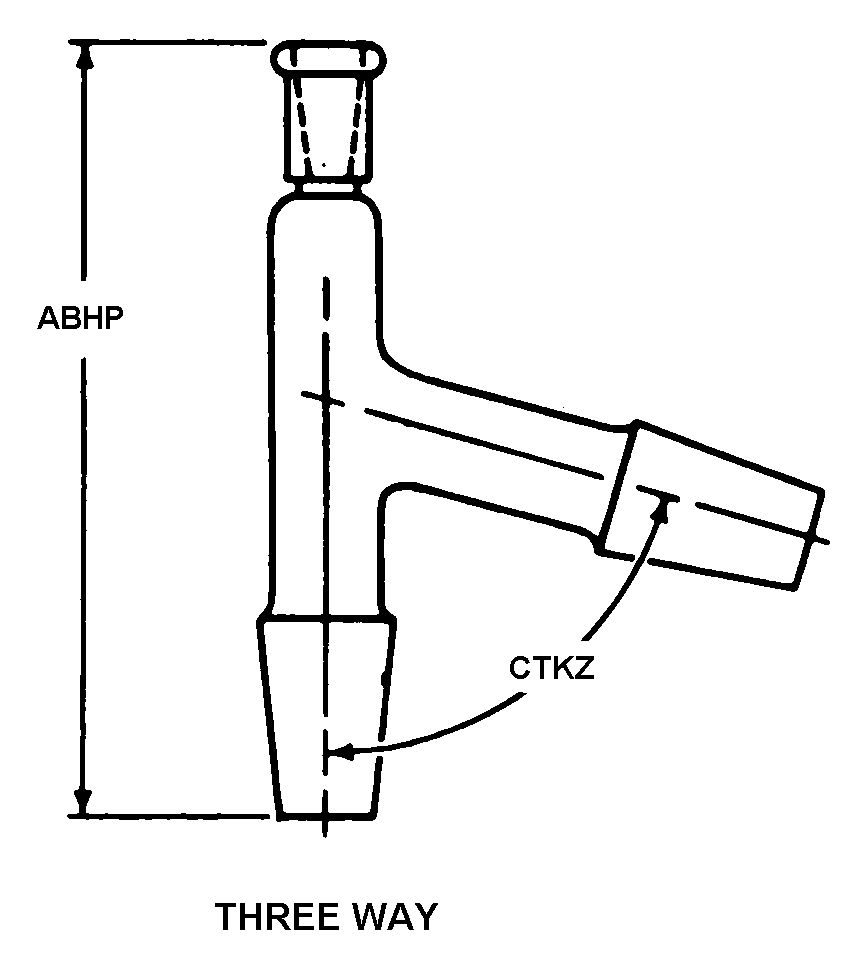

Drawings & Photos | NSN 6640-00-494-3923
Cross Reference | NSN 6640-00-494-3923
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 15-323-2 | 22527 | FISHER SCIENTIFIC COMPANY L.L.C. |
| 5738HB2 | 59728 | THOMAS, ARTHUR H CO (INC) |
| 82-3601-00 | 1AG17 | PGC SCIENTIFICS CORPORATION |
| 8980 | 14674 | CORNING GLASS WORKS |
| 8980-24 | 2D830 | CORNING INCORPORATED DBA CORNING |
| MS36257-1 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6640-00-494-3923
Related Products | NSN 6640-00-494-3923
Technical Data | NSN 6640-00-494-3923
| Characteristic | Specifications |
|---|---|
| MATERIAL | GLASS, FED DD-G-541, TYPE 1, CLASS A |
| STYLE DESIGNATOR | A4 THREE WAY |
| OVERALL LENGTH | 160.00 MILLIMETERS NOMINAL |
| ANGLE | 75.0 DEGREES |
| CLOSURE TYPE ACCOMMODATED AND SIZE DESIGNATION | 24/40 INNER MEMBER STANDARD TAPER AND 24/40 INNER MEMBER STANDARD TAPER AND 10/30 OUTER MEMBER STANDARD TAPER JOINT |
| PRIMARY CONTAINER TYPE | CASE |
| PRIMARY CONTAINER UNIT QUANTITY | 1 |
| SPECIAL FEATURES | THERMOMETER OPENING IN FORM OF OUTER JOINT |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS36257-1 |
Restrictions/Controls & Freight Information | NSN 6640-00-494-3923
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 6640-00-494-3923
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | C | Medical/Dental Materiel |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | L | LOCAL PURCHASE # (NON-STOCKED ITEMS) Defense Logistics Agency (DLA)/GSA/Service/Agency-managed items authorized for local purchase as normal means of support at base, post, camp or station level. Item not stocked in wholesale distribution system of IMM/Service/Agency ICP. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
