Product Details | TEST TUBE

6640-00-494-3934 A straight wall vessel with a flat or a round bottom for use in various laboratory procedures. It may have a side arm and a mouth designed to accommodate a stopper or a screw cap. Do not use if a more specific name is available.

Part Alternates: MS361901, MS36190-1, 9840, 6640-00-494-3934, 00-494-3934, 6640004943934, 004943934

Instruments and Laboratory Equipment | Laboratory Equipment and Supplies

Supply Group (FSG) NSN Assign. NIIN
66 01 JAN 1963 00-494-3934

Drawings & Photos | NSN 6640-00-494-3934


Cross Reference | NSN 6640-00-494-3934

Part Number Cage Code Manufacturer
9840 14674 CORNING GLASS WORKS
MS36190-1 96906 MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 6640-00-494-3934

Technical Data | NSN 6640-00-494-3934

Characteristic Specifications
MATERIAL GLASS, FED DD-G-541, TYPE 1, CLASS A

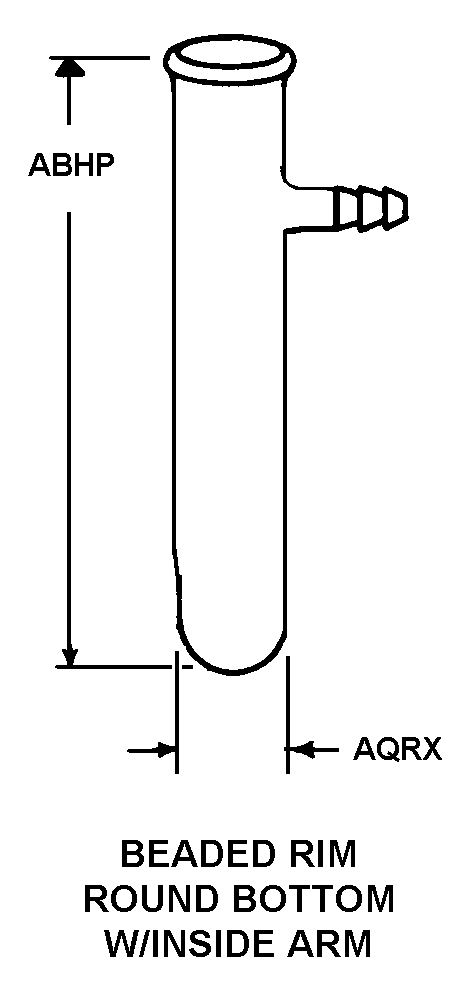

STYLE DESIGNATOR K5 BEADED RIM ROUND BOTTOM W/SIDE ARM
OVERALL LENGTH 150.00 MILLIMETERS NOMINAL
TUBING OUTSIDE DIAMETER 19.00 MILLIMETERS NOMINAL
CAPACITY RATING 30.000 MILLILITERS NOMINAL
UNIT PACKAGE TYPE BOX
MANUFACTURERS CODE 96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE MS36190-1

Restrictions/Controls & Freight Information | NSN 6640-00-494-3934

Category Code Description
Hazardous Material Indicator CodePThere is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
No Freight Information
