NSN 6625-01-520-6887 MG5437, 01-520-6887, 015206887
Product Details | MAGNETRON CURRENT METER
6625-01-520-6887 An item whose movement is actuated by the flow of electric current when inserted in an appropriate circuit. The scale is calibrated to indicate the magnitude of magnetron current flow but does not have units of electrical current such as amperes.
Part Alternates: MG5437, 6625-01-520-6887, 01-520-6887, 6625015206887, 015206887
Instruments and Laboratory Equipment | Electrical and Electronic Properties Measuring and Testing Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 21 MAY 2004 | 01-520-6887 | 16480 ( METER, MAGNETRON CURRENT ) |
Drawings & Photos | NSN 6625-01-520-6887
Cross Reference | NSN 6625-01-520-6887
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MG5437 | 6P860 | E2V INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6625-01-520-6887
Technical Data | NSN 6625-01-520-6887
| Characteristic | Specifications |
|---|---|
| FREQUENCY RATING | 9.410 KILOHERTZ NOMINAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 6 UNTHREADED HOLE |

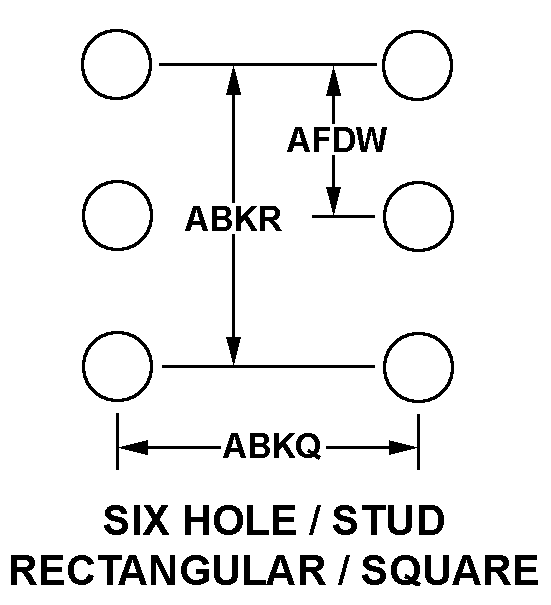

| MOUNTING ARRANGEMENT STYLE | E4 SIX HOLE/STUD RECTANGULAR/SQUARE |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 31.0 MILLIMETERS NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH | 118.9 MILLIMETERS NOMINAL |
| SHORTEST VERTICAL DISTANCE BETWEEN MOUNTING CENTERS | 71.7 MILLIMETERS NOMINAL |
Restrictions/Controls & Freight Information | NSN 6625-01-520-6887
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
