Product Details | AUDIO LEVEL METER

6625-01-362-6398 An instrument which measures the ratio of electrical power with reference to a predetermined value and is calibrated in units of sound intensity, usually decibels. The value may be expressed by means of a pointer and calibrated dial or a digital readout display. If other than audio frequency ranges, see METER, NOISE LEVEL.

Part Alternates: 2235, 6625-01-362-6398, 01-362-6398, 6625013626398, 013626398

Instruments and Laboratory Equipment | Electrical and Electronic Properties Measuring and Testing Instruments

Supply Group (FSG) NSN Assign. NIIN
66 12 AUG 1992 01-362-6398

Drawings & Photos | NSN 6625-01-362-6398


Demand History | NSN 6625-01-362-6398

Part Number Request Date QTY Origin
2235 2008-06-176 12 US
2235 2008-06-176 12 US

Cross Reference | NSN 6625-01-362-6398

Part Number Cage Code Manufacturer
2235 27591 B-K MEDICAL SYSTEMS, INC.

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 6625-01-362-6398

Technical Data | NSN 6625-01-362-6398

Characteristic Specifications
INSTALLATION DESIGN HAND HELD
(NON-CORE DATA) CIRCUIT CONSTRUCTION TYPE ELECTRONIC, SOLID STATE
INDICATOR TYPE DIGITAL DISPLAY
DISPLAY TYPE LIGHT EMITTING DIODE
DISPLAY DIGIT QUANTITY 4
MEASUREMENT RANGE 25.0 TO 140.0 DECIBELS SINGLE INDICATOR SINGLE RANGE
ACCURACY RATING 1/1 AND 1/3 OCTAVE ANALYSIS SINGLE INDICATOR SINGLE RANGE
DISPLAY COLOR BLACK SINGLE INDICATOR SINGLE RANGE
BACKGROUND COLOR GRAY SINGLE INDICATOR SINGLE RANGE
CIRCUIT ATTACHMENT METHOD AND QUANTITY 1 PROBE
POWER SOURCE INTERNAL
CIRCUIT CURRENT FOR WHICH DESIGNED DC
PHASE SINGLE

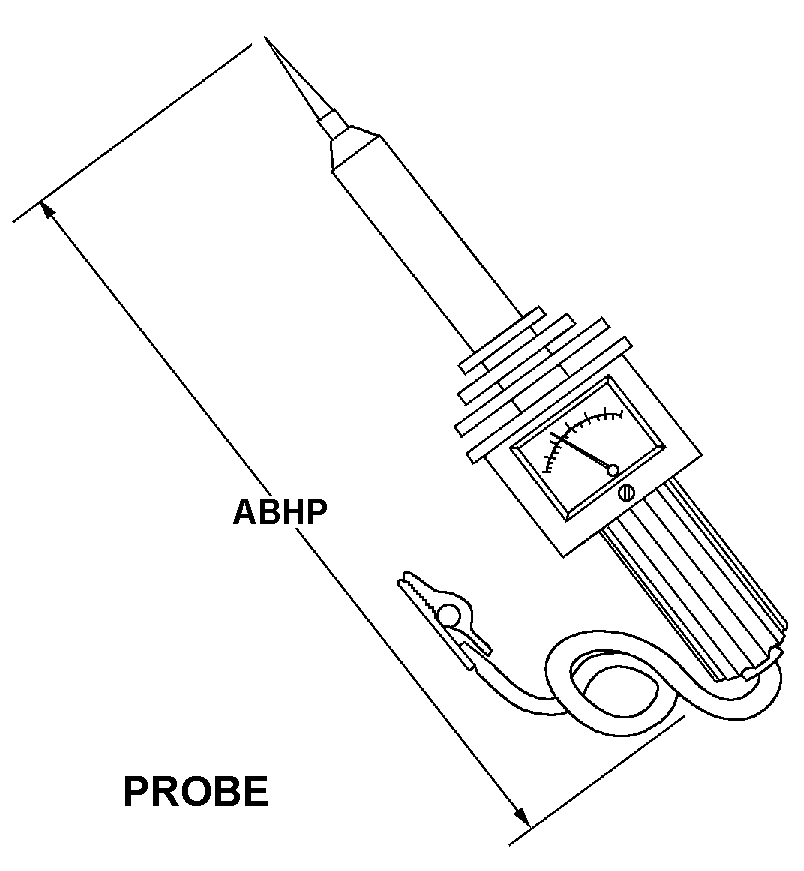

STYLE DESIGNATOR D9 PROBE
OVERALL LENGTH 15.600 INCHES NOMINAL
NUCLEAR HARDNESS CRITICAL FEATURE NONHARDENED
FURNISHED ITEMS AND QUANTITY WINDSCREEN UA0237
III UNIT OF ISSUE WEIGHT 1.90 POUNDS
III FUNCTIONAL DESCRIPTION MEASURES CONTINUOUS,IMPULSIVE,AND NOISE EVENTS

Restrictions/Controls & Freight Information | NSN 6625-01-362-6398

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodePThere is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:QStrategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.”
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:0Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)
Category Code Description
NMF Description 058240 RECORDING DEVICES GAUGES/METERS NOI
Less than car load rating F 150
Less than truck load rating F 150.0
Water commodity Code 657 unknown
Originating Activity Code SE San Antonio Air Logistics Center
Kelly AFB, TX 78241-5000
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable
