NSN 6625-01-119-7023 T477W, T477WC15292, 01-119-7023
Product Details | OHMMETER
6625-01-119-7023 An instrument which measures electrical resistance and is calibrated in ohms or any multiple and/or submultiples thereof. The value may be expressed by means of a pointer and calibrated dial or a digital readout display. See also TEST SET, INSULATION BBEAKDOWN.
Part Alternates: T477W, T477WC15292, 6625-01-119-7023, 01-119-7023, 6625011197023, 011197023
Instruments and Laboratory Equipment | Electrical and Electronic Properties Measuring and Testing Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 30 SEP 1981 | 01-119-7023 | 00494 ( OHMMETER ) |

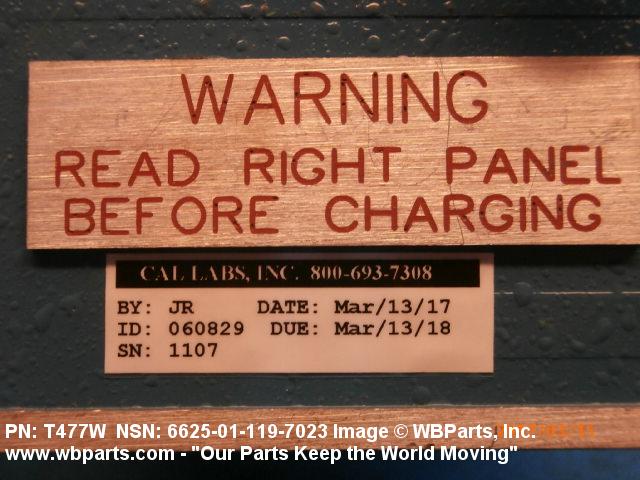

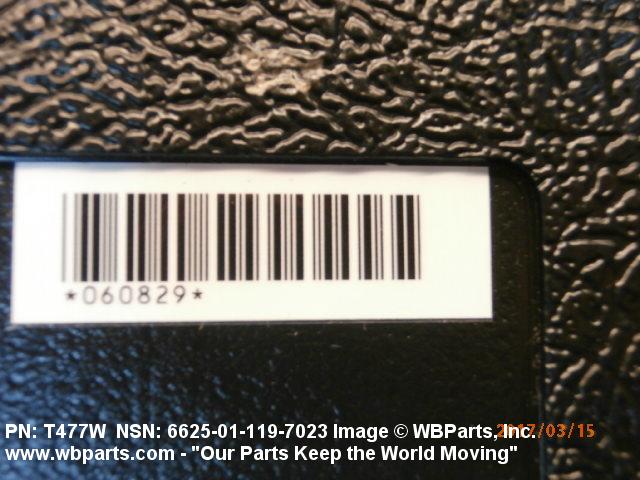

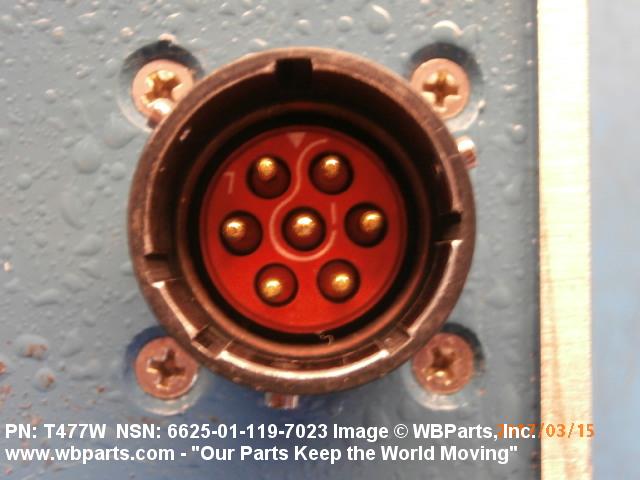

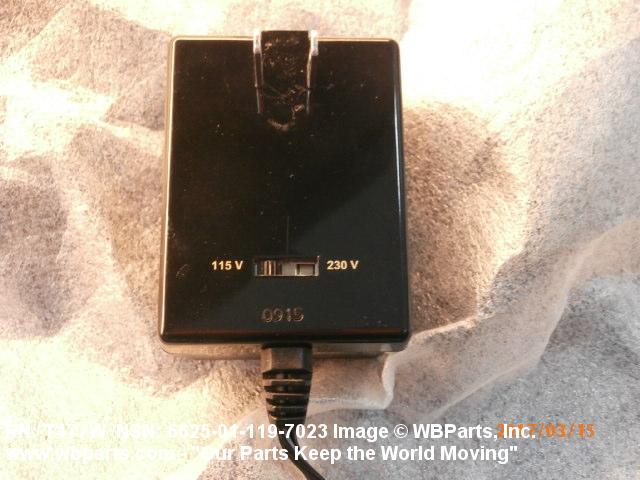

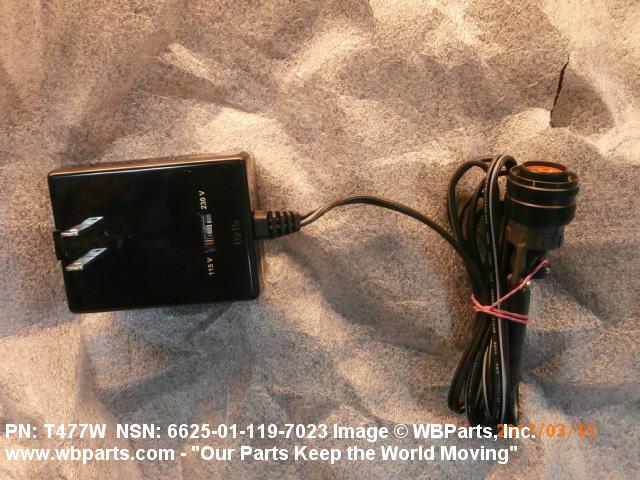

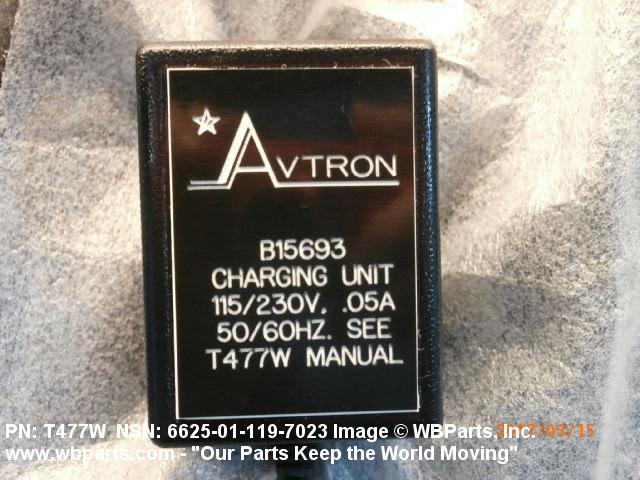

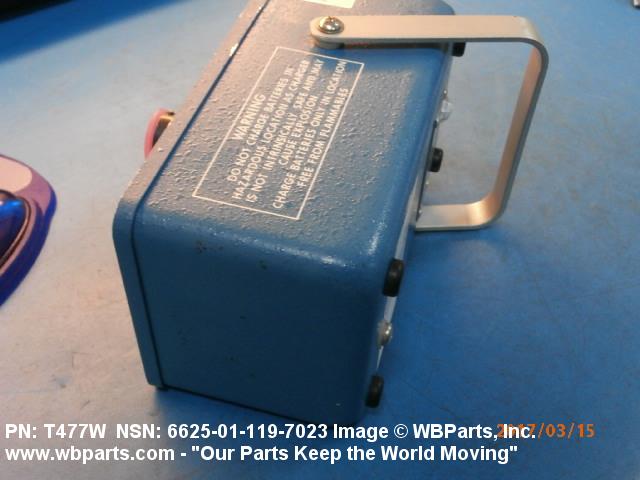

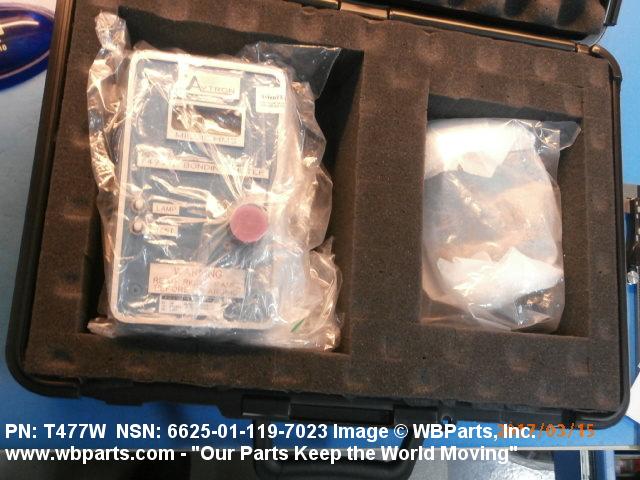

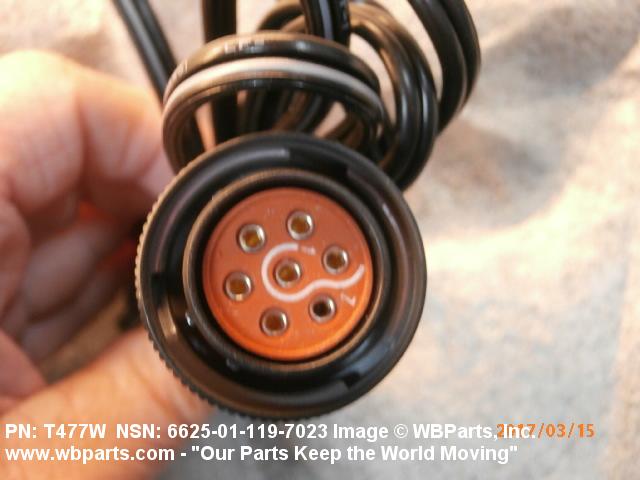

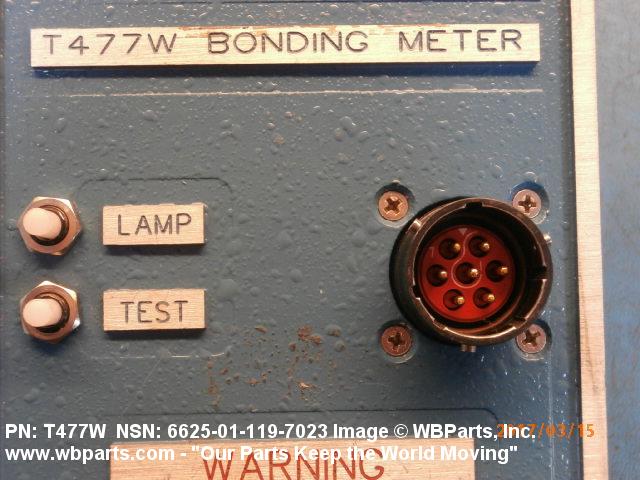

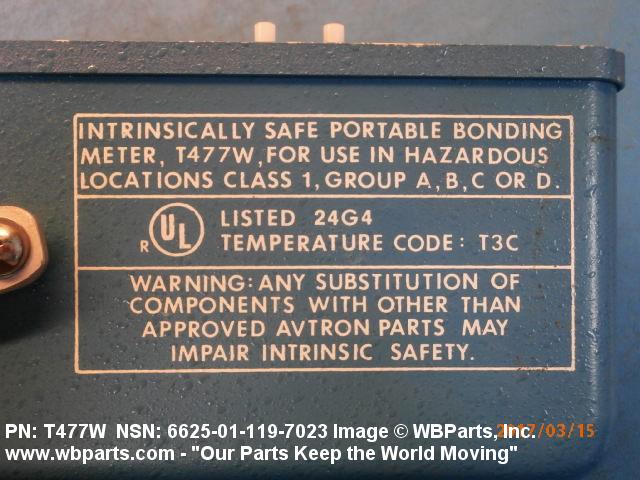

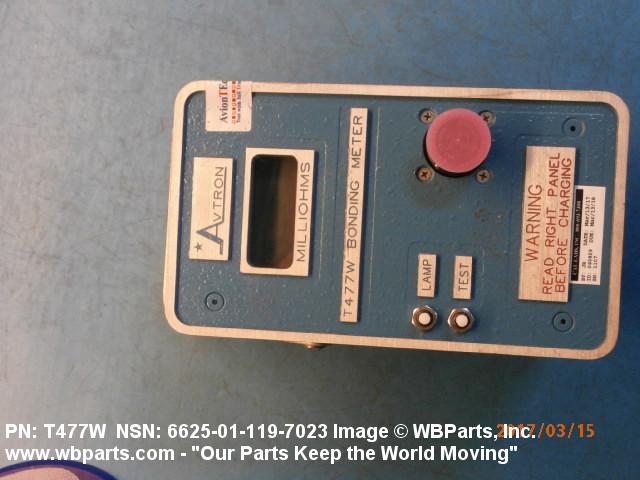

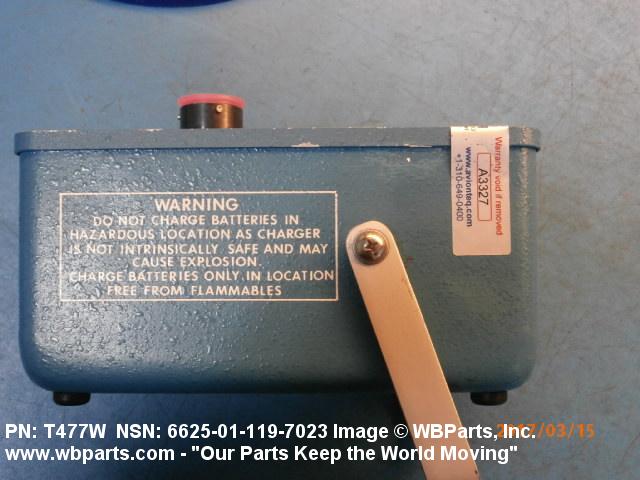

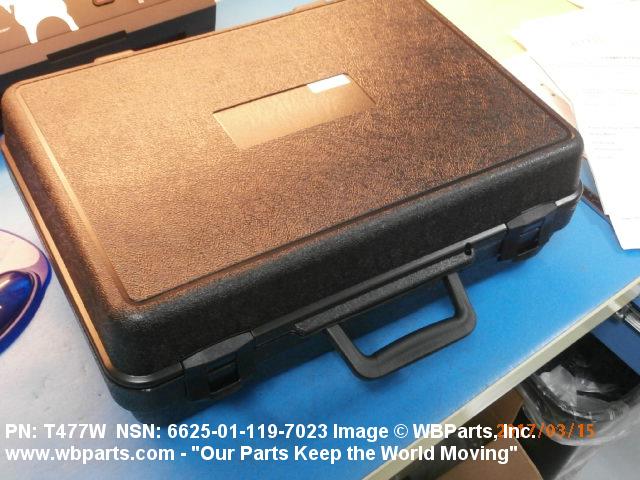

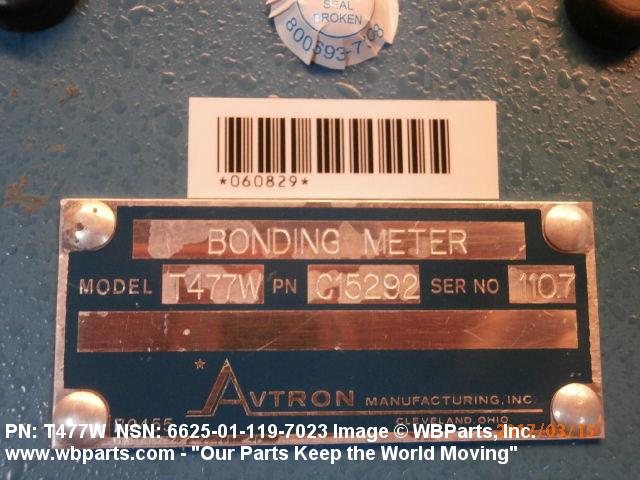

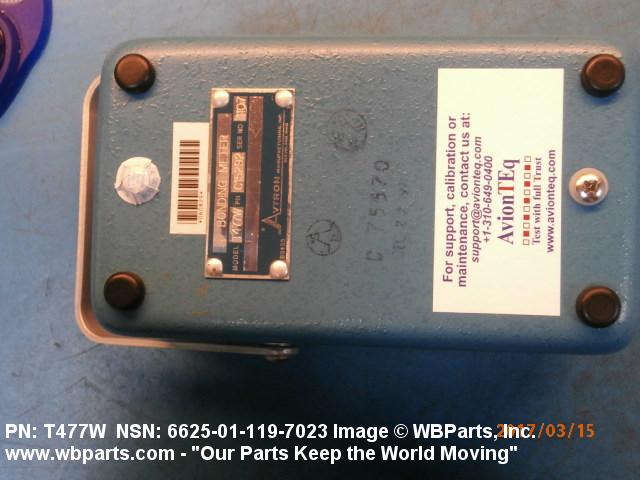

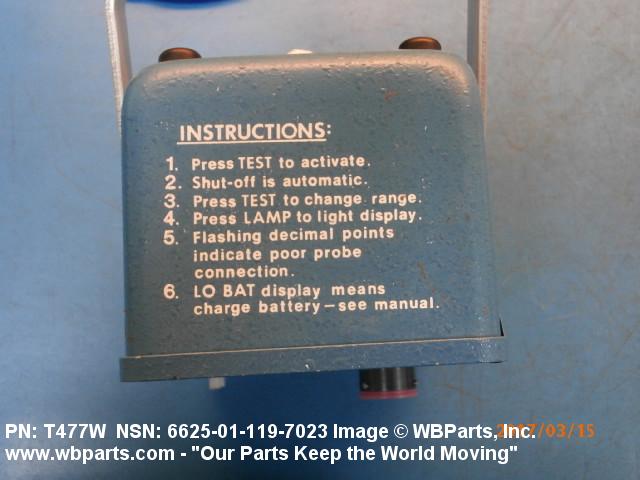

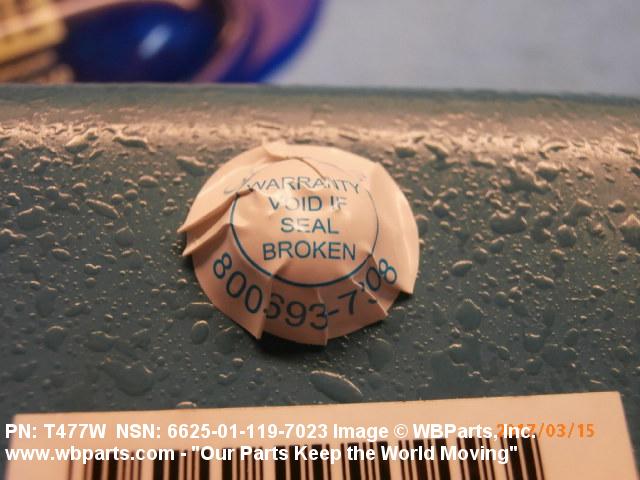

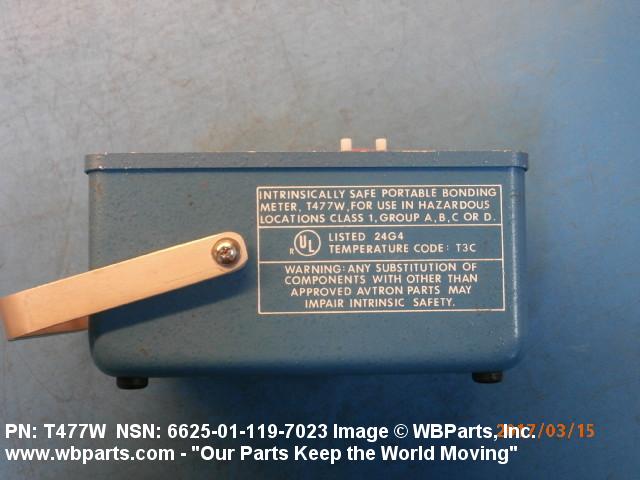

Drawings & Photos | NSN 6625-01-119-7023
Demand History | NSN 6625-01-119-7023
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6625-01-119-7023 | 2023-11-332 | 1 | United Arab Emirates |
| 6625-01-119-7023 | 2023-08-234 | 1 | United States |
| 6625-01-119-7023 | 2022-06-181 | 2 | United States |
| 6625-01-119-7023 | 2019-07-211 | 1 | United States |
| 6625-01-119-7023 | 2019-04-94 | 1 | AU |
| T477WC15292 | 2019-02-43 | 1 | United States |
| 6625-01-119-7023 | 2018-08-236 | 1 | US |
| 6625-01-119-7023 | 2018-03-64 | 1 | US |
| 6625-01-119-7023 | 2017-01-24 | 1 | United States |
| 6625-01-119-7023 | 2016-10-294 | 1 | US |
| 6625-01-119-7023 | 2016-07-187 | 1 | US |
| T477W | 2012-04-102 | 1 | KR |
| 6625-01-119-7023 | 2012-02-44 | 1 | US |
| 6625-01-119-7023 | 2011-09-259 | 1 | us |
| T477WC15292 | 2011-08-243 | 1 | LT |
| 6625-01-119-7023 | 2011-03-77 | 1 | MA |
| 6625-01-119-7023 | 2010-10-294 | 1 | US |
| 6625-01-119-7023 | 2010-10-292 | 1 | Netherlands |
| 6625-01-119-7023 | 2010-08-224 | 1 | US |
| 6625-01-119-7023 | 2009-11-316 | 1 | IE |
| 6625-01-119-7023 | 2009-09-251 | 1 | Bulgaria |
| T477W | 2009-08-219 | 1 | India |
| 6625-01-119-7023 | 2008-10-282 | 1 | Canada |
| 6625-01-119-7023 | 2008-09-266 | 1 | Czech Republic |
| 6625-01-119-7023 | 2008-04-114 | 1 | US |
| 6625-01-119-7023 | 2008-02-38 | 1 | US |
| 6625-01-119-7023 | 2007-08-229 | 1 | Singapore |
| 6625-01-119-7023 | 2007-02-59 | 1 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6625-01-119-7023
Related Products | NSN 6625-01-119-7023
Technical Data | NSN 6625-01-119-7023
| Characteristic | Specifications |
|---|---|
| FEATURES PROVIDED | PORTABLE |
| SPECIAL FEATURES | MANUFACTURER NAME: BONDING METER; MEASURES RESISTANCES SMALLER THA N 2.0 OHMS SUCH AS FOUND IN ELECTRICAL BONDS; RANGES: 2, 20, 200, AND 2000 MILLIOHMS FULL SCALE; ACCURACY +/-1PCT OF READING +/-5 DIGITS |
| MANUFACTURERS CODE | 01014 |
| DESIGN CONTROL REFERENCE | T477WC15292 |
Restrictions/Controls & Freight Information | NSN 6625-01-119-7023
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061700 | ELEC APPLIANCES/INSTRUMENTS NOI |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | A | 400.0 |
| Water commodity Code | 732 | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Q | Extremely fragile items including delicate instruments. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6625-01-119-7023
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Management Aggregation Code | RH | TG:AUTO TEST EQUIPMENT/AUTO TEST SYSTEMS (ATE/ATS) (FSC RESIDUAL MMAC) |
| Price Validation | V | The current standard price has been validated.
|
| Budget Code | Y | variousO & M:AF centrally procured equipment items. They are separate, primary end items (other than the weapon system itself) needed by a user to perform an assigned mission. They are nonexpendable items (ERRCD NF or ND) which are not consumed in use, and they do not lose their original identity during periods of use by incorporation into, or attachment to another assembly. |
| Source of Supply | FLZ | Warner Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Agency | DF | Department of the Air Force |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | S | AF Equipment Management System (AFEMS) |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 2V | Aeronautical ground support equipment and targets/drones Naval Air Systems Command |
| Issue Repair, or Requisition | XH | Submit/refer requisitions to Naval Air Systems Command for 2Q Cog selected shipboard and air stationed electronics equipment. |
| Special Material Content | 2 | Electrostatic Discharge (ESD)/Electromagnetic (EM) Sensitive Item |
| Source of Supply | N21 | Naval Air Systems Command Washington, D.C. 20360 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | X | Special Program Reparables |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
