NSN 6625-00-879-3976 20007201, 200-07201, 00-879-3976
Product Details | OHMMETER
6625-00-879-3976 An instrument which measures electrical resistance and is calibrated in ohms or any multiple and/or submultiples thereof. The value may be expressed by means of a pointer and calibrated dial or a digital readout display. See also TEST SET, INSULATION BBEAKDOWN.
Part Alternates: 20007201, 200-07201, 6625-00-879-3976, 00-879-3976, 6625008793976, 008793976
Instruments and Laboratory Equipment | Electrical and Electronic Properties Measuring and Testing Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 01 JAN 1962 | 00-879-3976 | 00494 ( OHMMETER ) |

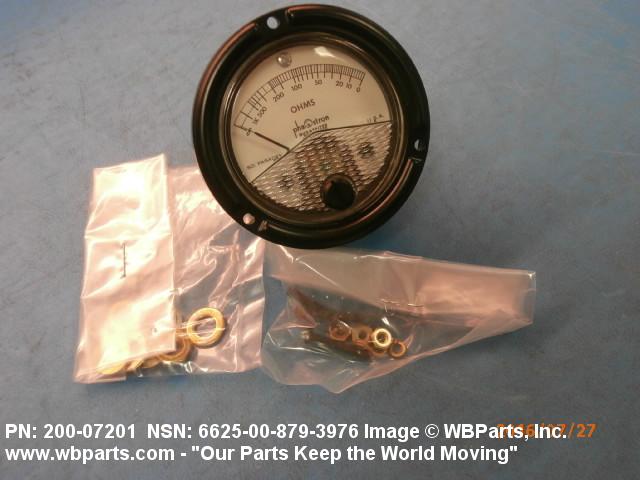

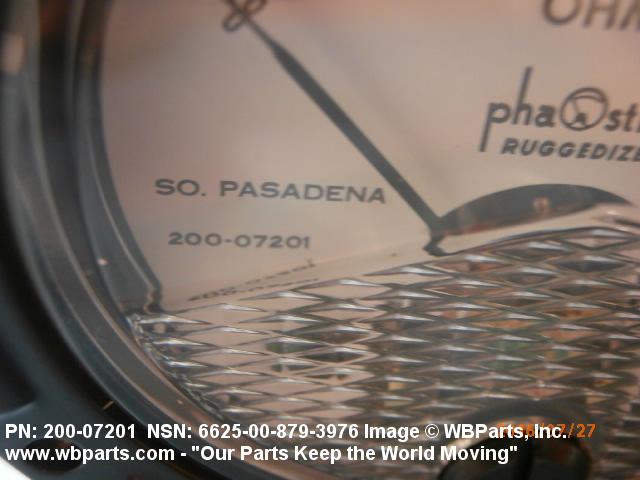

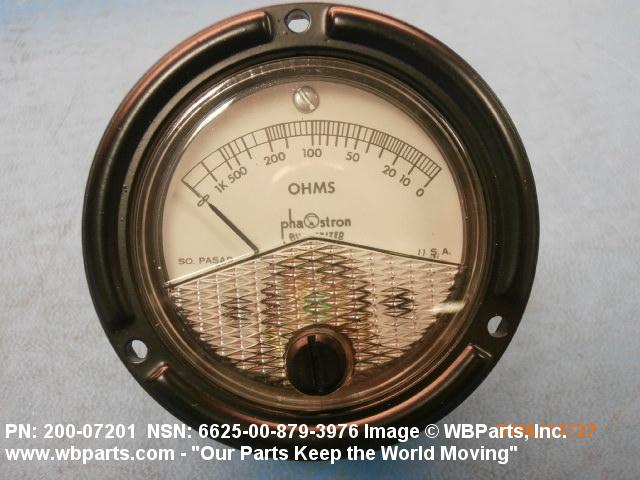

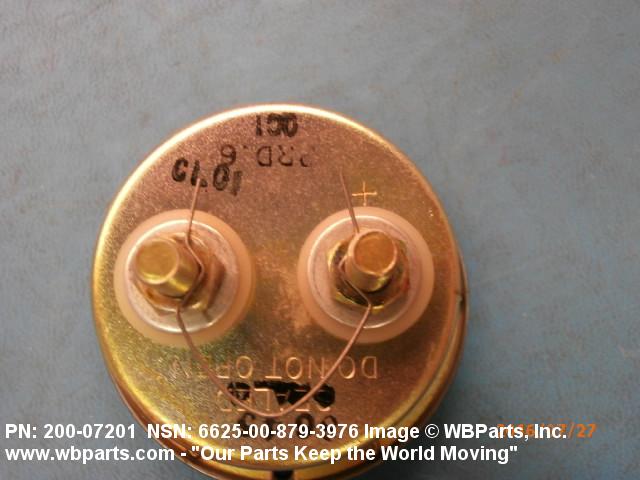

Drawings & Photos | NSN 6625-00-879-3976
Demand History | NSN 6625-00-879-3976
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 200-07201 | 2020-10-294 | 3 | DIBBS |
| 200-07201 | 2020-06-156 | 3 | DIBBS |
| 20007201 | 2016-07-203 | 1 | United States |
| 20007201 | 2016-07-200 | 1 | United States |
| 6625-00-879-3976 | 2016-07-200 | 1 | United States |
| 6625-00-879-3976 | 2016-07-197 | 1 | United States |
| 6625-00-879-3976 | 2011-04-91 | 3 | DIBBS |
| 6625-00-879-3976 | 2010-08-239 | 3 | DIBBS |
| 6625-00-879-3976 | 2009-01-23 | 2 | United States |
| 6625-00-879-3976 | 2008-09-253 | 5 | DIBBS |
Cross Reference | NSN 6625-00-879-3976
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 200-07201 | 77221 | PHAOSTRON INSTRUMENT AND ELECTRONIC COMPANY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6625-00-879-3976
Related Products | NSN 6625-00-879-3976
Technical Data | NSN 6625-00-879-3976
| Characteristic | Specifications |
|---|---|
| INSTALLATION DESIGN | PANEL |
| (NON-CORE DATA) PANEL FOR WHICH DESIGNED | MAGNETIC |
| (NON-CORE DATA) CIRCUIT CONSTRUCTION TYPE | NONELECTRONIC |

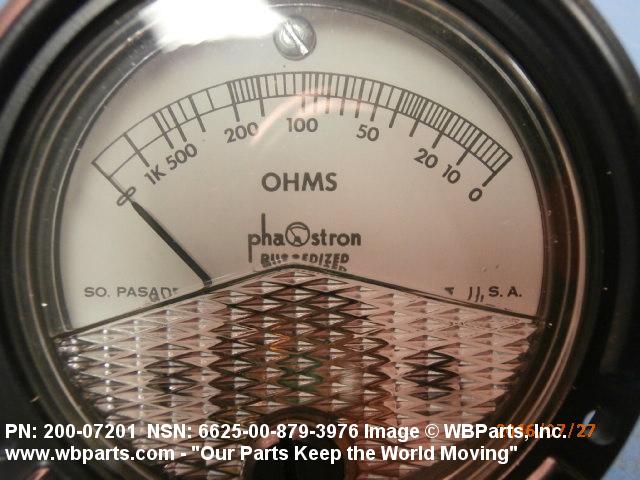

| INDICATOR TYPE | DIAL W/POINTER |

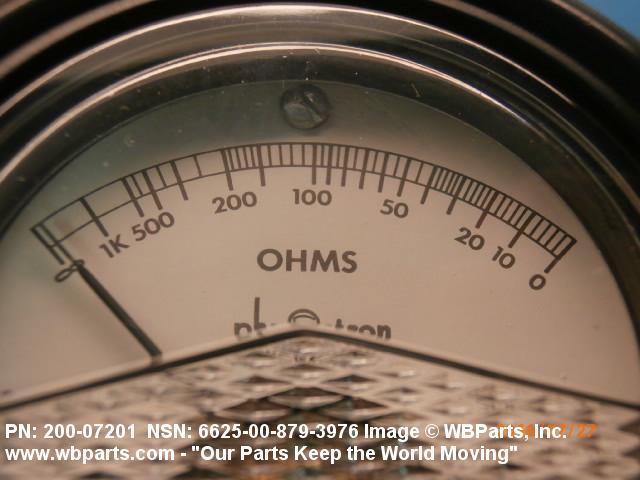

| MEASUREMENT RANGE | 0.0 TO 1000.0 OHMS SINGLE INDICATOR SINGLE RANGE |
| DIAL SCALE MARKING COLOR | BLACK SINGLE INDICATOR SINGLE RANGE |
| BACKGROUND COLOR | WHITE SINGLE INDICATOR SINGLE RANGE |
| MOVEMENT TYPE | MOVING COIL, PERMANENT MAGNET |
| STYLE DESIGNATOR | C1 ROUND FLUSH MTG |

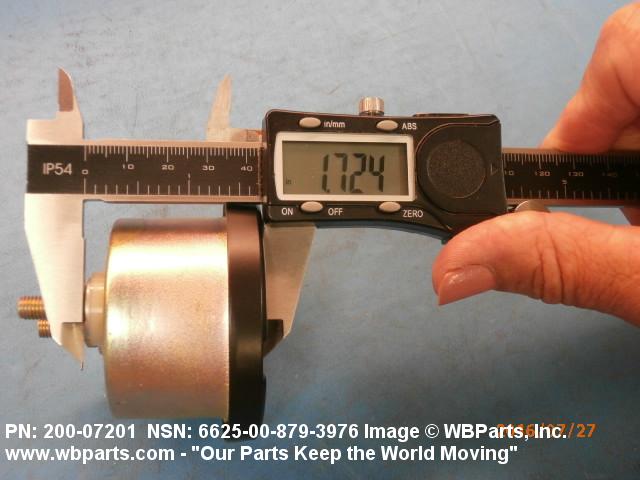

| METER BODY DIAMETER BEHIND MOUNTING FLANGE | 2.172 INCHES NOMINAL |

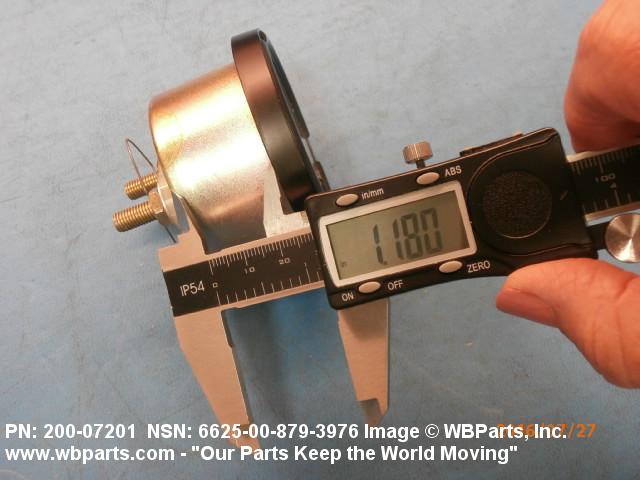

| METER DEPTH BEHIND MOUNTING FLANGE | 1.062 INCHES NOMINAL |

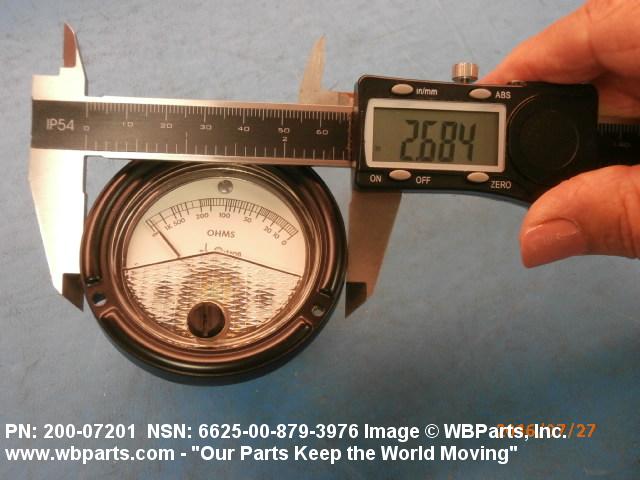

| OVERALL DIAMETER | 2.695 INCHES MAXIMUM |
| OVERALL LENGTH | 1.868 INCHES NOMINAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 3 UNTHREADED HOLE |

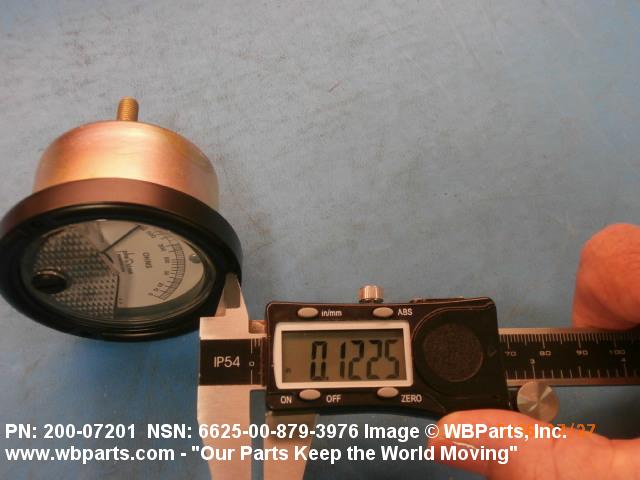

| MOUNTING HOLE DIAMETER | 0.125 INCHES NOMINAL |
| MOUNTING ARRANGEMENT STYLE | E5 THREE HOLE/STUD BOLT CIRCLE |

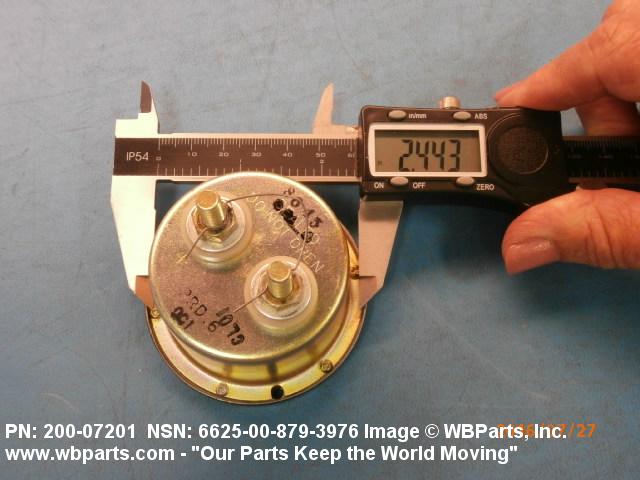

| MOUNTING BOLT CIRCLE DIAMETER | 2.440 INCHES NOMINAL |
| NUCLEAR HARDNESS CRITICAL FEATURE | NONHARDENED |
| FEATURES PROVIDED | MAGNETIC SHIELD AND ZERO ADJUSTER |
Restrictions/Controls & Freight Information | NSN 6625-00-879-3976
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 136740 | METERS ELEC/PARTS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 657 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6625-00-879-3976
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | TG | TG:AF SICA RESIDUAL MMAC-WR-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
