NSN 6625-00-943-2398 MILT4687, MD2A, 005518
Product Details | ELECTRONIC SYSTEMS TEST SET
6625-00-943-2398 A test set specifically designed for use in making examinations and providing discrete evaluations of the over-all performance of a system(s) or subsystem(s). Excludes TEST SET (1), ANTENNA SYSTEM; TEST SET (1), FIRE CONTROL SYSTEM; TEST SET (1), FLIGHT CONTROL SYSTEM; and TEST SET (1), TELEMETERING SYSTEM.20249200058Aircraft Maintenance and Repair Shop Specialized Equipment66250070Electrical and Electronic Properties Measuring and Testing Instruments
Part Alternates: MILT4687, MD2A, 005518, 6625-00-943-2398, 00-943-2398, 6625009432398, 009432398
Instruments and Laboratory Equipment | Electrical and Electronic Properties Measuring and Testing Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 21 DEC 1965 | 00-943-2398 | 61201 ( TEST SET, ELECTRONIC SYSTEMS ) |

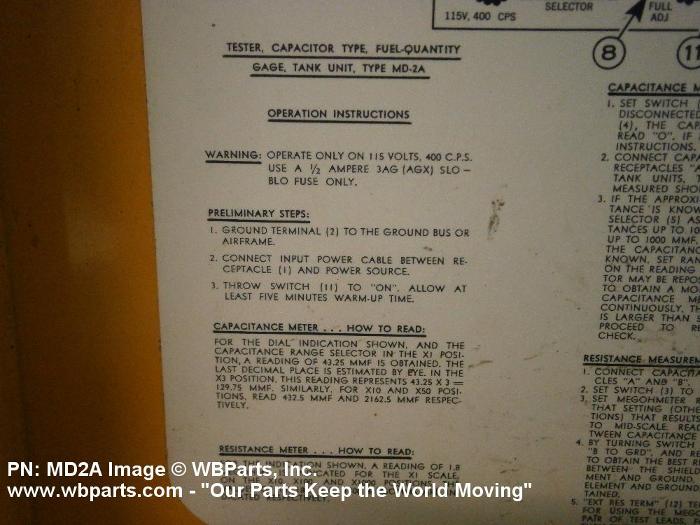

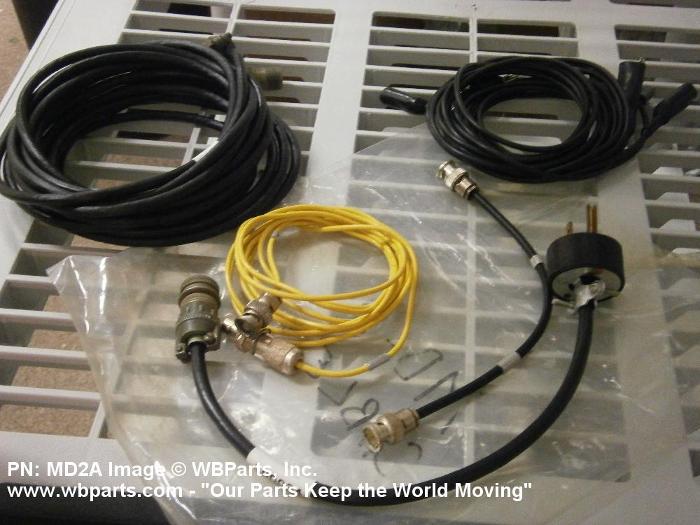

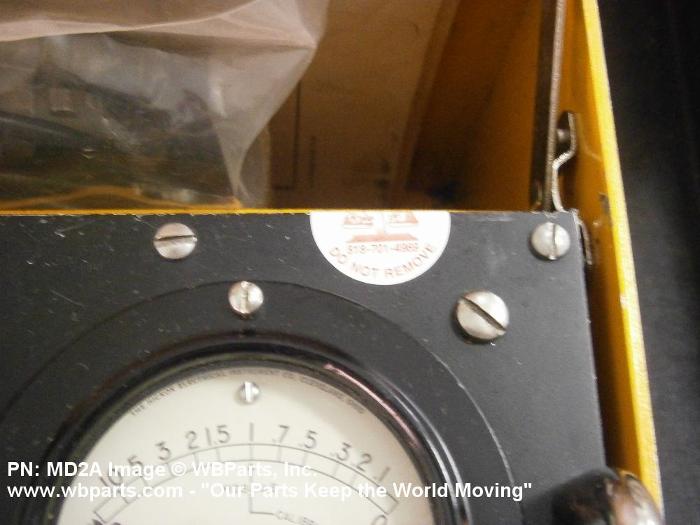

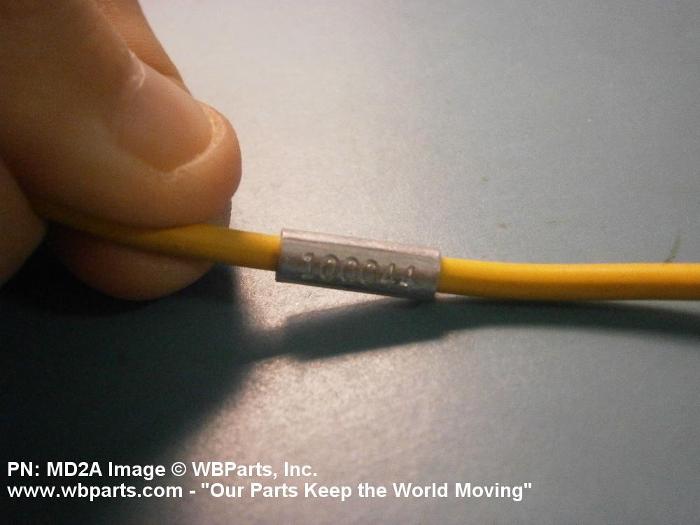

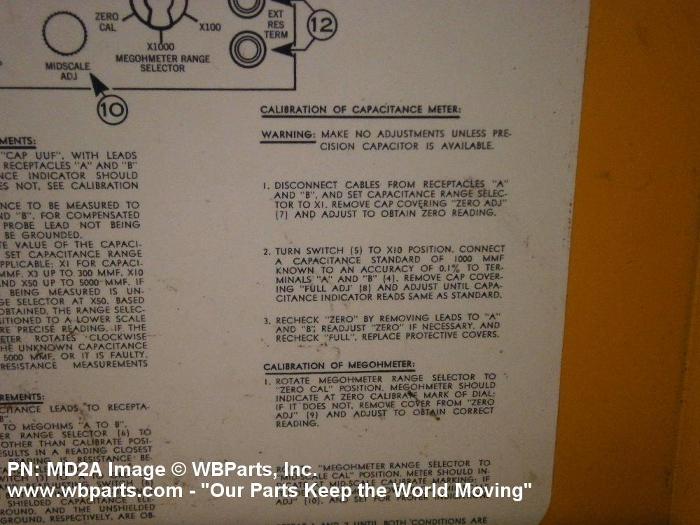

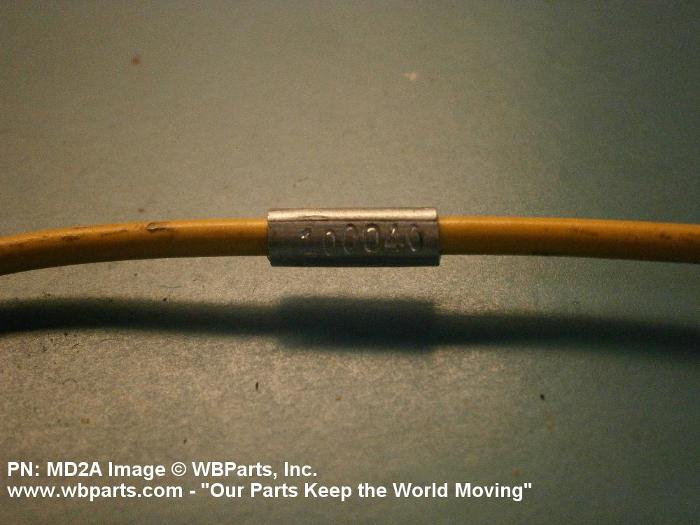

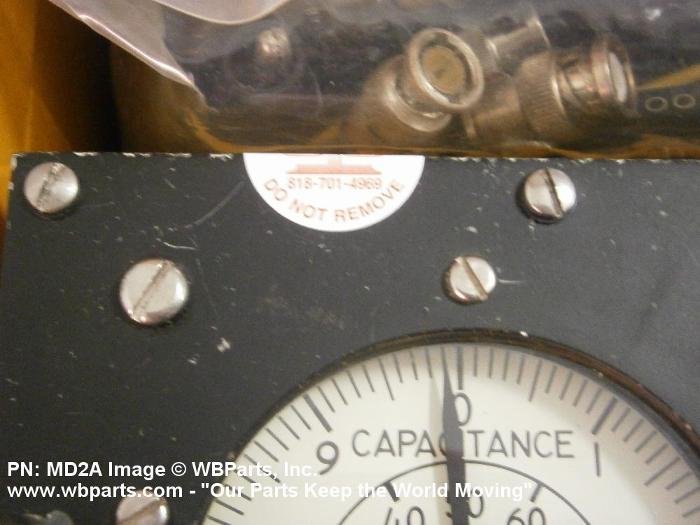

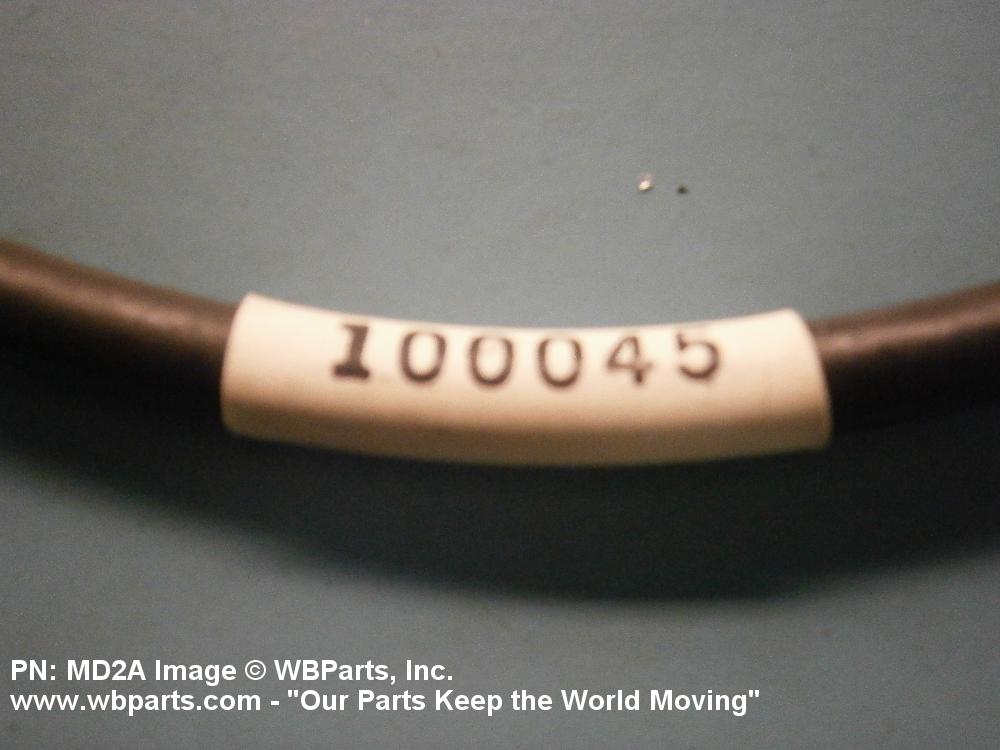

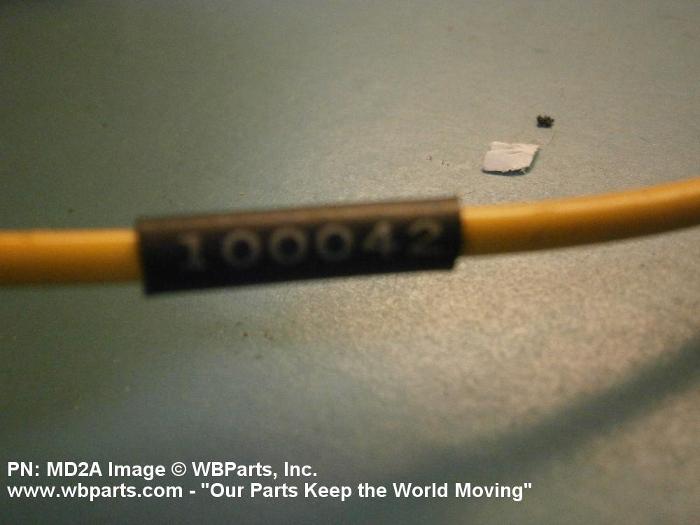

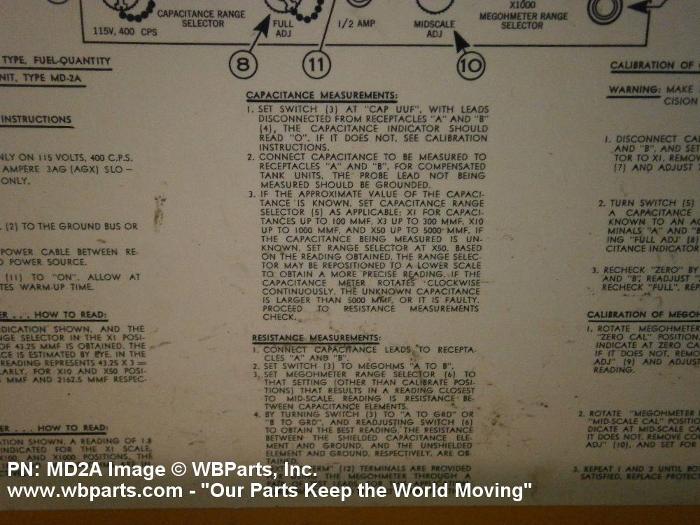

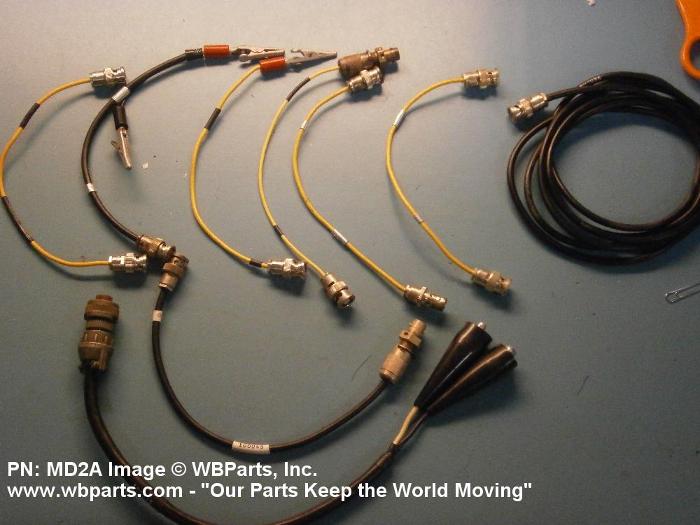

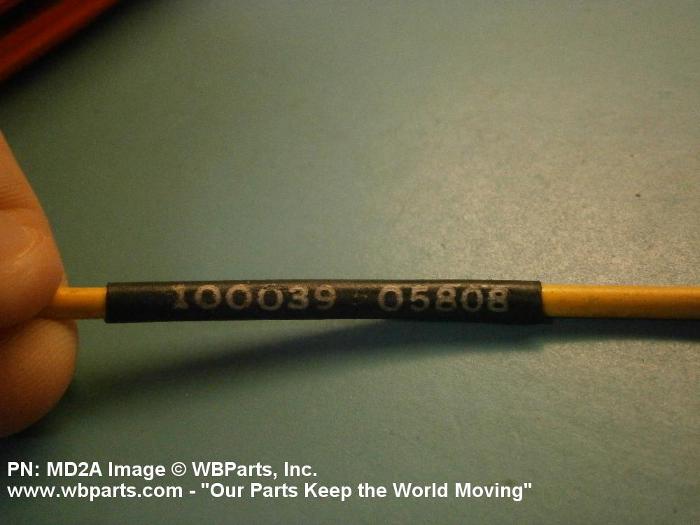

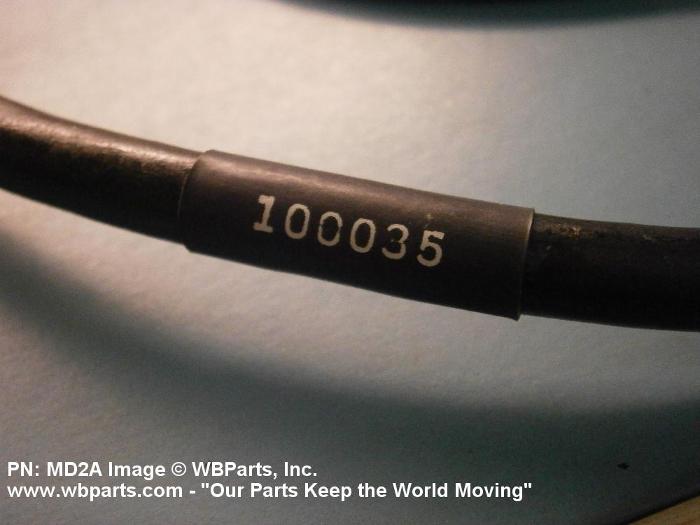

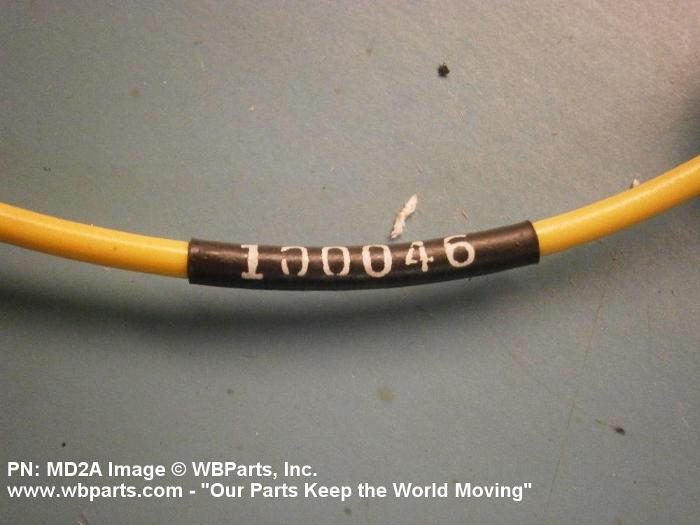

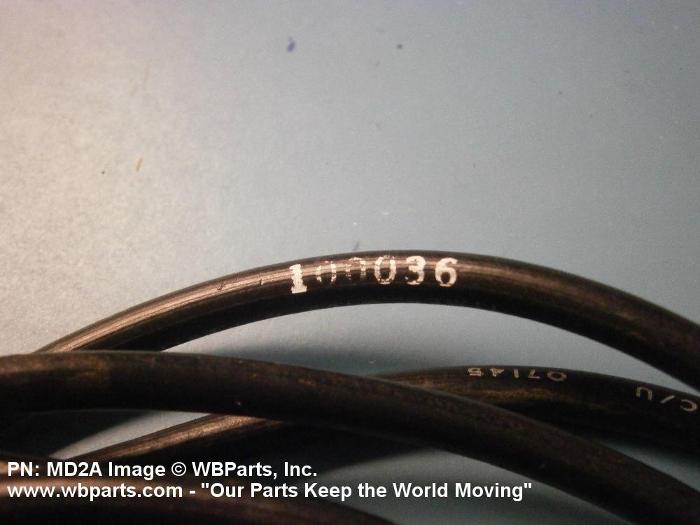

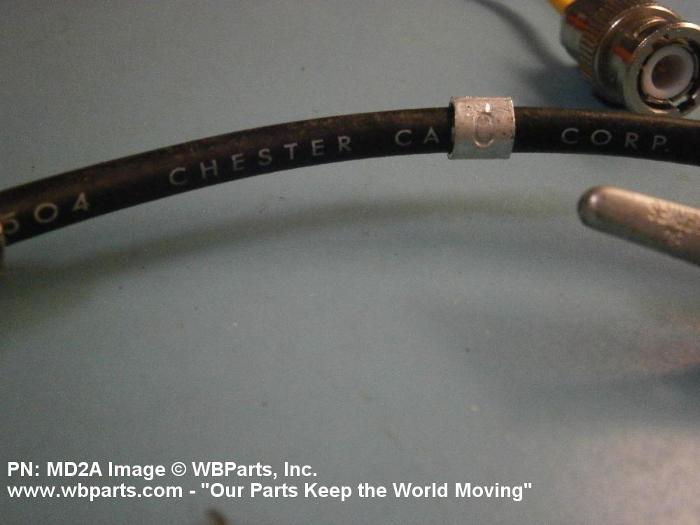

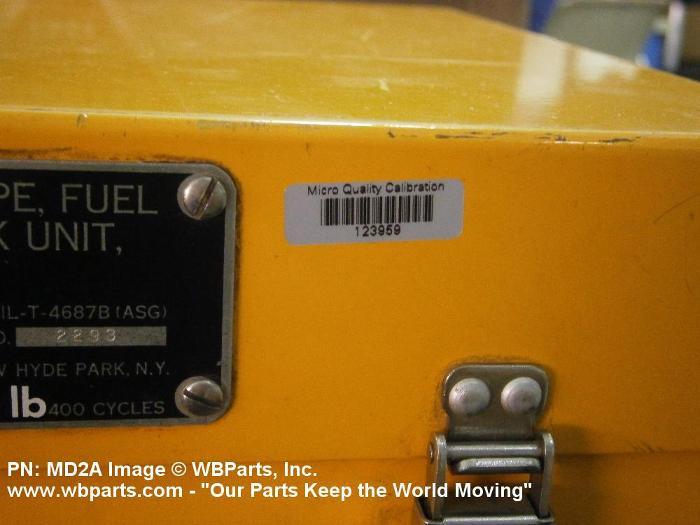

Drawings & Photos | NSN 6625-00-943-2398
Demand History | NSN 6625-00-943-2398
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MD2A | 2024-09-253 | 1 | US |
| MD2A | 2022-12-343 | 1 | US |
| MD2A | 2022-12-342 | 1 | UM |
| MD2A | 2022-04-113 | 1 | US |
| MD2A | 2017-12-341 | 1 | US |
| MD2A | 2014-08-240 | 1 | US |
| 6625-00-943-2398 | 2008-06-158 | 1 | Spain |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6625-00-943-2398
Related Products | NSN 6625-00-943-2398
Technical Data | NSN 6625-00-943-2398
| Characteristic | Specifications |
|---|---|
| ELECTRICAL POWER SOURCE RELATIONSHIP | OPERATING |
| AC VOLTAGE RATING | 105.0 VOLTS MINIMUM AND 125.0 VOLTS MAXIMUM |
| FREQUENCY RATING | 47.0 HERTZ MINIMUM AND 440.0 HERTZ MAXIMUM |
| HEIGHT | 10.810 INCHES NOMINAL |
| LENGTH | 16.870 INCHES NOMINAL |
| WIDTH | 14.250 INCHES NOMINAL |
| SPECIAL FEATURES | PORTABLE TEST SET; 0-8000 PF CAPACITANCE 4 RANGES; 0.1-100,000 MOHM INSULATION RESISTANCE; SOLID STATE; 5 DIGIT INCANDESCENT DISPLAY WITH DECIMAL POINT; SELF-CALIBRATING |
| III END ITEM IDENTIFICATION | C-5,A-10,C-141,F-5,B-52,F-111,RF- 4,F-4,A-7,F-16,F-15,T-46A |
| III SUPPLEMENTARY FEATURES | MANUFACTURERS NAME: TEST SET,FUEL SYSTEM |
| III FUNCTIONAL DESCRIPTION | USED TO TEST AND CALIBRATE AIRCRAFT FUEL QUANTITY INDICATORS, PROBES AND THE COMPLETE GAGING SYSTEM |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MD2A |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MILT4687 |
Restrictions/Controls & Freight Information | NSN 6625-00-943-2398
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061700 | ELEC APPLIANCES/INSTRUMENTS NOI |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 738 | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | 3 | Electrostatic Sensitive Device (ESD), subject to damage caused by electrostatic discharge. (See DoD 4500.32-R, Volume 1, Appendix A, Section I for additional information on ESD devices). |
Management | NSN 6625-00-943-2398
Air Force| Category | Code | Description |
|---|---|---|
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Materiel Management Aggregation Code | RH | TG:AUTO TEST EQUIPMENT/AUTO TEST SYSTEMS (ATE/ATS) (FSC RESIDUAL MMAC) |
| Budget Code | Y | variousO & M:AF centrally procured equipment items. They are separate, primary end items (other than the weapon system itself) needed by a user to perform an assigned mission. They are nonexpendable items (ERRCD NF or ND) which are not consumed in use, and they do not lose their original identity during periods of use by incorporation into, or attachment to another assembly. |
| Source of Supply | FLZ | Warner Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Agency | DF | Department of the Air Force |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | U | AF Equipment Management System (AFEMS) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
