Product Details | MULTIMOVEMENT ELECTRICAL METER

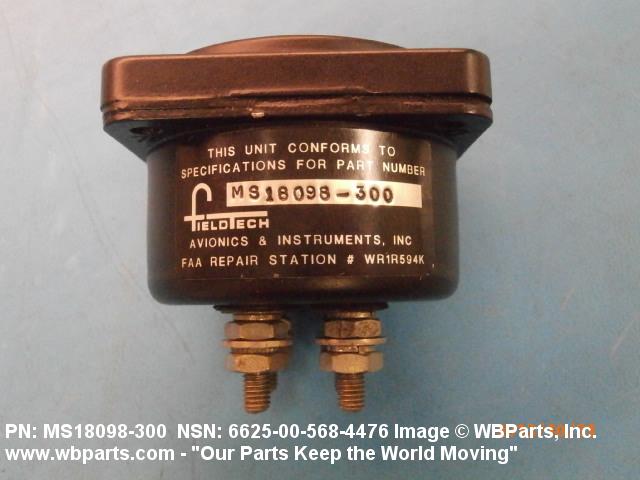

6625-00-568-4476 An item consisting of two or more independent meter movements which are actuated by the flow of electrical current, and whose pointers traverse a common dial, the scale(s) of which is calibrated in electrical units. For meters with associated circuits and/or switches, see MULTIMETER.

Part Alternates: MS18098300, MS18098-300, 1225300, 1225-300, 6625-00-568-4476, 00-568-4476, 6625005684476, 005684476

Instruments and Laboratory Equipment | Electrical and Electronic Properties Measuring and Testing Instruments

Supply Group (FSG) NSN Assign. NIIN
66 01 JAN 1963 00-568-4476

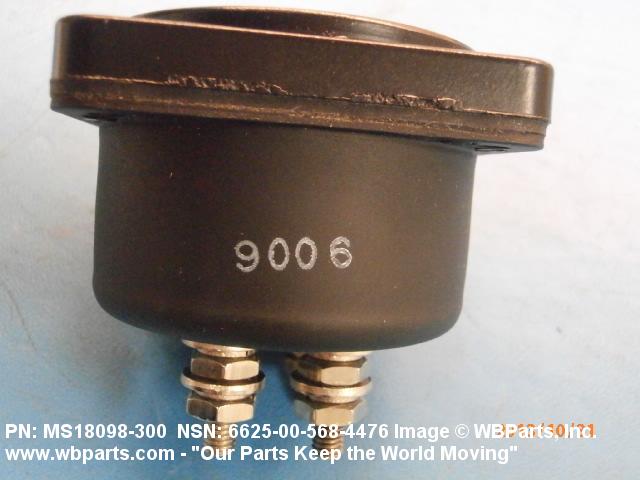

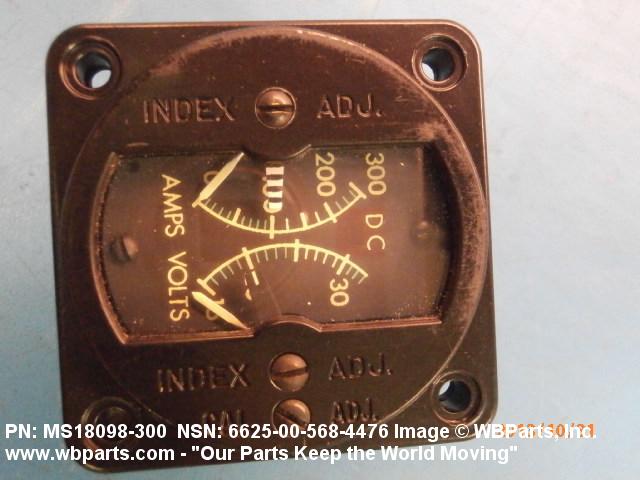

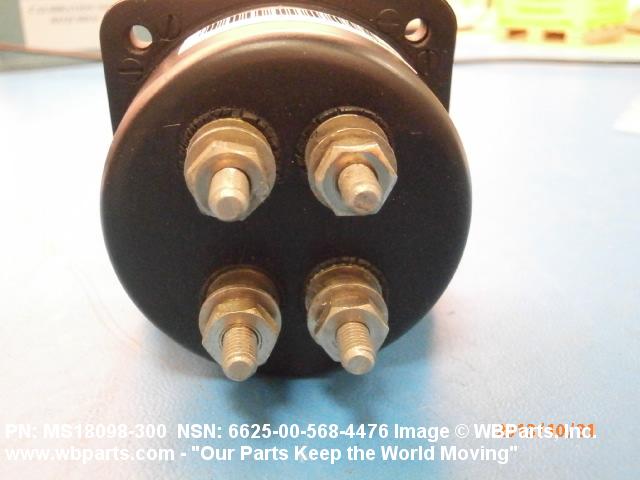

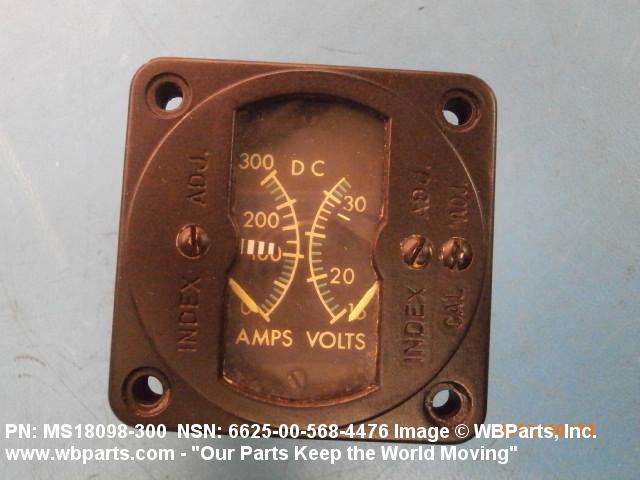

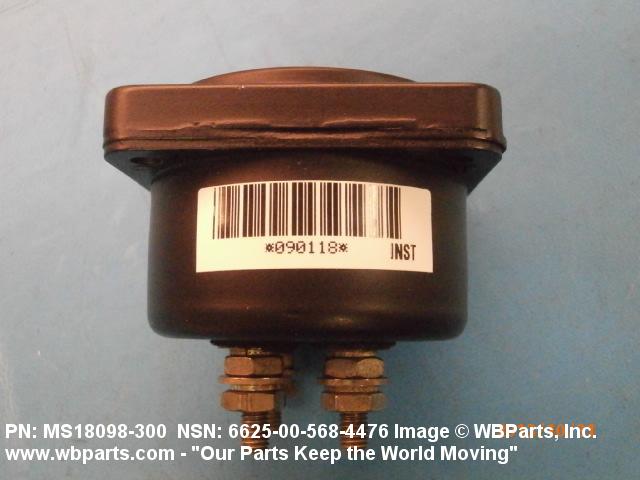

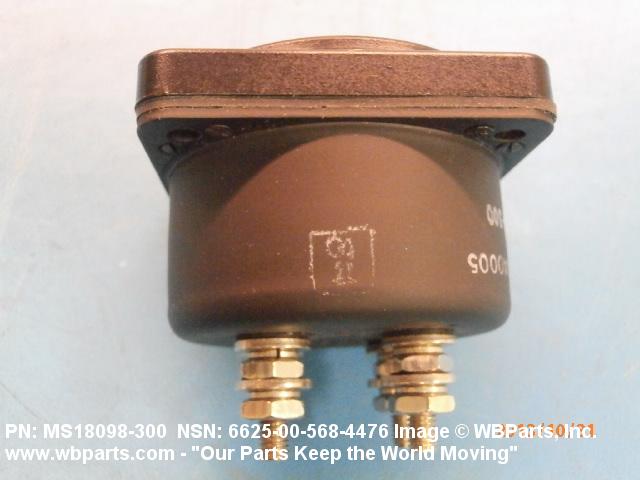

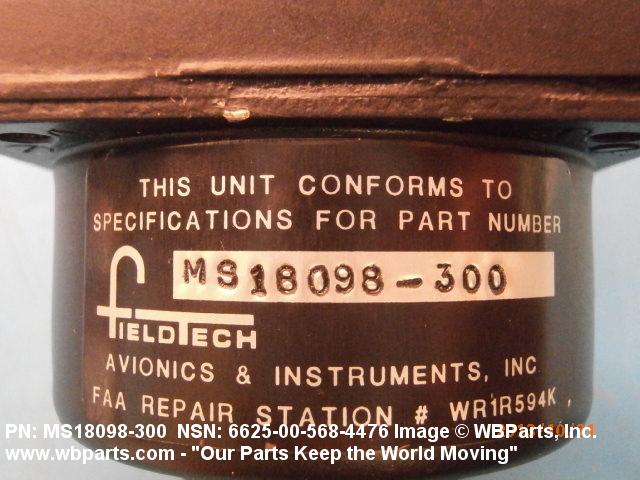

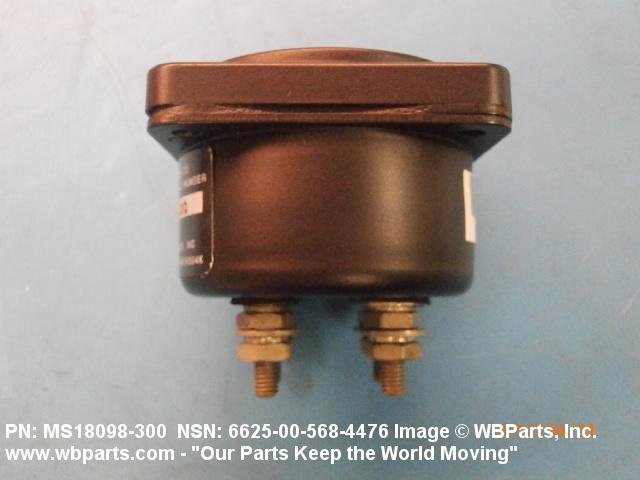

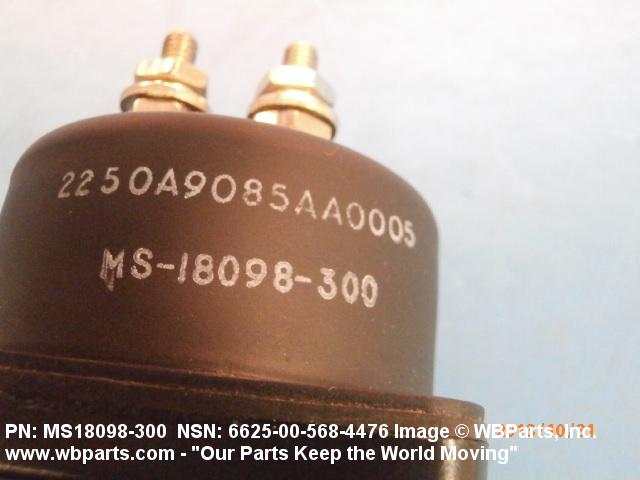

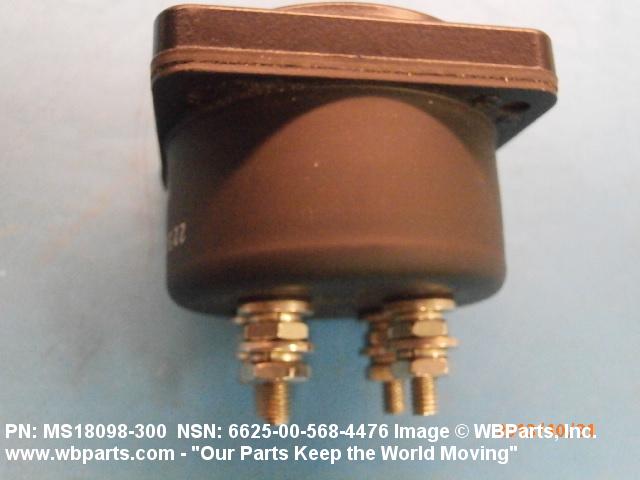

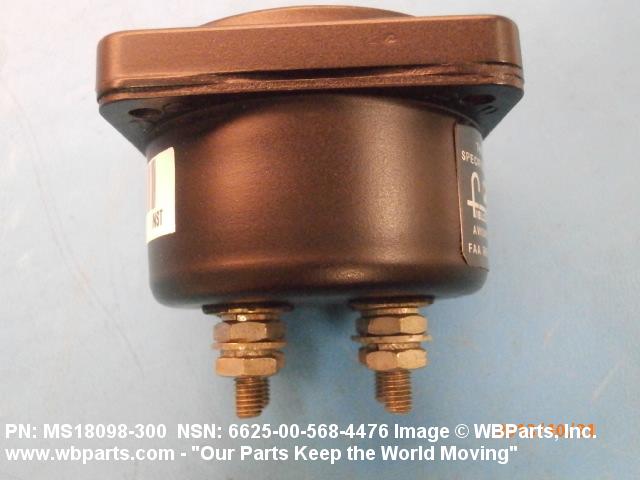

Drawings & Photos | NSN 6625-00-568-4476


Demand History | NSN 6625-00-568-4476

Part Number Request Date QTY Origin
6625-00-568-4476 2021-11-329 9 US
6625-00-568-4476 2021-11-321 1 South Korea
6625-00-568-4476 2021-06-169 1 BR
6625-00-568-4476 2021-02-34 9 US
MS18098300 2019-01-11 3 United States
6625-00-568-4476 2016-11-315 3 DIBBS
6625-00-568-4476 2016-10-304 3 DIBBS
6625-00-568-4476 2015-08-230 2 South Korea
6625-00-568-4476 2013-11-305 1 CO
6625-00-568-4476 2013-10-274 2 South Korea
6625-00-568-4476 2013-06-154 2 South Korea
MS18098300 2012-03-82 1 US
6625-00-568-4476 2011-05-138 2 United States
6625-00-568-4476 2010-06-179 6 US
6625-00-568-4476 2008-06-165 1 Chile

Cross Reference | NSN 6625-00-568-4476

Part Number Cage Code Manufacturer
1225-300 80020 NAVAL AIR WARFARE CENTER AIRCRAFT DIVISION CODE 4.8.8.0.0.B BLDG 148-2
MS18098-300 0BHF9 PRIME TECHNOLOGY, LLC
MS18098-300 81030 PRIME TECHNOLOGY INC INTERNATIONAL INSTRUMENTS DIV

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 6625-00-568-4476

Technical Data | NSN 6625-00-568-4476

Characteristic Specifications
INSTALLATION DESIGN PANEL
(NON-CORE DATA) PANEL FOR WHICH DESIGNED NONMAGNETIC

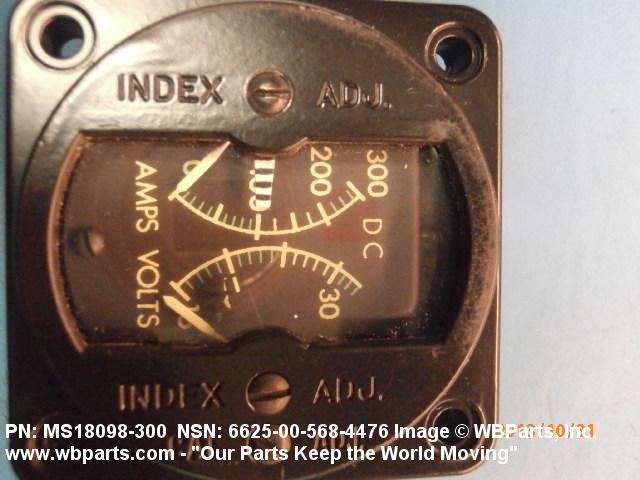

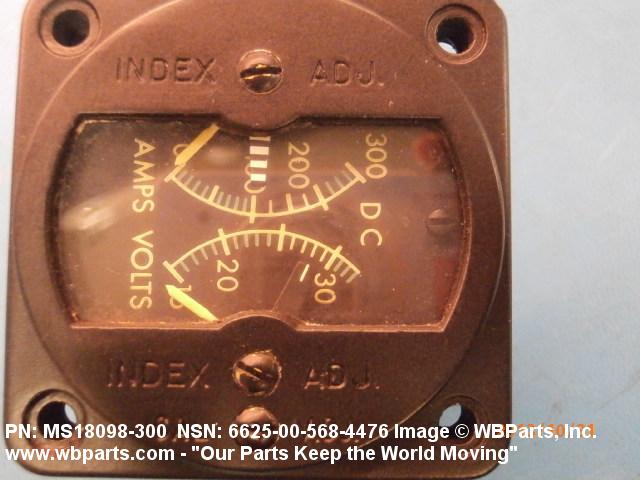

INDICATOR TYPE DIAL W/POINTER
MEASUREMENT RANGE 0.0 TO 300.0 AMPERES, DC SINGLE INDICATOR 1ST RANGE 15.0 TO 33.0 VOLTS, DC SINGLE INDICATOR 2ND RANGE
ACCURACY IN PERCENT -2.0 TO 2.0 AT FULL SCALE SINGLE INDICATOR ALL RANGES
SCALE GRADUATION TYPE NONLINEAR SINGLE INDICATOR 1ST RANGE LINEAR SINGLE INDICATOR 2ND RANGE
SCALE DIVISION QUANTITY 4 SINGLE INDICATOR 2ND RANGE
POINTER COLOR BLACK SINGLE INDICATOR ALL RANGES
DIAL SCALE MARKING COLOR BLACK SINGLE INDICATOR ALL RANGES
BACKGROUND COLOR WHITE SINGLE INDICATOR ALL RANGES
MOVEMENT TYPE MOVING COIL, PERMANENT MAGNET
MOVEMENT SUSPENSION METHOD JEWEL PIVOT BASE
CIRCUIT ATTACHMENT METHOD AND QUANTITY 4 THREADED STUD
CIRCUIT CURRENT FOR WHICH DESIGNED DC
STYLE DESIGNATOR C2 RECTANGULAR FLUSH MTG
OVERALL LENGTH 2.438 INCHES MINIMUM AND 2.563 INCHES MAXIMUM
MOUNTING FACILITY TYPE AND QUANTITY 4 UNTHREADED HOLE
MOUNTING ARRANGEMENT STYLE E3 FOUR HOLE/STUD RECTANGULAR/SQUARE
NUCLEAR HARDNESS CRITICAL FEATURE NONHARDENED
FURNISHED ITEMS AND QUANTITY NUT 8; WASHER 12

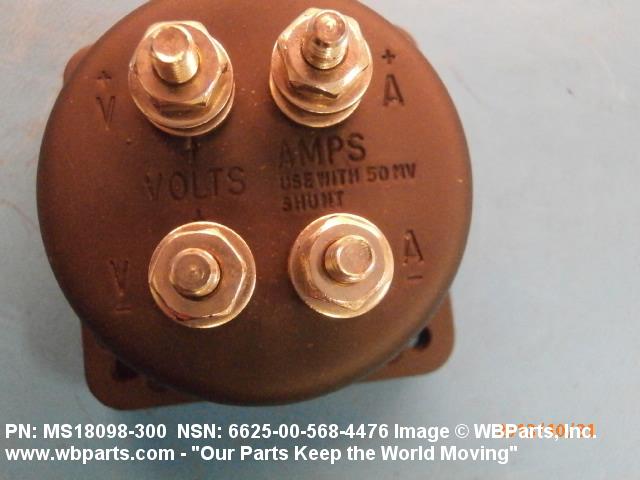

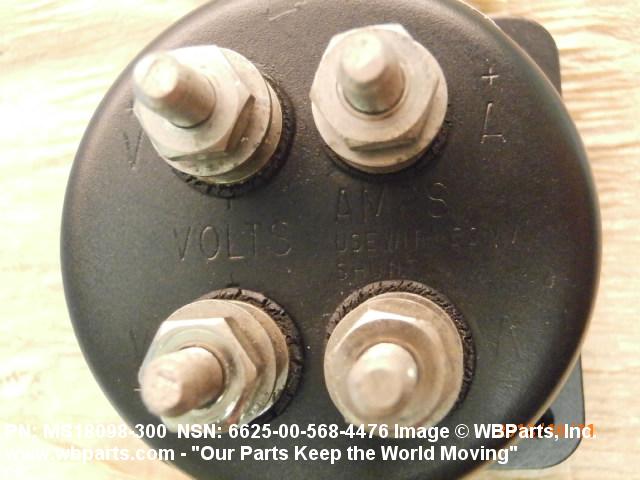

SPECIAL MARKINGS +V,-V,+A,-A AT TERMINALS
FEATURES PROVIDED ZERO ADJUSTER
SPECIAL TEST FEATURES DRAWING IAW MIL-V-5622
III FSC APPLICATION DATA TEST SET,ELECT. EQUIP.
