NSN 6625-00-432-7904 MS18098450W, MS18098-450W, MILV5622
Product Details | MULTIMOVEMENT ELECTRICAL METER

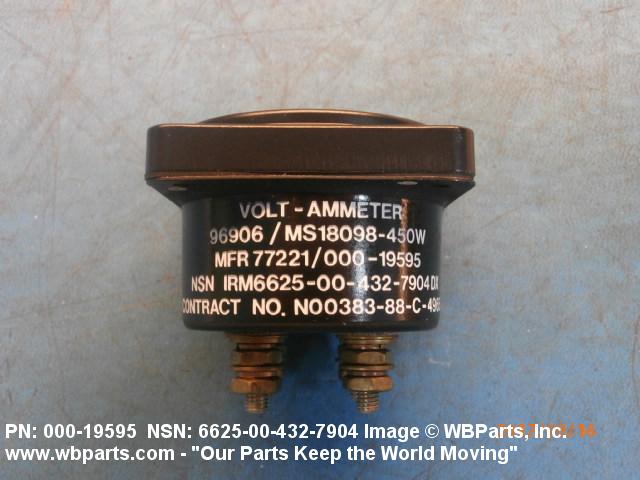

6625-00-432-7904 An item consisting of two or more independent meter movements which are actuated by the flow of electrical current, and whose pointers traverse a common dial, the scale(s) of which is calibrated in electrical units. For meters with associated circuits and/or switches, see MULTIMETER.
Part Alternates: MS18098450W, MS18098-450W, MILV5622, 92269, 00019595, 000-19595, 6625-00-432-7904, 00-432-7904, 6625004327904, 004327904
Instruments and Laboratory Equipment | Electrical and Electronic Properties Measuring and Testing Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 01 JAN 1961 | 00-432-7904 | 04429 ( METER, ELECTRICAL, MULTIMOVEMENT ) |

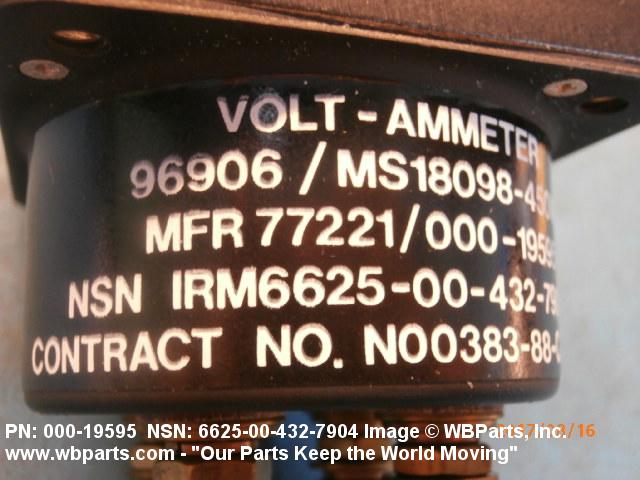

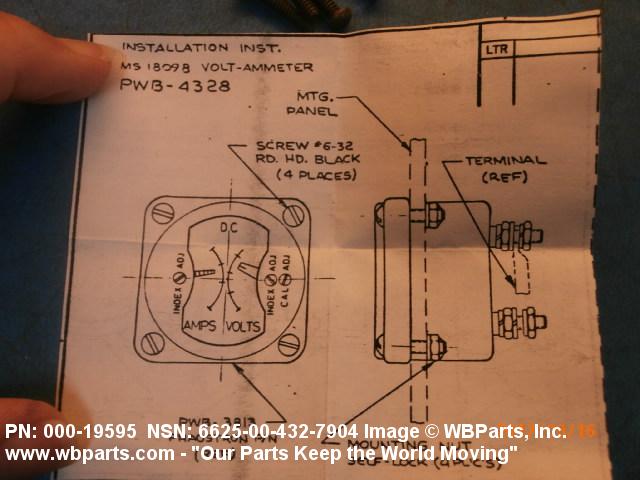

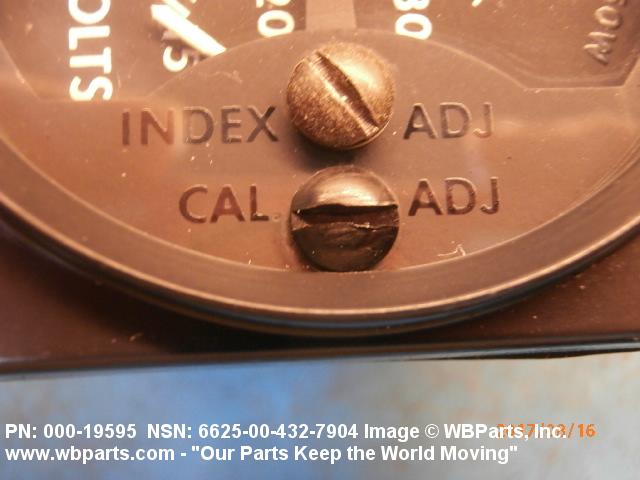

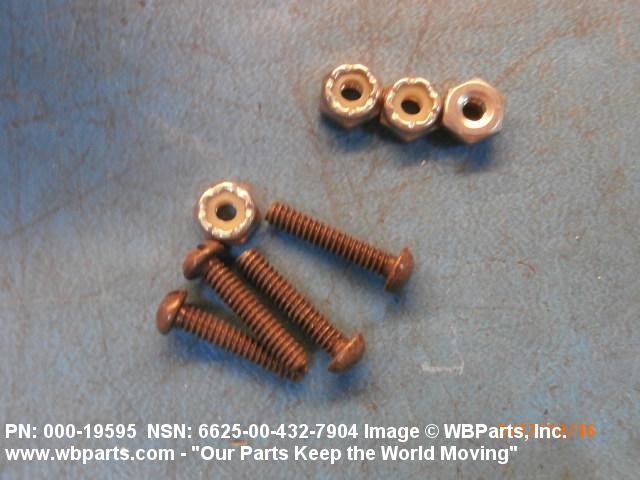

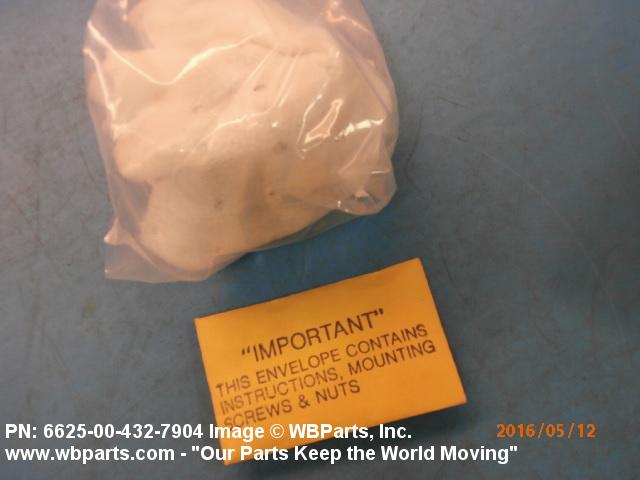

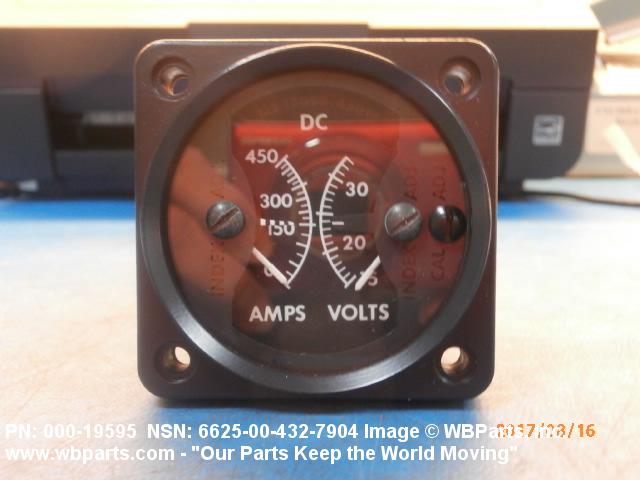

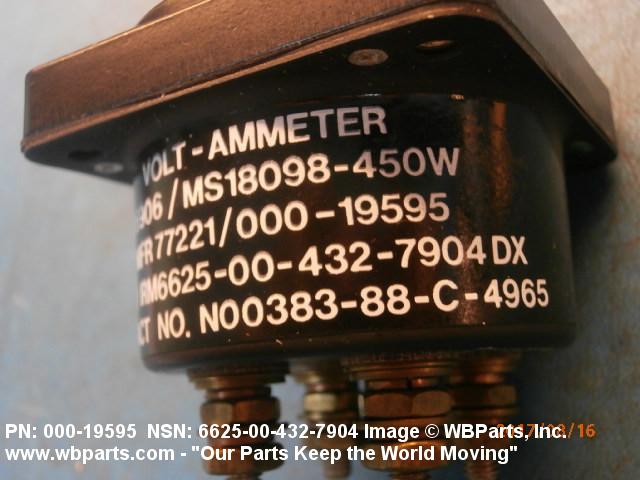

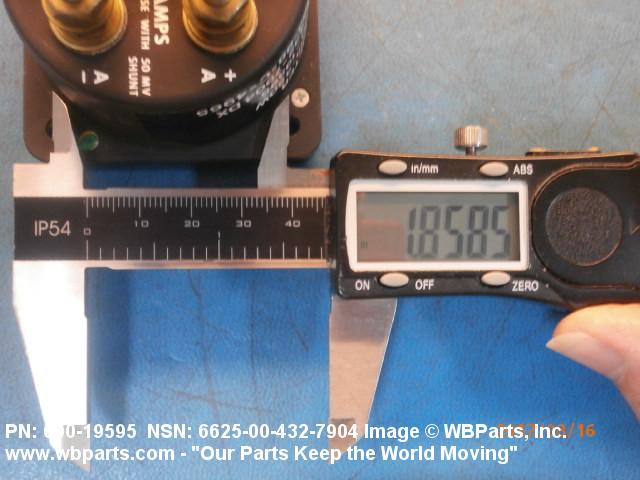

Drawings & Photos | NSN 6625-00-432-7904
Demand History | NSN 6625-00-432-7904
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6625-00-432-7904 | 2023-01-11 | 4 | PK |
| 6625-00-432-7904 | 2021-09-259 | 6 | us |
| 6625-00-432-7904 | 2017-08-219 | 2 | United States |
| 92269 | 2017-08-216 | 2 | United States |
| 6625-00-432-7904 | 2016-05-126 | 2 | United States |
| 6625-00-432-7904 | 2014-08-233 | 20 | DIBBS |
| 6625-00-432-7904 | 2014-08-222 | 3 | DIBBS |
Cross Reference | NSN 6625-00-432-7904
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 000-19595 | 77221 | PHAOSTRON INSTRUMENT AND ELECTRONIC COMPANY |
| 92269 | 19937 | FIFTY AVENUE L INC INSTRUMENT PLANT |
| 92269 | 51596 | FIFTY AVENUE L INC |
| MILV5622 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS18098-450W | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6625-00-432-7904
Related Products | NSN 6625-00-432-7904
Technical Data | NSN 6625-00-432-7904
| Characteristic | Specifications |
|---|---|

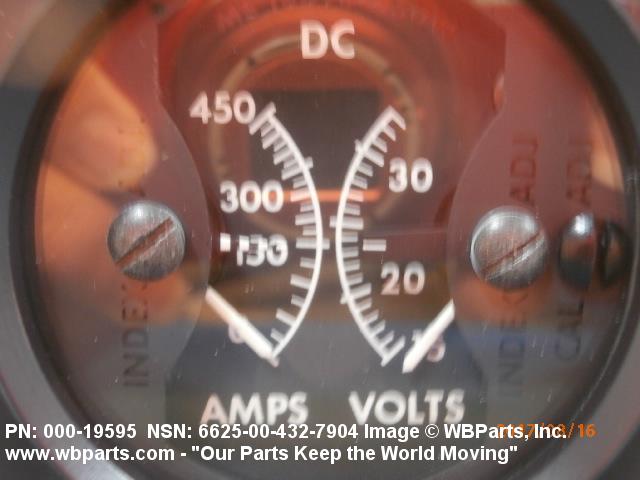

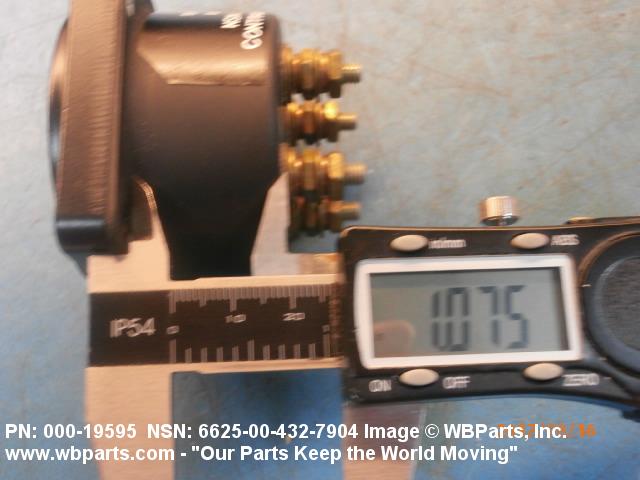

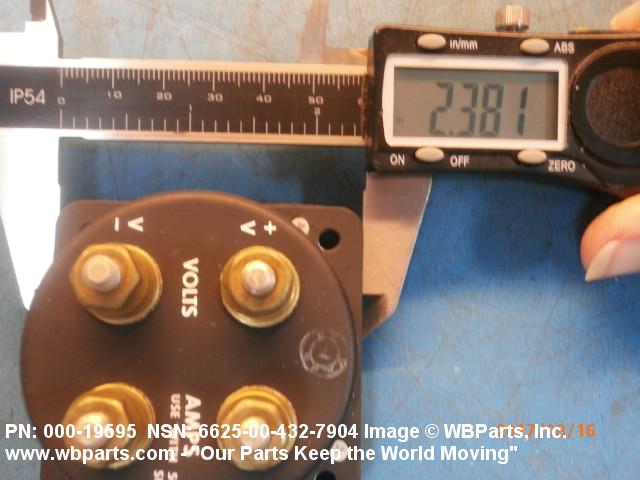

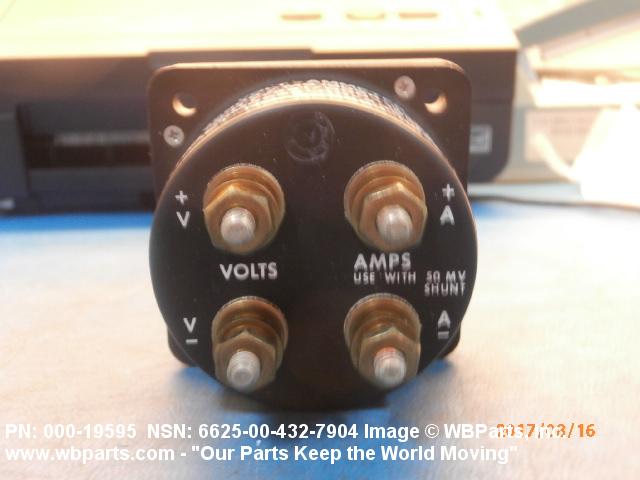

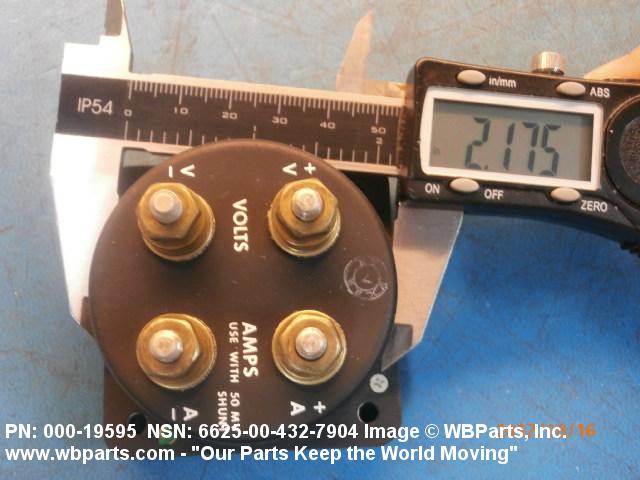

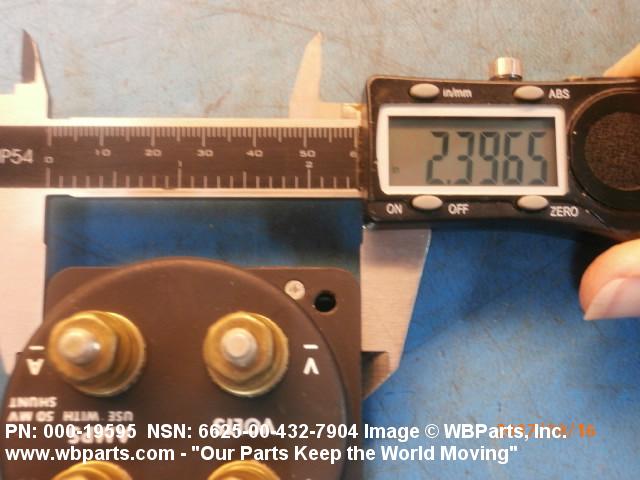

| SPECIAL FEATURES | MOVEMENT DATA,NOT AC,DC,1,50 MV SENSITIVITY,PORM 2 PCT ACCURACY AT FULL SCALE READING,NOT RF TYPE,NOT AC,DC,1,NOT RATED FOR SENSITIVITY,PORM 0.7 V ACCURACY AT FULL SCALE READING,NOT RF TYPE;PANEL TYPE,STYLE NO.2,SECT C,RDG 27,DIM.DATA,RDG 27,1.342 IN.MAX DEPTH OF METER TO MTG FLANGE,2.375 IN.LG OF MTG FLANGE,2.375 IN.W OF MTG FLANGE,2.255 IN.DIA OF METER BODY,NOT PORTABLE TYPE;SCALE DATA,AMP,450 TO 0 TOP TO BOTTOM RANGE,GRADUATION DATA,LINEAR,18 SCALE DIV NOT NONLINEAR,VOLT,33 TO 15 TOP TO BOTTOM RANGE,GRADUATION DATA,LINEAR,18 SCALE DIV,NOT NONLINEAR;MTG DATA,FLANGE MTD,FOUR 0.170 IN.DIA MTG HOLES SPACED 90 DEG APART ON 1.313 IN.RADIUS;TERMINAL DATA,4,SCREW-STUD TYPE,NO.10/0.190 IN./-32 NF THD,0.688 IN.LG;COMPONENTS AND ACCESSORIES DATA,SHUNT,1,MS,PART NO.MS91587-6;NO SPECIAL FEATURES |
Restrictions/Controls & Freight Information | NSN 6625-00-432-7904
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 136740 | METERS ELEC/PARTS |
| Less than car load rating | J | 100.2 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 657 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6625-00-432-7904
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Special Material Content | 2 | Electrostatic Discharge (ESD)/Electromagnetic (EM) Sensitive Item |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
