NSN 6625-00-556-4936 07741LAPNAN, 077-41LA-PNAN, 103372ANAN
Product Details | ELECTRICAL FREQUENCY METER
6625-00-556-4936 An instrument which measures the rate of regularly recurring variations in an electric current or voltage and is usually calibrated in Hertz (cycles per second or CPS). The value may be expressed by means of a pointer and calibrated dial vibrating reed or a digital read out display. For instruments which measure radio frequencies, see CALIBRATOR, FREQUENCY; and WAVEMENTER. Excludes: COUNTER ELECTRONIC DIGITAL.
Part Alternates: 07741LAPNAN, 077-41LA-PNAN, 103372ANAN, 3440019002, 344-001-9002, 4891010, 4891-010, 4891012, 4891-012, 50103372ANAN, 50-103372ANAN, 50103372ANAN2, 50-103372ANAN2, 50103372ANAN7, 50-103372ANAN7, 71119, 711-19, 714B538A09, 6625-00-556-4936, 00-556-4936, 6625005564936, 005564936
Instruments and Laboratory Equipment | Electrical and Electronic Properties Measuring and Testing Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 04 NOV 1974 | 00-556-4936 | 16454 ( METER, ELECTRICAL FREQUENCY ) |
Drawings & Photos | NSN 6625-00-556-4936
Demand History | NSN 6625-00-556-4936
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6625-00-556-4936 | 2024-09-264 | 8 | Oman |
| 103372ANAN | 2018-12-362 | 2 | us |
| 50103372ANAN | 2018-12-362 | 1 | us |
| 6625-00-556-4936 | 2018-01-24 | 1 | US |
| 6625-00-556-4936 | 2017-08-221 | 42 | DIBBS |
| 6625-00-556-4936 | 2016-11-313 | 2 | us |
| 6625-00-556-4936 | 2015-12-347 | 36 | DIBBS |
| 6625-00-556-4936 | 2015-01-28 | 30 | DIBBS |
| 50-103372ANAN | 2013-10-290 | 10 | US |
| 6625-00-556-4936 | 2013-09-267 | 17 | DIBBS |
| 6625-00-556-4936 | 2011-08-231 | 1 | US |
| 6625-00-556-4936 | 2011-07-209 | 1 | US |
| 50103372ANAN2 | 2011-03-83 | 3 | US |
| 6625-00-556-4936 | 2011-01-13 | 15 | DIBBS |
| 6625-00-556-4936 | 2010-09-245 | 8 | DIBBS |
| 6625-00-556-4936 | 2010-07-209 | 4 | DIBBS |
| 6625-00-556-4936 | 2010-05-146 | 4 | DIBBS |
| 6625-00-556-4936 | 2010-02-42 | 8 | DIBBS |
| 50103372ANAN2 | 2009-10-301 | 1 | US |
| 6625-00-556-4936 | 2009-08-217 | 1 | US |
| 07741LAPNAN | 2009-04-92 | 1 | US |
| 6625-00-556-4936 | 2009-03-89 | 6 | United Kingdom |
| 103372ANAN | 2009-02-37 | 12 | US |
| 6625-00-556-4936 | 2009-02-37 | 12 | US |
| 6625-00-556-4936 | 2009-01-29 | 12 | DIBBS |
| 6625-00-556-4936 | 2008-01-21 | 1 | US |
Cross Reference | NSN 6625-00-556-4936
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 077-41LA-PNAN | 53498 | TYCO ELECTRONICS CROMPTON INSTRUMENT |
| 103372ANAN | 60336 | YOKOGAWA CORPORATION OF AMERICA DIV FINANCE |
| 344-001-9002 | 70210 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| 4891-010 | 15309 | JEWELL INSTRUMENTS, LLC DBA MODUTEC USE CAGE CODE 33005 FOR |
| 4891-012 | 15309 | JEWELL INSTRUMENTS, LLC DBA MODUTEC USE CAGE CODE 33005 FOR |
| 50-103372ANAN | 03497 | GENERAL ELECTRIC CO OUTDOOR BREAKER BUSINESS SECTION |
| 50-103372ANAN2 | 29834 | GENERAL ELECTRIC CO INSTRUMENT PRODUCTS SECTION |
| 50-103372ANAN7 | 29834 | GENERAL ELECTRIC CO INSTRUMENT PRODUCTS SECTION |
| 711-19 | 0BZM1 | MKC ELECTRONICS, INC DBA M K ELECTRONICS |
| 714B538A09 | 6Z382 | HUGHES CORPORATION DBA WESCHLER INSTRUMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6625-00-556-4936
Related Products | NSN 6625-00-556-4936
Technical Data | NSN 6625-00-556-4936
| Characteristic | Specifications |
|---|---|
| III INSTALLATION DESIGN | PANEL |

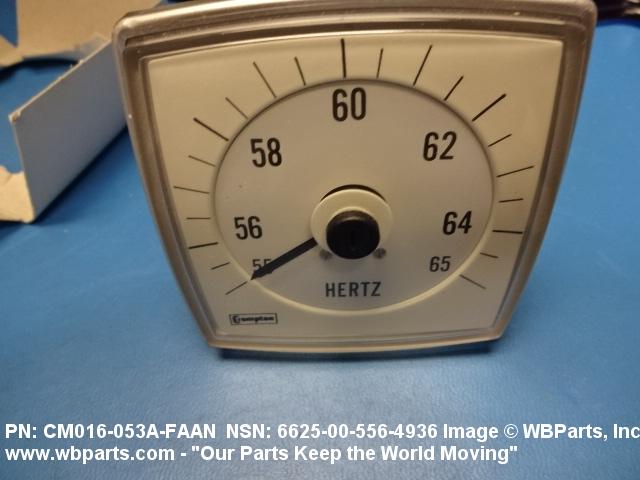

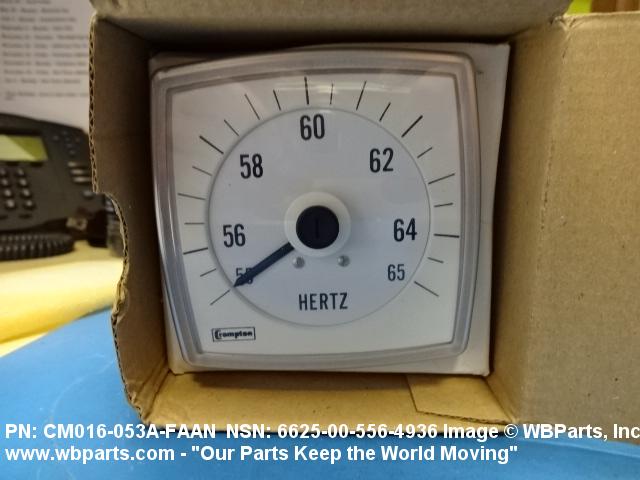

| INDICATOR TYPE | DIAL W/POINTER |
| MEASUREMENT RANGE | 55.0 TO 65.0 HERTZ SINGLE INDICATOR SINGLE RANGE |
| ACCURACY IN PERCENT | -2.0 TO 2.0 AT FULL SCALE SINGLE INDICATOR SINGLE RANGE |
| SCALE GRADUATION TYPE | LINEAR SINGLE INDICATOR SINGLE RANGE |
| SCALE DIVISION QUANTITY | 100 SINGLE INDICATOR SINGLE RANGE |
| POINTER COLOR | BLACK SINGLE INDICATOR SINGLE RANGE |
| DIAL SCALE MARKING COLOR | BLACK SINGLE INDICATOR SINGLE RANGE |
| BACKGROUND COLOR | WHITE SINGLE INDICATOR SINGLE RANGE |
| MOVEMENT TYPE | MOVING IRON VANE |
| MOVEMENT SUSPENSION METHOD | TAUT BAND |
| FREQUENCY RESPONSE RANGE | 55.000 TO 65.000 HERTZ |

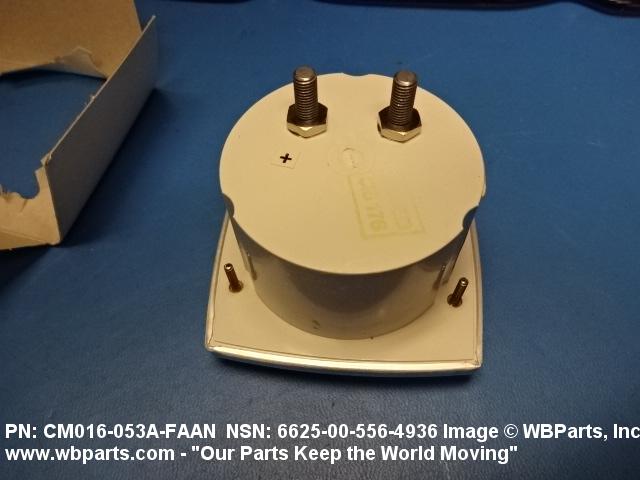

| CIRCUIT ATTACHMENT METHOD AND QUANTITY | 2 THREADED STUD |
| POWER SOURCE | EXTERNAL |
| CIRCUIT CURRENT FOR WHICH DESIGNED | AC |
| OPERATING VOLTAGE RATING IN VOLTS | 120.0 AC NOMINAL |
| FREQUENCY RATING | 60.0 HERTZ NOMINAL |
| PHASE | SINGLE |
| STYLE DESIGNATOR | RECTANGULAR FLUSH MTG |
| METER BODY DIAMETER BEHIND MOUNTING FLANGE | 3.938 INCHES NOMINAL |
| METER DEPTH BEHIND MOUNTING FLANGE | 2.688 INCHES NOMINAL |
| OVERALL HEIGHT | 4.422 INCHES NOMINAL |
| OVERALL LENGTH | 6.250 INCHES NOMINAL |
| OVERALL WIDTH | 4.422 INCHES NOMINAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 SCREW AND |
| MOUNTING HOLE DIAMETER | 0.312 INCHES NOMINAL |
| MOUNTING ARRANGEMENT STYLE | FOUR HOLE/STUD RECTANGULAR/SQUARE |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 3.376 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH | 3.376 INCHES NOMINAL |
| ENVIRONMENTAL PROTECTION | HUMIDITY RESISTANT AND |

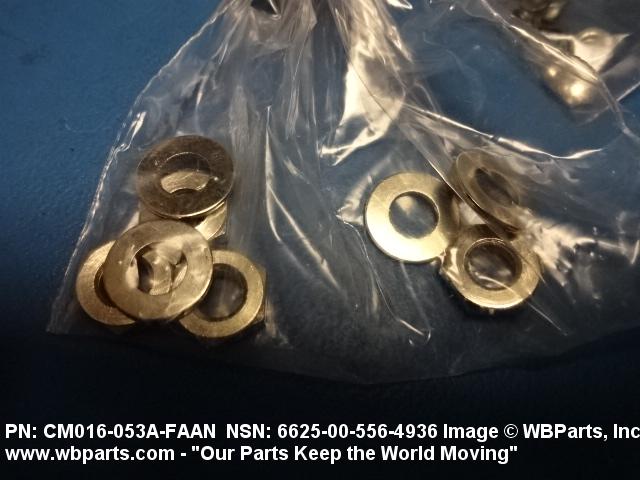

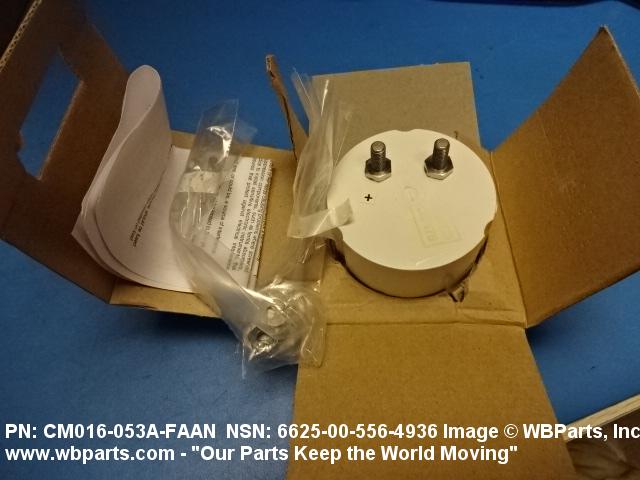

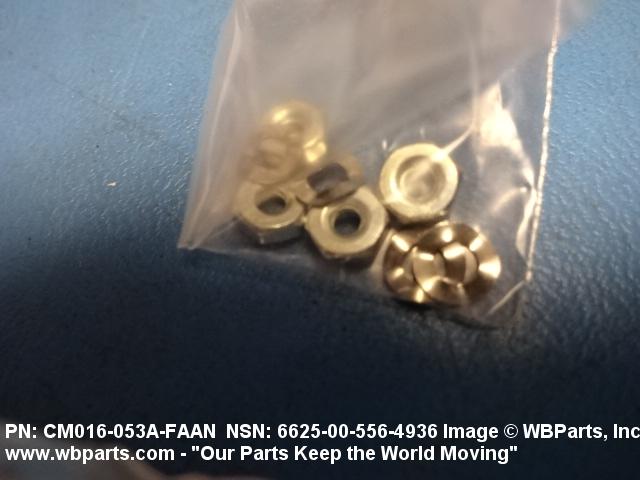

| FURNISHED ITEMS AND QUANTITY | TERM. HDW 2; TRANSDUCER 1 |
| FEATURES PROVIDED | ZERO ADJUSTER |
| SPECIAL FEATURES | REQUIRES TRANSDUCER |
| III FSC APPLICATION DATA | TEST SET,ELECT. EQUIP. |
Restrictions/Controls & Freight Information | NSN 6625-00-556-4936
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061700 | ELEC APPLIANCES/INSTRUMENTS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 657 | unknown |
| Originating Activity Code | 48 | Federal Aviation Administration Oklahoma City, OK 73125 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6625-00-556-4936
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | TG | TG:AF SICA RESIDUAL MMAC-WR-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
