NSN 6625-00-720-3187 JBTA15FH400, JBTA15-FH400, 128C619H01

Product Details | ELECTRICAL FREQUENCY METER

6625-00-720-3187 An instrument which measures the rate of regularly recurring variations in an electric current or voltage and is usually calibrated in Hertz (cycles per second or CPS). The value may be expressed by means of a pointer and calibrated dial vibrating reed or a digital read out display. For instruments which measure radio frequencies, see CALIBRATOR, FREQUENCY; and WAVEMENTER. Excludes: COUNTER ELECTRONIC DIGITAL.

Part Alternates: JBTA15FH400, JBTA15-FH400, 128C619H01, 15FH400, 4570015000, 457-0015-000, 6625-00-720-3187, 00-720-3187, 6625007203187, 007203187

Instruments and Laboratory Equipment | Electrical and Electronic Properties Measuring and Testing Instruments

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
66	01 JAN 1963	00-720-3187	16454 ( METER, ELECTRICAL FREQUENCY )

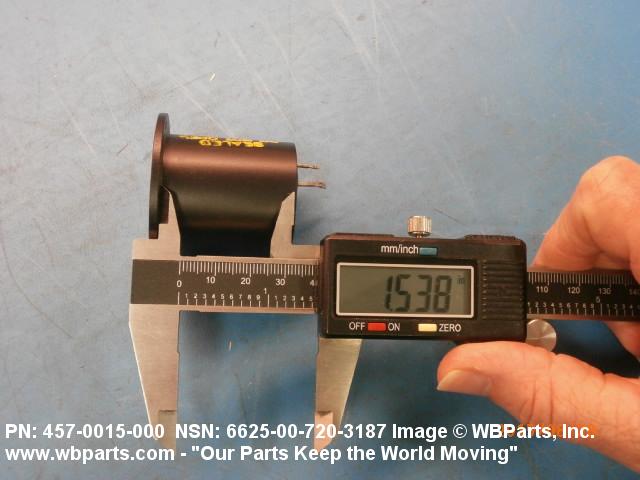

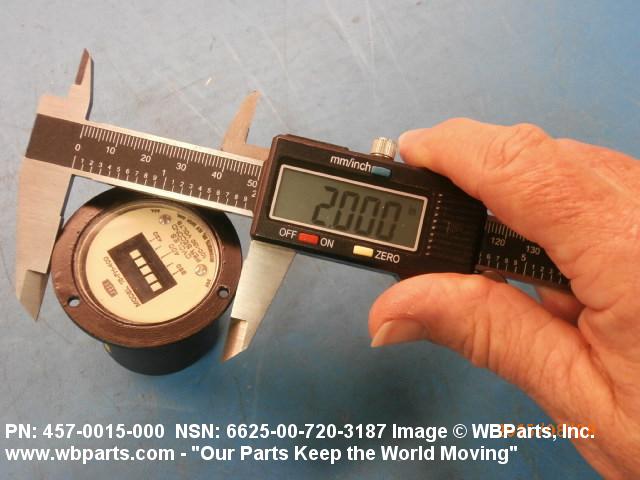

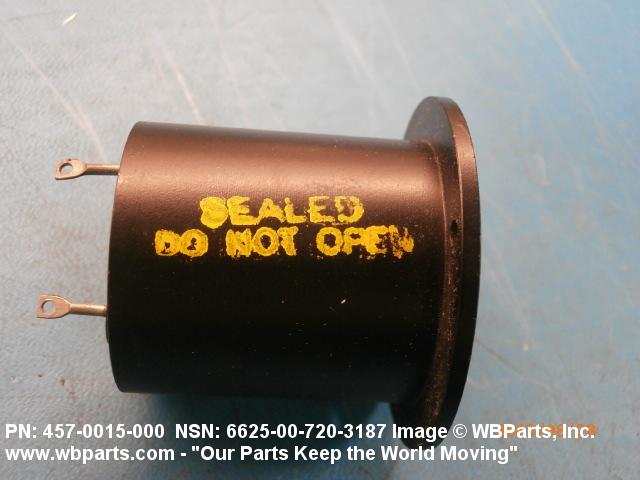

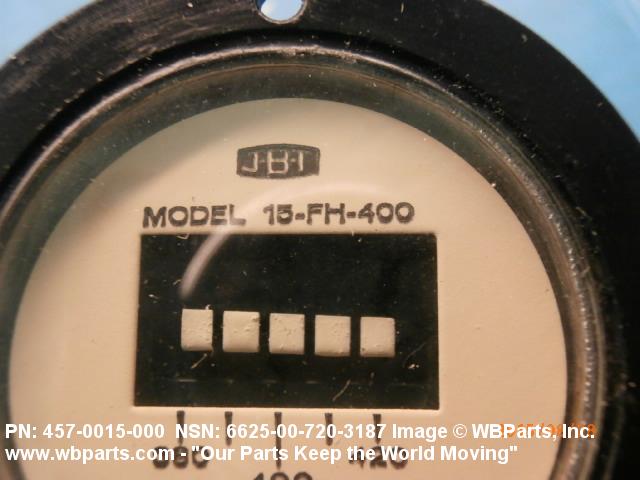

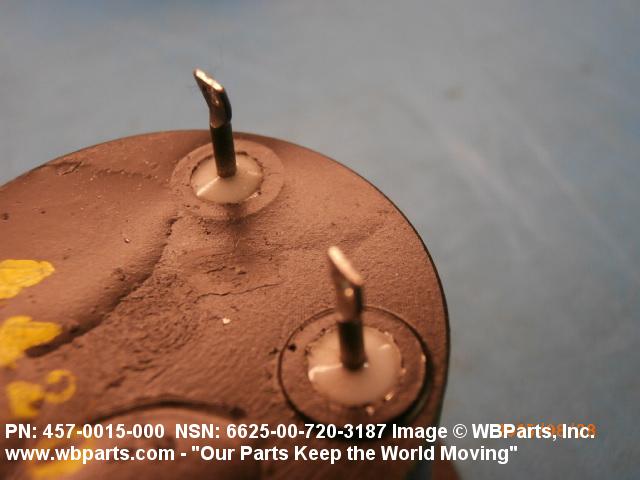

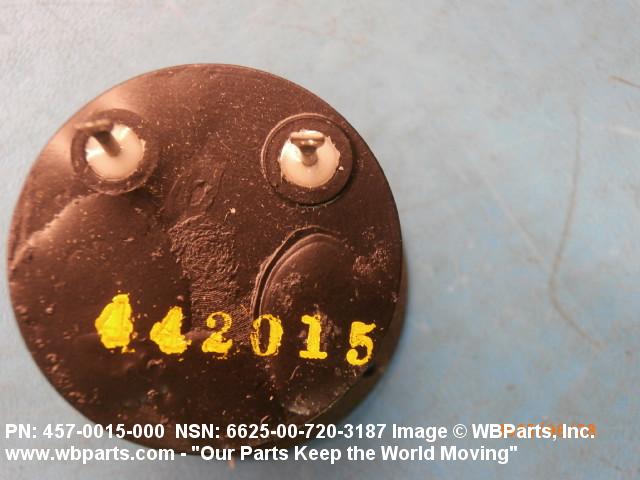

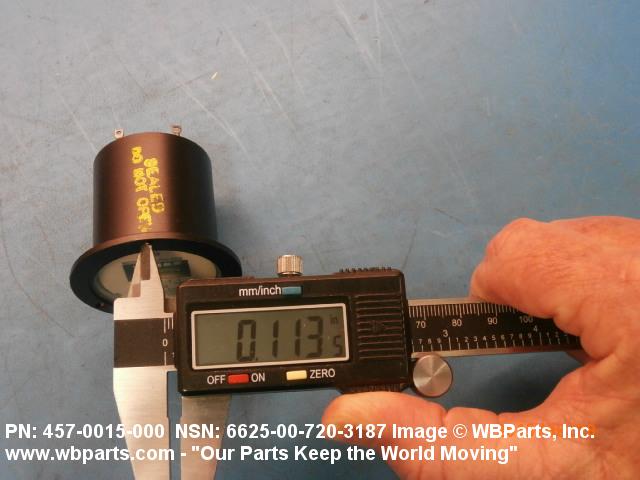

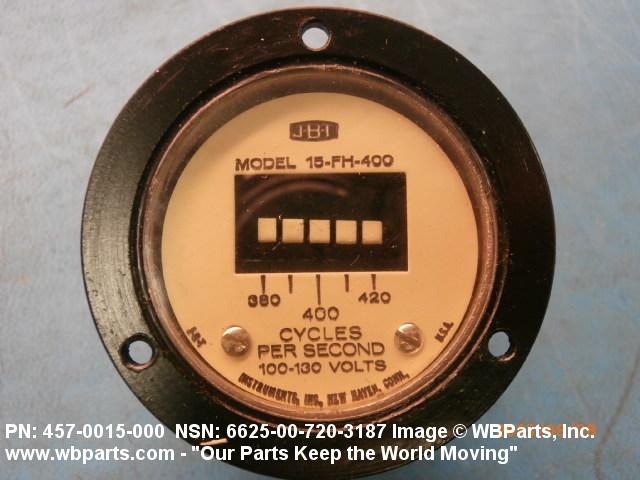

Drawings & Photos | NSN 6625-00-720-3187

Part Number	Request Date	QTY	Origin
6625-00-720-3187	2022-05-151	2	US
6625-00-720-3187	2022-03-77	1	US
6625-00-720-3187	2019-08-234	5	PK
6625-00-720-3187	2019-08-219	5	United States
128C619H01	2018-09-271	5	United States
6625-00-720-3187	2018-09-270	5	US
6625-00-720-3187	2018-09-269	5	PK
128C619H01	2018-09-267	5	PK
128C619H01	2018-09-251	5	United States
6625-00-720-3187	2018-01-23	15	US
6625-00-720-3187	2015-08-225	1	United States
6625-00-720-3187	2015-06-173	1	United States
6625-00-720-3187	2013-12-350	2	Pakistan
6625-00-720-3187	2010-07-195	1	United States
6625-00-720-3187	2010-02-41	1	United States
6625-00-720-3187	2009-06-173	2	DIBBS
6625-00-720-3187	2009-04-92	4	US
JBTA15FH400	2008-07-183	1	US
128C619H01	2008-06-163	5	US
4570015000	2008-05-129	5	US
JBTA15FH400	2007-05-151	1	Pakistan

Cross Reference | NSN 6625-00-720-3187

Part Number	Cage Code	Manufacturer
128C619H01	97942	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN SYSTEMS
15FH400	31356	LEE CO THE J B T DIV
457-0015-000	95105	ROCKWELL COLLINS, INC. DIV GOVERNMENT SYSTEMS - DALLAS
JBTA15-FH400	31356	LEE CO THE J B T DIV

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 6625-00-720-3187

Compare

Related Products | NSN 6625-00-720-3187

6625-00-720-3189, 6625-00-720-3239, 6625-00-720-3253, 6625-00-720-3254, 6625-00-720-3255

Technical Data | NSN 6625-00-720-3187

Characteristic	Specifications
INSTALLATION DESIGN	PANEL

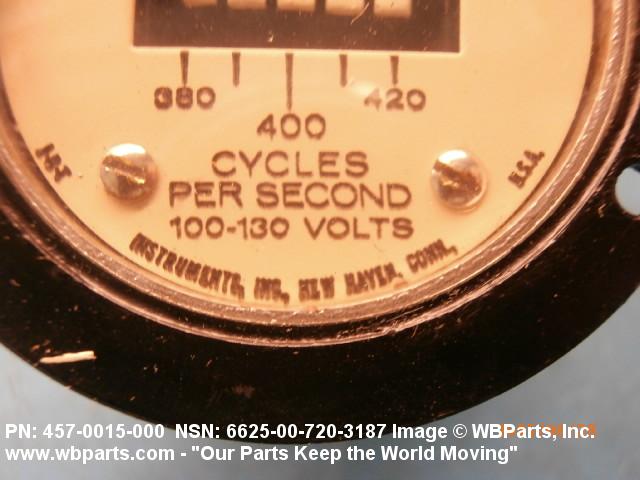

MEASUREMENT RANGE	380.0 TO 420.0 HERTZ SINGLE INDICATOR SINGLE RANGE
