Product Details | ELECTRICAL TACHOMETER INDICATOR

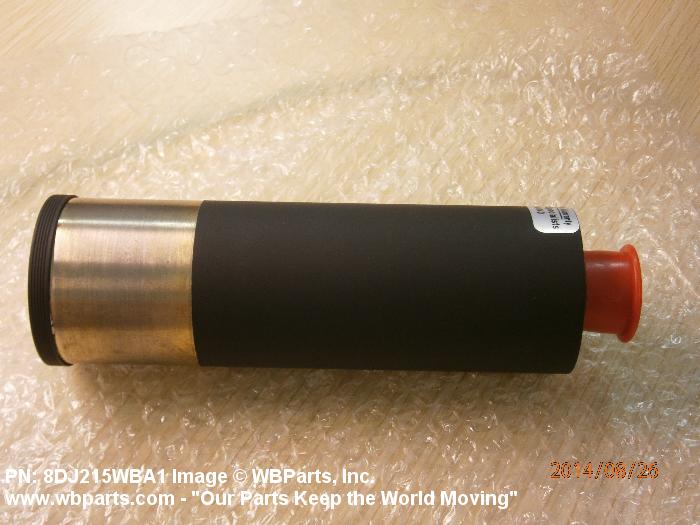

6620-01-129-7247 An instrument which displays, in units of revolutions per minute, the transmitted rotational speed of a shaft for a specified elapsed time.2036320000066200018Engine Instruments66800078Liquid and Gas Flow, Liquid Level, and Mechanical Motion Measuring Instruments

Part Alternates: ERU-22/A, ERU22A, 16VF003 TYPE I, 16VF0032, 16VF003-2, 16VF003TYPEI, 8DJ215WBA1, 6620-01-129-7247, 01-129-7247, 6620011297247, 011297247

Instruments and Laboratory Equipment | Engine Instruments

Supply Group (FSG) NSN Assign. NIIN
66 10 APR 1982 01-129-7247

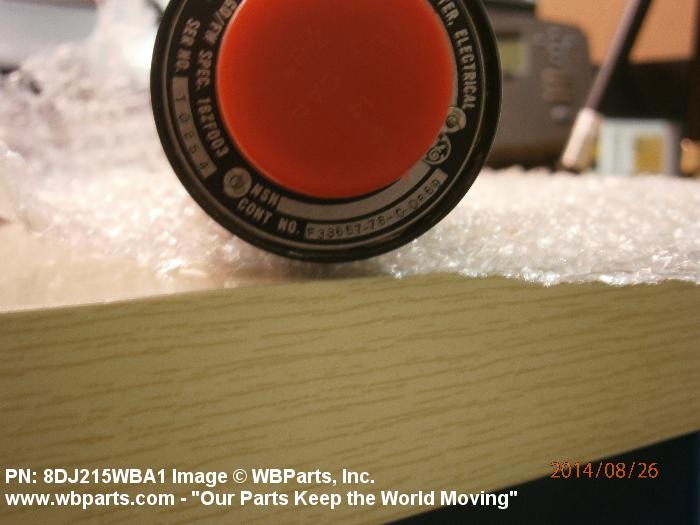

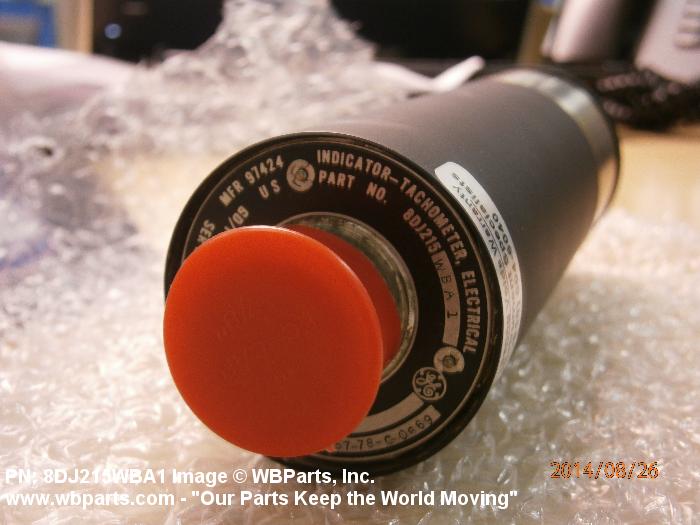

Drawings & Photos | NSN 6620-01-129-7247


Demand History | NSN 6620-01-129-7247

Part Number Request Date QTY Origin
8DJ215WBA1 2015-08-216 1 United States
8DJ215WBA1 2014-05-125 1 Singapore
6620-01-129-7247 2010-08-231 2 US
6620-01-129-7247 2010-07-211 6 US
8DJ215WBA1 2009-07-202 2 US
8DJ215WBA1 2009-07-202 5 US
16VF0032 2009-04-119 1 US
6620-01-129-7247 2009-04-119 5 US

Cross Reference | NSN 6620-01-129-7247

Part Number Cage Code Manufacturer
16VF003 TYPE I 81755 LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS
16VF003-2 81755 LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS
8DJ215WBA1 97424 AMETEK, INC. DIV AEROSPACE & DEFENSE
ERU-22/A 80058 JOINT ELECTRONICS TYPE DESIGNATION SYSTEM

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 6620-01-129-7247

Technical Data | NSN 6620-01-129-7247

Characteristic Specifications
ELECTRICAL CONNECTION QUANTITY 1
ELECTRICAL CONNECTION IDENTIFYING NUMBER SHALL MATE WITH M83723-75R12126

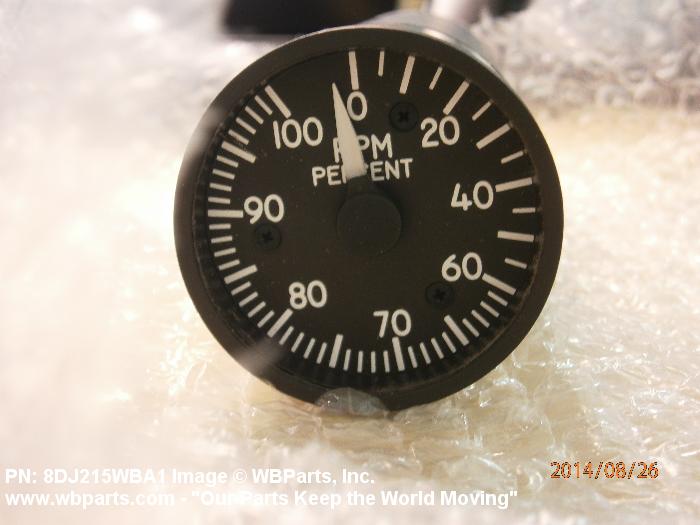

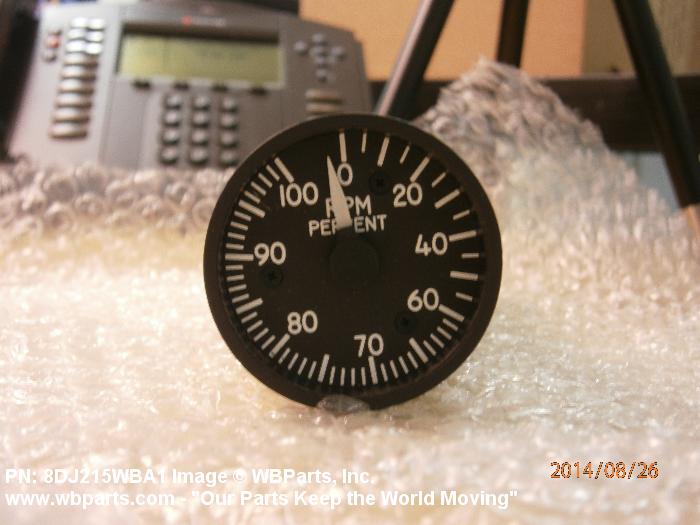

PRESENTATION TYPE DIAL
ACCURACY RATING 1.0 PERCENT REVOLUTIONS PER MINUTE SINGLE INDICATOR SINGLE SCALE
SCALE DIVISION QUANTITY 5 SINGLE INDICATOR SINGLE SCALE
SCALE MARKING AND SURFACE FINISH NUMERALS NONLUMINOUS
SCALE RANGE 0.0 TO 100.0 PERCENT REVOLUTIONS PER MINUTE SINGLE INDICATOR SINGLE SCALE
POINTER TYPE INDICATING SINGLE POINTER
POINTER PURPOSE PERCENT OF RATED REVOLUTIONS PER MINUTE
COLOR WHITE BACKGROUND OVERALL
POINTER FINISH NONLUMINOUS SINGLE POINTER
CURRENT TYPE AC/DC
DC VOLTAGE RATING 28.0 VOLTS NOMINAL
AC VOLTAGE RATING 5.0 VOLTS NOMINAL
PHASE SINGLE
FREQUENCY RATING 400.0 HERTZ NOMINAL
CONTACT QUANTITY 10

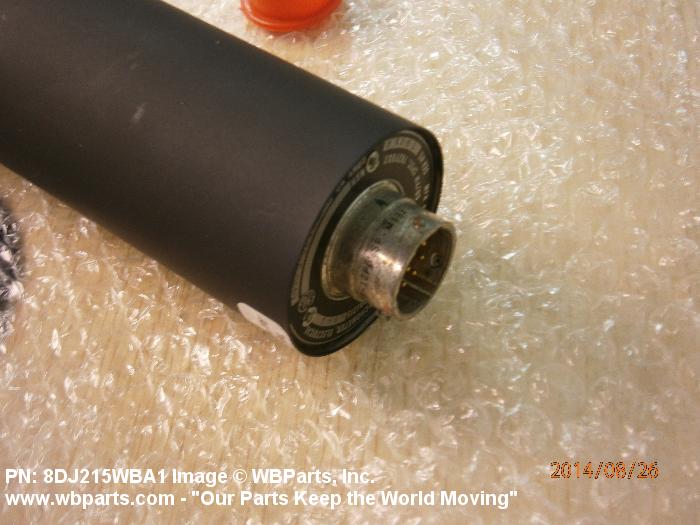

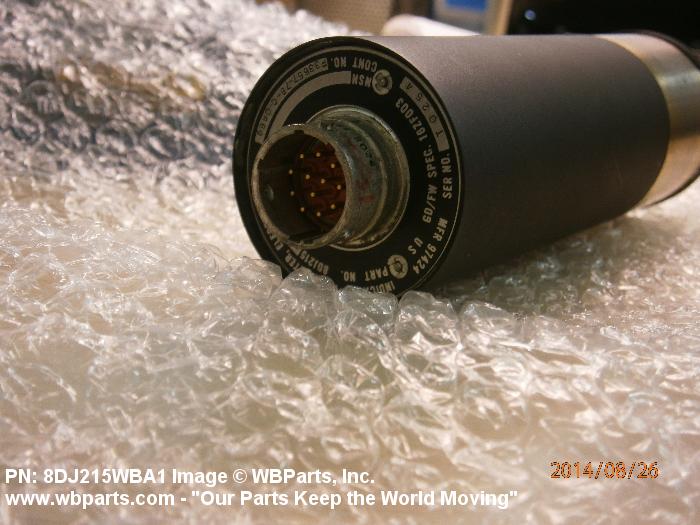

CONTACT TYPE PIN
MOUNTING FACILITY TYPE AND QUANTITY 1 BEZEL
LENGTH 6.000 INCHES NOMINAL

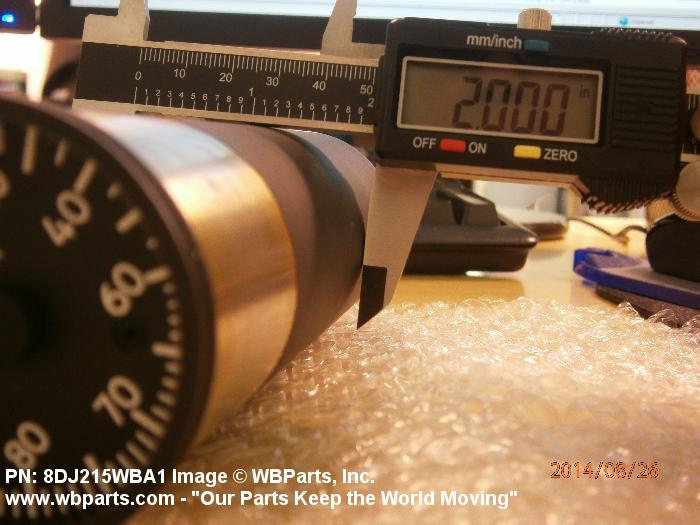

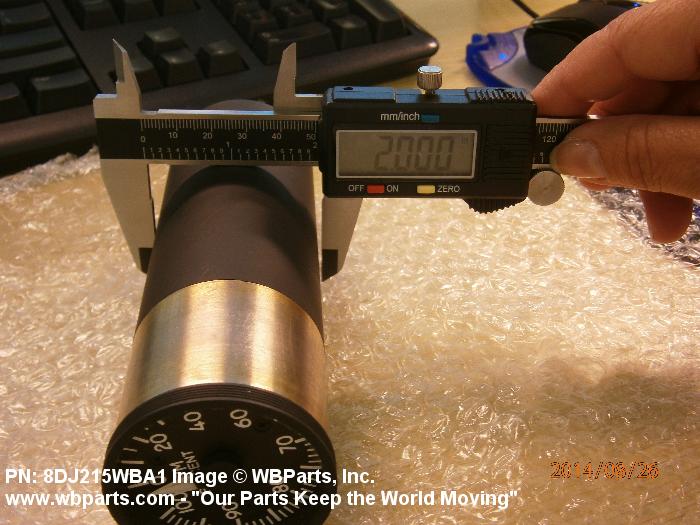

DIAMETER 2.000 INCHES NOMINAL
SPECIAL FEATURES TACHOMETER, PERCENT OF RATED SPEED, ENGINE;CASE NON-FERROUS MATERIAL;5 VDC LIGHTING CIRCUIT;0-5 VDC BUFFERED OUTPUT SIGNAL PROPORTIONAL TO ENGINE SPEED;10 SECOND WARM UP TIME;RECEIVES OPERATIONAL SIGNAL FROM F100-PW-200/220 ENGINE DRIVEN GENERATOR
III END ITEM IDENTIFICATION F-16A/B AIRCRAFT
III SUPPLEMENTARY FEATURES CASE PER MS33639
