NSN 6620-01-322-7678 MILI25623, MIL-I-25623, RCA41A07
Product Details | ELECTRICAL TACHOMETER INDICATOR
6620-01-322-7678 An instrument which displays, in units of revolutions per minute, the transmitted rotational speed of a shaft for a specified elapsed time.2036320000066200018Engine Instruments66800078Liquid and Gas Flow, Liquid Level, and Mechanical Motion Measuring Instruments
Part Alternates: MILI25623, MIL-I-25623, RCA41A07, RCA41A-07, MU1, MU-1, 100-0034-29, 6620-01-322-7678, 01-322-7678, 6620013227678, 100003429, 013227678
Instruments and Laboratory Equipment | Engine Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 13 JUL 1990 | 01-322-7678 | 08260 ( INDICATOR, ELECTRICAL TACHOMETER ) |
Drawings & Photos | NSN 6620-01-322-7678
Demand History | NSN 6620-01-322-7678
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6620-01-322-7678 | 2022-02-43 | 1 | UK |
| 100003429 | 2008-10-301 | 2 | Colombia |
| 6620-01-322-7678 | 2008-10-301 | 2 | Colombia |
| 6620-01-322-7678 | 2008-10-293 | 2 | Colombia |
| 6620-01-322-7678 | 2008-01-02 | 1 | Germany |
Cross Reference | NSN 6620-01-322-7678
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 100-0034-29 | 06275 | ALLEN R C INSTRUMENTS INC |
| 100-0034-29 | 08AF1 | KELLY MANUFACTURING COMPANY |
| MIL-I-25623 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MU-1 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| RCA41A-07 | 06275 | ALLEN R C INSTRUMENTS INC |
| RCA41A-07 | 08AF1 | KELLY MANUFACTURING COMPANY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6620-01-322-7678
Related Products | NSN 6620-01-322-7678
Technical Data | NSN 6620-01-322-7678
| Characteristic | Specifications |
|---|---|
| ELECTRICAL CONNECTION QUANTITY | 1 |
| ELECTRICAL CONNECTION IDENTIFYING NUMBER | MS33678-10SL-3P |
| PRESENTATION TYPE | DIAL |
| SCALE RANGE | 0.0 TO 110.0 PERCENT REVOLUTIONS PER MINUTE SINGLE INDICATOR SINGLE SCALE |
| POINTER TYPE | INDICATING SINGLE POINTER |
| INDIVIDUAL MARKING | PERCENT RPM |
| CURRENT TYPE | AC |
| CONTACT QUANTITY | 3 |
| CONTACT TYPE | PIN |
| LENGTH | 5.000 INCHES NOMINAL |
| DIAMETER | 2.000 INCHES NOMINAL |

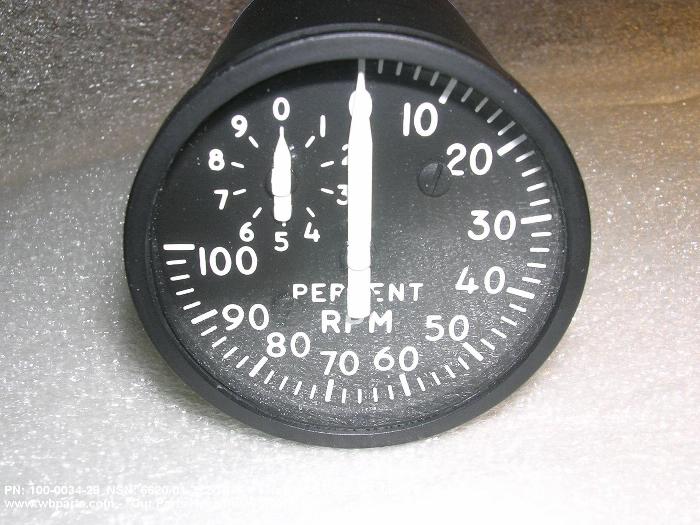

| SPECIAL FEATURES | INDICATOR INCLUDES SUBDIAL SCALE WITH RANGE 0 TO 10% RPM; THE MAJOR SCALE HAS RANGE 0 TO 100% RPM; TOTAL SCALE RANGE OF INDICATOR 0 TO 110% RPM; HERMETICALLY SEALED CASE PER MS33639; TACH DESIGNED FOR USE WITH A TWO POLE TACH GENERATOR CONFORMING TO MIL-G-9398;WEIGHT APPROXIMATELY 1 LB; DIAL IS SCREENED WITH 100 PERCENT AT 9 O'CLOCK; DULL BLACK BACKGROUND PER FED-STD-595 |
| III END ITEM IDENTIFICATION | KC-135E, B52 AND C-130 ACFT |
| III SUPPLEMENTARY FEATURES | TECH ORDER 1C-135(K)-4 FIG 584 |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | TACHOMETER |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-I-25623 |
Restrictions/Controls & Freight Information | NSN 6620-01-322-7678
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | Q | Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.” |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 120840 | ENGINES INTERNAL COMBUSTION NOI |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | F | 150.0 |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | SX | Oklahoma City Air Logistics Center Tinker AFB, OK 73145-3043 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6620-01-322-7678
Air Force| Category | Code | Description |
|---|---|---|
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | FHZ | Oklahoma City Air Logistics Center Tinker AFB, OK 73145-5989 |
| Agency | DF | Department of the Air Force |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | T | AF Recoverable Assembly Management System (AFRAMS) |
| Acquisition Advice Codes | C | SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
