NSN 6620-00-856-8263 4431472, 443147-2, 6829274
Product Details | TORQUEMETER INDICATOR
6620-00-856-8263 An electrically operated instrument that indicates the torque output of an engine. It functions similarly to an ammeter, but is calibrated in terms of horsepower based on revolutions per minute.
Part Alternates: 4431472, 443147-2, 6829274, 6972441, 697244-1, 6620-00-856-8263, 00-856-8263, 6620008568263, 008568263
Instruments and Laboratory Equipment | Engine Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 01 JAN 1962 | 00-856-8263 | 16511 ( INDICATOR, TORQUEMETER ) |

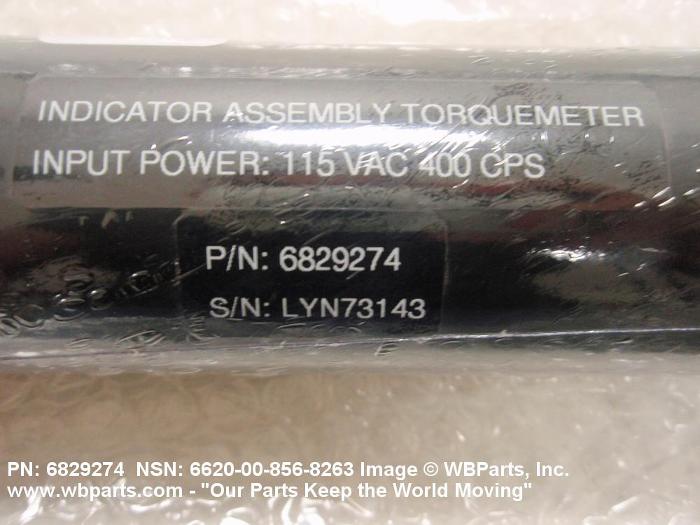

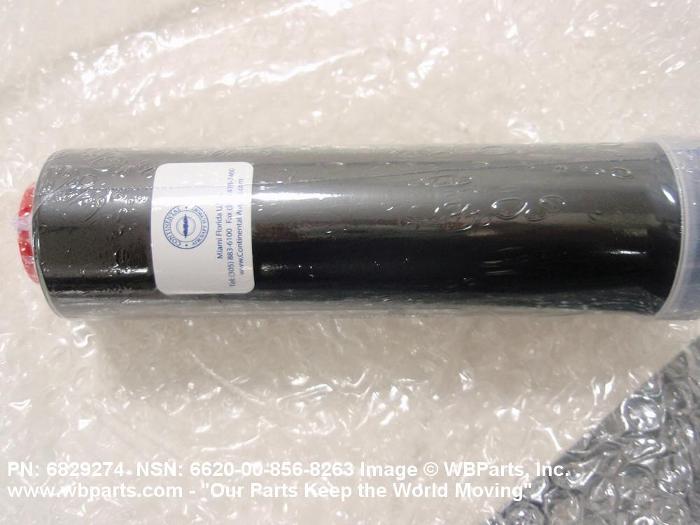

Drawings & Photos | NSN 6620-00-856-8263
Demand History | NSN 6620-00-856-8263
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6829274 | 2024-09-270 | 1 | United Kingdom |
| 6620-00-856-8263 | 2024-08-215 | 2 | US |
| 6829274 | 2023-05-143 | 1 | United Kingdom |
| 6620-00-856-8263 | 2022-10-285 | 4 | PH |
| 6829274 | 2018-09-261 | 2 | United Arab Emirates |
| 6620-00-856-8263 | 2017-06-153 | 1 | US |
| 6620-00-856-8263 | 2017-02-52 | 1 | United States |
| 6829274 | 2015-09-272 | 4 | IN |
| 6620-00-856-8263 | 2014-07-209 | 4 | United States |
| 6620-00-856-8263 | 2014-07-209 | 4 | United States |
| 6620-00-856-8263 | 2013-08-232 | 1 | US |
| 6829274 | 2012-08-221 | 1 | RO |
| 6829274 | 2012-04-93 | 4 | Indonesia |
| 6829274 | 2012-02-34 | 2 | ID |
| 6620-00-856-8263 | 2011-10-298 | 10 | Hong Kong |
| 6829274 | 2011-08-236 | 2 | United States |
| 6620-00-856-8263 | 2011-07-192 | 10 | MANUAL |
| 6829274 | 2011-07-192 | 10 | Hong Kong |
| 6620-00-856-8263 | 2011-04-110 | 1 | Brazil |
| 6829274 | 2009-10-278 | 4 | Indonesia |
| 6620-00-856-8263 | 2009-10-278 | 4 | Indonesia |
| 6620-00-856-8263 | 2009-08-221 | 1 | Spain |
| 6829274 | 2006-04-114 | 1 | France |
| 6829274 | 2006-04-98 | 2 | us |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6620-00-856-8263
Related Products | NSN 6620-00-856-8263
Technical Data | NSN 6620-00-856-8263
| Characteristic | Specifications |
|---|---|
| ELECTRICAL CONNECTION QUANTITY | 1 |
| ELECTRICAL CONNECTION IDENTIFYING NUMBER | PT1H-14-15P |
| PRESENTATION TYPE | DIAL |
| SCALE RANGE | -2000.0 TO 25000.0 TORQUE SINGLE INDICATOR SINGLE SCALE |
| POINTER TYPE | INDICATING SINGLE POINTER |
| INDIVIDUAL MARKING | TORQUE IN LB X 1000 |
| CURRENT TYPE | AC |
| AC VOLTAGE RATING | 115.0 VOLTS NOMINAL |
| FREQUENCY RATING | 400.0 HERTZ NOMINAL |
| LENGTH | 7.360 INCHES NOMINAL |
| DIAMETER | 1.940 INCHES NOMINAL |
| DIAL OUTSIDE DIAMETER | 2.000 INCHES NOMINAL |
| FEATURES PROVIDED | ENCAPSULATED |
| SPECIAL FEATURES | INDICATOR CASE PER MS33639; INCLUDES SUBDIAL |
| III END ITEM IDENTIFICATION | C-130 AIRCRAFT |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | INDICATOR ASSEMBLY,TORQUEMETER |
| MANUFACTURERS CODE | 73342 |
| MFR SOURCE CONTROLLING REFERENCE | 6829274 |
Restrictions/Controls & Freight Information | NSN 6620-00-856-8263
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | D | Munitions List Item or Commerce Control List Item. Demilitarization required. Total destruction of the item and components so as to preclude restoration or repair to a usable condition by melting, cutting, tearing, scratching, crushing, breaking, punching, neutralizing, etc. (As an alternate, burial or deep water dumping may be used when coordinated with the DoD Demilitarization Program Office.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 177220 | SPEED INDICATORS/HEADS/ODOMETERS |
| Less than car load rating | J | 100.2 |
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6620-00-856-8263
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9J | Navy-owned stocks of material managed by the Air Force within the Oklahoma City Air Logistics Center Naval Inventory Control Point, Mechanicsburg |
| Special Material ID | LC | CARGO/TRANSPORTAIRCRAFT(C130) |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | FHZ | Oklahoma City Air Logistics Center Tinker AFB, OK 73145-5989 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
