NSN 6620-00-621-0143 MILI25623, MU1, MU-1
Product Details | ELECTRICAL TACHOMETER INDICATOR
6620-00-621-0143 An instrument which displays, in units of revolutions per minute, the transmitted rotational speed of a shaft for a specified elapsed time.2036320000066200018Engine Instruments66800078Liquid and Gas Flow, Liquid Level, and Mechanical Motion Measuring Instruments
Part Alternates: MILI25623, MU1, MU-1, 8DJ81CAA1, 6620-00-621-0143, 00-621-0143, 6620006210143, 006210143
Instruments and Laboratory Equipment | Engine Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 01 JAN 1963 | 00-621-0143 | 08260 ( INDICATOR, ELECTRICAL TACHOMETER ) |

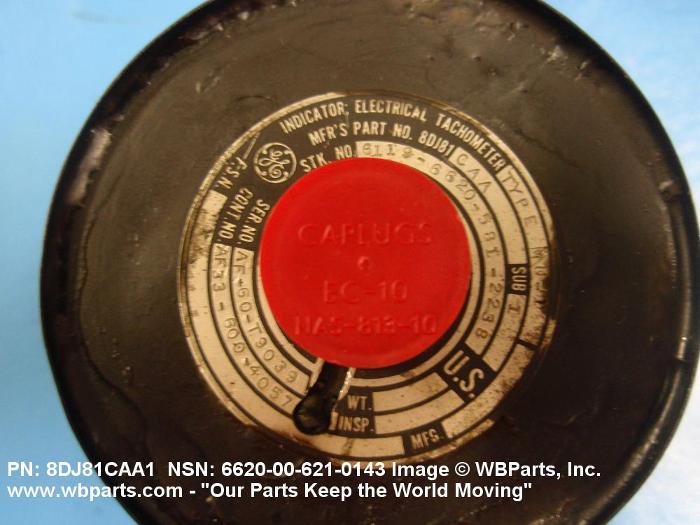

Drawings & Photos | NSN 6620-00-621-0143
Demand History | NSN 6620-00-621-0143
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 8DJ81CAA1 | 2023-09-271 | 8 | United States |
| 8DJ81CAA1 | 2019-06-152 | 3 | |
| 8DJ81CAA1 | 2014-01-08 | 3 | United States |
| 8DJ81CAA1 | 2012-03-65 | 2 | India |
| 6620-00-621-0143 | 2011-12-346 | 1 | US |
| 6620-00-621-0143 | 2011-04-110 | 1 | Brazil |
| 8DJ81CAA1 | 2009-03-76 | 1 | Philippines |
| 6620-00-621-0143 | 2008-03-64 | 1 | us |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6620-00-621-0143
Related Products | NSN 6620-00-621-0143
Technical Data | NSN 6620-00-621-0143
| Characteristic | Specifications |
|---|---|
| ELECTRICAL CONNECTION QUANTITY | 1 |
| ELECTRICAL CONNECTION IDENTIFYING NUMBER | MS33678-10SL-3P |
| PRESENTATION TYPE | DIAL |
| SCALE RANGE | 0.0 TO 110.0 PERCENT REVOLUTIONS PER MINUTE SINGLE INDICATOR SINGLE SCALE |
| POINTER TYPE | INDICATING SINGLE POINTER |
| INDIVIDUAL MARKING | PERCENT RPM |
| CURRENT TYPE | AC |
| CONTACT QUANTITY | 3 |
| CONTACT TYPE | PIN |
| LENGTH | 5.000 INCHES NOMINAL |
| DIAMETER | 2.000 INCHES NOMINAL |

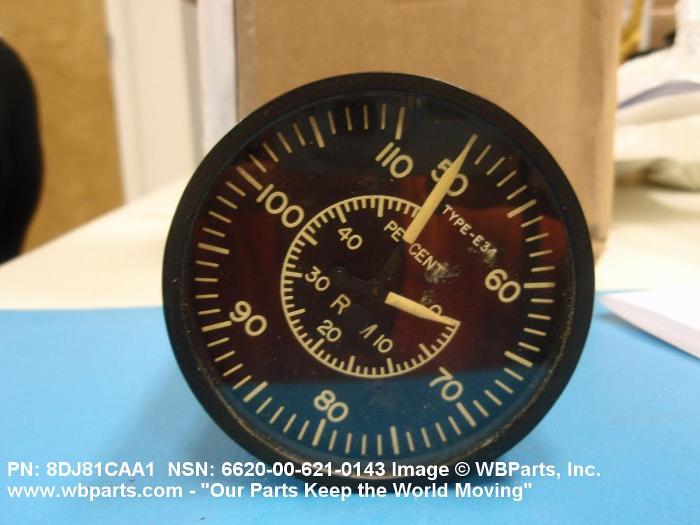

| SPECIAL FEATURES | INDICATOR INCLUDES SUBDIAL SCALE WITH RANGE 0 TO 10% RPM; THE MAJOR SCALE HAS RANGE 0 TO 100% RPM; TOTAL SCALE RANGE OF INDICATOR 0 TO 110% RPM; HERMETICALLY SEALED CASE PER MS33639; TACH DESIGNED FOR USE WITH A TWO POLE TACH GENERATOR CONFORMING TO MIL-G-9398;WEIGHT APPROXIMATELY 1 LB; DIAL IS SCREENED WITH 100 PERCENT AT 9 O'CLOCK; DULL BLACK BACKGROUND PER FED-STD-595 |
| III END ITEM IDENTIFICATION | KC-135E, B52 AND C-130 ACFT |
| III SUPPLEMENTARY FEATURES | TECH ORDER 1C-135(K)-4 FIG 584 |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | TACHOMETER |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MILI25623 |
Restrictions/Controls & Freight Information | NSN 6620-00-621-0143
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | Q | Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.” |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 120840 | ENGINES INTERNAL COMBUSTION NOI |
| Less than car load rating | ||
| Less than truck load rating | F | 150.0 |
| Water commodity Code | 671 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6620-00-621-0143
Air Force
Navy
Coast Guard| Category | Code | Description |
|---|---|---|
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | FHZ | Oklahoma City Air Logistics Center Tinker AFB, OK 73145-5989 |
| Agency | DF | Department of the Air Force |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | T | AF Recoverable Assembly Management System (AFRAMS) |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 7R | Aeronautical Depot Level Repairable Spares Naval Inventory Control Point, Philadelphia |
| Special Material ID | FZ | Special Projects (GFE) |
| Issue Repair, or Requisition | AR | Repairable item subject to centrally managed rework program at designated sites. Mandatory turn-in of item required except when initial issue or replacement of surveyed item is involved. |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | N32 | Naval Inventory Control Point Philadelphia, PA 19111-5098 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | E | (1) IRAM Program Intensive Management Reparables (2) Material (expendable ordnance) Requiring Lot and Serial Number Control but which is Reported by Serial Number Only |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Inventory Account Codes | A | Appropriations Purchase Account item managed for the Coast Guard by the respective Inventory Control Point. An unfunded requisition is required. |
| Source of Supply | ZQC | Commanding Officer Department of Homeland Security USCG Aviation Logistics Center 1664 Weeksville Road Elizabeth City, NC 27909 |
| Agency | GP | U.S. Coast Guard |
| Service Organization | C | U.S. Coast Guard |
| Reparability | R | |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
