NSN 6610-00-391-7888 PH506R, PH506RH, 00-391-7888
Product Details | PITOT TUBE
6610-00-391-7888 A device used to measure the total pressure of a fluid stream.
Part Alternates: PH506R, PH506RH, 6610-00-391-7888, 00-391-7888, 6610003917888, 003917888
Instruments and Laboratory Equipment | Flight Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 01 JAN 1963 | 00-391-7888 | 03406 ( PITOT TUBE ) |

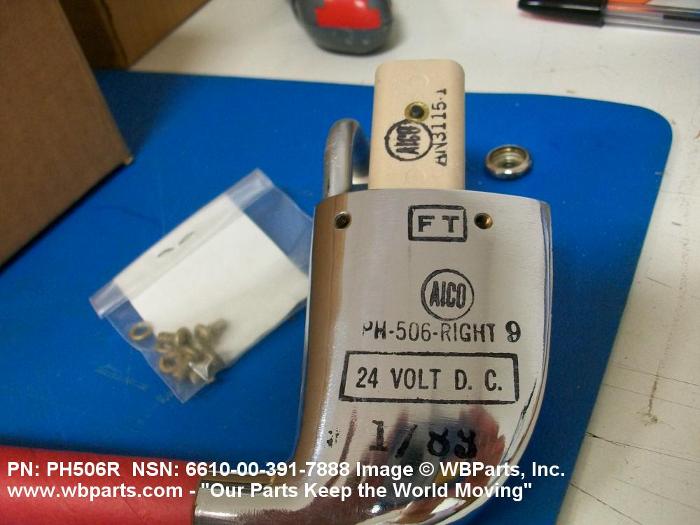

Drawings & Photos | NSN 6610-00-391-7888
Demand History | NSN 6610-00-391-7888
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6610-00-391-7888 | 2023-03-87 | 1 | United States |
| 6610-00-391-7888 | 2011-07-201 | 1 | Australia |
| 6610-00-391-7888 | 2008-10-305 | 3 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6610-00-391-7888
Related Products | NSN 6610-00-391-7888
Technical Data | NSN 6610-00-391-7888
| Characteristic | Specifications |
|---|---|
| OVERALL LENGTH | 5.438 INCHES NOMINAL |
| OVERALL WIDTH | 0.749 INCHES NOMINAL |
| OVERALL HEIGHT | 4.812 INCHES NOMINAL |
| MOUNTING METHOD | TUBULAR |
| ELECTRICAL CONNECTION QUANTITY | 1 |
| CONTACT QUANTITY | 2 |
| CONTACT TYPE | PIN |
| MOUNTING POSITION | RIGHT SIDE |
| ATTACHMENT DEVICE TYPE | SCREW |
| ATTACHMENT DEVICE QUANTITY | 4 |
| ELECTRICAL HEATING ELEMENT | PROVIDED |
| HEATING ELEMENT CURRENT TYPE | DC |
| HEATING ELEMENT VOLTAGE IN VOLTS | 24.0 |
| HEATING ELEMENT CURRENT RATING IN AMPS | 5.0 |
| MANUFACTURERS CODE | 70134 |
| DESIGN CONTROL REFERENCE | PH506R |
Restrictions/Controls & Freight Information | NSN 6610-00-391-7888
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061700 | ELEC APPLIANCES/INSTRUMENTS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6610-00-391-7888
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
