NSN 6610-00-015-7694 851L, 00-015-7694, 000157694

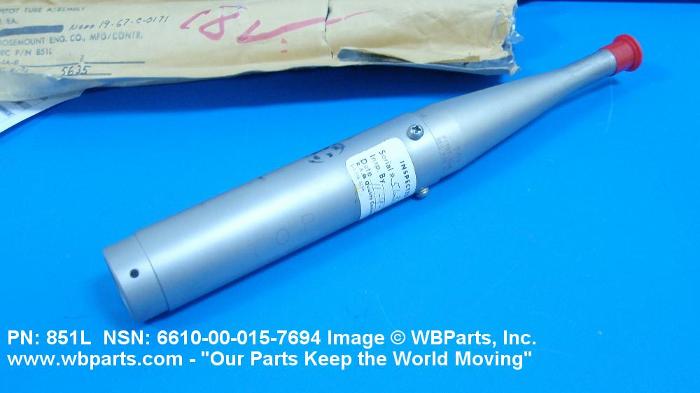

Product Details | PITOT TUBE
6610-00-015-7694 A device used to measure the total pressure of a fluid stream.
Part Alternates: 851L, 6610-00-015-7694, 00-015-7694, 6610000157694, 000157694
Instruments and Laboratory Equipment | Flight Instruments
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
66 | 01 JAN 1961 | 00-015-7694 | 03406 ( PITOT TUBE ) |
Demand History | NSN 6610-00-015-7694
Part Number | Request Date | QTY | Origin |
---|---|---|---|
6610-00-015-7694 | 2008-07-192 | 3 | United Arab Emirates |
6610-00-015-7694 | 2007-07-186 | 10 | PT |
Request a Quote
What Our Customers Say
Compare
NSNs for Compare ( up to 4 ): Add 6610-00-015-7694
Related Products | NSN 6610-00-015-7694
Technical Data | NSN 6610-00-015-7694
Characteristic | Specifications |
---|---|
OVERALL LENGTH | 9.750 INCHES NOMINAL |
OVERALL DIAMETER | 1.250 INCHES NOMINAL |
MOUNTING METHOD | TUBULAR |
ELECTRICAL CONNECTION QUANTITY | 1 |
CONTACT QUANTITY | 2 |
CONTACT TYPE | PIN |
MOUNTING POSITION | TUBULAR HORIZONTAL |
ATTACHMENT DEVICE TYPE | HOLE |
ATTACHMENT DEVICE QUANTITY | 3 |
ELECTRICAL HEATING ELEMENT | PROVIDED |
HEATING ELEMENT CURRENT TYPE | AC |
HEATING ELEMENT VOLTAGE IN VOLTS | 115.0 |
HEATING ELEMENT FREQUENCY IN HERTZ | 400.0 |
HEATING ELEMENT PHASE | SINGLE |
HEATING ELEMENT WATTAGE IN WATTS | 150.0 |
HEATING ELEMENT CURRENT RATING IN AMPS | 1.3 |
MANUFACTURERS CODE | 59885 |
DESIGN CONTROL REFERENCE | 851L |
Restrictions/Controls & Freight Information | NSN 6610-00-015-7694
Category | Code | Description |
---|---|---|
Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
Controlled Inventory Item Code: | U | UNCLASSIFIED |
Precious Metals Indicator Code: | A | Item does not contain precious metal |
Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
Category | Code | Description |
---|---|---|
NMF Description | 061700 | ELEC APPLIANCES/INSTRUMENTS NOI |
Less than car load rating | ||
Less than truck load rating | W | Rating Variable |
Water commodity Code | 659 | unknown |
Originating Activity Code | XX | |
Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
Air Commodity | ||
Air Special Handling | Q | Extremely fragile items including delicate instruments. |
Special Handling Code | Q | unknonwn |
HAZMAT | ||
Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6610-00-015-7694
Category | Code | Description |
---|---|---|
Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
Agency | DN | Department of the Navy |
Service Organization | N | U.S. Navy |
Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
Controlled Item Code | U | UNCLASSIFIED |
Shelf Life Code | 0 | Nondeteriorative |
Purchasing | QTY UOM |
1 EA : Each |
