NSN 6610-00-391-7884 AN58122, AN5812-2, MILT5421
Product Details | PITOT-STATIC TUBE

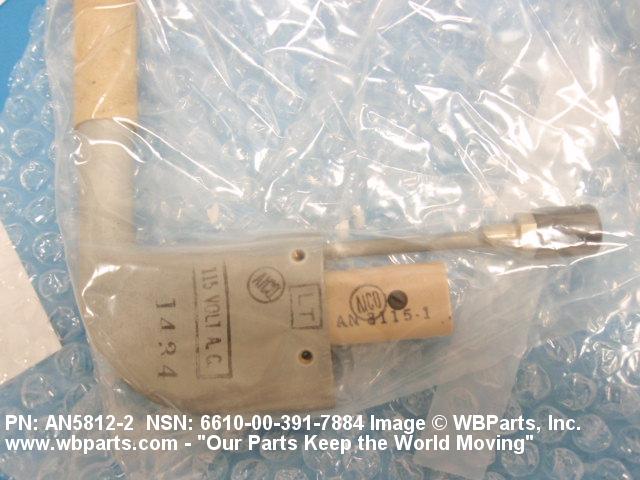

6610-00-391-7884 A device consisting of a PITOT TUBE and a STATIC TUBE combined to simultaneously measure total and static pressure in a fluid stream. It is used in connection with a manometer. It may have an integrated Total Temperature sensor capable of providing temperatureoutput readings when part of a mult-functio n probe.
Part Alternates: AN58122, AN5812-2, MILT5421, MIL-T-5421, 6610-00-391-7884, 00-391-7884, 6610003917884, 003917884
Instruments and Laboratory Equipment | Flight Instruments
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
66 | 01 JAN 1963 | 00-391-7884 | 03407 ( PITOT-STATIC TUBE ) |
Demand History | NSN 6610-00-391-7884
Part Number | Request Date | QTY | Origin |
---|---|---|---|
AN58122 | 2010-02-39 | 2 | Canada |
Request a Quote
What Our Customers Say
Compare
NSNs for Compare ( up to 4 ): Add 6610-00-391-7884
Related Products | NSN 6610-00-391-7884
Technical Data | NSN 6610-00-391-7884
Characteristic | Specifications |
---|---|
OVERALL LENGTH | 5.540 INCHES NOMINAL |
OVERALL WIDTH | 1.915 INCHES NOMINAL |
OVERALL HEIGHT | 5.562 INCHES NOMINAL |
MOUNTING METHOD | TUBULAR |
MOUNTING POSITION | TUBULAR HORIZONTAL |
ATTACHMENT DEVICE QUANTITY | ANY ACCEPTABLE |
ELECTRICAL HEATING ELEMENT | PROVIDED |
HEATING ELEMENT CURRENT TYPE | AC |
HEATING ELEMENT VOLTAGE IN VOLTS | 115.0 |
HEATING ELEMENT FREQUENCY IN HERTZ | 400.0 |
HEATING ELEMENT PHASE | SINGLE |
MANUFACTURERS CODE | 88044 |
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AN5812-2 |
MANUFACTURERS CODE | 81349 |
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-T-5421 |
Restrictions/Controls & Freight Information | NSN 6610-00-391-7884
Category | Code | Description |
---|---|---|
Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
Precious Metals Indicator Code: | U | Precious metal type is unknown |
Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
Category | Code | Description |
---|---|---|
NMF Description | 061700 | ELEC APPLIANCES/INSTRUMENTS NOI |
Less than car load rating | W | Rating Variable |
Less than truck load rating | W | Rating Variable |
Water commodity Code | 658 | unknown |
Originating Activity Code | XX | |
Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
Air Special Handling | Z | No special handling required. |
Special Handling Code | 9 | unknonwn |
HAZMAT | ||
Type of Cargo | Z | No special type of cargo code applicable |
