Product Details | HORIZONTAL SITUATION INDICATOR
6605-01-344-5803 A panel mounted aircraft instrument which provides, on a single display, navigational information, such as the magnetic heading, heading selection, course selection, course deviation, bearing, and distance of a selected navigational facility. Knob(s) are located on the face for inputing selected course and/or heading data.
Part Alternates: 1658401, 165840-1, 1658411, 165841-1, 6605-01-344-5803, 01-344-5803, 6605013445803, 013445803
Instruments and Laboratory Equipment | Navigational Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 31 AUG 1991 | 01-344-5803 | 32310 ( INDICATOR, HORIZONTAL SITUATION ) |
Drawings & Photos | NSN 6605-01-344-5803
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6605-01-344-5803
Technical Data | NSN 6605-01-344-5803
| Characteristic | Specifications |
|---|---|
| USAGE DESIGN | HEADING AND POSITION |
| ELECTRICAL CONNECTION QUANTITY | 1 |
| ELECTRICAL CONNECTION IDENTIFYING NUMBER | MS27476Y16D-55PN |
| PRESENTATION TYPE | DRUM DIAL AND REGISTER AND DROP FLAGS |
| DISPLAY DIGIT QUANTITY | 3 |
| INDIVIDUAL MARKING | DIAL MARKINGS;BACKGROUND OF BEARING POINTERS AND INDICES;MILES AND COURSE DISPLAY;NUMERAL LUBBER LINE;COURSE DOTS;COURSE ARROW;COURSE BAR;TO-FROM ARROW;HEADING SELLECT MARKER;AIRPLANE SYMBOL |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 BEZEL AND 1 PANEL |
| MOUNTING HOLE DIAMETER | 0.204 INCHES NOMINAL |

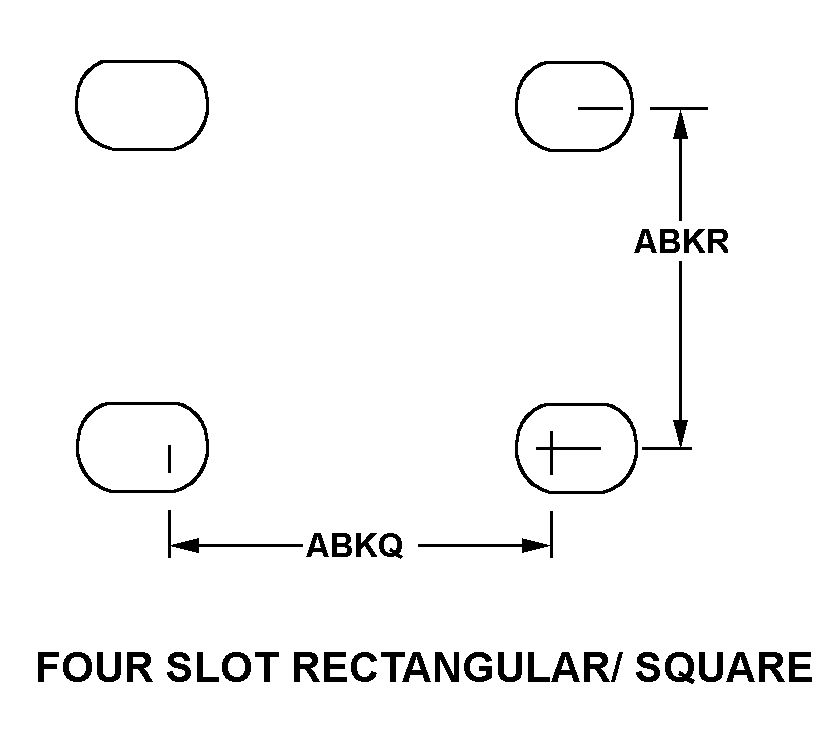

| MOUNTING ARRANGEMENT STYLE | 9 FOUR SLOT RECTANGULAR/SQUARE |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 4.500 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH | 3.750 INCHES NOMINAL |
| HEIGHT | 4.250 INCHES NOMINAL |
| DEPTH | 8.001 INCHES MINIMUM AND 8.125 INCHES MAXIMUM |
| KNOB PURPOSE | COURSE SET |
| KNOB QUANTITY | 2 |
| SPECIAL FEATURES | CASE HERMITICALLY SEALED;FILLED WITH 90% NITROGEN AND 10% HELIUM;BITE INDICATOR TO DISPLAY NO FAULT IN BLACK AND FAULT IN WHITE;FLAG INDICATOR FOR INSTRUMENT OFF;KNOB FOR MILES SET;KNOB FOR COURSE SET;OPERATES IN AMBIENT TEMPERATURES OF -54 DEG C TO 71 DEG C;USED ON F-15A/D |
