Product Details | HORIZONTAL SITUATION INDICATOR

6605-01-535-2473 A panel mounted aircraft instrument which provides, on a single display, navigational information, such as the magnetic heading, heading selection, course selection, course deviation, bearing, and distance of a selected navigational facility. Knob(s) are located on the face for inputing selected course and/or heading data.

Part Alternates: ID-1805/AJN-18 , ID1805AJN18, 1658409, 165840-9, 6220290004, 622-0290-004 , 6605-01-535-2473, 01-535-2473, 6605015352473, 015352473

Instruments and Laboratory Equipment | Navigational Instruments

Supply Group (FSG) NSN Assign. NIIN
66 21 NOV 2005 01-535-2473

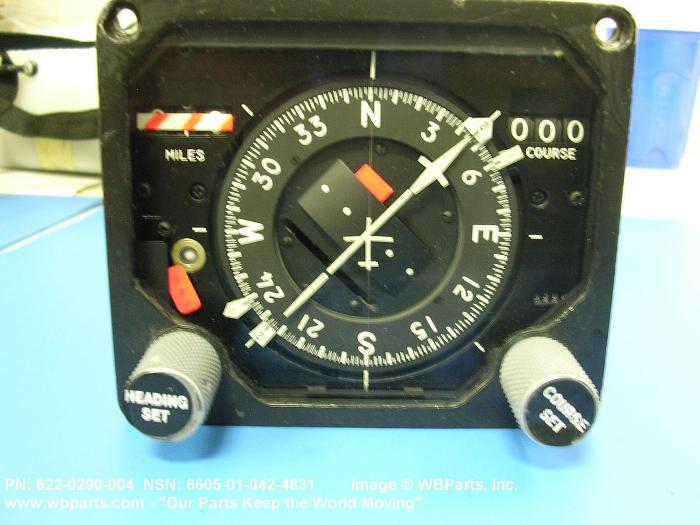

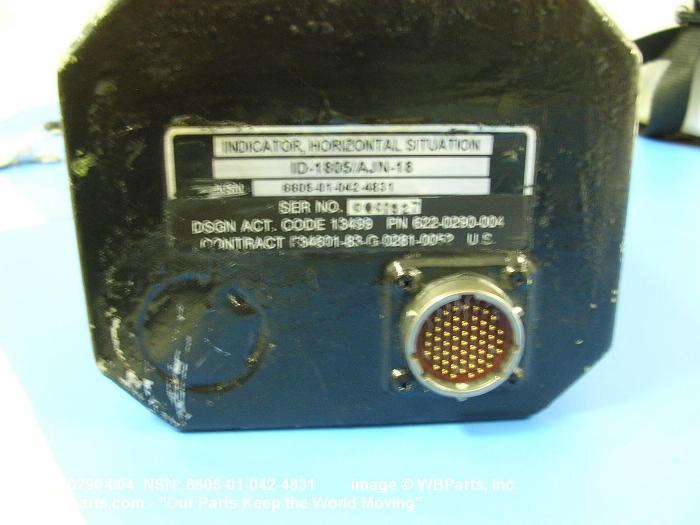

Drawings & Photos | NSN 6605-01-535-2473


Demand History | NSN 6605-01-535-2473

Part Number Request Date QTY Origin
6605-01-535-2473 2024-08-219 1 Indonesia
6220290004 2019-12-357 1 United States
6605-01-535-2473 2017-02-47 2 US
6220290004 2017-01-25 1 United States
6220290004 2016-12-341 1 United States
6220290004 2013-06-156 1 United States
6220290004 2012-05-125 1 United States
6605-01-535-2473 2012-02-42 1 SA
6220290004 2011-07-188 2 US
ID1805AJN18 2011-07-188 2 US
6220290004 2010-11-321 1 United States
6220290004 2010-09-264 1 JP
6220290004 2010-03-89 1 United States
6220290004 2009-09-258 3 United States
6220290004 2009-04-99 2 United States
6220290004 2009-04-96 2 United States
6220290004 2007-07-191 2 United States

Cross Reference | NSN 6605-01-535-2473

Part Number Cage Code Manufacturer
165840-9 10138 ASTRONAUTICS CORPORATION OF AMERICA
622-0290-004 13499 ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS
ID-1805/AJN-18 80058 JOINT ELECTRONICS TYPE DESIGNATION SYSTEM

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 6605-01-535-2473

Technical Data | NSN 6605-01-535-2473

Characteristic Specifications
SPECIAL FEATURES MODIFICATION OF NSN 6605-01-523-2588 (PART NO. 165840-7)
END ITEM IDENTIFICATION F-15

Restrictions/Controls & Freight Information | NSN 6605-01-535-2473

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodePThere is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:DMunitions List Item or Commerce Control List Item. Demilitarization required. Total destruction of the item and components so as to preclude restoration or repair to a usable condition by melting, cutting, tearing, scratching, crushing, breaking, punching, neutralizing, etc. (As an alternate, burial or deep water dumping may be used when coordinated with the DoD Demilitarization Program Office.)
Controlled Inventory Item Code:7NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7).
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:0Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)
Category Code Description
NMF Description 011790 AIRCRAFT PARTS NOI
Less than car load rating
Less than truck load rating W Rating Variable
Water commodity Code 671 unknown
Originating Activity Code TK HQ AFMC/GLSC 401 SCM/GUMB
Wright-Patterson AFB, OH 45433-5000
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 6605-01-535-2473

Category Code Description
Price ValidationN The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
  • The price has not been analyzed or reviewed for accuracy.
  • ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund CodeSFStock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of SupplyFHZOklahoma City Air Logistics Center
Tinker AFB, OK 73145-5989
AgencyDFDepartment of the Air Force
Service OrganizationLLead Service - 22 (Repairable)
ReparabilityTAF Recoverable Assembly Management System (AFRAMS)
Acquisition Advice CodesCSERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures.
Controlled Item Code7NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7).
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
