NSN 6350-00-360-0988 B52SYM2934.1, B52SYM29341, IC/B52
Product Details | ANNUNCIATOR
6350-00-360-0988 A signaling apparatus which operates electromagnetically and serves to indicate visually, or visually and audibly, whether a current is flowing, has flowed, or has changed direction of flow in one or more circuits. It is usually employed in connection with alarms, electric bells, or buzzers. See also ALARM (as modified).20263400033Aircraft Alarm and Signal Systems63500059Miscellaneous Alarm, Signal, and Security Detection Systems
Part Alternates: B52SYM2934.1, B52SYM29341, IC/B52, ICB52, MILA17196, 9000S6504F73807ALT3, 6350-00-360-0988, 00-360-0988, 6350003600988, 003600988
Alarm, Signal and Security Detection Systems | Miscellaneous Alarm, Signal, and Security Detection Systems
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 63 | 01 JAN 1963 | 00-360-0988 | 00133 ( ANNUNCIATOR ) |

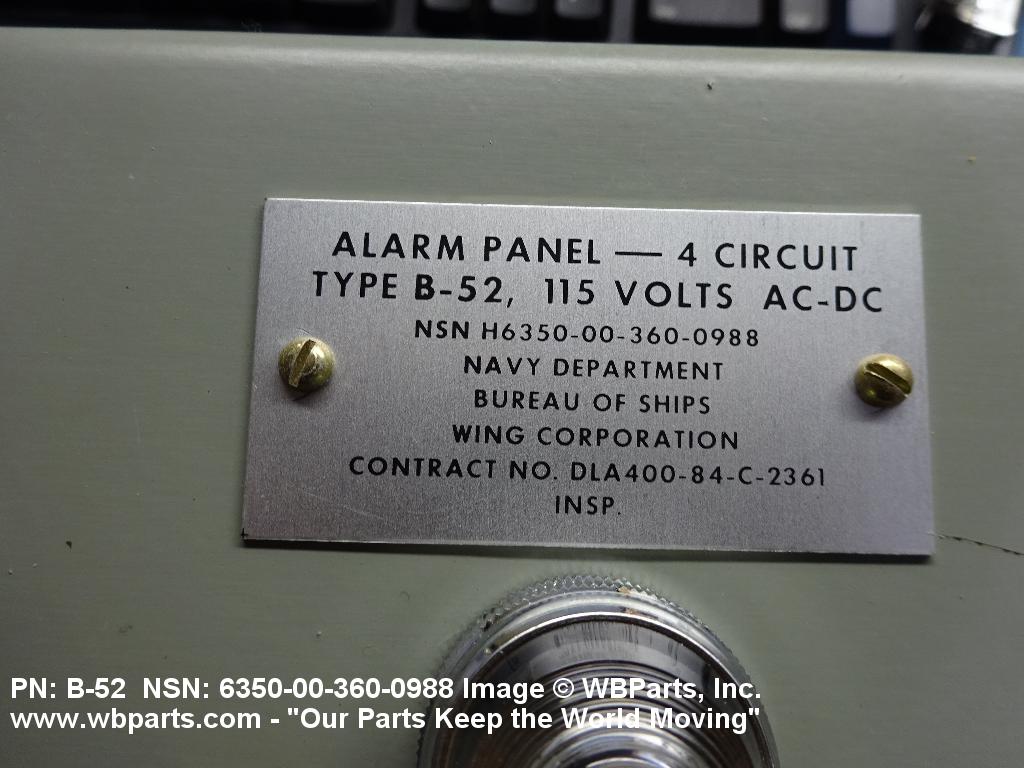

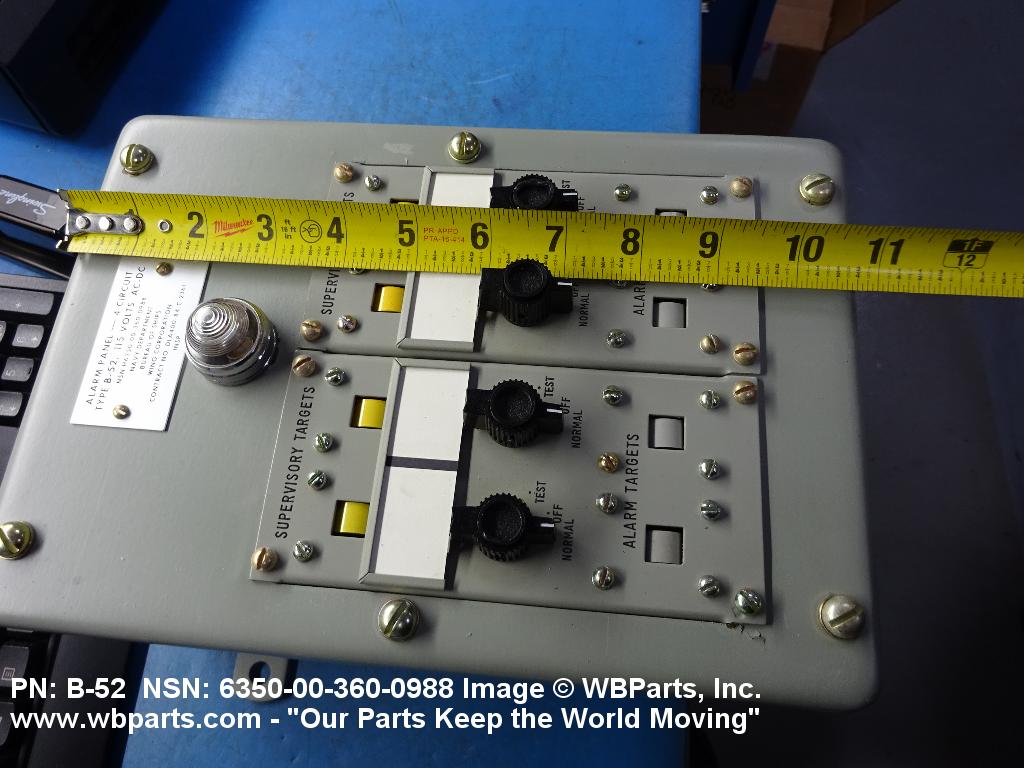

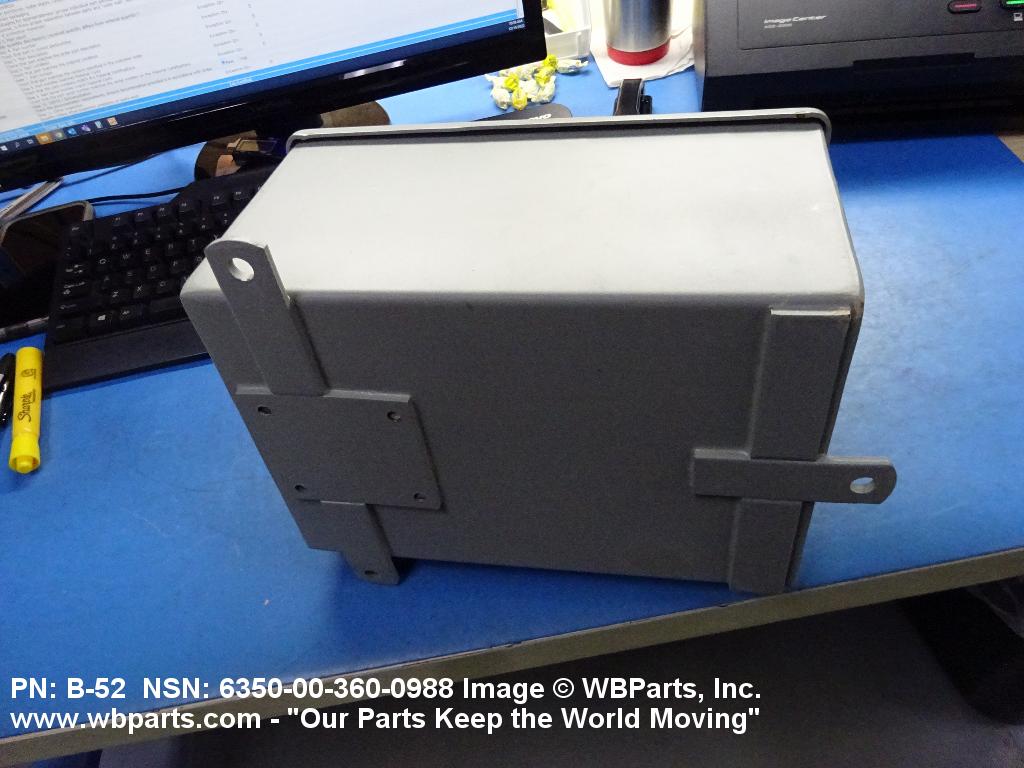

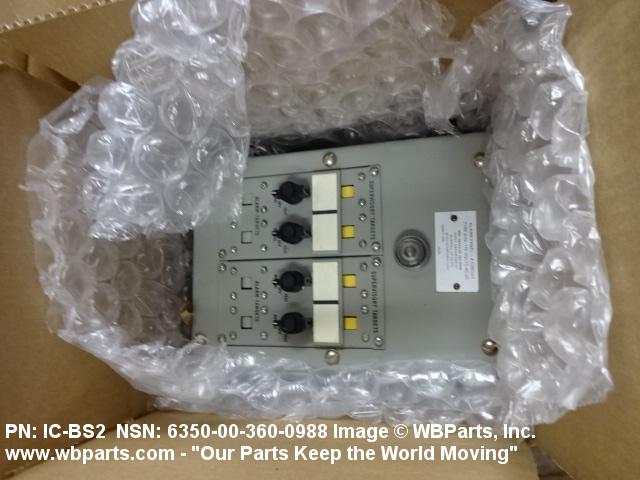

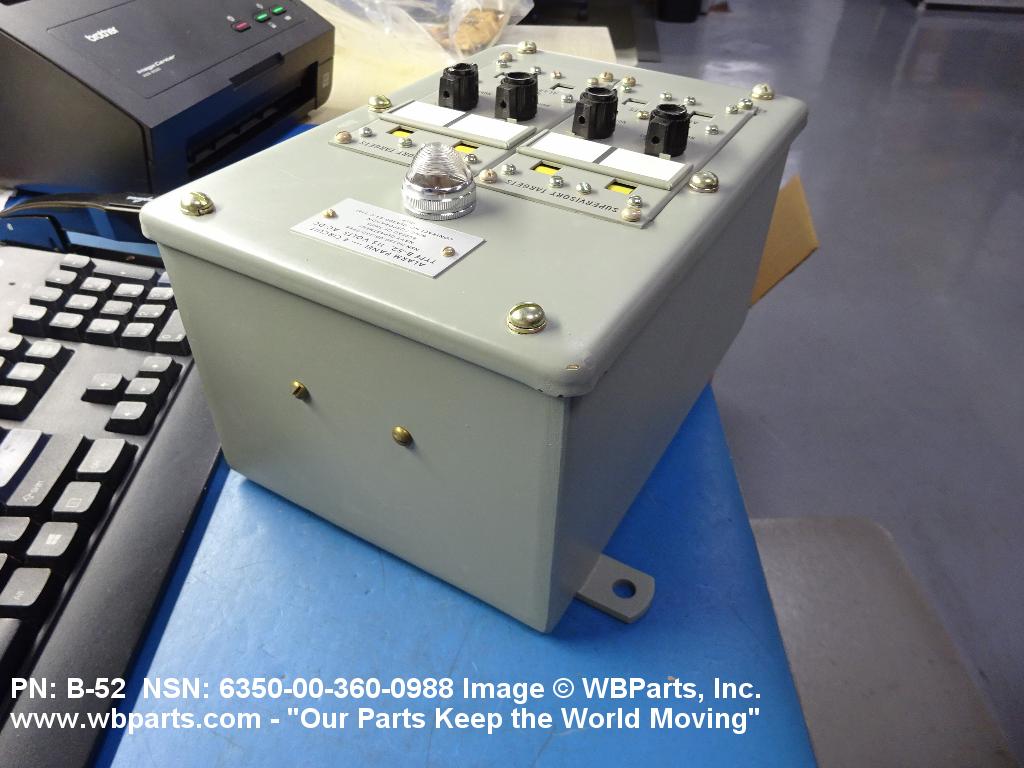

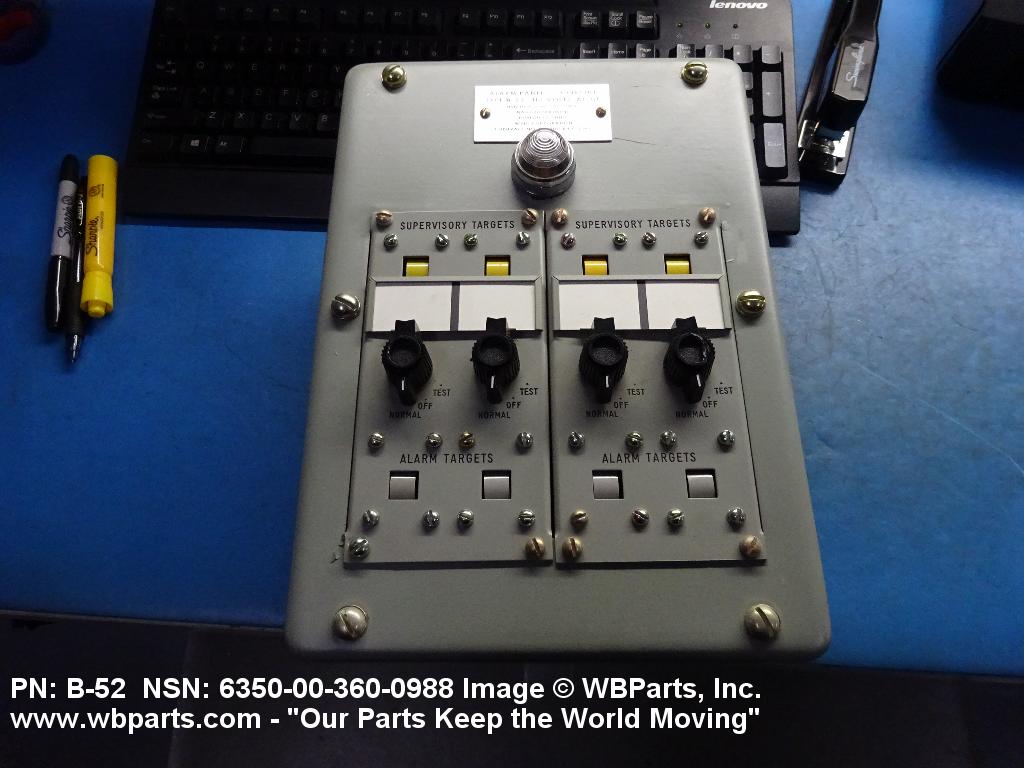

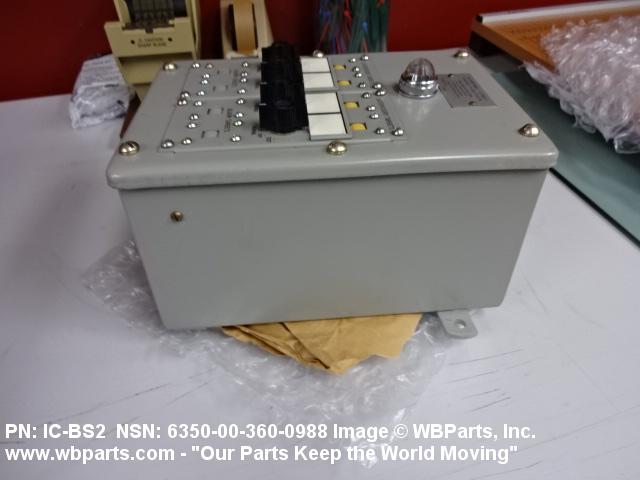

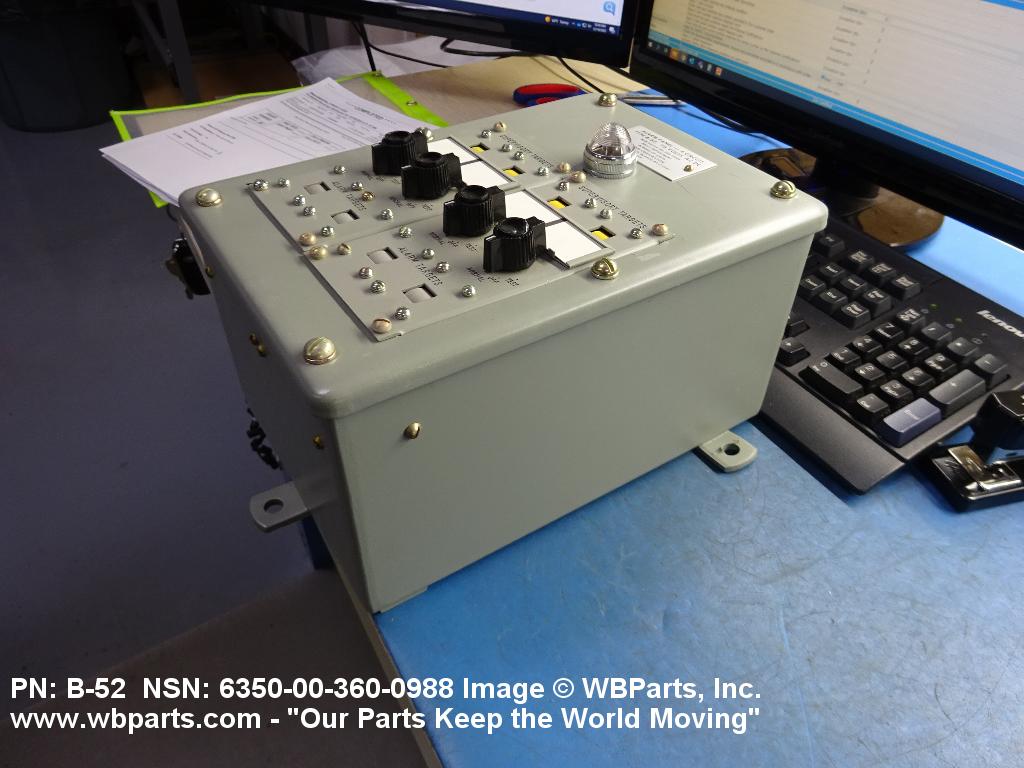

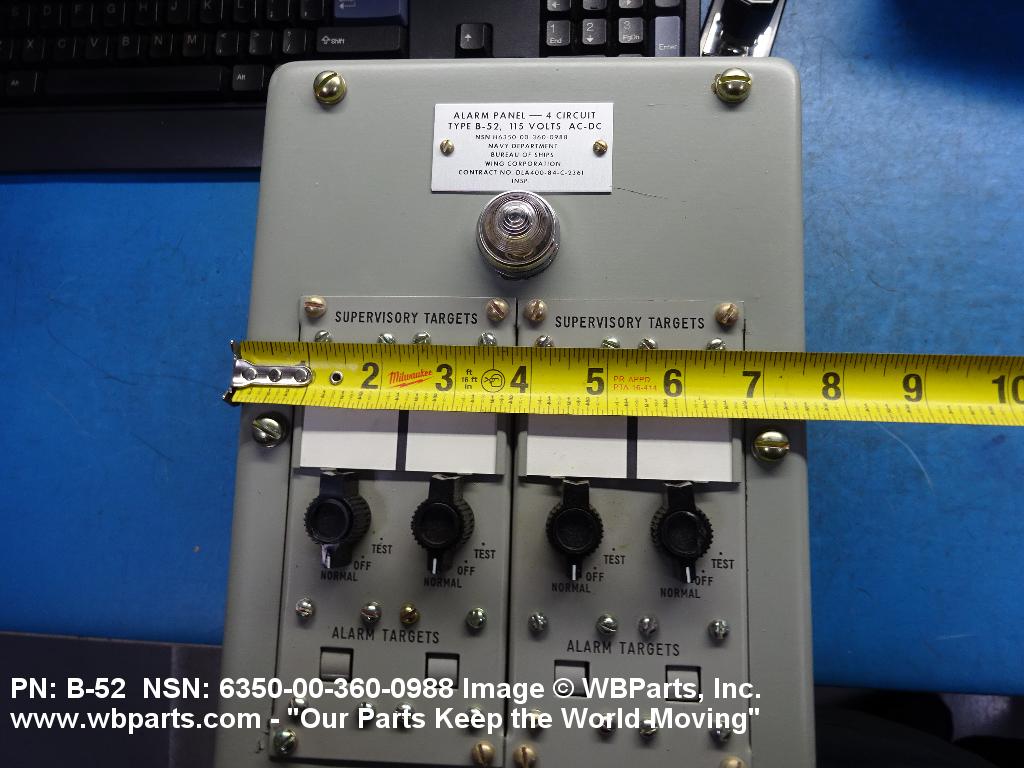

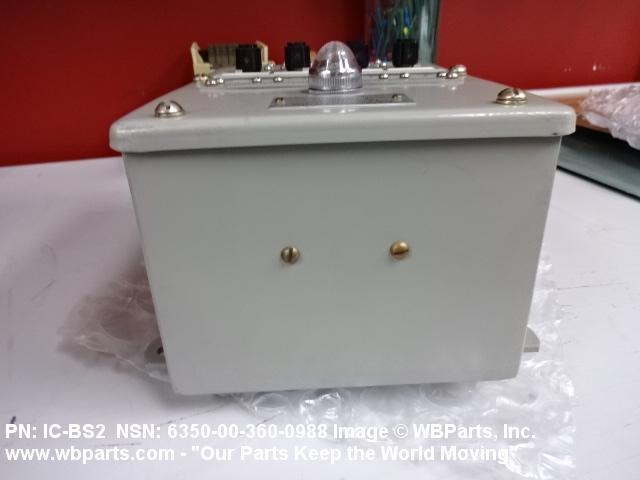

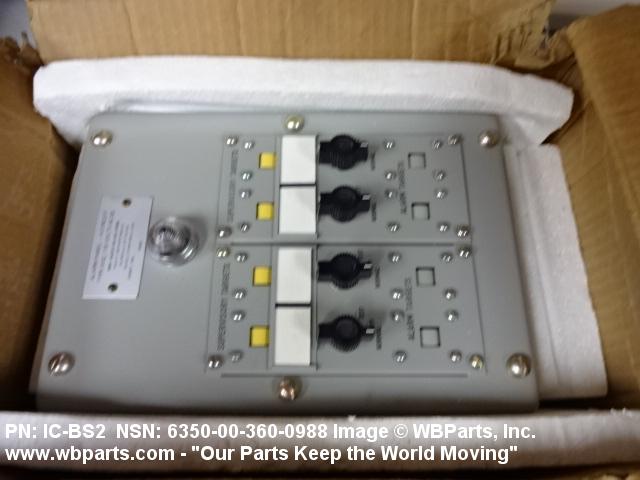

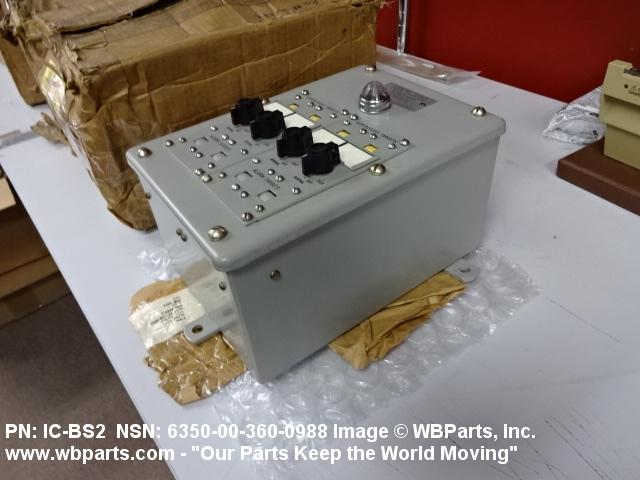

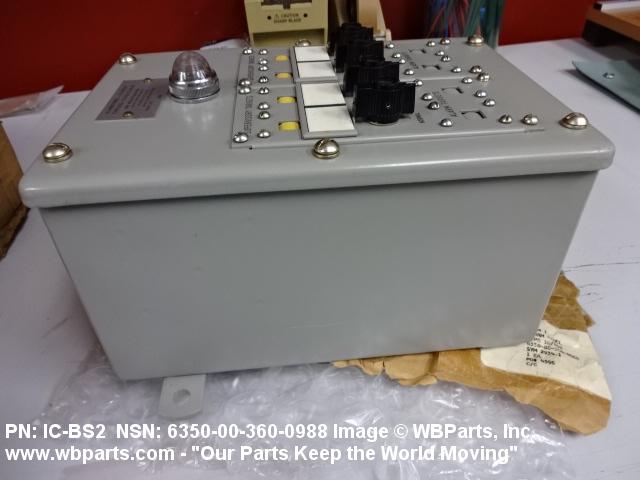

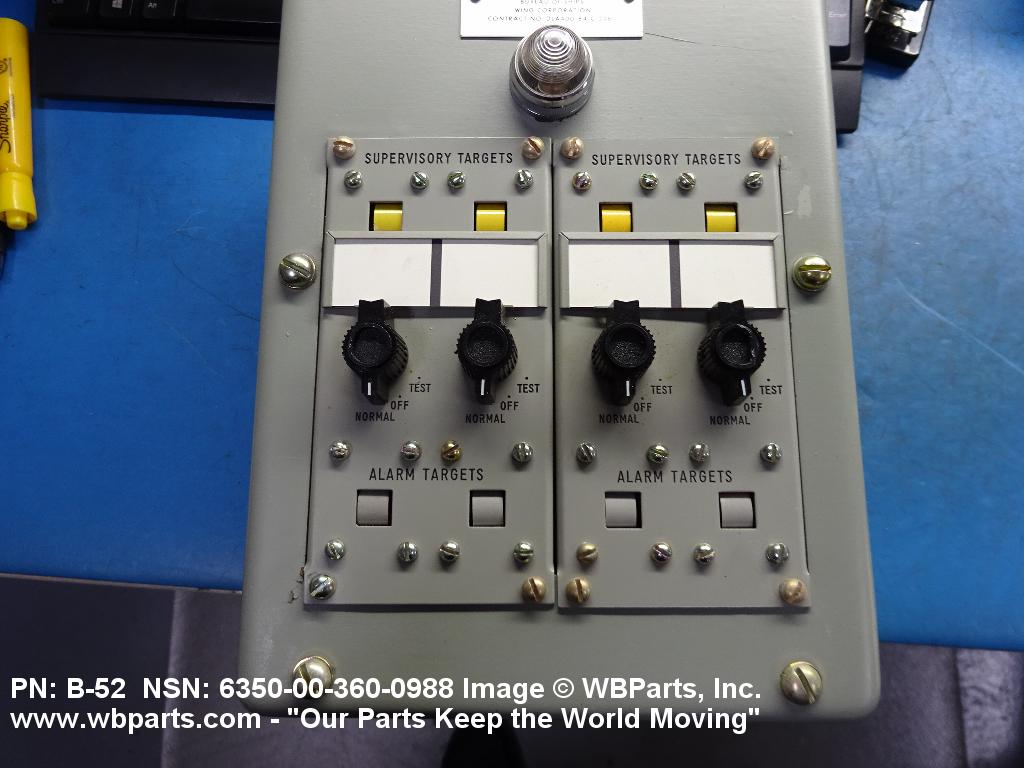

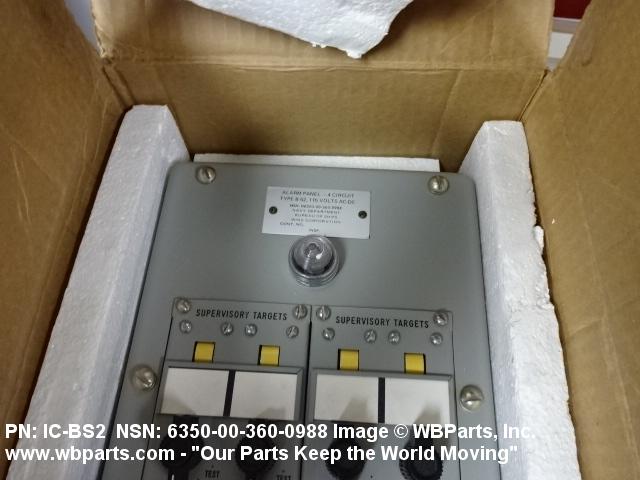

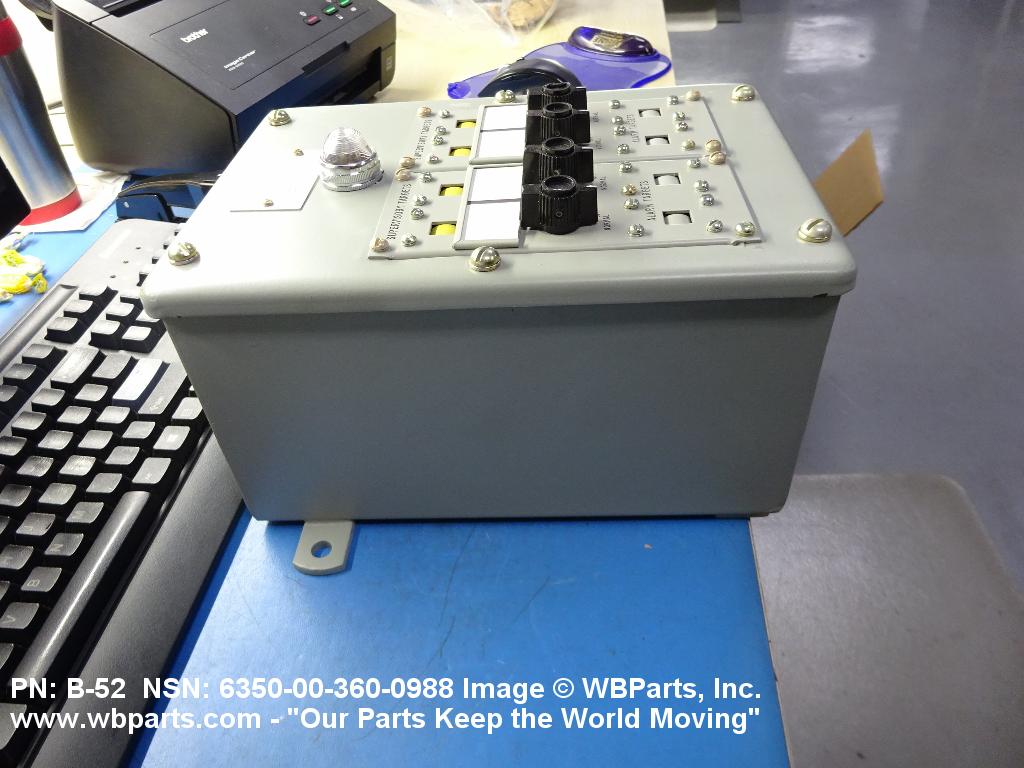

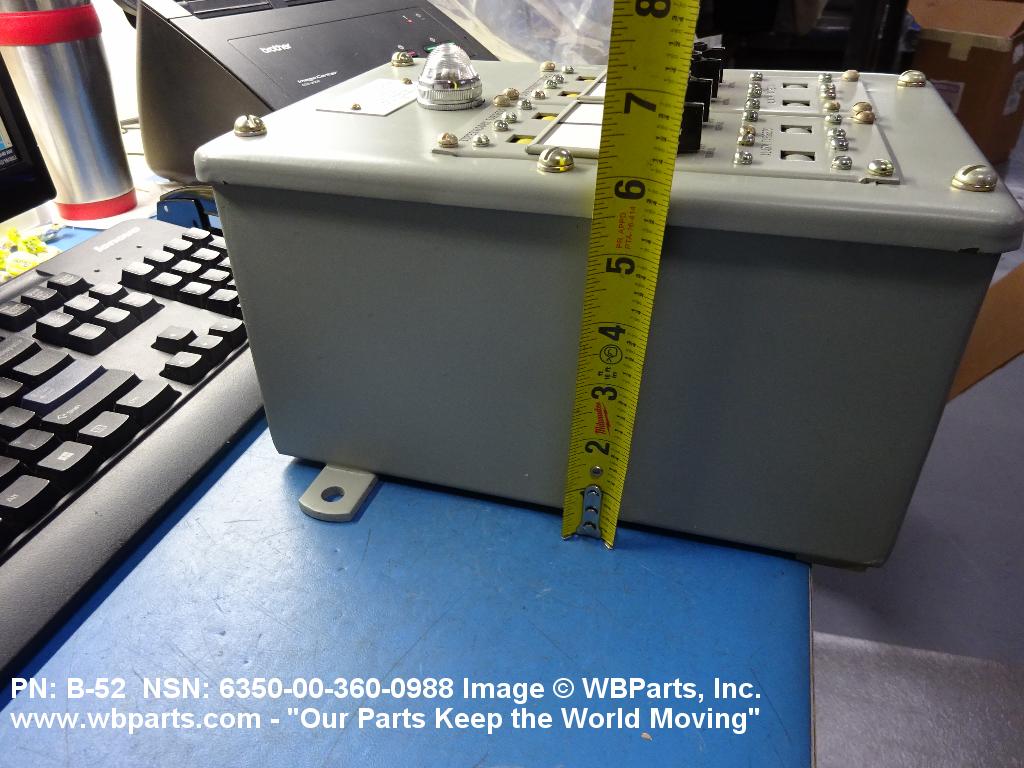

Drawings & Photos | NSN 6350-00-360-0988
Demand History | NSN 6350-00-360-0988
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6350-00-360-0988 | 2023-11-306 | 10 | US |
| 6350-00-360-0988 | 2021-12-343 | 1 | Taiwan |
| 6350-00-360-0988 | 2021-09-273 | 1 | US |
| 6350-00-360-0988 | 2017-02-45 | 2 | United States |
| 6350-00-360-0988 | 2016-10-285 | 7 | DIBBS |
| 6350-00-360-0988 | 2016-09-252 | 7 | DIBBS |
| 6350-00-360-0988 | 2016-06-174 | 3 | DIBBS |
| 6350-00-360-0988 | 2016-06-173 | 8 | DIBBS |
Cross Reference | NSN 6350-00-360-0988
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 9000S6504F73807ALT3 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| B52SYM2934.1 | 97536 | WING CORP |
| IC/B52 | 28199 | L-3 COMMUNICATIONS CORPORATION DBA L-3 HENSCHEL |
| IC/B52 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| IC/B52 | 97536 | WING CORP |
| MILA17196 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6350-00-360-0988
Related Products | NSN 6350-00-360-0988
Technical Data | NSN 6350-00-360-0988
| Characteristic | Specifications |
|---|---|
| SIGNAL DEVICE QUANTITY | 8 |
| VISUAL SIGNAL TYPE | DROP FLAG |
| SPECIAL MARKINGS | RANGE OF MARKINGS AS PER DWG BELOW |
| RESET TYPE | ELECTROMECHANICAL |
| VOLTAGE IN VOLTS | 115.0 |
| FREQUENCY RATING | 60.0 HERTZ NOMINAL |
| PHASE | SINGLE |
| MOUNTING TYPE | CASE |
| MATERIAL | BRASS |
| SURFACE TREATMENT | PAINTED |
| OVERALL LENGTH | 11.250 INCHES NOMINAL |
| OVERALL WIDTH | 7.125 INCHES NOMINAL |
| OVERALL DEPTH | 7.250 INCHES NOMINAL |
| RELAY BOX MOUNTING | INTEGRAL |
| MOUNTING CONFIGURATION | THREE 13/32 IN. DIA MTG HOLES,TWO HOLES SPACED 8-3/8 IN. C TO C,THIRD HOLE MIDWAY BETWEEN AND 9-1/2 IN. BELOW UPPER TWO HOLES |
| SPECIAL FEATURES | SHOCK AND VIBRATION RESISTANT; VISUAL ALARM AND TEST DISPLAYS |
| III USAGE DESIGN | FOR 4 CIRCUIT ALARM SYSTEM FOR SHIPBOARD PROPULSION OR AUXILIARY MACHINERY |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | IC/B52 |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MILA17196 |
Restrictions/Controls & Freight Information | NSN 6350-00-360-0988
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 014420 | ANNUNCIATORS |
| Less than car load rating | ||
| Less than truck load rating | H | 110.0 |
| Water commodity Code | 671 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6350-00-360-0988
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 1 | REPARABLE ITEMS (Exclusive of Insurance and Provisioning Items.) This code will be used to identify serviceable or unserviceable items of a durable nature which when unserviceable normally can be repaired economically by depots or lower echelons of maintenance. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | F | If condemned or uneconomically repairable, then dispose at Direct Support (DS) level. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 3B | Navy-owned stocks of field level repairable DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
