NSN 6340-01-367-7168 14528001, 14528-001, 14528021
Product Details | ANNUNCIATOR
6340-01-367-7168 A signaling apparatus which operates electromagnetically and serves to indicate visually, or visually and audibly, whether a current is flowing, has flowed, or has changed direction of flow in one or more circuits. It is usually employed in connection with alarms, electric bells, or buzzers. See also ALARM (as modified).20263400033Aircraft Alarm and Signal Systems63500059Miscellaneous Alarm, Signal, and Security Detection Systems
Part Alternates: 14528001, 14528-001, 14528021, 14528-021, 14A16763, 14A1676-3, 6340-01-367-7168, 01-367-7168, 6340013677168, 013677168
Alarm, Signal and Security Detection Systems | Aircraft Alarm and Signal Systems
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 63 | 18 NOV 1992 | 01-367-7168 | 00133 ( ANNUNCIATOR ) |

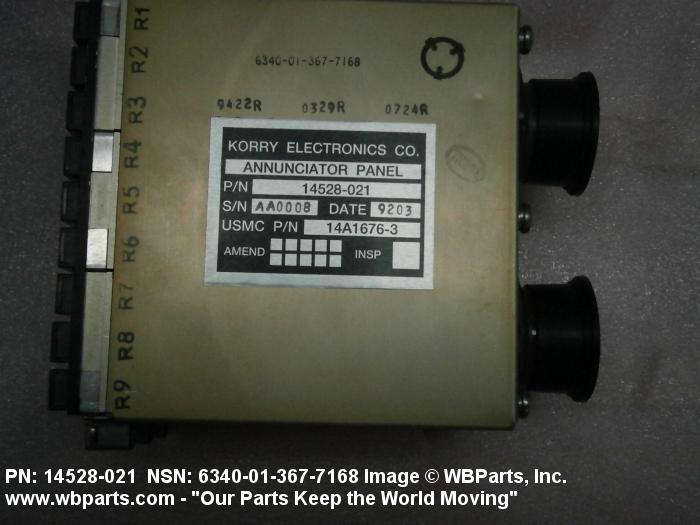

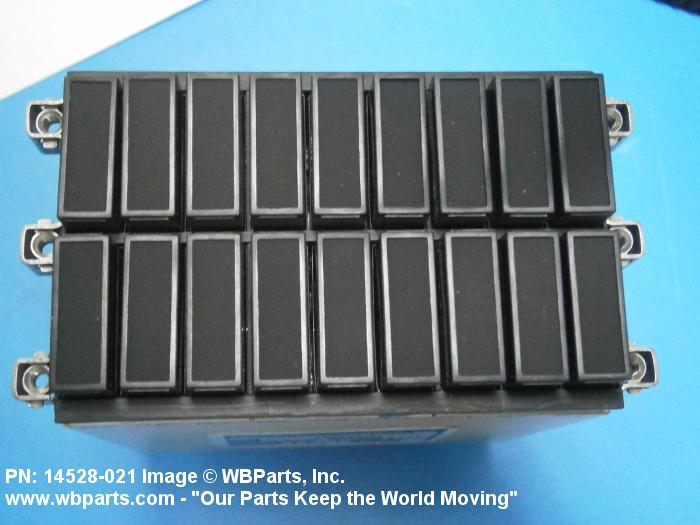

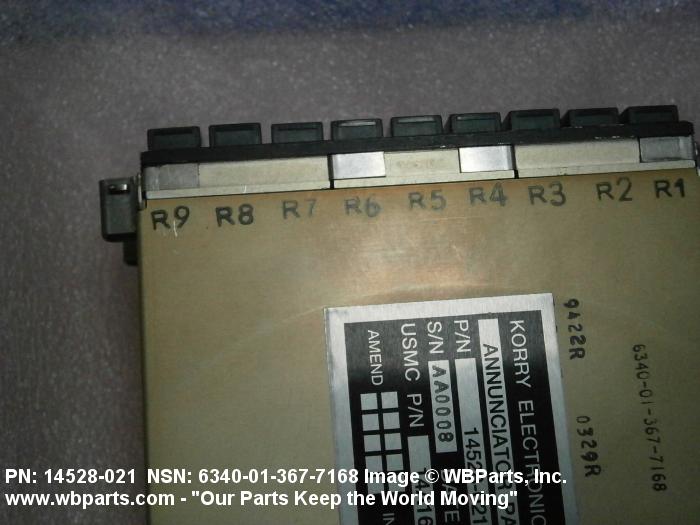

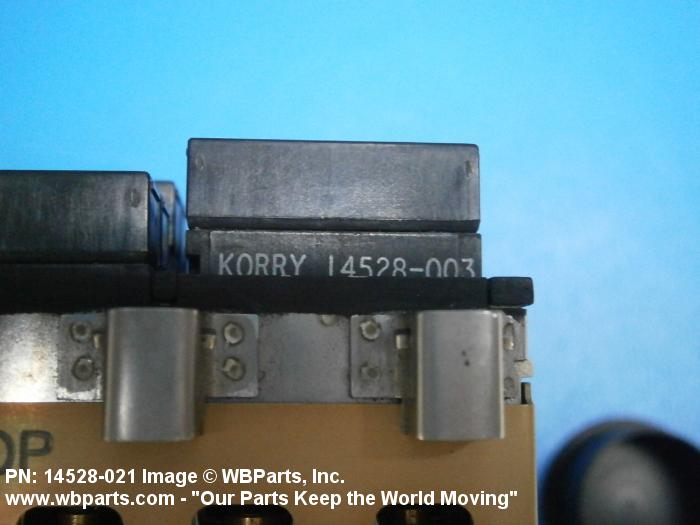

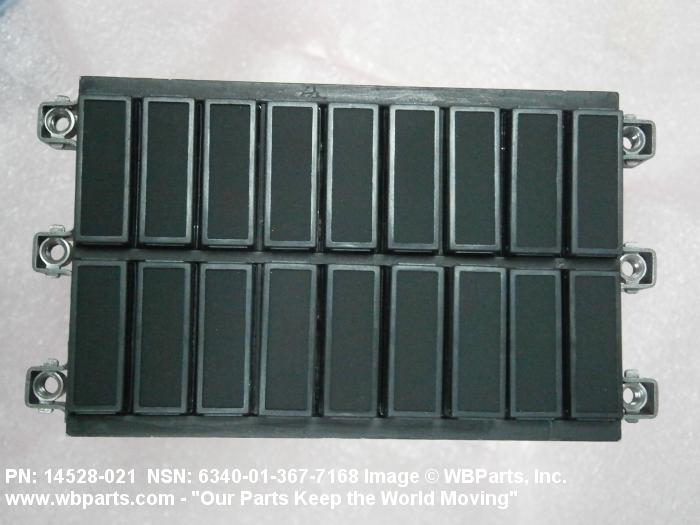

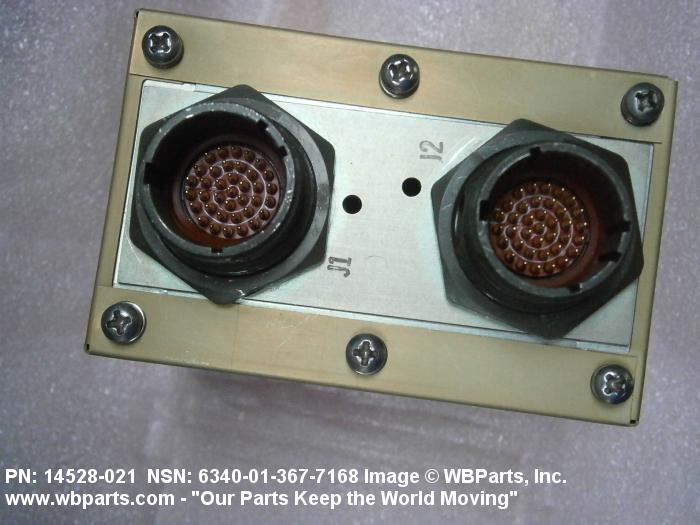

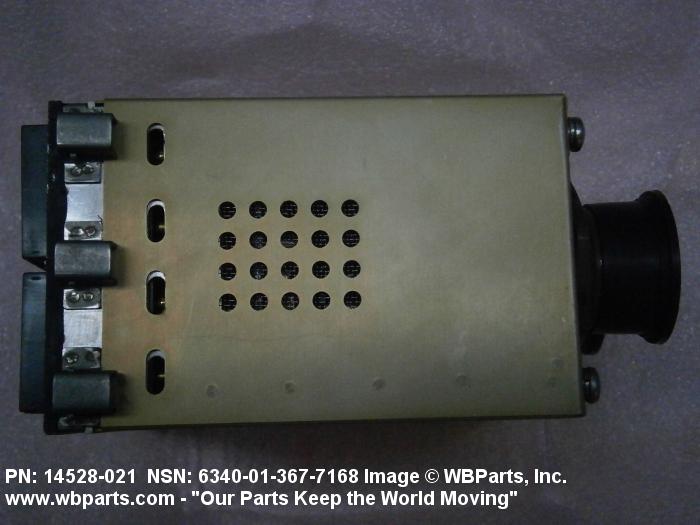

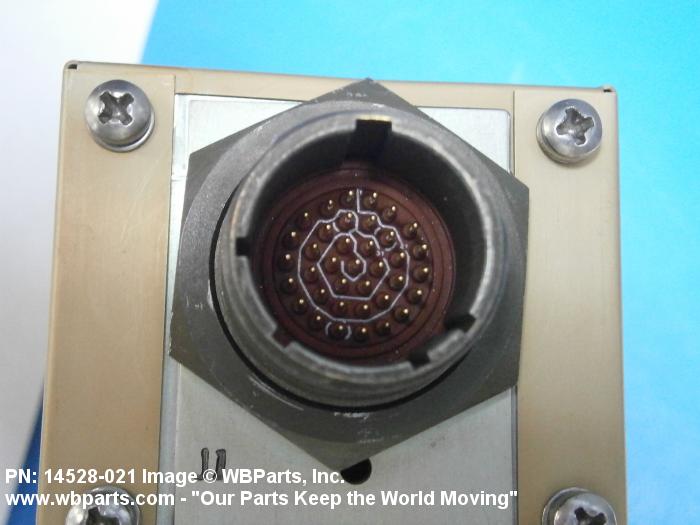

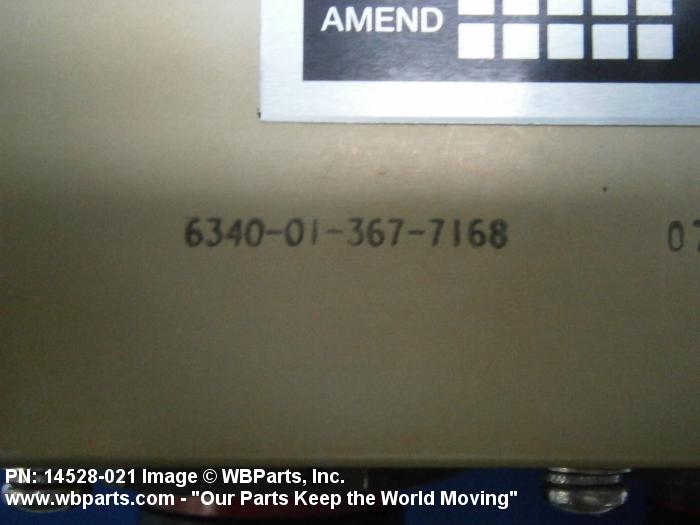

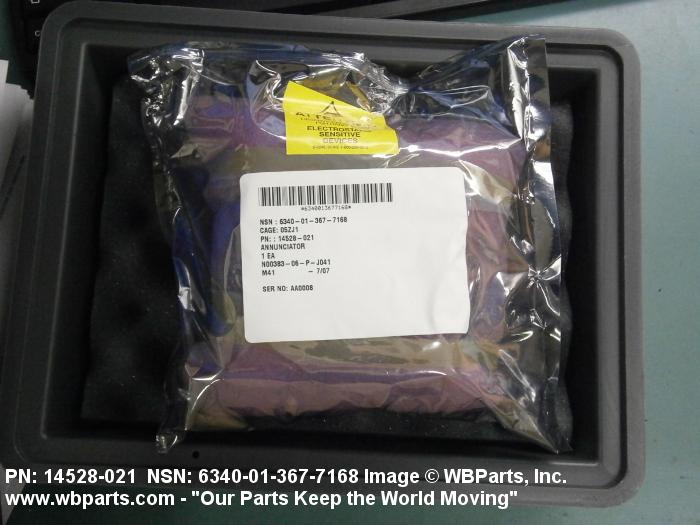

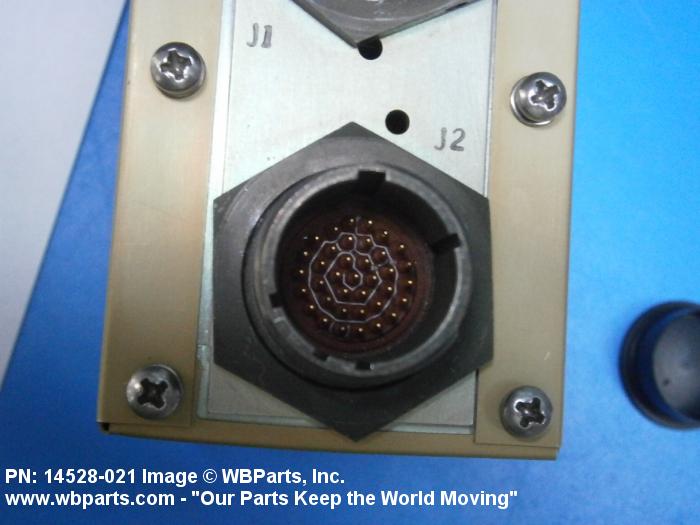

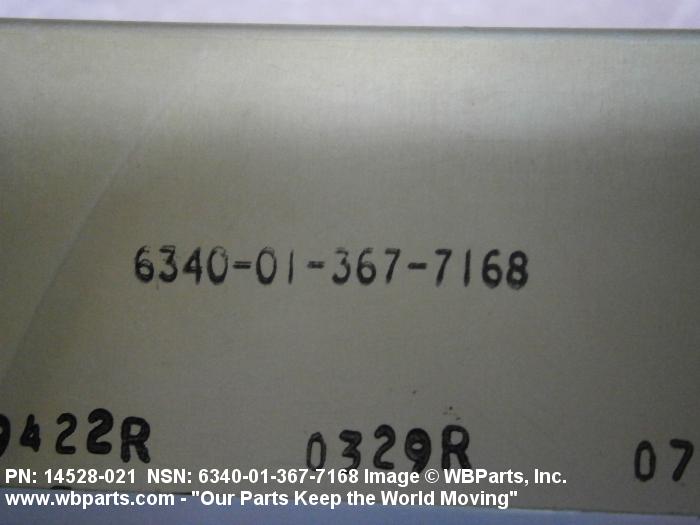

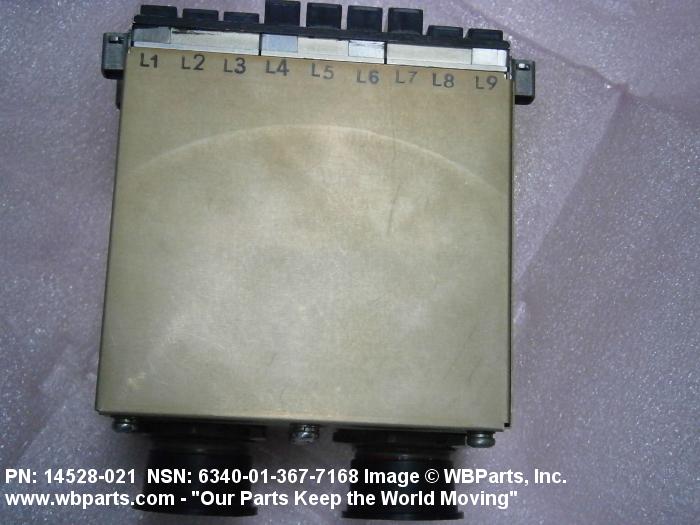

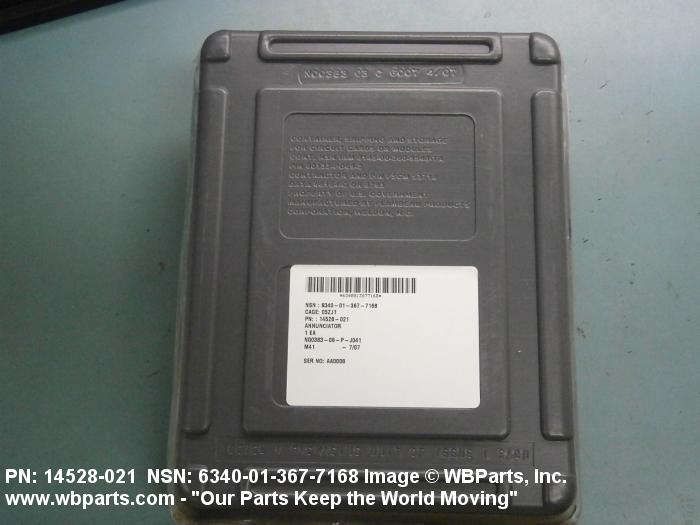

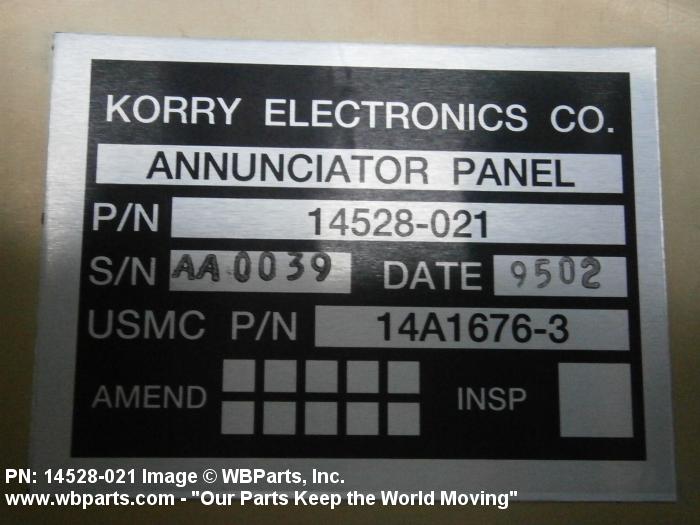

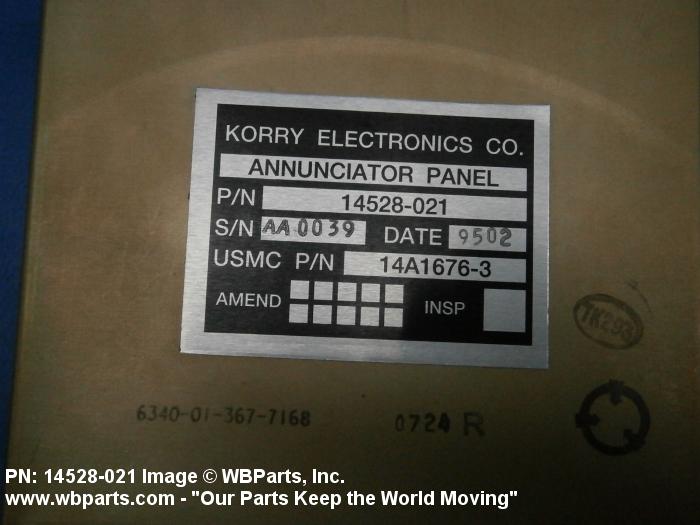

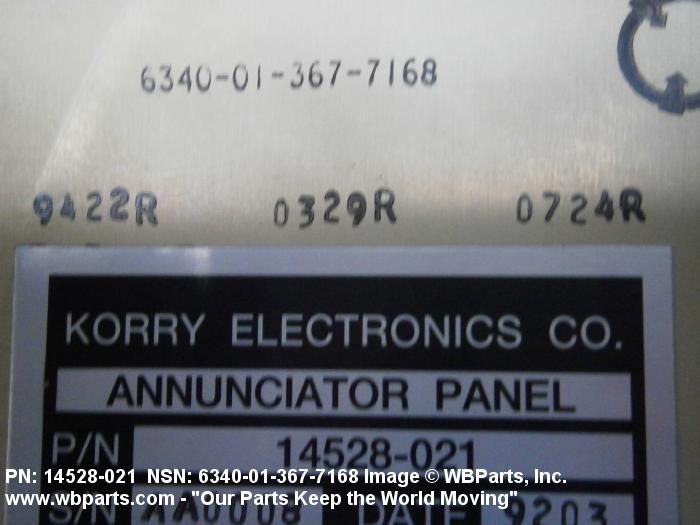

Drawings & Photos | NSN 6340-01-367-7168
Demand History | NSN 6340-01-367-7168
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6340-01-367-7168 | 2015-05-132 | 12 | NECO |
| 6340-01-367-7168 | 2014-08-219 | 3 | NECO |
| 6340-01-367-7168 | 2014-07-203 | 3 | NECO |
| 6340-01-367-7168 | 2014-07-203 | 6 | NECO |
| 14528-021 | 2014-07-183 | 3 | |
| 6340-01-367-7168 | 2014-07-182 | 3 | NECO |
| 6340-01-367-7168 | 2013-08-238 | 1 | United States |
| 14528-021 | 2013-06-158 | 3 | |
| 6340-01-367-7168 | 2013-06-157 | 3 | NECO |
| 6340-01-367-7168 | 2012-08-237 | 4 | NECO |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6340-01-367-7168
Technical Data | NSN 6340-01-367-7168
| Characteristic | Specifications |
|---|---|
| MOUNTING TYPE | PANEL |
| OVERALL LENGTH | 3.826 INCHES MINIMUM AND 3.970 INCHES MAXIMUM |
| OVERALL WIDTH | 2.400 INCHES NOMINAL |
| MOUNTING CONFIGURATION | 6 CSK 0.138 IN. THREADED SCREWS |
| III END ITEM IDENTIFICATION | AIRCRAFT MODEL C130 |
| MANUFACTURERS CODE | 81590 |
| DESIGN CONTROL REFERENCE | 14528-021 |
Restrictions/Controls & Freight Information | NSN 6340-01-367-7168
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | Q | Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.” |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | N | The item does not have a critical feature such as tolerance, fit restrictions or application. Nuclear hardness properties have not been determined (not valid for input). |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 014420 | ANNUNCIATORS |
| Less than car load rating | H | 110 |
| Less than truck load rating | H | 110.0 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | 3 | Electrostatic Sensitive Device (ESD), subject to damage caused by electrostatic discharge. (See DoD 4500.32-R, Volume 1, Appendix A, Section I for additional information on ESD devices). |
Management | NSN 6340-01-367-7168
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 7R | Aeronautical Depot Level Repairable Spares Naval Inventory Control Point, Philadelphia |
| Special Material ID | LC | CARGO/TRANSPORTAIRCRAFT(C130) |
| Issue Repair, or Requisition | AR | Repairable item subject to centrally managed rework program at designated sites. Mandatory turn-in of item required except when initial issue or replacement of surveyed item is involved. |
| Special Material Content | 2 | Electrostatic Discharge (ESD)/Electromagnetic (EM) Sensitive Item |
| Source of Supply | NRP | NAVICP-ERP 700 Robbins Avenue Philadelphia, PA 19111-5098 |
| Agency | DN | Department of the Navy |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | H | Depot Level Reparable |
| Acquisition Advice Codes | C | SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
