NSN 6320-00-360-1301 MB41011, MB4101-1, NAV177
Product Details | ANGLE INDICATOR
6320-00-360-1301 An indicator designed to display the angular relatioship of two reference points.20263200034Shipboard Alarm and Signal Systems66100018Flight Instruments
Part Alternates: MB41011, MB4101-1, NAV177, NAV177RUD, S65053182295RUD, S6505-3182295RUD, IC1UA113, IC1UA11-3 , 101437, 10-1437, 6320-00-360-1301, 00-360-1301, 6320003601301, 003601301
Alarm, Signal and Security Detection Systems | Shipboard Alarm and Signal Systems
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 63 | 01 JAN 1963 | 00-360-1301 | 38916 ( INDICATOR, ANGLE ) |

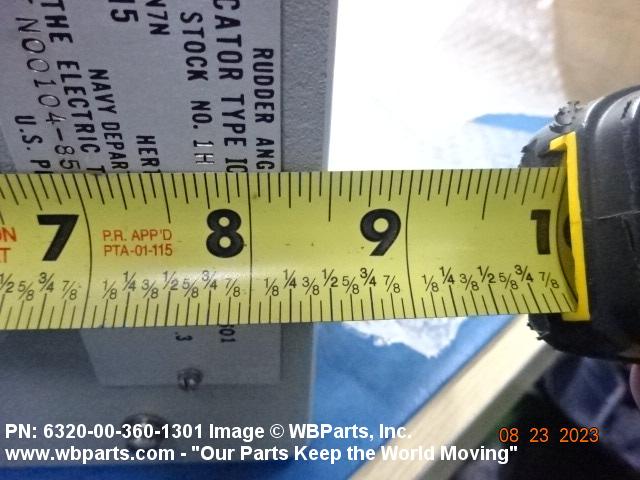

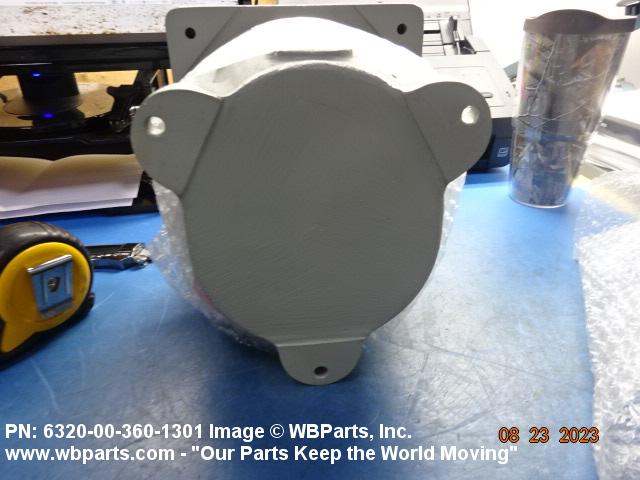

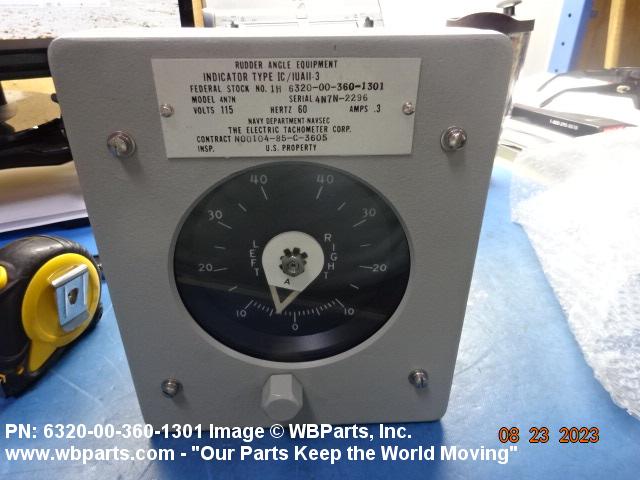

Drawings & Photos | NSN 6320-00-360-1301
Demand History | NSN 6320-00-360-1301
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6320-00-360-1301 | 2023-05-131 | 2 | United States |
| 6320-00-360-1301 | 2018-01-25 | 1 | United States |
| 6320-00-360-1301 | 2008-04-115 | 1 | US |
Cross Reference | NSN 6320-00-360-1301
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10-1437 | 28199 | L-3 COMMUNICATIONS CORPORATION DBA L-3 HENSCHEL |
| IC1UA11-3 | 12763 | DYNALEC CORPORATION |
| IC1UA11-3 | 20049 | THE ELECTRIC TACHOMETER CORP. |
| MB4101-1 | 20049 | THE ELECTRIC TACHOMETER CORP. |
| NAV177 | 98853 | HAMILTON STANDARD ELECTRONICS SYSTEMS INC |
| NAV177RUD | 98853 | HAMILTON STANDARD ELECTRONICS SYSTEMS INC |
| S6505-3182295RUD | 80064 | NAVAL SHIP SYSTEMS COMMAND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6320-00-360-1301
Technical Data | NSN 6320-00-360-1301
| Characteristic | Specifications |
|---|---|

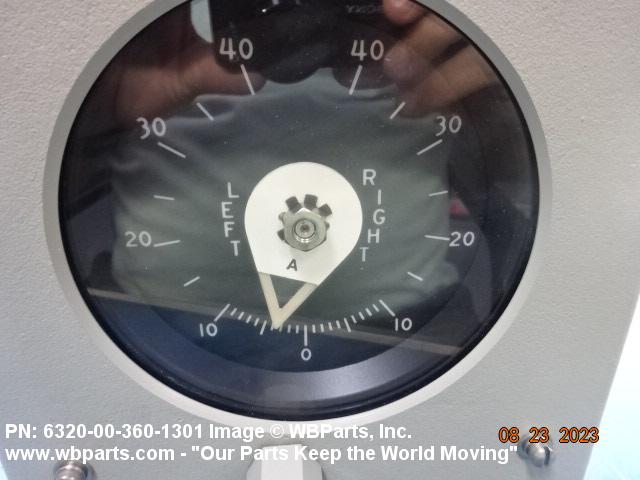

| INDIVIDUAL MARKING | RUDDER ANGLE |
| COLOR | RED BACKGROUND OVERALL |
| ILLUMINATION COLOR GENERATION METHOD | WHITE SOURCE W/RED FILTER |
| CURRENT TYPE | AC |
| AC VOLTAGE RATING | 115.0 VOLTS NOMINAL |
| PHASE | SINGLE |
| FREQUENCY RATING | 60.0 HERTZ NOMINAL |
| LENGTH | 8.500 INCHES NOMINAL |
| WIDTH | 7.000 INCHES NOMINAL |
| HEIGHT | 6.062 INCHES NOMINAL |
| SPECIAL FEATURES | W/DIMMER RHEOSTAT |
| REFERENCE NUMBER DIFFERENTIATING CHARACTERISTICS | NAME,NMBR,AMNK,ASPF,AQLY,DMTR AND AQMC |
| MANUFACTURERS CODE | 98853 |
| DESIGN CONTROL REFERENCE | NAV177RUD |
Restrictions/Controls & Freight Information | NSN 6320-00-360-1301
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061700 | ELEC APPLIANCES/INSTRUMENTS NOI |
| Less than car load rating | W | Rating Variable |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6320-00-360-1301
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 3B | Navy-owned stocks of field level repairable DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
