NSN 6320-01-252-2305 1018304, 10-1830-4, 01-252-2305
Product Details | ANGLE INDICATOR
6320-01-252-2305 An indicator designed to display the angular relatioship of two reference points.20263200034Shipboard Alarm and Signal Systems66100018Flight Instruments
Part Alternates: 1018304, 10-1830-4, 6320-01-252-2305, 01-252-2305, 6320012522305, 012522305
Alarm, Signal and Security Detection Systems | Shipboard Alarm and Signal Systems
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 63 | 30 MAR 1987 | 01-252-2305 | 38916 ( INDICATOR, ANGLE ) |

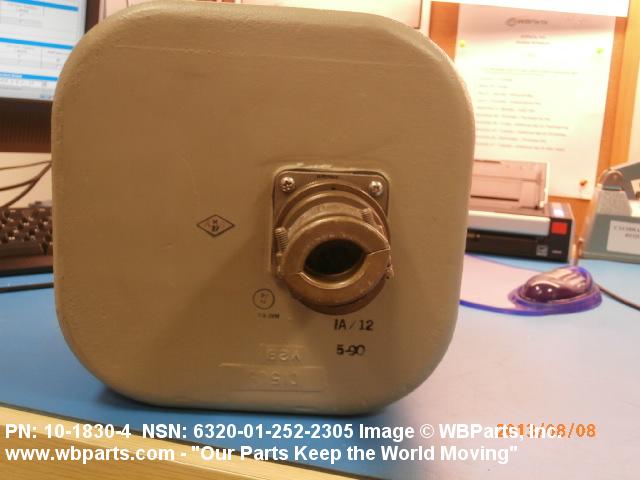

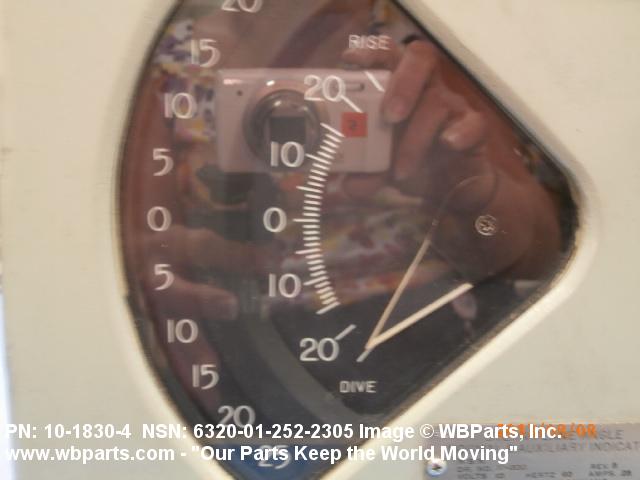

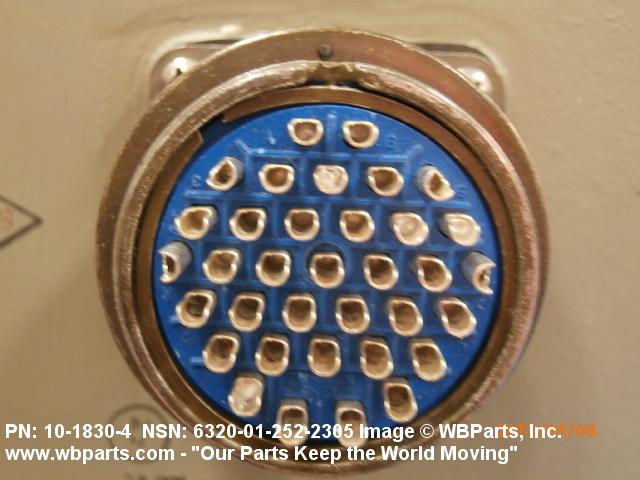

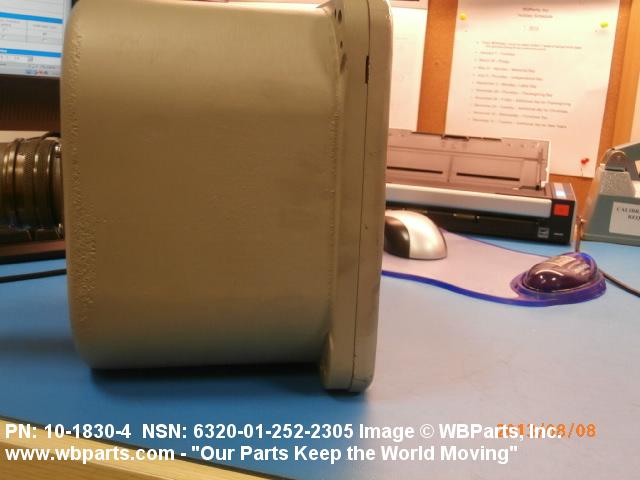

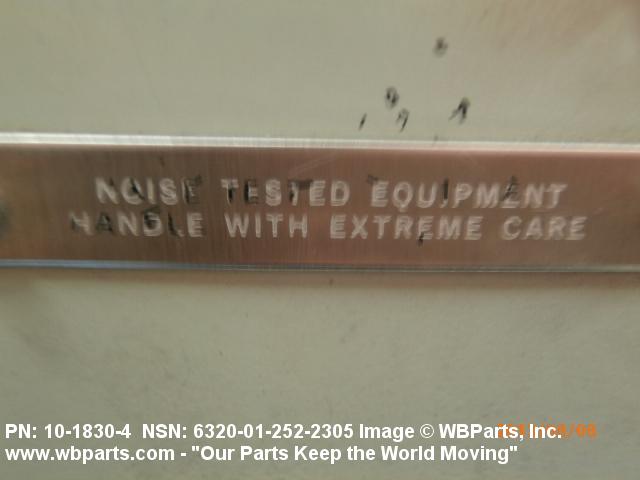

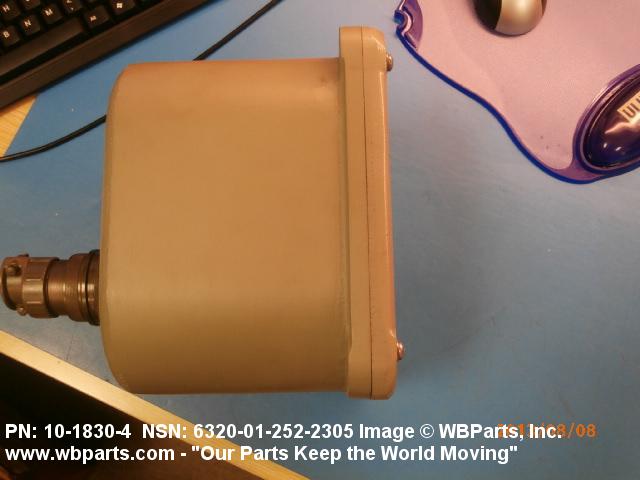

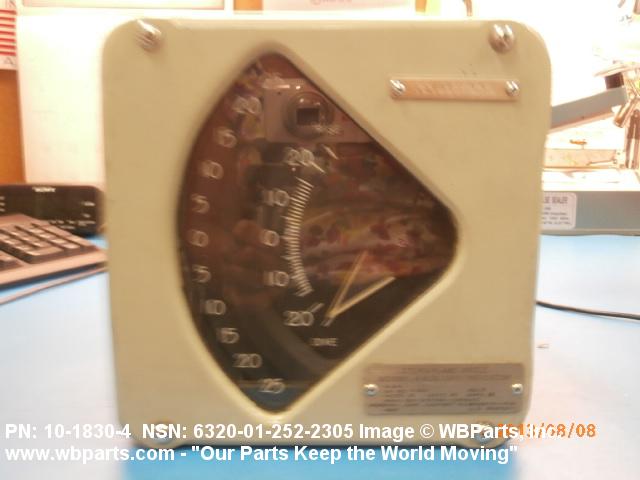

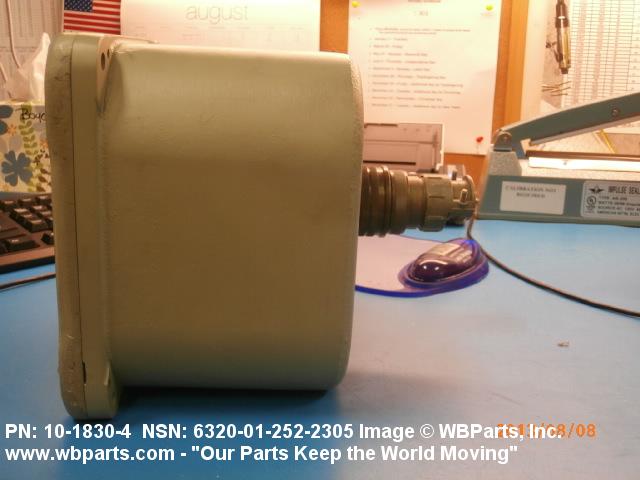

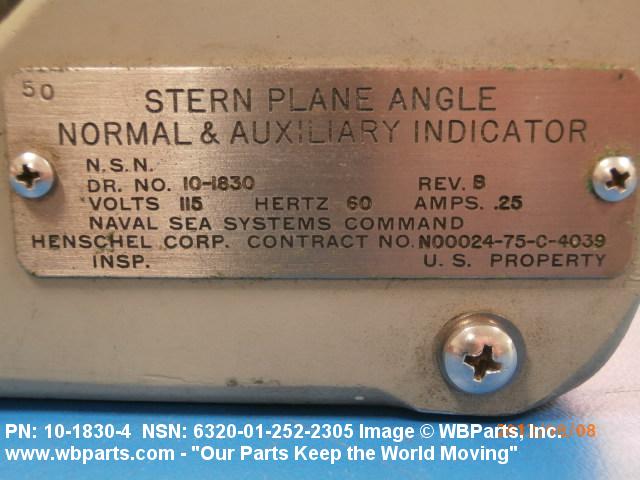

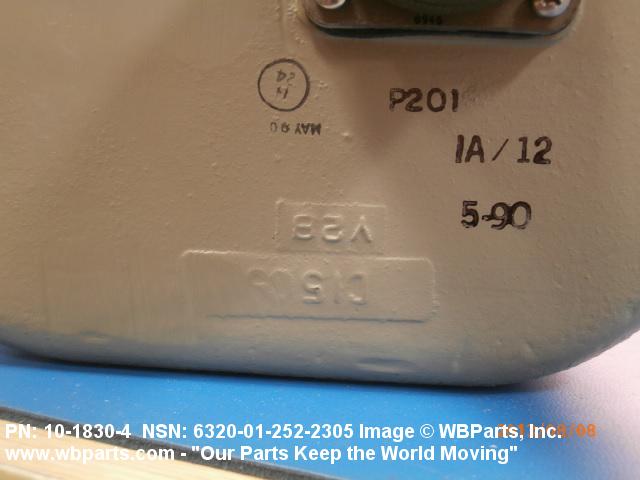

Drawings & Photos | NSN 6320-01-252-2305
Demand History | NSN 6320-01-252-2305
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6320-01-252-2305 | 2023-01-06 | 0 | NECO |
| 10-1830-4 | 2022-05-126 | 0 | |
| 6320-01-252-2305 | 2022-05-124 | 0 | NECO |
| 10-1830-4 | 2022-04-112 | 0 | |
| 6320-01-252-2305 | 2022-04-110 | 0 | NECO |
| 10-1830-4 | 2022-04-99 | 0 | |
| 6320-01-252-2305 | 2022-04-98 | 0 | NECO |
| 10-1830-4 | 2022-02-40 | 0 | |
| 6320-01-252-2305 | 2022-02-39 | 0 | NECO |
| 10-1830-4 | 2016-04-112 | 4 | |
| 6320-01-252-2305 | 2016-04-111 | 4 | NECO |
| 6320-01-252-2305 | 2014-08-219 | 2 | US |
| 1018304 | 2013-08-214 | 1 | United States |
| 6320-01-252-2305 | 2013-07-210 | 1 | United States |
| 6320-01-252-2305 | 2013-07-207 | 1 | United States |
| 6320-01-252-2305 | 2013-06-161 | 1 | US |
Cross Reference | NSN 6320-01-252-2305
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10-1830-4 | 28199 | L-3 COMMUNICATIONS CORPORATION DBA L-3 HENSCHEL |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6320-01-252-2305
Related Products | NSN 6320-01-252-2305
Technical Data | NSN 6320-01-252-2305
| Characteristic | Specifications |
|---|---|
| CURRENT TYPE | AC |
| AC VOLTAGE RATING | 115.0 VOLTS NOMINAL |
| FREQUENCY RATING | 60.0 HERTZ NOMINAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 SCREW |
| WIDTH | 8.000 INCHES NOMINAL |
| HEIGHT | 6.000 INCHES NOMINAL |
| MANUFACTURERS CODE | 28199 |
| DESIGN CONTROL REFERENCE | 10-1830-4 |
Restrictions/Controls & Freight Information | NSN 6320-01-252-2305
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061700 | ELEC APPLIANCES/INSTRUMENTS NOI |
| Less than car load rating | M | 85 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6320-01-252-2305
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 7H | Depot level reparable shipboard and base equipment, assemblies, components and repair parts related to Naval Sea Systems Command equipment Naval Inventory Control Point, Mechanicsburg |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | NRP | NAVICP-ERP 700 Robbins Avenue Philadelphia, PA 19111-5098 |
| Agency | DN | Department of the Navy |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | H | Depot Level Reparable |
| Acquisition Advice Codes | C | SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
