Product Details | INCANDESCENT LAMP

6240-00-102-9648 An item whose principal purpose is to produce light from a glowing filament(s). It includes metal backed and reflecting types, seal beam and flood types. It may include an integral filament shield to control and/or modify its illumination pattern.

Part Alternates: BCL300W120V, 1379A , 6240-00-102-9648, 00-102-9648, 6240001029648, 001029648

Lighting Fixtures and Lamps | Electric Lamps

Supply Group (FSG) NSN Assign. NIIN
62 29 APR 1972 00-102-9648

Drawings & Photos | NSN 6240-00-102-9648


Cross Reference | NSN 6240-00-102-9648

Part Number Cage Code Manufacturer
BCL300W120V 04655 GENERAL DYNAMICS C4 SYSTEMS, INC.

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 6240-00-102-9648

Technical Data | NSN 6240-00-102-9648

Characteristic Specifications

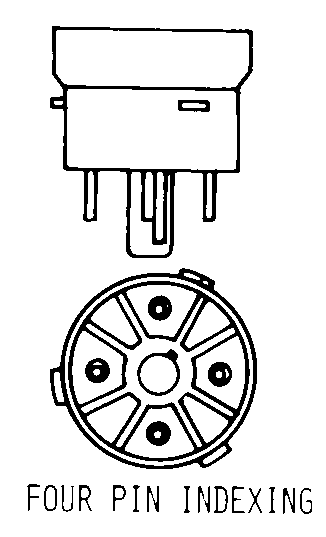

BASE STYLE A71A FOUR PIN INDEXING
BULB STYLE B25 T
BULB DESIGNATOR T-6
OVERALL LENGTH 3.188 INCHES NOMINAL
BULB LIGHT TRANSMISSION CHARACTERISTIC TRANSPARENT
LIGHT INTENSITY DISTRIBUTION FEATURE PROXIMITY REFLECTOR
EMITTED LIGHT CHARACTERISTIC WHITE
FILAMENT DESIGNATION C-13D
WATTAGE RATING 300.000 WATTS
VOLTAGE RATING 120.000 VOLTS NOMINAL
CURRENT RATING FOR WHICH DESIGNED NOT RATED
LIGHT OUTPUT RATING NOT RATED
RATED AVERAGE LIFE HOURS
AVERAGE LIFE RATING IN HOURS 1000.0
BURNING POSITION ANY ACCEPTABLE
FILAMENT HEAVY DUTY SERVICE RATING NOT RATED
COLOR TEMP IN DEG KELVIN 2950.0
LIGHT CENTER LENGTH 1.562 INCHES NOMINAL

Restrictions/Controls & Freight Information | NSN 6240-00-102-9648

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodePThere is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
No Freight Information
