NSN 6240-00-103-5282 BM28G, 00-103-5282, 001035282
Product Details | INCANDESCENT LAMP
6240-00-103-5282 An item whose principal purpose is to produce light from a glowing filament(s). It includes metal backed and reflecting types, seal beam and flood types. It may include an integral filament shield to control and/or modify its illumination pattern.
Part Alternates: BM28G, 6240-00-103-5282, 00-103-5282, 6240001035282, 001035282
Lighting Fixtures and Lamps | Electric Lamps
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | 00-103-5282 | 00727 ( LAMP, INCANDESCENT ) |
Drawings & Photos | NSN 6240-00-103-5282
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6240-00-103-5282
Technical Data | NSN 6240-00-103-5282
| Characteristic | Specifications |
|---|---|

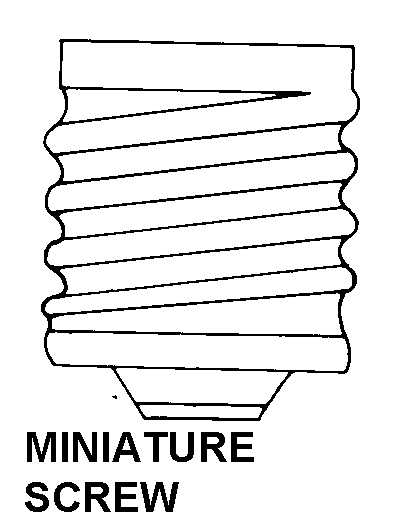

| BASE STYLE | A2H MINIATURE SCREW |
| BULB STYLE | B9 G |
| BULB DESIGNATOR | G-6 |
| OVERALL LENGTH | 1.180 INCHES MAXIMUM |
| BULB LIGHT TRANSMISSION CHARACTERISTIC | TRANSPARENT |
| EMITTED LIGHT CHARACTERISTIC | WHITE |
| FILAMENT DESIGNATION | C-2R |
| WATTAGE RATING | NOT RATED |
| VOLTAGE RATING | 4.000 VOLTS NOMINAL |
| CURRENT RATING FOR WHICH DESIGNED | 1.000 AMPERES NOMINAL |
| LIGHT OUTPUT RATING | NOT RATED |
| RATED AVERAGE LIFE | HOURS |
| AVERAGE LIFE RATING IN HOURS | 400.0 |
| BURNING POSITION | ANY ACCEPTABLE |
| FILAMENT HEAVY DUTY SERVICE RATING | NOT RATED |
| FEATURES PROVIDED | FILAMENT SHIELDING AND HEAT RESISTANT GLASS |
Restrictions/Controls & Freight Information | NSN 6240-00-103-5282
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
