NSN 6240-00-018-8028 L1016, LA3613, LA-361-3
Product Details | INCANDESCENT LAMP
6240-00-018-8028 An item whose principal purpose is to produce light from a glowing filament(s). It includes metal backed and reflecting types, seal beam and flood types. It may include an integral filament shield to control and/or modify its illumination pattern.
Part Alternates: L1016, LA3613, LA-361-3, PL1016, 870413, 87-0413, 0323964-00, 1016, 108A551, 188028, 6240-00-018-8028, 00-018-8028, 6240000188028, 032396400, 000188028
Lighting Fixtures and Lamps | Electric Lamps
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | 01 JAN 1963 | 00-018-8028 | 00727 ( LAMP, INCANDESCENT ) |
Drawings & Photos | NSN 6240-00-018-8028
Demand History | NSN 6240-00-018-8028
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6240-00-018-8028 | 2024-05-135 | 105 | DIBBS |
| L1016 | 2023-08-223 | 1 | ID |
| 6240-00-018-8028 | 2022-06-152 | 21 | DIBBS |
| 6240-00-018-8028 | 2021-06-168 | 14 | DIBBS |
| 6240-00-018-8028 | 2021-06-157 | 1 | DIBBS |
| 6240-00-018-8028 | 2021-05-140 | 5 | DIBBS |
| 6240-00-018-8028 | 2021-03-76 | 3 | DIBBS |
| 6240-00-018-8028 | 2021-03-60 | 2 | DIBBS |
| 6240-00-018-8028 | 2021-02-49 | 2 | DIBBS |
| 1016 | 2018-05-128 | 4 | US |
| 6240-00-018-8028 | 2013-08-226 | 72 | DIBBS |
| 6240-00-018-8028 | 2013-08-224 | 30 | DIBBS |
| 6240-00-018-8028 | 2013-03-87 | 2950 | DIBBS |
Cross Reference | NSN 6240-00-018-8028
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 0323964-00 | 83299 | NACCO MATERIALS HANDLING GROUP INC DBA YALE MATERIALS HANDLING |
| 1016 | 08108 | LAMP INDUSTRY FOR USE WITH INDUSTRY |
| 1016 | 08805 | GENERAL ELECTRIC COMPANY DBA GE |
| 1016 | 08806 | GENERAL ELECTRIC CO MINIATURE LAMP PRODUCTS DEPT |
| 1016 | 62607 | PHILIPS ELECTRONICS NORTH AMERICA CORPORATION |
| 1016 | 92966 | GTE PRODUCTS CORP LIGHTING PRODUCTS GROUP HILLSBORO |
| 1016 | 94988 | COOPER INDUSTRIES INC CHAMPION AVIATION PRODUCTS |
| 108A551 | 27996 | HEIL ENVIRONMENTAL INDUSTRIES |
| 188028 | 16764 | GENERAL MOTORS CORP DELCO REMY DIV |
| 188028 | 19200 | US ARMY ARDEC RDECOM |
| 188028 | 7X677 | GENERAL MOTORS LLC DBA GENERAL MOTORS |
| 188028 | 99343 | CHRYSLER CORP ENGINE AND COMPONENTS SALES |
| 87-0413 | 19397 | BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION INC. |
| 87-0413 | 63409 | TREMETRICS INC DIV OF FINNIGAN |
| L1016 | 08806 | GENERAL ELECTRIC CO MINIATURE LAMP PRODUCTS DEPT |
| L1016 | 16764 | GENERAL MOTORS CORP DELCO REMY DIV |
| L1016 | 7X677 | GENERAL MOTORS LLC DBA GENERAL MOTORS |
| LA-361-3 | 46717 | PETTIBONE LLC |
| PL1016 | 58451 | PRECISION LAMP INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6240-00-018-8028
Related Products | NSN 6240-00-018-8028
Technical Data | NSN 6240-00-018-8028
| Characteristic | Specifications |
|---|---|

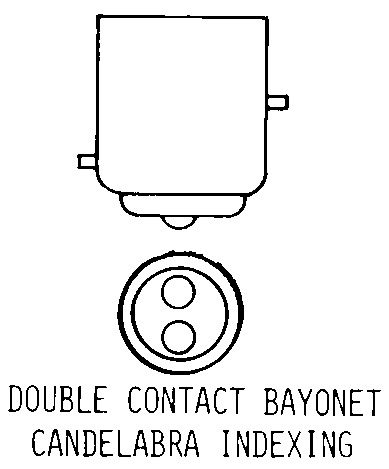

| BASE STYLE | A21A DOUBLE CONTACT BAYONET CANDELABRA INDEXING |
| BULB STYLE | B22 S |
| BULB DESIGNATOR | S-8 |
| OVERALL LENGTH | 2.000 INCHES MAXIMUM |
| BULB LIGHT TRANSMISSION CHARACTERISTIC | TRANSPARENT |
| EMITTED LIGHT CHARACTERISTIC | COLORLESS |
| FILAMENT DESIGNATION | C-6 AND C-6 |
| WATTAGE RATING | 17.152 WATTS AND 8.260 WATTS |
| VOLTAGE RATING | 12.800 VOLTS NOMINAL AND 14.000 VOLTS NOMINAL |
| CURRENT RATING FOR WHICH DESIGNED | 1.340 AMPERES NOMINAL AND 0.590 AMPERES NOMINAL |
| LIGHT OUTPUT RATING | 21.000 SPHERICAL CANDLEPOWER NOMINAL AND 6.000 SPHERICAL CANDLEPOWER NOMINAL SINGLE RATING |
| RATED AVERAGE LIFE | HOURS |
| AVERAGE LIFE RATING IN HOURS | 200.0 |
| BURNING POSITION | ANY ACCEPTABLE |
| FILAMENT HEAVY DUTY SERVICE RATING | NOT RATED |
| LIGHT CENTER LENGTH | 1.250 INCHES NOMINAL |
| SPECIAL FEATURES | SECOND FILAMENT1000 HOURS AVERAGE LIFE RATING |
Restrictions/Controls & Freight Information | NSN 6240-00-018-8028
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 109550 | LAMPS(BULBS) ELEC INCANDESCENT NOI |
| Less than car load rating | ||
| Less than truck load rating | F | 150.0 |
| Water commodity Code | 761 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6240-00-018-8028
Army
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 PG : Package |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 PG : Package |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 2 | Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 PG : Package |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 PG : Package |
