Product Details | CARTRIDGE LAMP

6240-00-019-0791 An item consisting of an unbased lamp, either incandescent or glow, mounted in a sleeve. It has a projecting terminals and may also include a lens. For light emitting diodes which may or may not be mounted in a sleeve or a lamp base, see LIGHT EMITTING DIODE.

Part Alternates: CG11NE2H, CG11-NE2H, CG11SN120, 262-1213-00, 1710183004, 1710183-004, 6240-00-019-0791, 00-019-0791, 6240000190791, 000190791, 262121300

Lighting Fixtures and Lamps | Electric Lamps

Supply Group (FSG) NSN Assign. NIIN
62 01 JAN 1961 00-019-0791

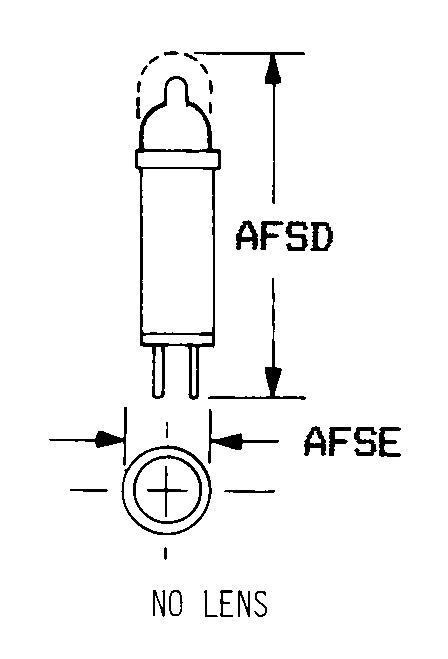

Drawings & Photos | NSN 6240-00-019-0791


Cross Reference | NSN 6240-00-019-0791

Part Number Cage Code Manufacturer
1710183-004 05157 COHU, INC. DBA COHU ELECTRONIC'S DIVISION
262-1213-00 13499 ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS
CG11-NE2H 07294 GENISCO FILTER CORP.
CG11SN120 07294 GENISCO FILTER CORP.
CG11SN120 13050 SPECTRUM CONTROL, INC. DIV API TECHNOLOGIES - EIS/WESSON

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 6240-00-019-0791

Technical Data | NSN 6240-00-019-0791

Characteristic Specifications
BASE STYLE A66 CARTRIDGE TWO PIN POLARIZED
CARTRIDGE STYLE C3 NO LENS
CARTRIDGE OVERALL LENGTH 1.170 INCHES MINIMUM AND 1.230 INCHES MAXIMUM
CARTRIDGE OVERALL DIAMETER 0.320 INCHES MINIMUM AND 0.340 INCHES MAXIMUM
PRIMARY LAMP TYPE GLOW
FILLING GAS TYPE NEON
LIGHT INTENSITY LEVEL HIGH
CIRCUIT VOLTAGE RATING IN VOLTS 110.000 MINIMUM AND 125.000 MAXIMUM
GAS STRIKING VOLTAGE RATING IN VOLTS AND CURRENT TYPE 95.000 AC MINIMUM AND 135.000 AC MAXIMUM
WATTAGE RATING 0.250 WATTS
RESISTOR RATING AND LOCATION 30.000 KILOHMS EXTERNAL
RATED AVERAGE LIFE HOURS
AVERAGE LIFE RATING IN HOURS 25000.0
MATERIAL GLASS LENS ALUMINUM SLEEVE
LENS LIGHT TRANSMISSION CHARACTERISTIC TRANSPARENT
LENS COLOR COLORLESS
SPECIAL FEATURES MOUNTING SPEED CLIP PROVIDED

Restrictions/Controls & Freight Information | NSN 6240-00-019-0791

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodePThere is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 109700 LAMP OR LIGHTING FIXTURES
Less than car load rating
Less than truck load rating W Rating Variable
Water commodity Code 761 unknown
Originating Activity Code XX
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity H Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 6240-00-019-0791

Category Code Description
Cognizance Codes9BNavy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesJNOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
A
EA : Each
