NSN 6220-01-611-0432 S1910415, S1910-415 , 01-611-0432
Product Details | AIRCRAFT COCKPIT LIGHT
6220-01-611-0432 A light specifically designed to be permanently installed in aircraft for map reading or cockpit illumination. It may contain dimming features, switches, filters, and/or cables or coiled cables to permit portability within the length of the cable. If provided with cables or coiled cables, the mounting base must remain fixed to the aircraft and include a snap-in or similar locking device to permit detachment and attachment of the light. For items that supply general illumination for other compartments of an aircraft, see LIGHT, DOME. Excludes LIGHT (1), EXTENSION.
Part Alternates: S1910415, S1910-415 , 6220-01-611-0432, 01-611-0432, 6220016110432, 016110432
Lighting Fixtures and Lamps | Electric Vehicular Lights and Fixtures
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | 2012249 | 01-611-0432 | 22778 ( LIGHT, COCKPIT, AIRCRAFT ) |

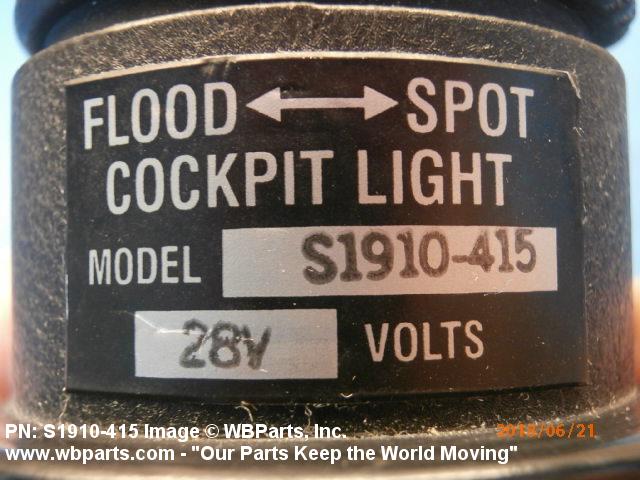

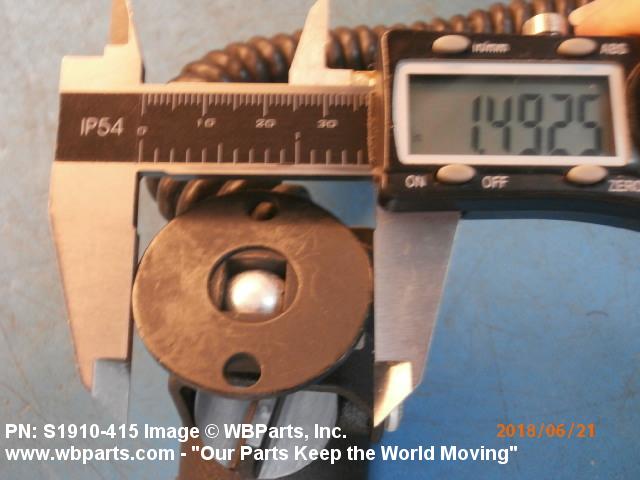

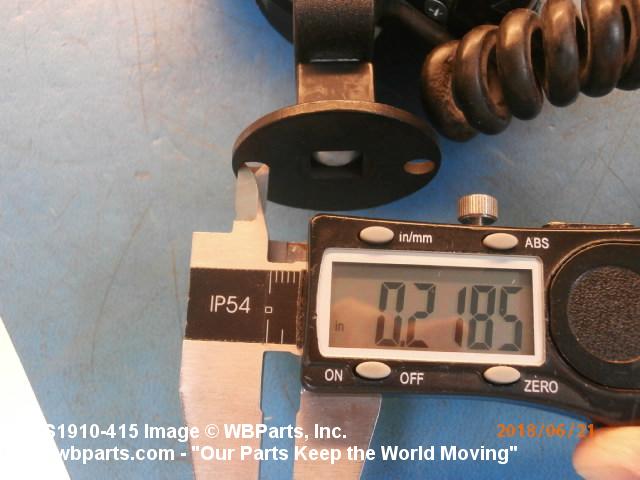

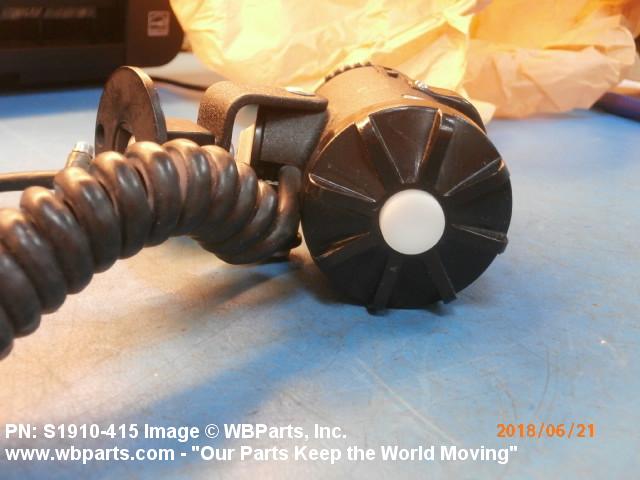

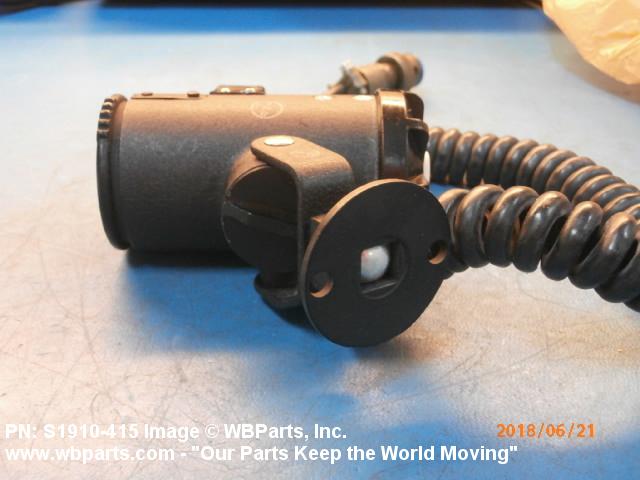

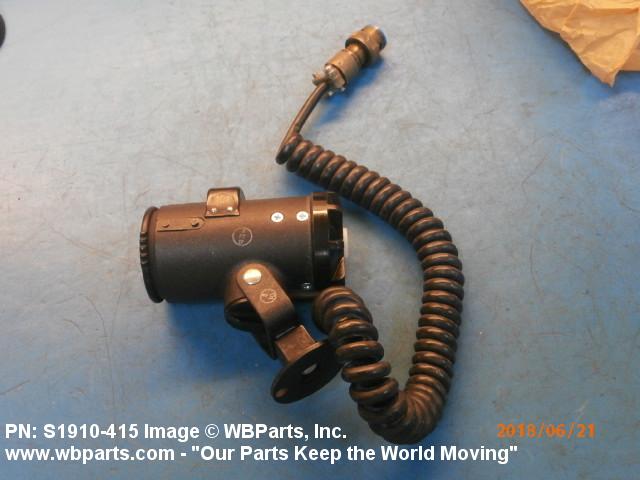

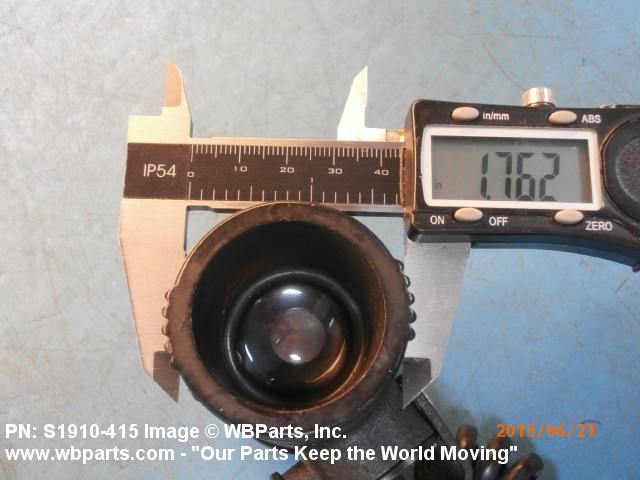

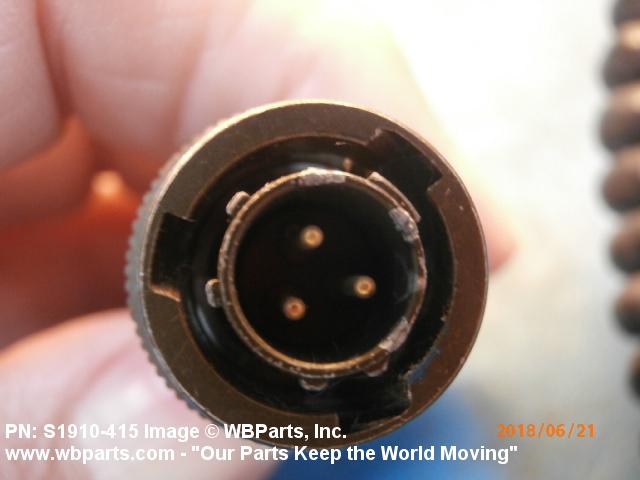

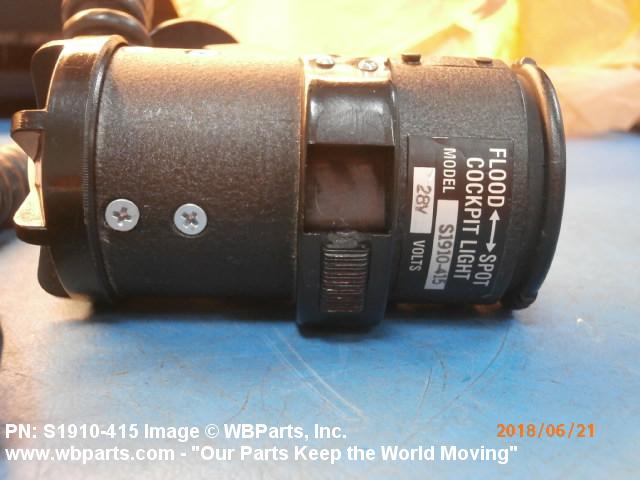

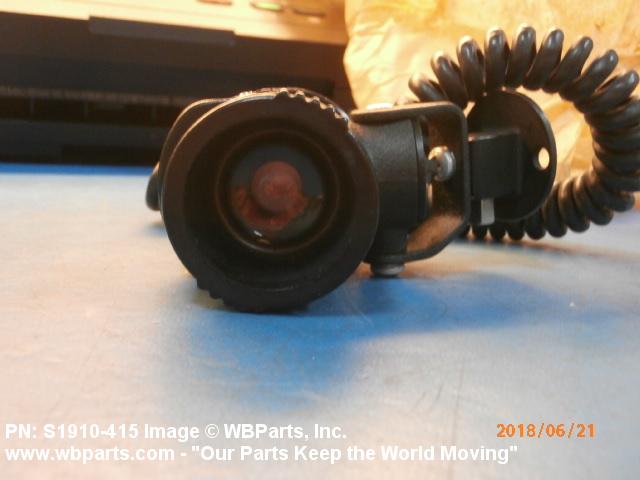

Drawings & Photos | NSN 6220-01-611-0432
Demand History | NSN 6220-01-611-0432
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6220-01-611-0432 | 2021-09-272 | 1 | United States |
| 6220-01-611-0432 | 2021-08-228 | 1 | United States |
| 6220-01-611-0432 | 2021-08-222 | 1 | United States |
| S1910415 | 2018-11-330 | 8 | United States |
| S1910415 | 2018-06-165 | 1 | United States |
Cross Reference | NSN 6220-01-611-0432
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| S1910-415 | 78366 | SODERBERG MFG.CO.INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6220-01-611-0432
Technical Data | NSN 6220-01-611-0432
| Characteristic | Specifications |
|---|---|
| VOLTAGE RATING IN VOLTS | 28.0 DC MAXIMUM |
| MATERIAL | ALUMINUM BODY |
| LAMP TYPE ACCOMMODATED AND QUANTITY | 1 INCANDESCENT |
| LAMP BASE TYPE ACCOMMODATED | SINGLE CONTACT BAYONET CANDELABRA |
| MOUNTING METHOD | FLANGE |
| SPECIAL FEATURES | SPOT/FLOOD;FILTER POSITION LOCK;DIMMABLE WITH MOMENTARY ON SWITCH;MS CONNECTOR;WHITE OR NVIS;EXTENDED AND RETRACTABLE COIL CORD |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | COCKPIT UTILITY LIGHT |
Restrictions/Controls & Freight Information | NSN 6220-01-611-0432
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
