Product Details | AIRCRAFT COCKPIT LIGHT

6220-00-349-9292 A light specifically designed to be permanently installed in aircraft for map reading or cockpit illumination. It may contain dimming features, switches, filters, and/or cables or coiled cables to permit portability within the length of the cable. If provided with cables or coiled cables, the mounting base must remain fixed to the aircraft and include a snap-in or similar locking device to permit detachment and attachment of the light. For items that supply general illumination for other compartments of an aircraft, see LIGHT, DOME. Excludes LIGHT (1), EXTENSION.

Part Alternates: MS17245 , MS172456A, MS17245-6A, MILDTL6484, MIL-DTL-6484 , 342652, 34265-2, 6220-00-349-9292, 00-349-9292, 6220003499292, 003499292

Lighting Fixtures and Lamps | Electric Vehicular Lights and Fixtures

Supply Group (FSG) NSN Assign. NIIN
62 31 MAR 1971 00-349-9292

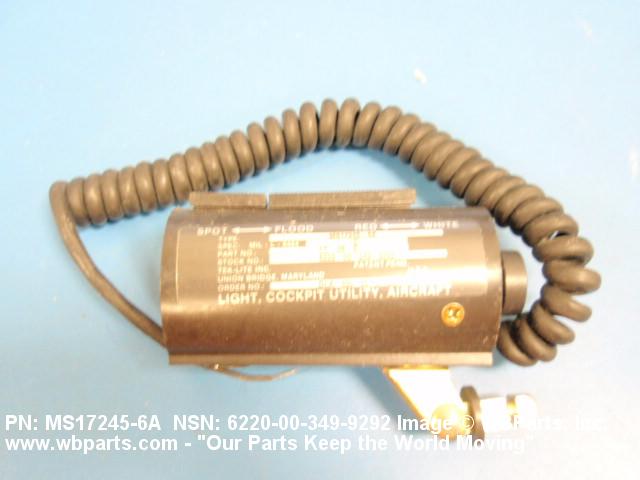

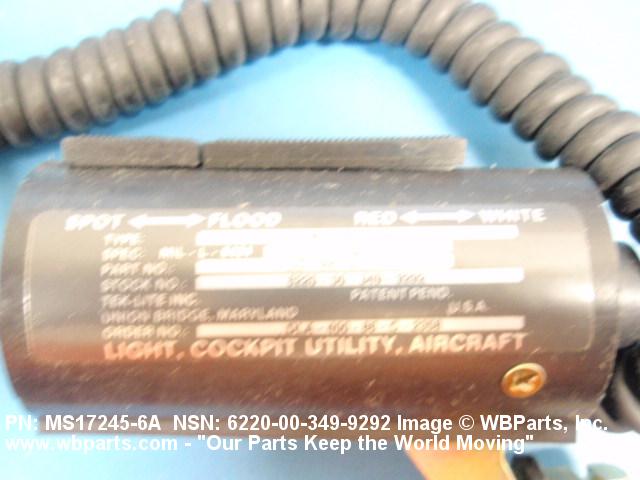

Drawings & Photos | NSN 6220-00-349-9292


Demand History | NSN 6220-00-349-9292

Part Number Request Date QTY Origin
6220-00-349-9292 2018-06-159 3 United States
6220-00-349-9292 2015-07-195 1 DIBBS-RFPs
6220-00-349-9292 2015-05-127 395 DIBBS
6220-00-349-9292 2015-01-08 140 DIBBS
6220-00-349-9292 2013-10-297 393 DIBBS
6220-00-349-9292 2013-06-169 148 DIBBS
6220-00-349-9292 2011-01-27 175 DIBBS
MS172456A 2010-04-99 1 United States
MS172456A 2010-04-99 1 United States
6220-00-349-9292 2010-04-97 1 United States
MS172456A 2010-04-97 1 United States
6220-00-349-9292 2010-04-96 145 DIBBS
MS172456A 2010-03-82 1 United States
6220-00-349-9292 2009-12-356 220 DIBBS
6220-00-349-9292 2009-05-151 358 DIBBS
6220-00-349-9292 2009-03-69 126 DIBBS
6220-00-349-9292 2008-02-51 73 DIBBS
6220-00-349-9292 2007-08-221 160 DIBBS
6220-00-349-9292 2007-06-158 223 DIBBS
6220-00-349-9292 2007-06-158 36 DIBBS
6220-00-349-9292 2007-06-158 59 DIBBS
6220-00-349-9292 2006-06-165 0 DIBBS
6220-00-349-9292 2006-06-157 36 DIBBS

Cross Reference | NSN 6220-00-349-9292

Part Number Cage Code Manufacturer
34265-2 D9182 BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS17245-6A 96906 MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 6220-00-349-9292

Technical Data | NSN 6220-00-349-9292

Characteristic Specifications
OVERALL DIAMETER 1.625 INCHES NOMINAL
OVERALL LENGTH 3.625 INCHES NOMINAL
VOLTAGE RATING IN VOLTS 28.0 DC NOMINAL
MATERIAL ALUMINUM BODY
SURFACE TREATMENT ENAMEL BAKED BODY
LAMP TYPE ACCOMMODATED AND QUANTITY 1 INCANDESCENT
LAMP BASE TYPE ACCOMMODATED MINIATURE BAYONET
LENS TYPE AND QUANTITY 1 PLANO CONVEX
LENS SURFACE CONDITION SMOOTH BACK SMOOTH FACE
LENS COLOR COLORLESS
LENS TRANSPARENCY TRANSPARENT
MOUNTING METHOD STUD
TERMINAL TYPE AND QUANTITY 2 WIRE LEAD
WIRING PROVISION METHOD CABLE
WIRING PROVISION LENGTH 50.0 INCHES NOMINAL ALL PROVISIONS
FURNISHED ITEMS AND QUANTITY 1 LAMP
FEATURES PROVIDED ADJUSTABLE LIGHT BEAM SPREAD AND DIMMING DEVICE AND SWITCH
SPECIAL FEATURES SELECTION OF WHITE AND RED FLOOD AND SPOT
MANUFACTURERS CODE 96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE MS17245-6A

Restrictions/Controls & Freight Information | NSN 6220-00-349-9292

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodePThere is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 109700 LAMP OR LIGHTING FIXTURES
Less than car load rating
Less than truck load rating W Rating Variable
Water commodity Code 671 unknown
Originating Activity Code CX Defense Supply Center Richmond
Richmond, VA 23297-5000
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity H Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 6220-00-349-9292

Category Code Description
Materiel Category and Inventory ManagerJ Ground Forces Support Materiel (DLA/GSA Items)
Appropriation and Budget Activity2 Stock Fund Secondary Items
Management Inventory Segment1 REPARABLE ITEMS (Exclusive of Insurance and Provisioning Items.) This code will be used to identify serviceable or unserviceable items of a durable nature which when unserviceable normally can be repaired economically by depots or lower echelons of maintenance.
Specific Group/Generic Code0 Medical Materiel
Weapons Systems/End Item or Homogeneous Group00DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements CodeX Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDADepartment of the Army
Service OrganizationAU.S. Army
ReparabilityOIf condemned or economically unserviceable, dispose at organizational level.
Acquisition Advice CodesZINSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
Category Code Description
Budget Code9 General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund CodeSFStock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation CodeSXSX:AF SICA RESIDUAL MMAC-OC-ALC
Price ValidationV The current standard price has been validated.
  • The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range.
  • The item was procured under open competition and under the competitive arena the price is considered fair and reasonable.
  • ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDFDepartment of the Air Force
Service OrganizationFU.S. Air Force
ReparabilityNStock Fund (except Munitions)
Acquisition Advice CodesZINSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
Category Code Description
Stores Account Code1Marine Corps Stock Fund Account Item.
Combat Essentiality Code5Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management CodeBAll CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code2ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification CodeBConsumable Repair Parts
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDMU.S. Marine Corps
Service OrganizationMU.S. Marine Corps
ReparabilityZNonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice CodesZINSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
Category Code Description
Cognizance Codes9BNavy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesZINSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
