NSN 6220-00-019-6224 S1210CCDHA, 00-019-6224, 000196224
Product Details | AIRCRAFT COCKPIT LIGHT
6220-00-019-6224 A light specifically designed to be permanently installed in aircraft for map reading or cockpit illumination. It may contain dimming features, switches, filters, and/or cables or coiled cables to permit portability within the length of the cable. If provided with cables or coiled cables, the mounting base must remain fixed to the aircraft and include a snap-in or similar locking device to permit detachment and attachment of the light. For items that supply general illumination for other compartments of an aircraft, see LIGHT, DOME. Excludes LIGHT (1), EXTENSION.
Part Alternates: S1210CCDHA, 6220-00-019-6224, 00-019-6224, 6220000196224, 000196224
Lighting Fixtures and Lamps | Electric Vehicular Lights and Fixtures
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | 01 JAN 1963 | 00-019-6224 | 22778 ( LIGHT, COCKPIT, AIRCRAFT ) |

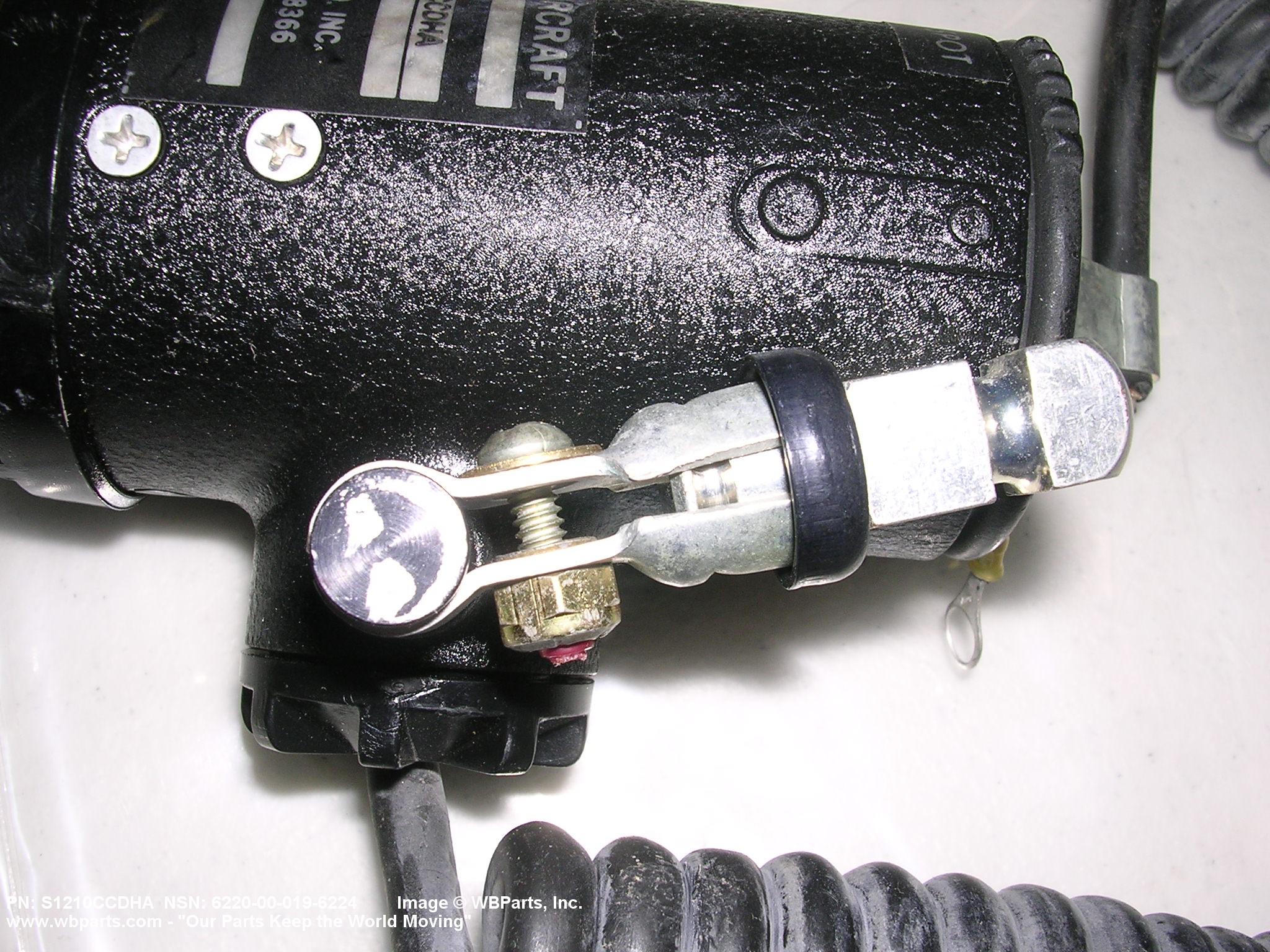

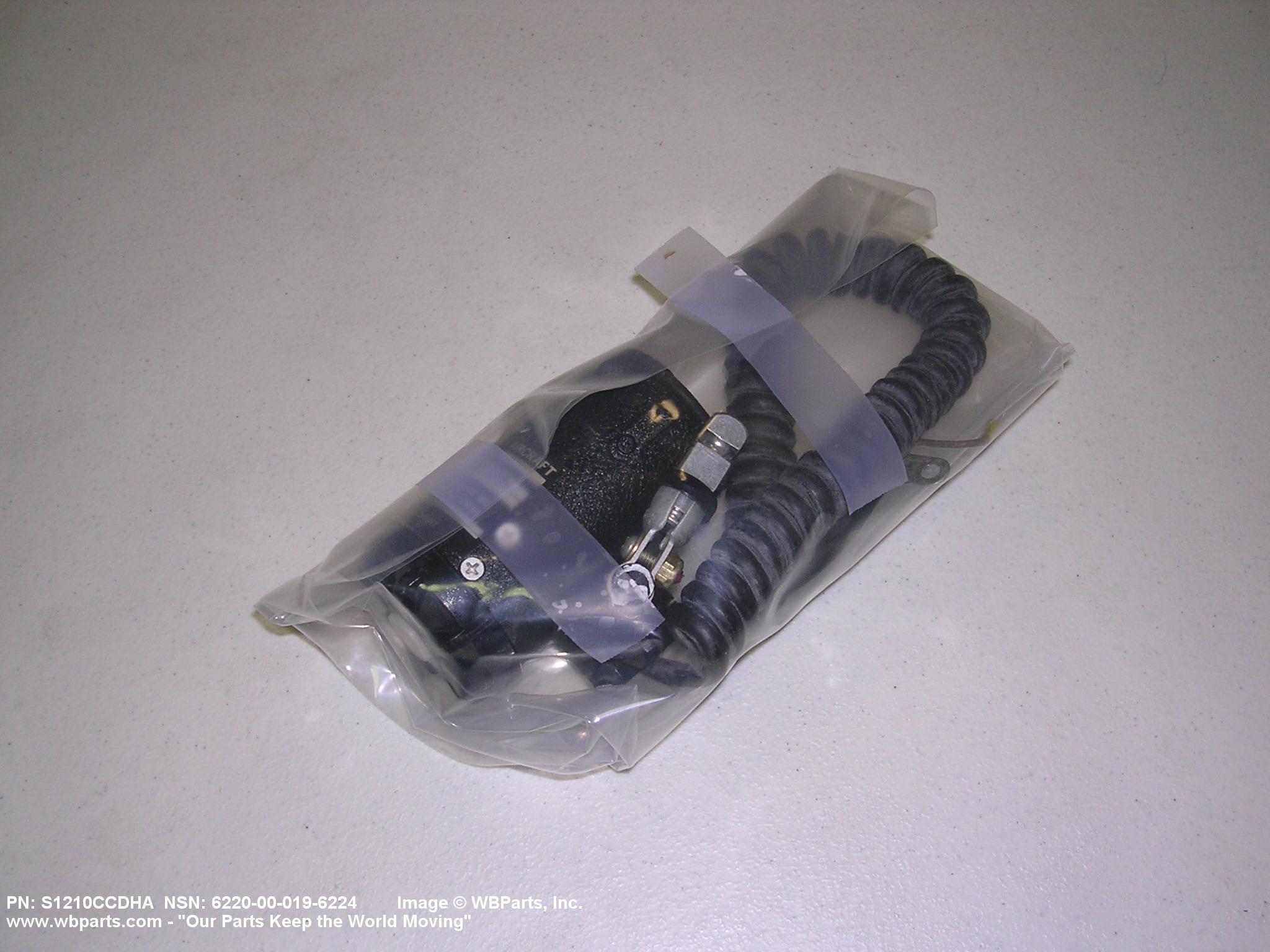

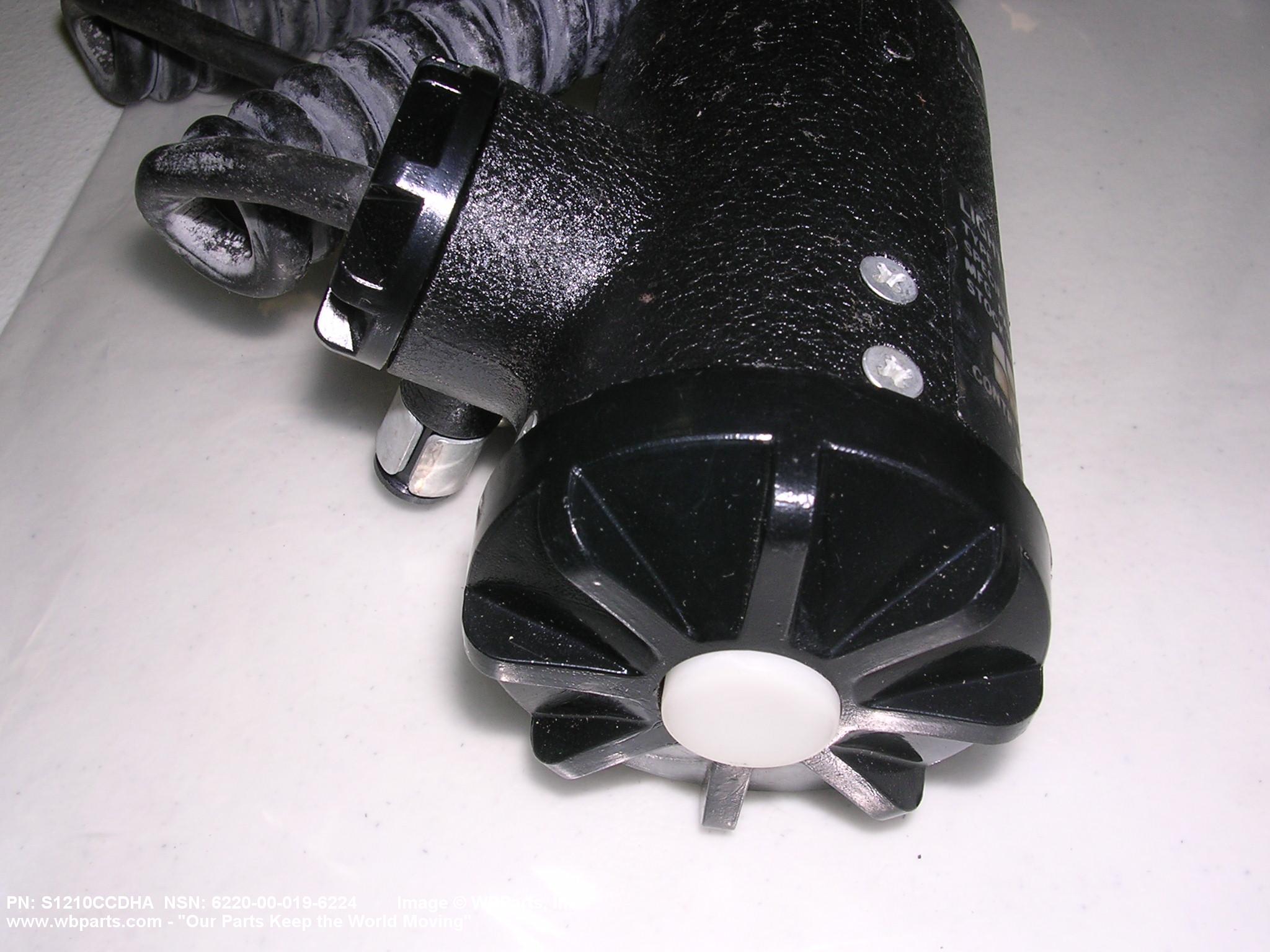

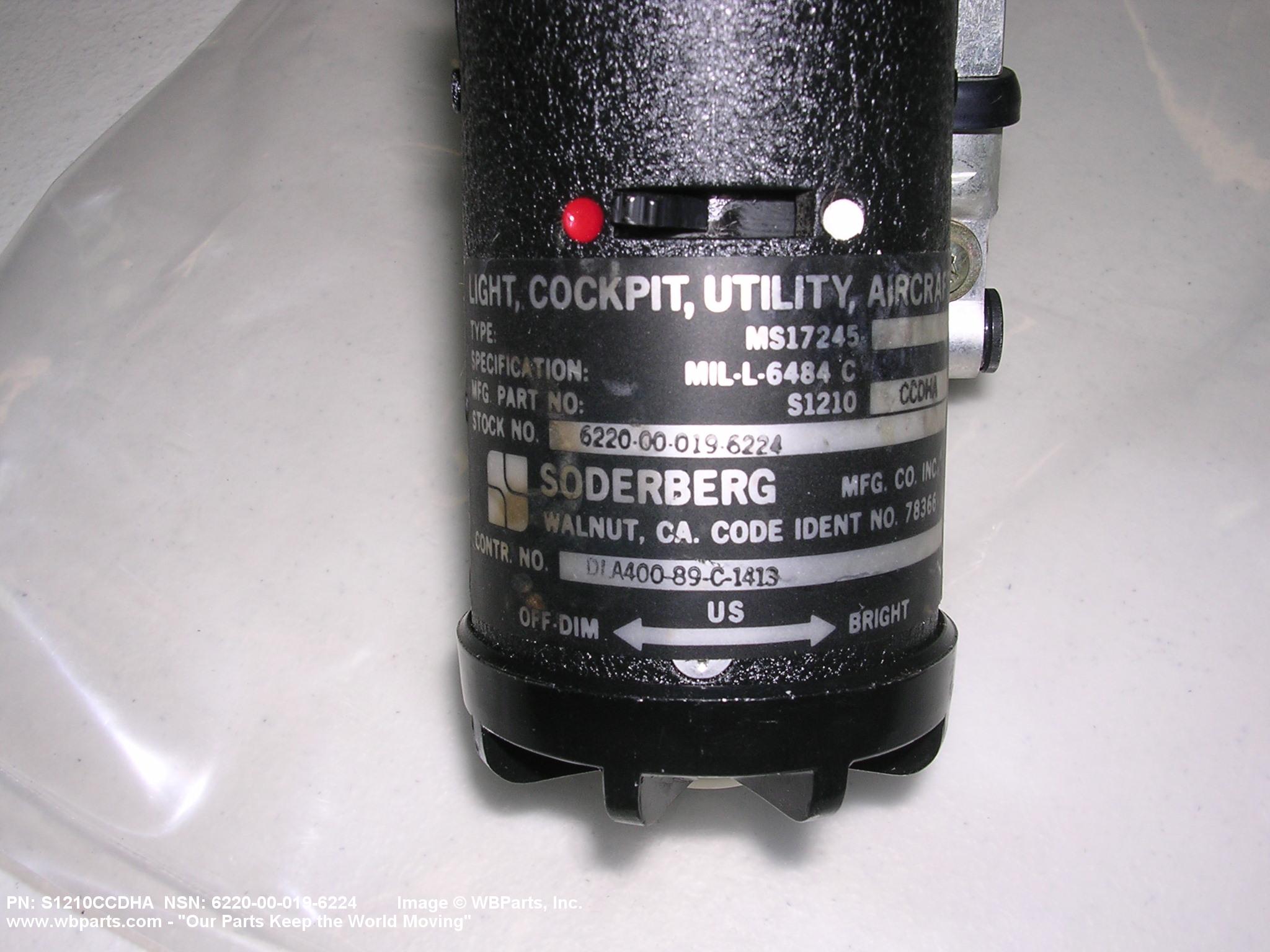

Drawings & Photos | NSN 6220-00-019-6224
Demand History | NSN 6220-00-019-6224
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6220-00-019-6224 | 2017-06-170 | 9 | United States |
| 6220-00-019-6224 | 2013-05-134 | 52 | DIBBS |
| 6220-00-019-6224 | 2013-04-118 | 8 | DIBBS |
Cross Reference | NSN 6220-00-019-6224
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| S1210CCDHA | 78366 | SODERBERG MFG.CO.INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6220-00-019-6224
Related Products | NSN 6220-00-019-6224
Technical Data | NSN 6220-00-019-6224
| Characteristic | Specifications |
|---|---|
| OVERALL DIAMETER | 1.625 INCHES NOMINAL |
| OVERALL LENGTH | 3.875 INCHES NOMINAL |
| VOLTAGE RATING IN VOLTS | 28.0 DC NOMINAL |
| MATERIAL | ALUMINUM BODY |
| SURFACE TREATMENT | ENAMEL BODY |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-E-5558,TY 1 MIL SPEC SINGLE TREATMENT RESPONSE BODY |
| LAMP TYPE ACCOMMODATED AND QUANTITY | 1 INCANDESCENT |
| LAMP BASE TYPE ACCOMMODATED | MINIATURE BAYONET |
| LENS TYPE AND QUANTITY | 1 FLAT, ROUND |
| LENS SURFACE CONDITION | PEBBLED BACK |
| LENS COLOR | COLORLESS |
| LENS TRANSPARENCY | TRANSPARENT |
| MOUNTING METHOD | UNTHREADED HOLE |
| TERMINAL TYPE AND QUANTITY | 1 WIRE LEAD |
| WIRING PROVISION METHOD | INDIVIDUAL WIRE |
| WIRING PROVISION LENGTH | 61.0 INCHES NOMINAL SINGLE PROVISION |
| FEATURES PROVIDED | ADJUSTABLE LIGHT BEAM SPREAD AND |
| SPECIAL FEATURES | ROTATION OF FRONT SECTION PERMITS SELECTION OF WHITE SPOT,WHITE FLOOD,RED FLOOD OR RED SPOT |
Restrictions/Controls & Freight Information | NSN 6220-00-019-6224
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 109700 | LAMP OR LIGHTING FIXTURES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 671 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6220-00-019-6224
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
