NSN 6220-01-136-7820 S1992005, S1992-005, 10150068
Product Details | AIRCRAFT COCKPIT LIGHT

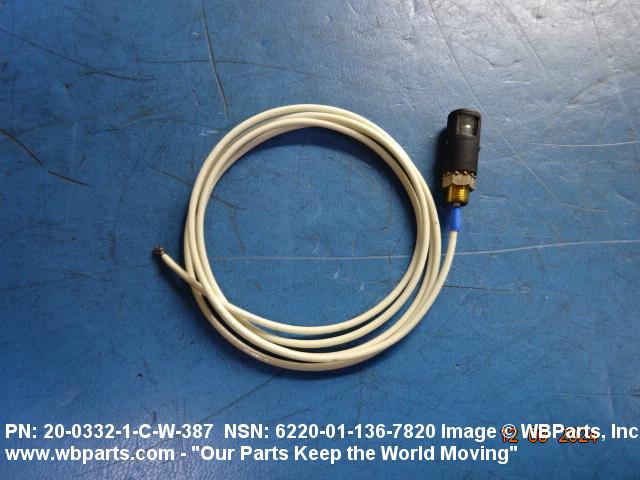

6220-01-136-7820 A light specifically designed to be permanently installed in aircraft for map reading or cockpit illumination. It may contain dimming features, switches, filters, and/or cables or coiled cables to permit portability within the length of the cable. If provided with cables or coiled cables, the mounting base must remain fixed to the aircraft and include a snap-in or similar locking device to permit detachment and attachment of the light. For items that supply general illumination for other compartments of an aircraft, see LIGHT, DOME. Excludes LIGHT (1), EXTENSION.
Part Alternates: S1992005, S1992-005, 10150068 , 5M1694002, 5M1694-002, 5M1694005, 5M1694-005, 6220-01-136-7820, 01-136-7820, 6220011367820, 011367820
Lighting Fixtures and Lamps | Electric Vehicular Lights and Fixtures
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | 15 AUG 1982 | 01-136-7820 | 22778 ( LIGHT, COCKPIT, AIRCRAFT ) |
Demand History | NSN 6220-01-136-7820
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5M1694005 | 2024-08-20 | 1 | us |
| 6220-01-136-7820 | 2013-07-21 | 167 | DIBBS |
| 6220-01-136-7820 | 2012-07-23 | 164 | DIBBS |
| 6220-01-136-7820 | 2012-07-05 | 164 | DIBBS |
| 6220-01-136-7820 | 2012-06-21 | 148 | DIBBS |
| 6220-01-136-7820 | 2011-02-07 | 167 | DIBBS |
| 6220-01-136-7820 | 2010-02-05 | 114 | DIBBS |
| S1992005 | 2009-05-04 | 1 | US |
| S1992005 | 2009-05-04 | 1 | US |
| 6220-01-136-7820 | 2008-11-12 | 66 | DIBBS |
| 6220-01-136-7820 | 2008-10-09 | 86 | DIBBS |
| 6220-01-136-7820 | 2008-08-05 | 62 | DIBBS |
| 6220-01-136-7820 | 2008-03-03 | 115 | DIBBS |
| 6220-01-136-7820 | 2007-12-24 | 30 | DIBBS |
| 6220-01-136-7820 | 2007-07-10 | 68 | DIBBS |
| 6220-01-136-7820 | 2007-04-23 | 55 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6220-01-136-7820
Technical Data | NSN 6220-01-136-7820
| Characteristic | Specifications |
|---|---|
| OVERALL DIAMETER | 0.375 INCHES NOMINAL |
| OVERALL LENGTH | 1.090 INCHES NOMINAL |
| VOLTAGE RATING IN VOLTS | 28.0 DC NOMINAL |
| MATERIAL | ALUMINUM BODY |
| SURFACE TREATMENT | PAINT ALUMINUM BODY |
| LAMP TYPE ACCOMMODATED AND QUANTITY | 1 INCANDESCENT |
| LAMP BASE TYPE ACCOMMODATED | MIDGET FLANGED |
| LENS COLOR | COLORLESS |
| LENS TRANSPARENCY | TRANSPARENT |
| MOUNTING METHOD | THREADED BUSHING |
| WIRING PROVISION METHOD | INDIVIDUAL WIRE |
| WIRING PROVISION LENGTH | 48.0 INCHES MINIMUM SINGLE PROVISION |
Restrictions/Controls & Freight Information | NSN 6220-01-136-7820
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 109700 | LAMP OR LIGHTING FIXTURES |
| Less than car load rating | J | 100.2 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6220-01-136-7820
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Special Material ID | GF | (Non-HSP) FIGHTER SUPPORTAIRCRAFT(F/A-18) |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
