Product Details | VEHICULAR STOP LIGHT-TAILLIGHT

6220-00-904-0156 An item which has the dual purpose of a STOP LIGHT, VEHICULAR and TAILLIGHT, VEHICULAR. Includes items which may be used for directional signaling.

Part Alternates: AC12337, AC-12337, BG26960, 10920548, 11M52, 1M52, 22350, 804AS1361, 804AS136-1, 6220-00-904-0156, 00-904-0156, 6220009040156, 009040156

Lighting Fixtures and Lamps | Electric Vehicular Lights and Fixtures

Supply Group (FSG) NSN Assign. NIIN
62 01 JAN 1960 00-904-0156

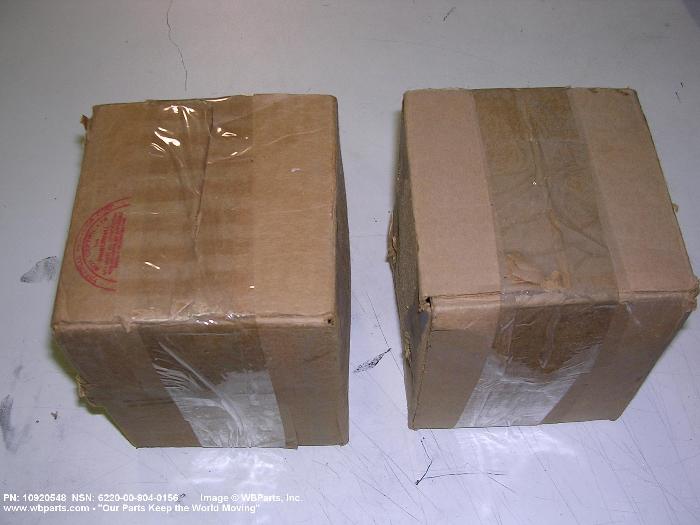

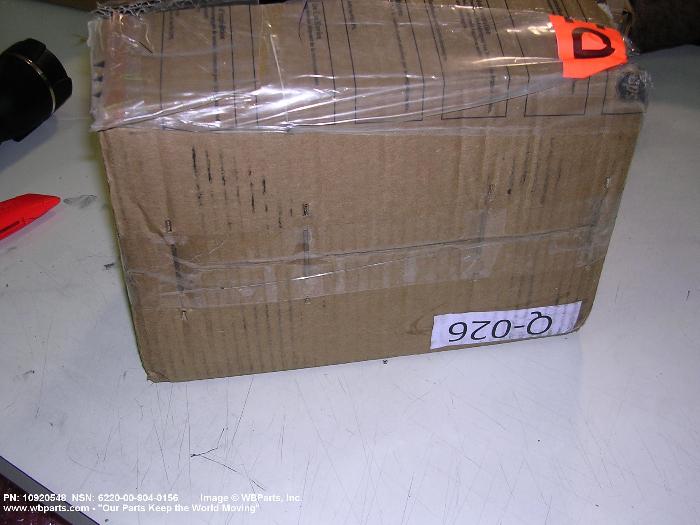

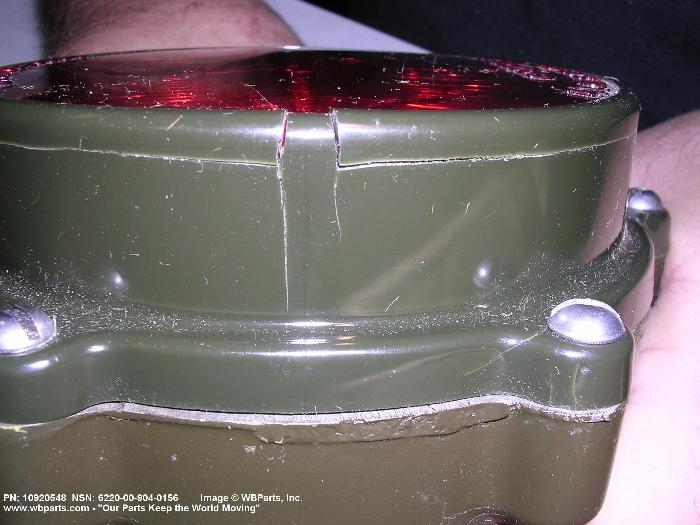

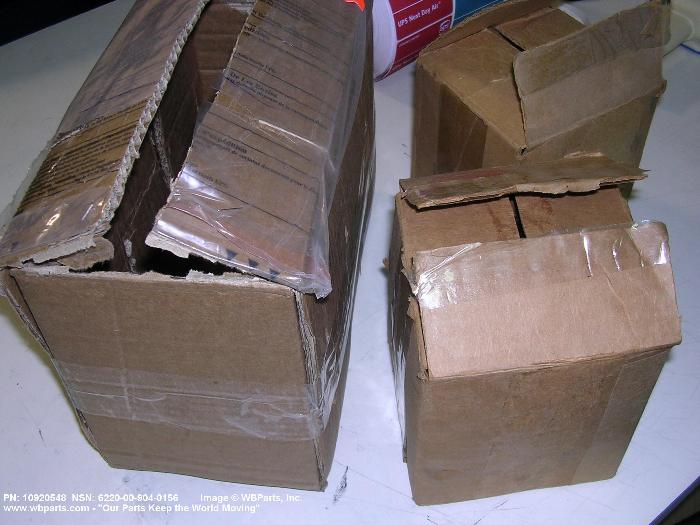

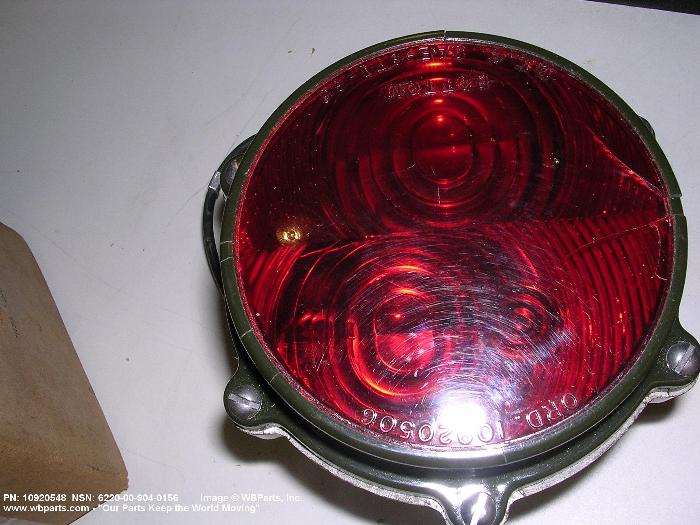

Drawings & Photos | NSN 6220-00-904-0156


Demand History | NSN 6220-00-904-0156

Part Number Request Date QTY Origin
6220-00-904-0156 2013-11-311 119 DIBBS
6220-00-904-0156 2013-10-303 119 DIBBS
6220-00-904-0156 2013-09-266 161 DIBBS
6220-00-904-0156 2013-04-111 142 DIBBS
6220-00-904-0156 2013-02-58 303 DIBBS
6220-00-904-0156 2013-01-27 214 DIBBS
6220-00-904-0156 2010-05-140 198 DIBBS
6220-00-904-0156 2010-04-120 141 DIBBS
6220-00-904-0156 2009-10-278 196 DIBBS
6220-00-904-0156 2009-09-272 151 DIBBS
6220-00-904-0156 2009-06-173 205 DIBBS
6220-00-904-0156 2008-10-304 46 DIBBS
6220-00-904-0156 2008-09-273 179 DIBBS
6220-00-904-0156 2008-09-247 11 DIBBS
6220-00-904-0156 2008-02-58 101 DIBBS
6220-00-904-0156 2007-11-320 4 United States
6220-00-904-0156 2007-08-239 155 DIBBS
6220-00-904-0156 2007-03-80 100 DIBBS
6220-00-904-0156 2007-01-29 219 DIBBS

Cross Reference | NSN 6220-00-904-0156

Part Number Cage Code Manufacturer
10920548 19207 U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM
11M52 05643 BARBER-GREENE CO
11M52 0MKW7 MINNPAR, LLC DBA MINNPAR
1M52 05631 ACCO INDUSTRIES INC INDUSTRIAL LIFTERS DIV
22350 12472 LOCKWOOD CORP
804AS136-1 30003 NAVAL AIR SYSTEMS COMMAND
AC-12337 5A910 ELC INDUSTRIES CORP. DBA AURORA CORD AND CABLE COMPANY
BG26960 18990 EAGLE CRUSHER CO INC

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 6220-00-904-0156

Technical Data | NSN 6220-00-904-0156

Characteristic Specifications
SHAPE ROUND
OVERALL DIAMETER 5.312 INCHES NOMINAL
OVERALL LENGTH 4.469 INCHES NOMINAL
VOLTAGE RATING IN VOLTS 12.0 DC NOMINAL
MATERIAL ALUMINUM BODY
SURFACE TREATMENT ENAMEL BODY
LAMP TYPE ACCOMMODATED AND QUANTITY 3 INCANDESCENT
LAMP BASE TYPE ACCOMMODATED SINGLE CONTACT BAYONET CANDELABRA
LENS TYPE AND QUANTITY 1 CONVEX, SEMI-DOME
LENS SURFACE CONDITION SMOOTH BACK SMOOTH FACE
LENS COLOR RED
LENS TRANSPARENCY TRANSLUCENT
MOUNTING METHOD UNTHREADED HOLE
TERMINAL TYPE AND QUANTITY 3 SOCKET
WIRING PROVISION METHOD INDIVIDUAL WIRE
WIRING PROVISION LENGTH 9.0 INCHES NOMINAL ALL PROVISIONS
HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION WATERTIGHT
FEATURES PROVIDED BLACKOUT DEGREE, PARTIAL

Restrictions/Controls & Freight Information | NSN 6220-00-904-0156

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodePThere is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 114820 BEARINGS/BUSHINGS NOI BALL/ROLLER
Less than car load rating
Less than truck load rating P 77.5
Water commodity Code 742 unknown
Originating Activity Code TG Warner-Robins Air Logistics Center
Robins AFB, GA 31098-5609
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity V Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 6220-00-904-0156

Category Code Description
Budget Code9 General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund CodeSFStock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price ValidationV The current standard price has been validated.
  • The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range.
  • The item was procured under open competition and under the competitive arena the price is considered fair and reasonable.
  • ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDFDepartment of the Air Force
Service OrganizationFU.S. Air Force
ReparabilityNStock Fund (except Munitions)
Acquisition Advice CodesJNOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
Category Code Description
Cognizance Codes9BNavy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesJNOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
