NSN 6220-00-816-8131 A4950A124, A-4950A-1-24, HE43200050003
Product Details | AIRCRAFT COCKPIT LIGHT
6220-00-816-8131 A light specifically designed to be permanently installed in aircraft for map reading or cockpit illumination. It may contain dimming features, switches, filters, and/or cables or coiled cables to permit portability within the length of the cable. If provided with cables or coiled cables, the mounting base must remain fixed to the aircraft and include a snap-in or similar locking device to permit detachment and attachment of the light. For items that supply general illumination for other compartments of an aircraft, see LIGHT, DOME. Excludes LIGHT (1), EXTENSION.
Part Alternates: A4950A124, A-4950A-1-24, HE43200050003, HE432-0005-0003, S1274BCA, 6951411, 695141-1, 7756401, 6220-00-816-8131, 00-816-8131, 6220008168131, 008168131
Lighting Fixtures and Lamps | Electric Vehicular Lights and Fixtures
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | 29 MAR 1968 | 00-816-8131 | 22778 ( LIGHT, COCKPIT, AIRCRAFT ) |

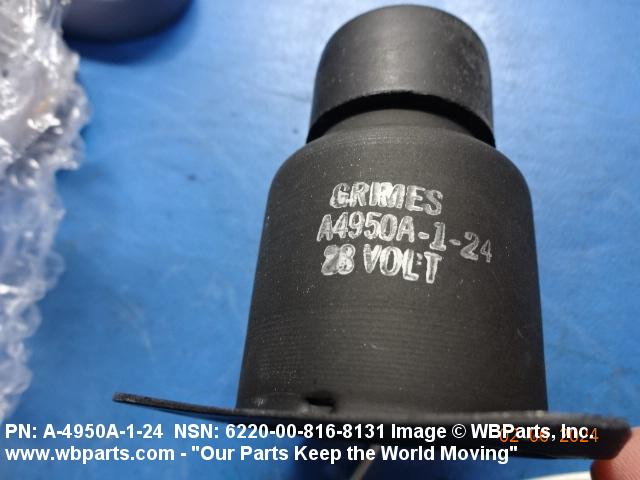

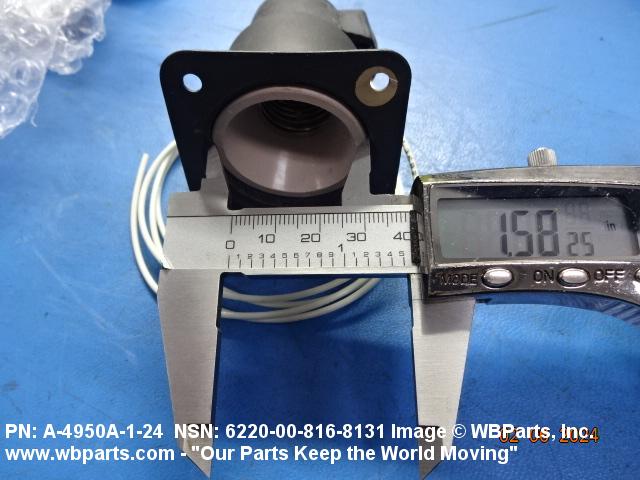

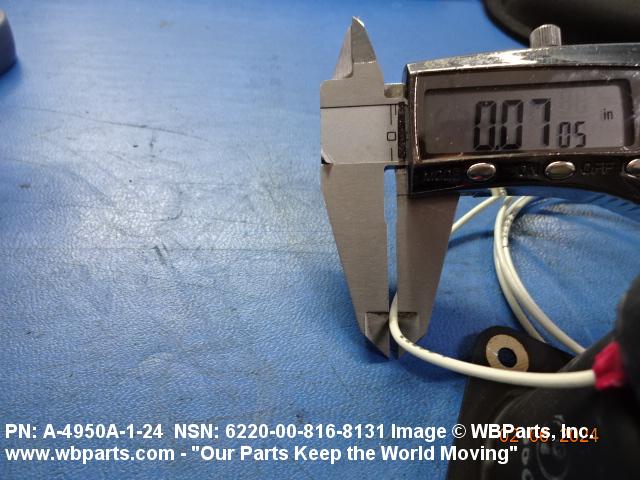

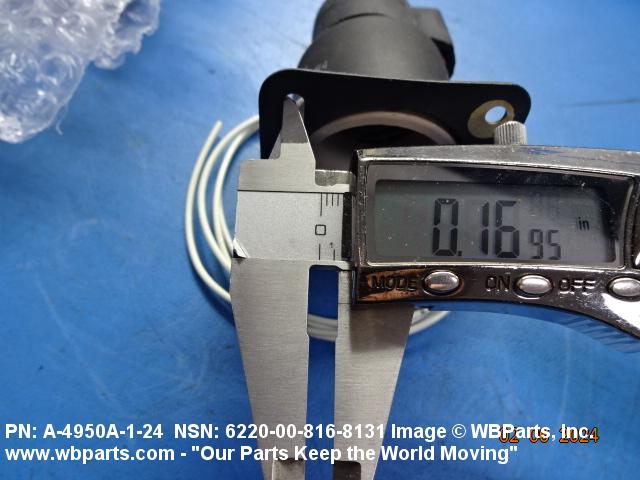

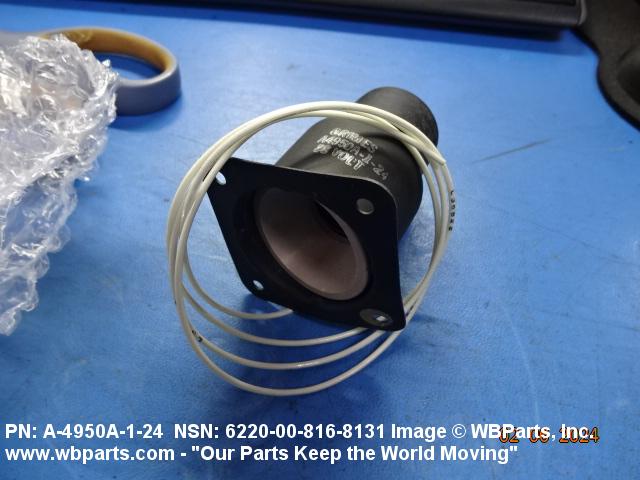

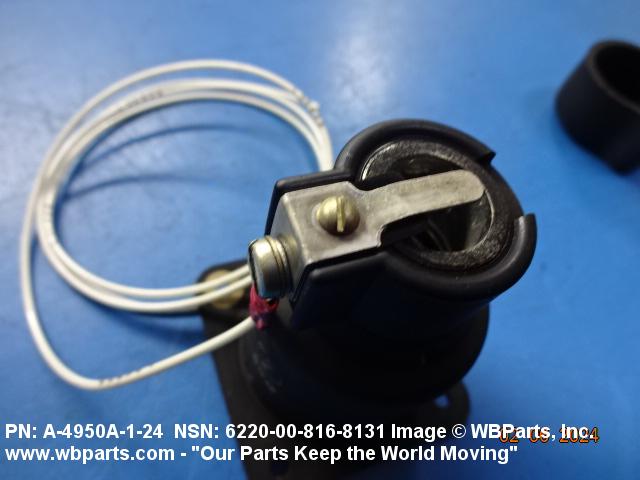

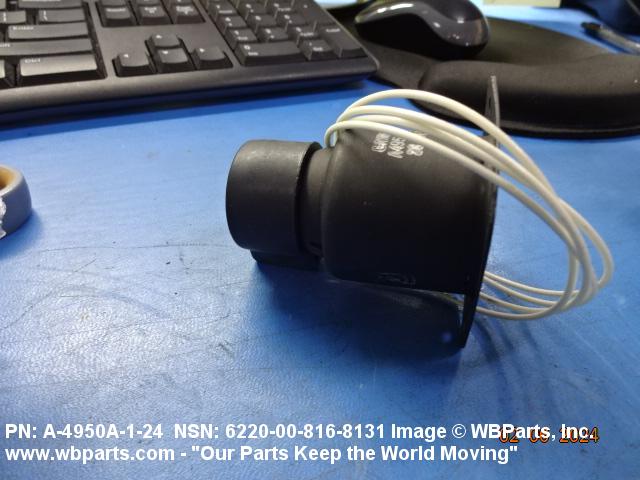

Drawings & Photos | NSN 6220-00-816-8131
Demand History | NSN 6220-00-816-8131
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6220-00-816-8131 | 2024-03-76 | 5 | Malaysia |
| 6220-00-816-8131 | 2024-01-30 | 2 | United States |
| 6220-00-816-8131 | 2023-10-300 | 2 | United States |
| 6220-00-816-8131 | 2023-10-293 | 1 | US |
| 6220-00-816-8131 | 2023-08-234 | 1 | United States |
| A4950A124 | 2023-05-132 | 1 | United States |
| 6220-00-816-8131 | 2022-09-269 | 38 | Malaysia |
| 6220-00-816-8131 | 2015-06-160 | 1 | US |
| A4950A124 | 2012-08-240 | 2 | United States |
Cross Reference | NSN 6220-00-816-8131
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 695141-1 | 98897 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
| 7756401 | 98747 | OGDEN AIR LOGISTICS CENTER |
| A-4950A-1-24 | 72914 | GRIMES AEROSPACE COMPANY DBA HONEYWELL |
| HE432-0005-0003 | 89372 | ROCKWELL INTERNATIONAL CORP NORTH AMERICAN AIRCRAFT OPNS |
| S1274BCA | 78366 | SODERBERG MFG.CO.INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6220-00-816-8131
Technical Data | NSN 6220-00-816-8131
| Characteristic | Specifications |
|---|---|
| OVERALL HEIGHT | 2.750 INCHES NOMINAL |

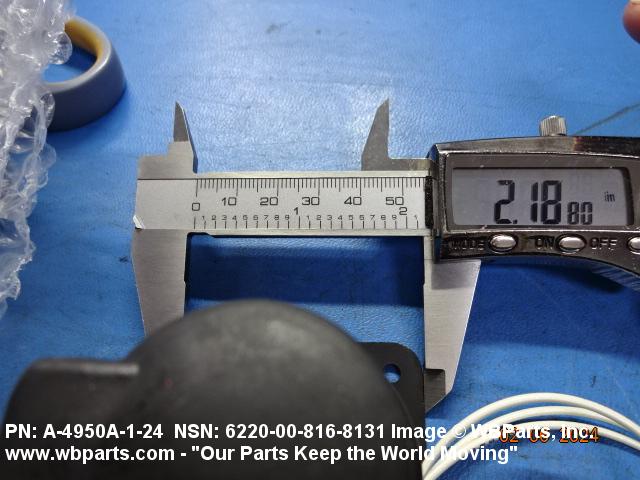

| OVERALL LENGTH | 2.188 INCHES NOMINAL |
| VOLTAGE RATING IN VOLTS | 28.0 DC NOMINAL |
| MATERIAL | GLASS LENS |
| LAMP TYPE ACCOMMODATED AND QUANTITY | 1 INCANDESCENT |
| LAMP BASE TYPE ACCOMMODATED | DOUBLE CONTACT BAYONET CANDELABRA |
| LENS TYPE AND QUANTITY | 1 CONVEX, SEMI-DOME |
| LENS SURFACE CONDITION | SMOOTH BACK SMOOTH FACE |
| LENS COLOR | WHITE |
| LENS TRANSPARENCY | TRANSPARENT |
| MOUNTING METHOD | FLANGE |
| TERMINAL TYPE AND QUANTITY | 2 QUICK DISCONNECT, MALE |
| FURNISHED ITEMS AND QUANTITY | 1 LAMP |
Restrictions/Controls & Freight Information | NSN 6220-00-816-8131
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 109550 | LAMPS(BULBS) ELEC INCANDESCENT NOI |
| Less than car load rating | ||
| Less than truck load rating | F | 150.0 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6220-00-816-8131
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9G | Navy-owned stocks of defense general material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9G | Defense Supply Center Richmond Richmond, VA 23297 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
