NSN 6220-00-732-0643 5936150, 7320643, 00-732-0643
Product Details | LIGHT LENS
6220-00-732-0643 A transparent or translucent item designed to enclose or be placed in front of a light source. Sections of the lens may be opaque. It may or may not include a holder. It is designed to be either a replacement unit for a specific type of light, such as LIGHT, INDICATOR; LIGHT, NAVIGATIONAL, MARINE; STOP LIGHT, VEHICULAR; and LANTERN, ELECTRIC or that portion of a SWITCH, (as modified) used as an actuator and having provisions for illumination. See also, WINDOW, LIGHTING FIXTURE; GLOBE; ELECTRIC LIGHT; and FILTER (2), (as modified).20658500051Visible and Invisible Light Communication Equipment62100045Indoor and Outdoor Electric Lighting Fixtures62200038Electric Vehicular Lights and Fixtures65150057Medical and Surgical Instruments, Equipment, and Supplies65200043Dental Instruments, Equipment, and Supplies65300053Hospital Furniture, Equipment, Utensils, and Supplies
Part Alternates: 5936150, 7320643, 6220-00-732-0643, 00-732-0643, 6220007320643, 007320643
Lighting Fixtures and Lamps | Electric Vehicular Lights and Fixtures
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | 01 JAN 1963 | 00-732-0643 | 29939 ( LENS, LIGHT ) |

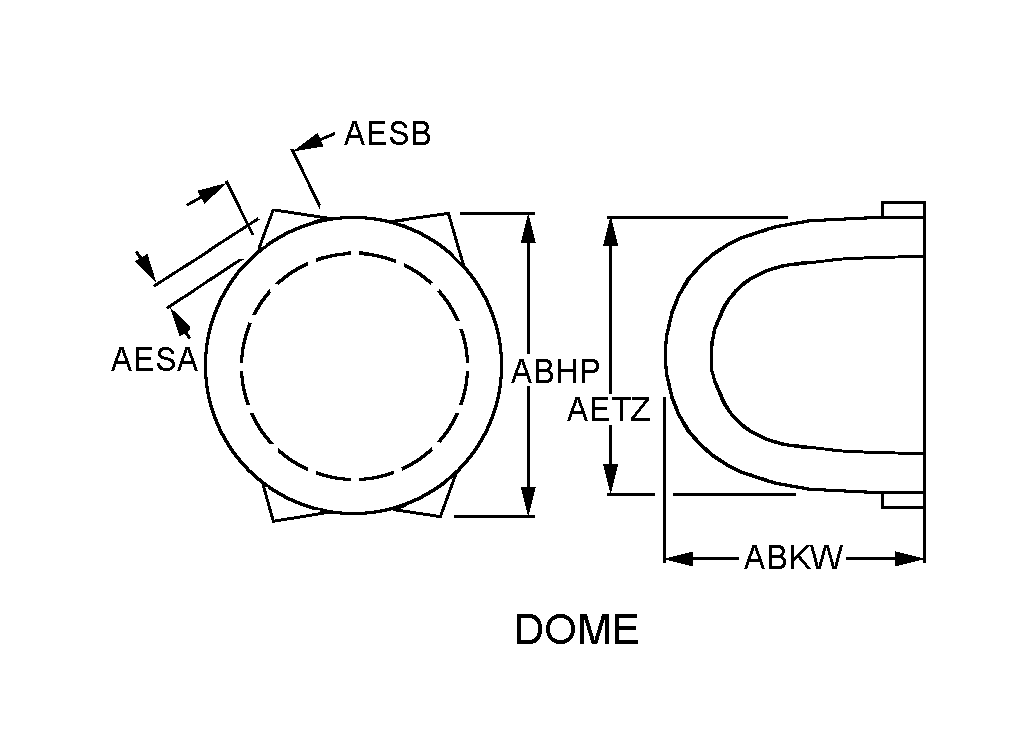

Drawings & Photos | NSN 6220-00-732-0643
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6220-00-732-0643
Technical Data | NSN 6220-00-732-0643
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 42 DOME |
| OVERALL LENGTH | 4.500 INCHES NOMINAL |
| OVERALL HEIGHT | 0.750 INCHES NOMINAL |
| MOUNTING EAR LENGTH | 0.344 INCHES NOMINAL |
| MOUNTING EAR WIDTH | 0.656 INCHES NOMINAL |
| EFFECTIVE DIAMETER | 0.844 INCHES NOMINAL |
| LIGHT TRANSMISSION DESIGN | TRANSPARENT AND TRANSLUCENT LENS |
| SURFACE CONDITION | SMOOTH BACK SMOOTH FACE |
| MOUNTING METHOD | SCREW |
| MOUNTING DEVICE QUANTITY | 6 |
| COLOR | CLEAR AND RED LENS |
| SPECIAL FEATURES | DIMMING DEVICE TYPE: KNOB |
| SPECIFIC USE | GROUND VEHICLE DOME LIGHT |
| FURNISHED ITEMS | GASKETS; LOCKWASHER; NUT; PLATE LENS; PLUNGER; SCREWS; SCREW STOP; SPRING; WASHER |
Restrictions/Controls & Freight Information | NSN 6220-00-732-0643
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 109550 | LAMPS(BULBS) ELEC INCANDESCENT NOI |
| Less than car load rating | ||
| Less than truck load rating | F | 150.0 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
