Product Details | LIGHT LENS

6220-00-732-0646 A transparent or translucent item designed to enclose or be placed in front of a light source. Sections of the lens may be opaque. It may or may not include a holder. It is designed to be either a replacement unit for a specific type of light, such as LIGHT, INDICATOR; LIGHT, NAVIGATIONAL, MARINE; STOP LIGHT, VEHICULAR; and LANTERN, ELECTRIC or that portion of a SWITCH, (as modified) used as an actuator and having provisions for illumination. See also, WINDOW, LIGHTING FIXTURE; GLOBE; ELECTRIC LIGHT; and FILTER (2), (as modified).20658500051Visible and Invisible Light Communication Equipment62100045Indoor and Outdoor Electric Lighting Fixtures62200038Electric Vehicular Lights and Fixtures65150057Medical and Surgical Instruments, Equipment, and Supplies65200043Dental Instruments, Equipment, and Supplies65300053Hospital Furniture, Equipment, Utensils, and Supplies

Part Alternates: 5936173, 7320646, 6220-00-732-0646, 00-732-0646, 6220007320646, 007320646

Lighting Fixtures and Lamps | Electric Vehicular Lights and Fixtures

Supply Group (FSG) NSN Assign. NIIN
62 01 JAN 1963 00-732-0646

Drawings & Photos | NSN 6220-00-732-0646


Cross Reference | NSN 6220-00-732-0646

Part Number Cage Code Manufacturer
5936173 24617 GENERAL MOTORS CORP
6220007320646 SCY13 E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
7320646 19207 U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 6220-00-732-0646

Technical Data | NSN 6220-00-732-0646

Characteristic Specifications

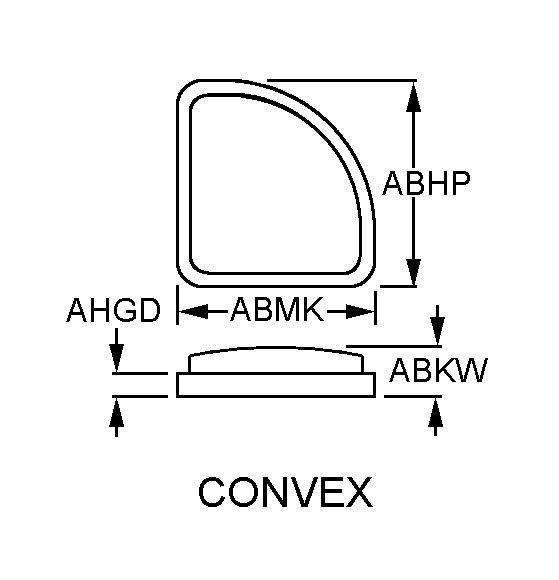

STYLE DESIGNATOR 63 CONVEX
OVERALL LENGTH 1.877 INCHES NOMINAL
OVERALL HEIGHT 0.343 INCHES NOMINAL
OVERALL WIDTH 1.549 INCHES NOMINAL
FLANGE HEIGHT 0.140 INCHES NOMINAL
MATERIAL PLASTIC LENS
LIGHT TRANSMISSION DESIGN TRANSLUCENT LENS
SURFACE CONDITION STIPPLED BACK SMOOTH FACE
MOUNTING METHOD SNAP RING
MOUNTING DEVICE QUANTITY 1
COLOR RED LENS

Restrictions/Controls & Freight Information | NSN 6220-00-732-0646

Category Code Description
Hazardous Material Indicator CodePThere is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 156600 PLASTIC/RUBBER ARTICLE VIZ:
Less than car load rating W Rating Variable
Less than truck load rating W Rating Variable
Water commodity Code 772 unknown
Originating Activity Code XX
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity B Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable
