Product Details | LIGHTING FIXTURE WINDOW

6210-00-725-9030 An item of clear or diffusing material designed to be placed in front of, and which does not inclose, a light source. It is specifically designed to be used with a FIXTURE, LIGHTING. See also GLOBE, ELECTRIC LIGHT; FILTER, LIGHT (as modified) and LENS (as modified).

Part Alternates: M16377/12-003, M1637712003, M16377-12-003, A1363A, MIL-F-16377/12, MILF1637712, 6210-00-725-9030, 00-725-9030, 6210007259030, 007259030

Lighting Fixtures and Lamps | Indoor and Outdoor Electric Lighting Fixtures

Supply Group (FSG) NSN Assign. NIIN
62 01 JAN 1963 00-725-9030

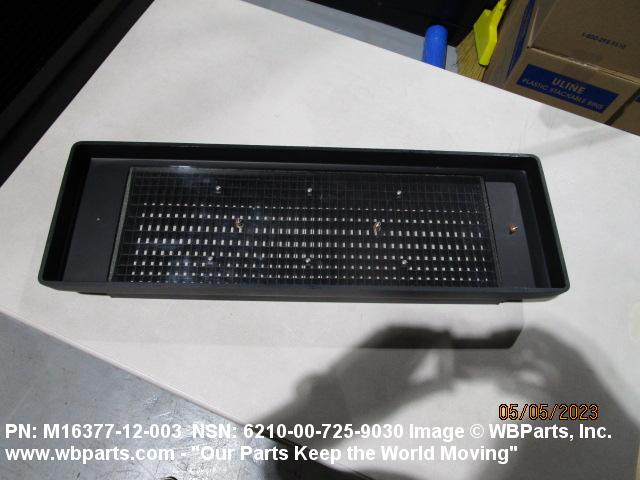

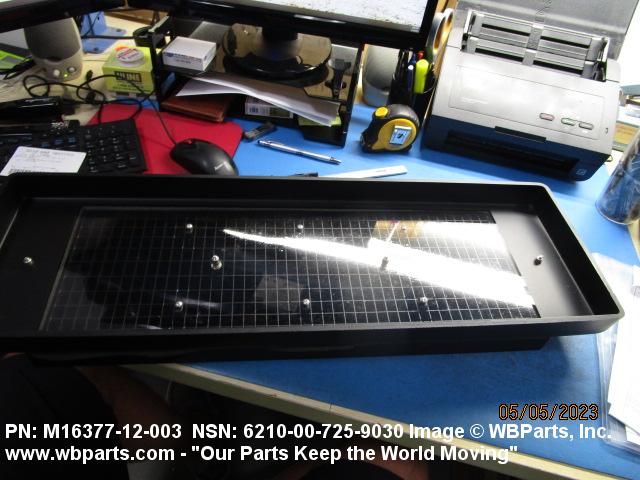

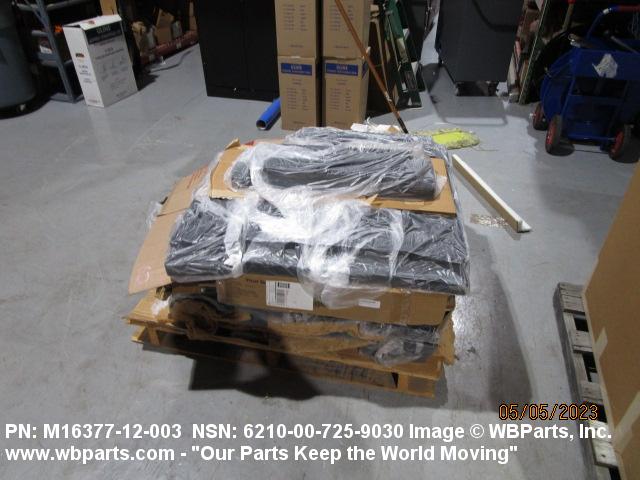

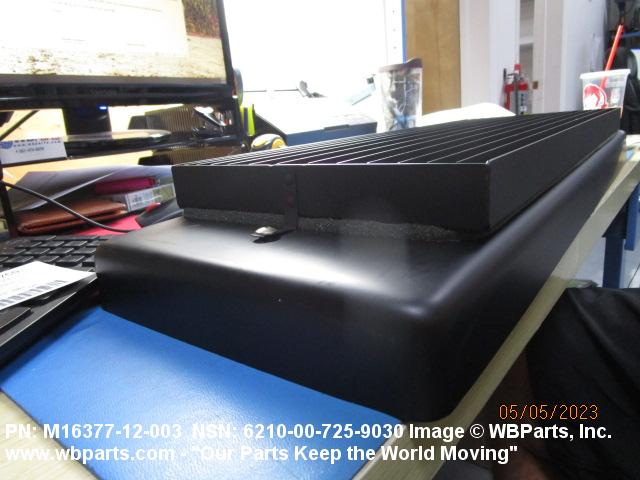

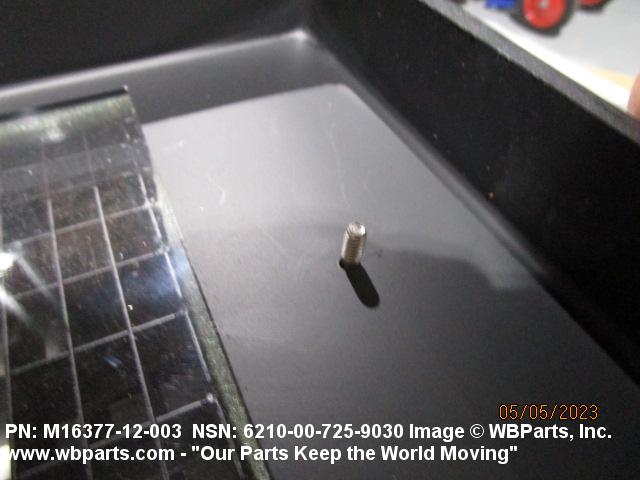

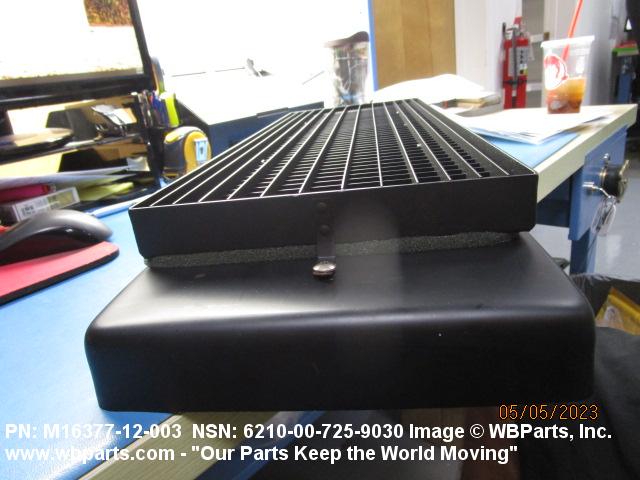

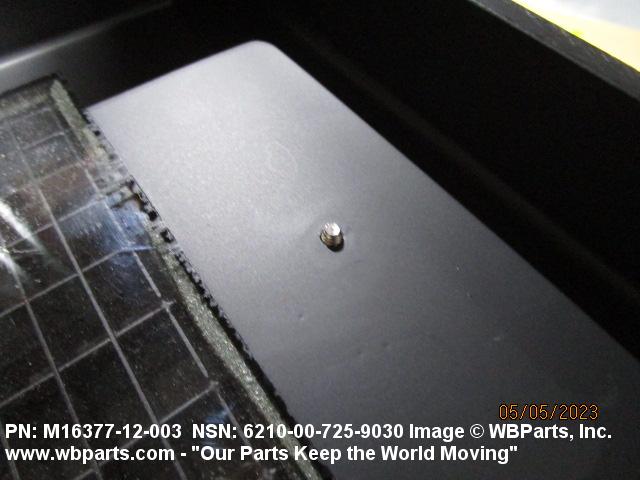

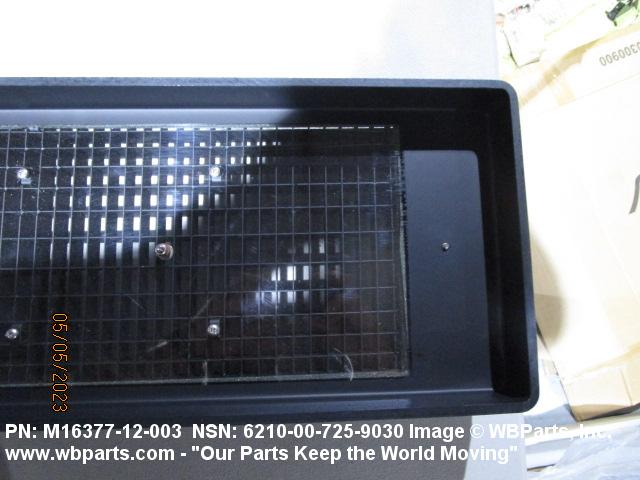

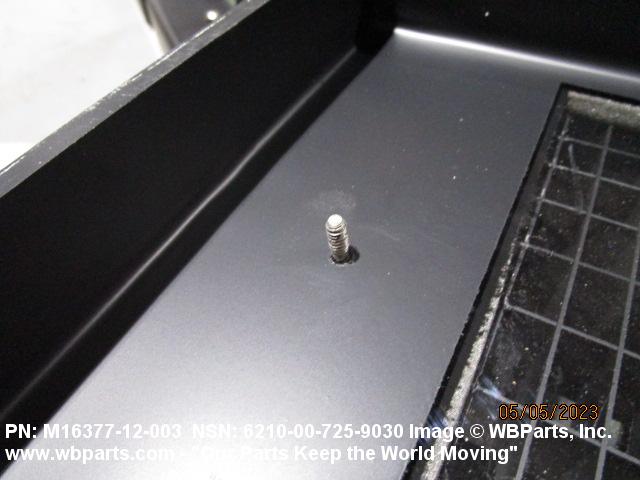

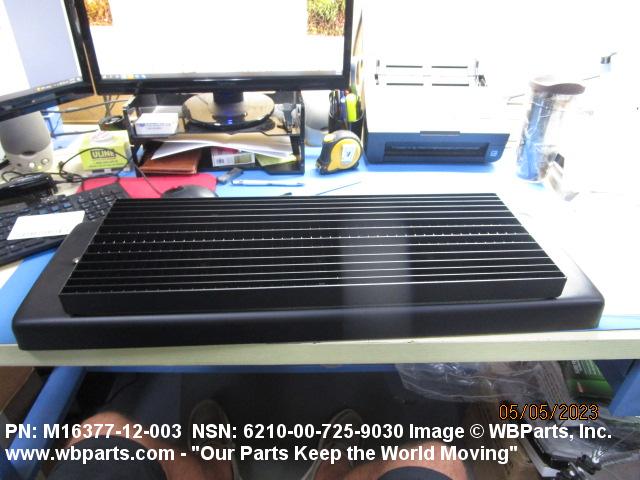

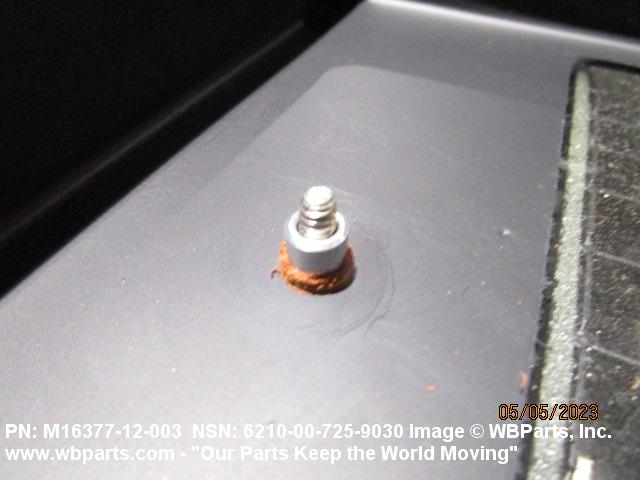

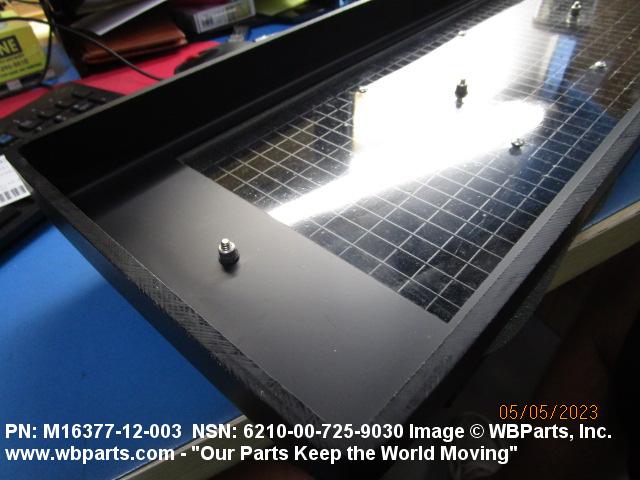

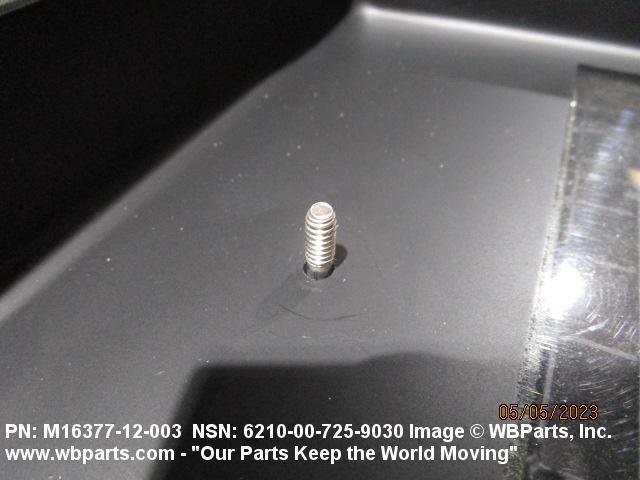

Drawings & Photos | NSN 6210-00-725-9030


Demand History | NSN 6210-00-725-9030

Part Number Request Date QTY Origin
MILF1637712 2024-05-122 2 United States
MILF1637712 2024-05-122 4 United States
6210-00-725-9030 2023-05-136 44 DIBBS
6210-00-725-9030 2023-05-122 31 United States
6210-00-725-9030 2023-02-38 31 DIBBS
6210-00-725-9030 2020-11-323 30 DIBBS
6210-00-725-9030 2020-11-322 1 DIBBS-RFPs
6210-00-725-9030 2017-12-355 1 DIBBS-RFPs
6210-00-725-9030 2017-12-339 271 DIBBS
6210-00-725-9030 2017-09-249 63 DIBBS
6210-00-725-9030 2017-06-157 45 DIBBS
6210-00-725-9030 2016-01-06 64 DIBBS
6210-00-725-9030 2013-01-14 156 DIBBS
6210-00-725-9030 2012-02-37 87 DIBBS
6210-00-725-9030 2010-05-132 95 DIBBS
6210-00-725-9030 2010-05-131 95 DIBBS
6210-00-725-9030 2010-05-127 95 DIBBS

Cross Reference | NSN 6210-00-725-9030

Part Number Cage Code Manufacturer
A1363A 85213 L.C.DOANE COMPANY,THE
M16377-12-003 D9182 BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
M16377/12-003 81349 MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-F-16377/12 81349 MILITARY SPECIFICATIONS PROMULGATED BY MILITARY

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 6210-00-725-9030

Technical Data | NSN 6210-00-725-9030

Characteristic Specifications
MATERIAL PLASTIC, MIL-P-24191, TYPE WTLS-4, GRADE G
COLOR CLEAR
OUTER SURFACE CONDITION SMOOTH
INSIDE SURFACE CONDITION SMOOTH
MATERIAL TRANSPARENCY TRANSLUCENT

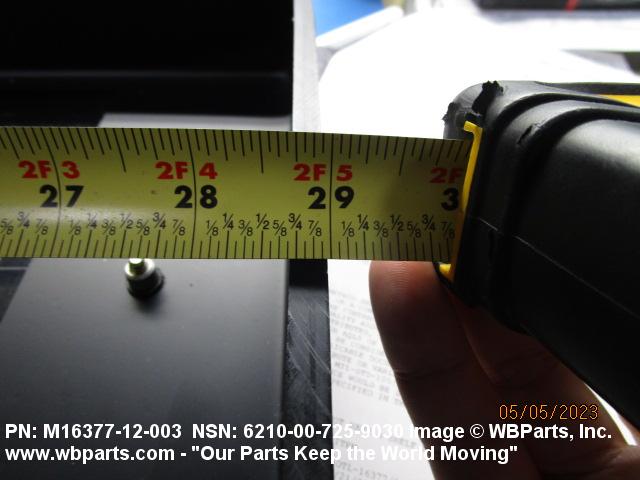

OVERALL LENGTH 28.844 INCHES MINIMUM AND 28.937 INCHES MAXIMUM

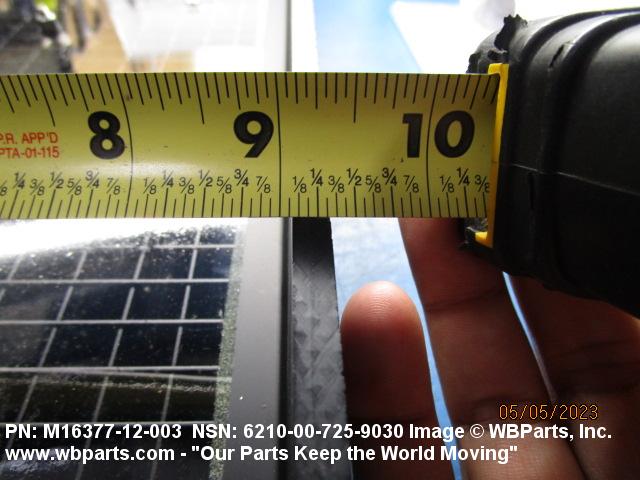

OVERALL WIDTH 9.141 INCHES MINIMUM AND 9.234 INCHES MAXIMUM
OVERALL HEIGHT ANY ACCEPTABLE

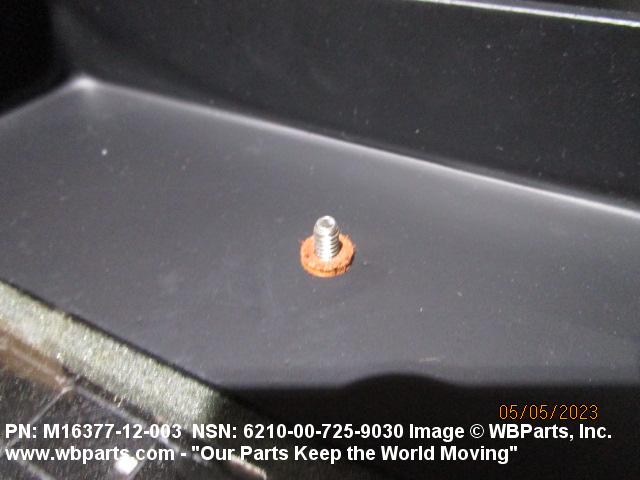

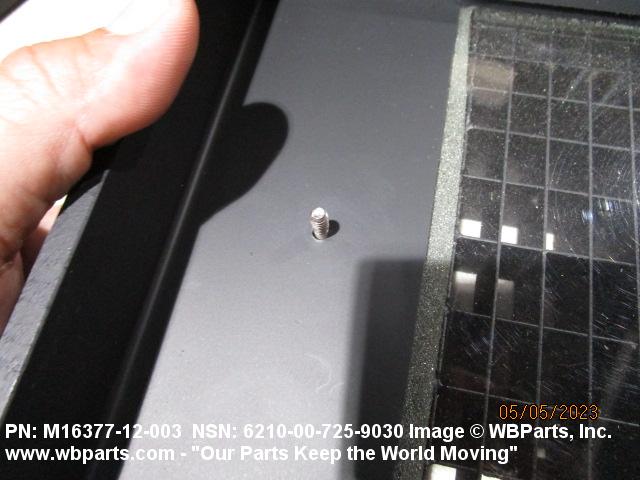

MOUNTING METHOD HOLES
MOUNTING HOLE QUANTITY 4
MOUNTING HOLE DIAMETER 0.191 INCHES NOMINAL
MOUNTING CONFIGURATION FOUR MOUNTING HOLES 0.191 IN. DIA SPACED 8.381,8.318 AND 8.426 IN. C TO C

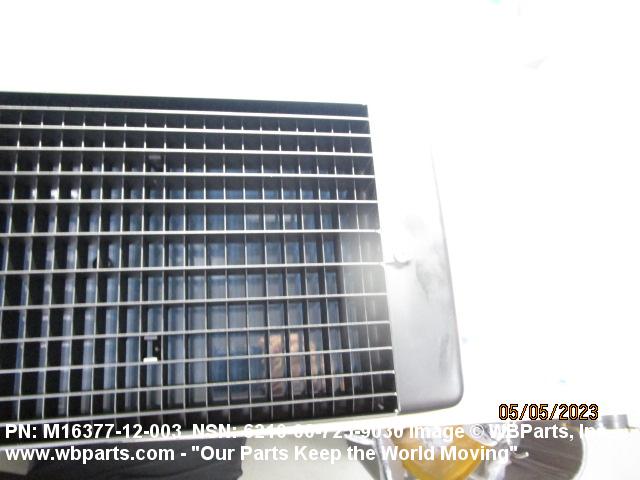

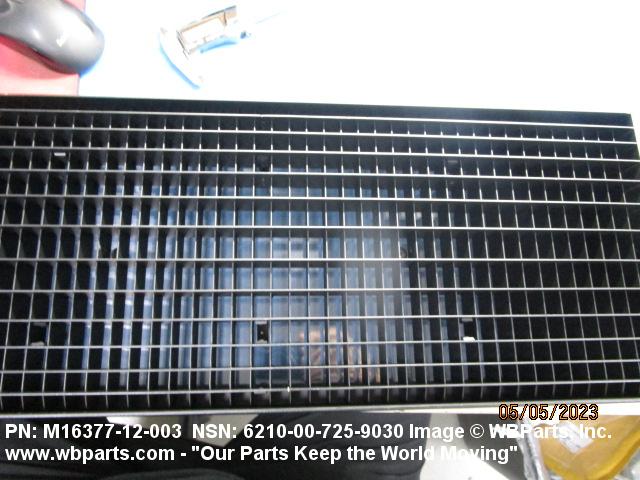

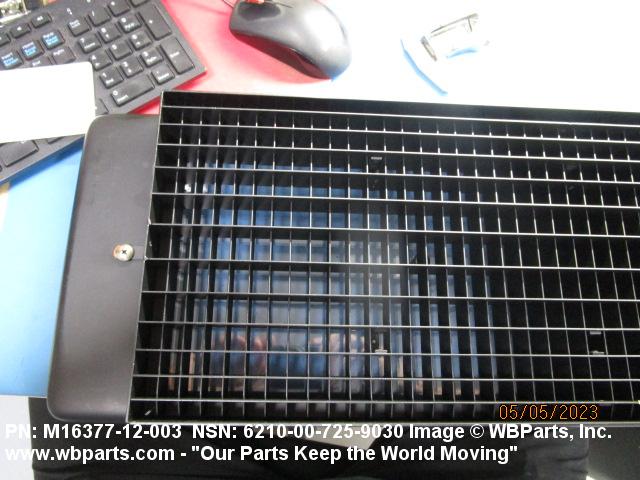

SPECIAL FEATURES ALUMINUM LOUVER
MANUFACTURERS CODE 81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE MIL-F-16377/12
MANUFACTURERS CODE 81349
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE M16377/12-003

Restrictions/Controls & Freight Information | NSN 6210-00-725-9030

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 109700 LAMP OR LIGHTING FIXTURES
Less than car load rating
Less than truck load rating W Rating Variable
Water commodity Code 658 unknown
Originating Activity Code XX
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity H Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 6210-00-725-9030

Category Code Description
Materiel Category and Inventory ManagerJ Ground Forces Support Materiel (DLA/GSA Items)
Appropriation and Budget Activity2 Stock Fund Secondary Items
Management Inventory Segment2 NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code0 Medical Materiel
Weapons Systems/End Item or Homogeneous Group00DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements CodeX Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDADepartment of the Army
Service OrganizationAU.S. Army
ReparabilityZThis is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice CodesDDoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
Category Code Description
Cognizance Codes9BNavy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesDDoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
