NSN 6150-01-362-0464 1214794302, 1214794-302, 01-362-0464
Product Details | ELECTRICAL POWER CABLE ASSEMBLY
6150-01-362-0464 A definite continuous length of CABLE, POWER, ELECTRICAL having one or both ends processed and/or terminated in fittings which provide for connection to other items. Excludes CABLE AND CONDUIT ASSEMBLY, ELECTRICAL and items having branches or forks. See also WIRING HARNESS.20511150037Nuclear Warheads and Warhead Sections11350043Fuzing and Firing Devices, Nuclear Ordnance11900057Specialized Test and Handling Equipment, Nuclear Ordnance5995000061500055Miscellaneous Electric Power and Distribution Equipment
Part Alternates: 1214794302, 1214794-302, 6150-01-362-0464, 01-362-0464, 6150013620464, 013620464
Electric Wire, and Power and Distribution Equipment | Miscellaneous Electric Power and Distribution Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 61 | 01 AUG 1992 | 01-362-0464 | 00485 ( CABLE ASSEMBLY, POWER, ELECTRICAL ) |
Drawings & Photos | NSN 6150-01-362-0464
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6150-01-362-0464
Related Products | NSN 6150-01-362-0464
Technical Data | NSN 6150-01-362-0464
| Characteristic | Specifications |
|---|---|
| CONDUCTOR QUANTITY | 2 |
| CONDUCTOR FORM | STRANDED ALL CONDUCTORS |
| MATERIAL | COPPER CORE CONDUCTOR ALL CONDUCTORS PLASTIC POLYTETRAFLUOROETHYLENE 1ST POSITION PRIMARY INSULATION ALL CONDUCTORS |
| ROUND CONDUCTOR SIZE | 16 AWG ALL CONDUCTORS |
| STRAND QUANTITY PER CONDUCTOR | 19 ALL CONDUCTORS |
| STRAND AWG SIZE PER CONDUCTOR | 29 ALL CONDUCTORS |
| CONDUCTOR ARRANGEMENT AND QUANTITY | 1 TWISTED PAIR |
| COLOR | WHITE 1ST POSITION PRIMARY INSULATION FIRST CONDUCTOR BLACK 1ST POSITION PRIMARY INSULATION SECOND CONDUCTOR |
| VOLTAGE RATING | 600.0 MAXIMUM ROOT MEAN SQUARE (RMS) OPERATING VOLTAGE ALL CONDUCTORS |

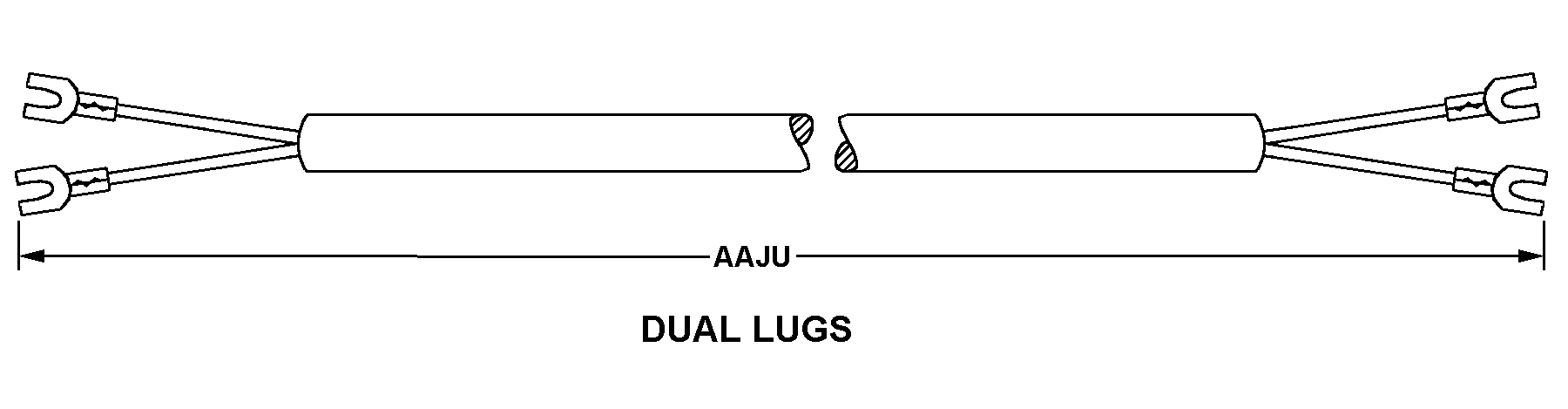

| STYLE DESIGNATOR | 53 DUAL LUGS |
| OVERALL LENGTH | 39.000 INCHES |
| CROSS-SECTIONAL SHAPE STYLE | 6 ROUND |
| TEMP RATING | -65.0 DEG CELSIUS AND 200.0 DEG CELSIUS |
| TERMINATION TYPE | LUG TERMINAL W/MOUNTING HOLE BOTH ENDS ALL CONDUCTORS |
| TERMINAL LUG APERTURE SIZE | 0.144 INCHES BOTH ENDS ALL CONDUCTORS |
| TERMINAL MANUFACTURER IDENTIFYING REFERENCE NUMBER | 2 EA MS25036-106 TERM LUGS BOTH ENDS ALL CONDUCTORS |
| TERMINAL COMMERCIAL AND GOVERNMENT ENTITY CODE | 96906 BOTH ENDS ALL CONDUCTORS |
| INDIVIDUAL CONDUCTOR LENGTH | 4.000 INCHES NOMINAL BOTH ENDS ALL CONDUCTORS |
| SPECIAL FEATURES | NOUN: FAN HARNESS ASSY (JUMPER); WIRE CONFORMS TO MIL-C-55021/2,E16C0-9U,SILVER PLATED CONDUCTORS; SAME AS ASSY 1214794-301,6150-01-352-3079 EXCEPT FOR LABELS |
| III END ITEM IDENTIFICATION | NEXT GENERATION RADAR (NEXRAD) |
Restrictions/Controls & Freight Information | NSN 6150-01-362-0464
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 6150-01-362-0464
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | ZE | SU:"METEOROLOGICAL EQUIPMENT 433L, WEATHER OBSERVATION AND FORECASTING SYSTEMS, METEROLOGICAL/WEATHER PROJECTS" |
| Source of Supply | G13 | Department of Commerce National Oceanic and Atmospheric Administration National Weather Service - Engineering Division 1325 East-West Highway W/0S0322, SSMC2 Silver Springs, MD 20910 |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | G | GENERAL SERVICES ADMINISTRATION (GSA)/CIVIL AGENCY INTEGRATED MATERIEL MANAGED, STOCKED AND ISSUED Identifies GSA/Civil Agency-managed items available from GSA/Civil Agency supply distribution facilities. Requisitions and fund citations will be submitted in accordance with GSA/Civil Agency/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
