NSN 6150-01-022-6004 MA7320000, MA73-20000, 11682336-1
Product Details | ELECTRICAL POWER CABLE ASSEMBLY
6150-01-022-6004 A definite continuous length of CABLE, POWER, ELECTRICAL having one or both ends processed and/or terminated in fittings which provide for connection to other items. Excludes CABLE AND CONDUIT ASSEMBLY, ELECTRICAL and items having branches or forks. See also WIRING HARNESS.20511150037Nuclear Warheads and Warhead Sections11350043Fuzing and Firing Devices, Nuclear Ordnance11900057Specialized Test and Handling Equipment, Nuclear Ordnance5995000061500055Miscellaneous Electric Power and Distribution Equipment
Part Alternates: MA7320000, MA73-20000, 11682336-1, 1307560, 6150000090, 6150-01-022-6004, 01-022-6004, 6150010226004 , 116823361, 010226004
Electric Wire, and Power and Distribution Equipment | Miscellaneous Electric Power and Distribution Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 61 | 31 MAY 1976 | 01-022-6004 | 00485 ( CABLE ASSEMBLY, POWER, ELECTRICAL ) |

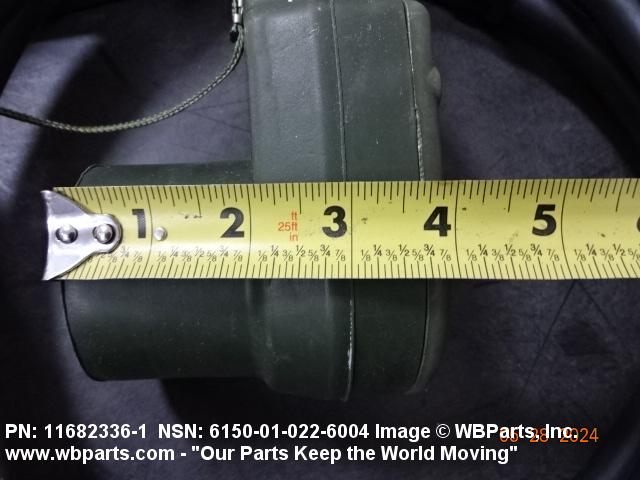

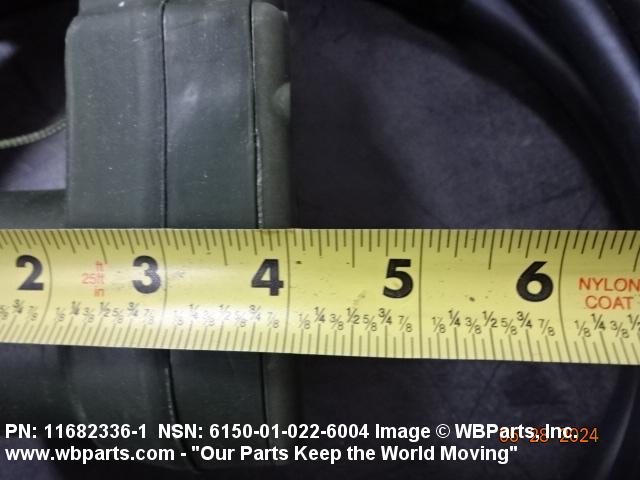

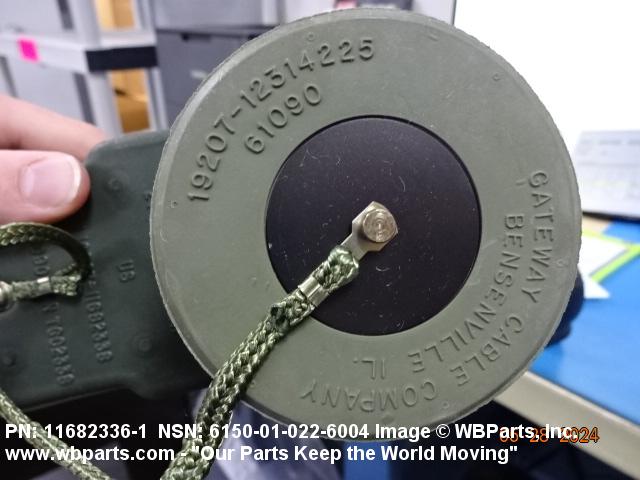

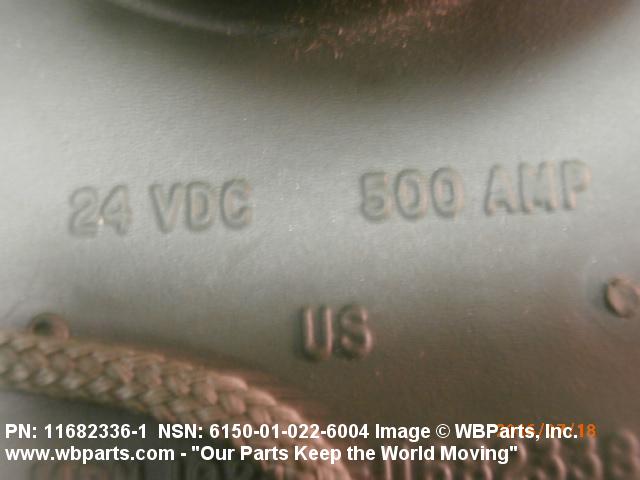

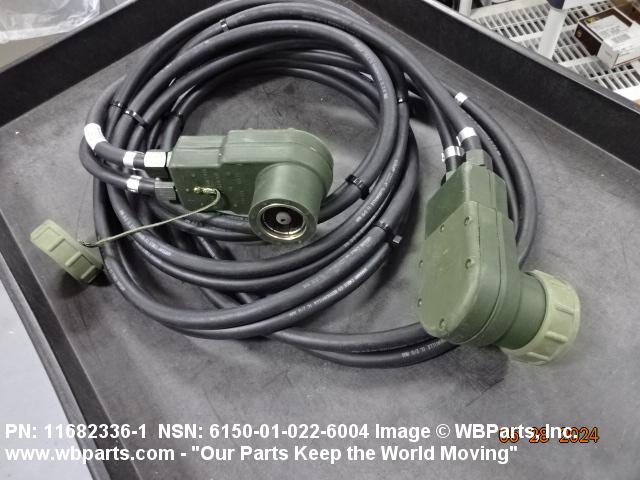

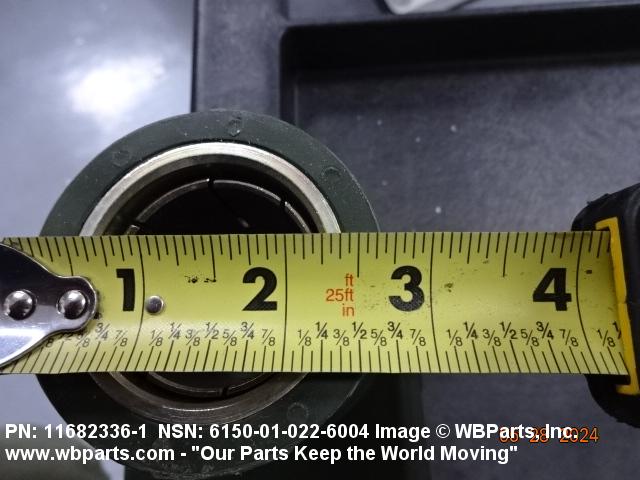

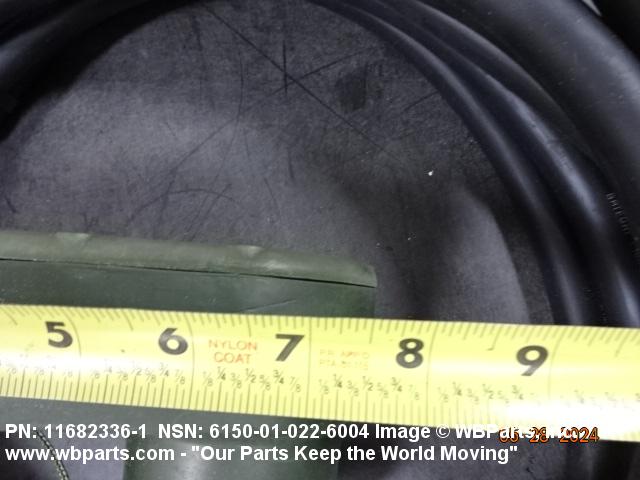

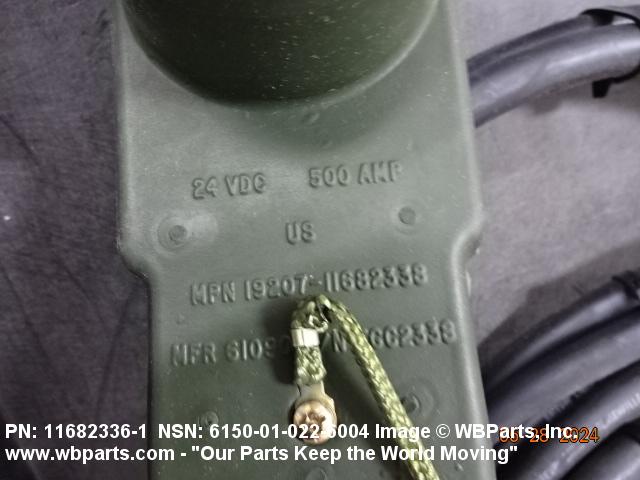

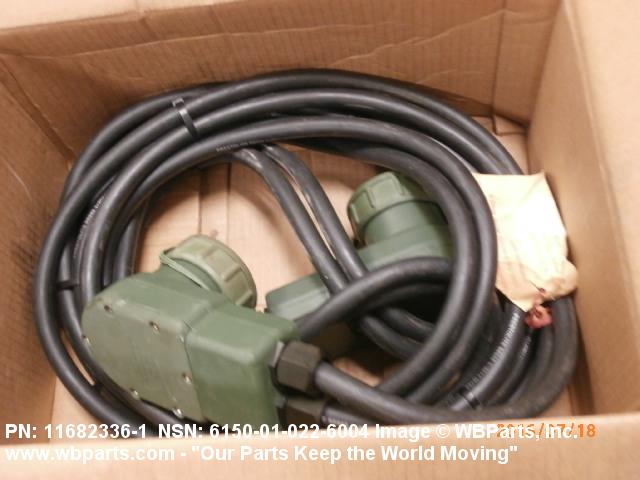

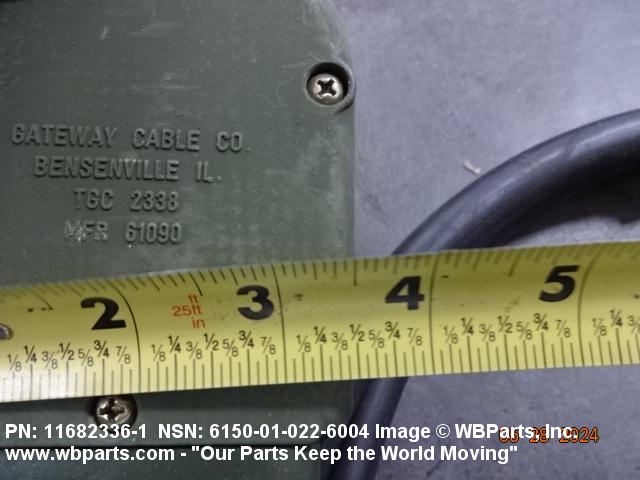

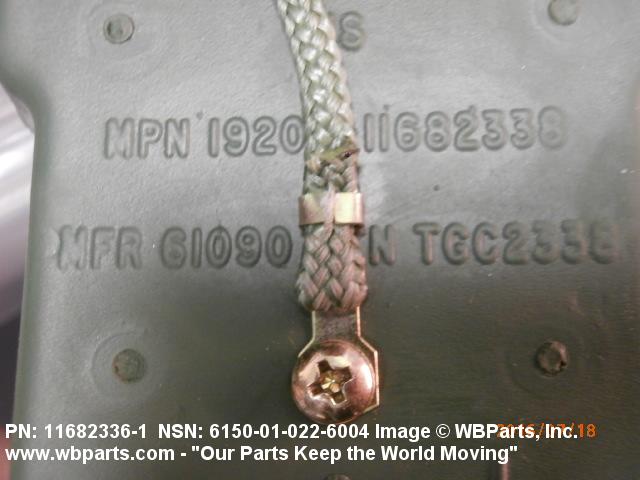

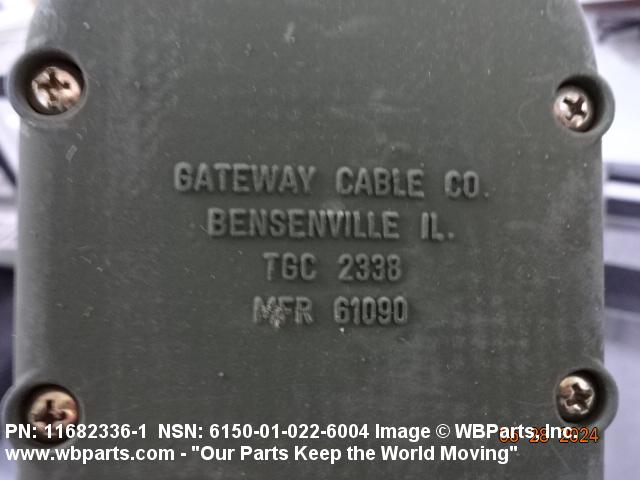

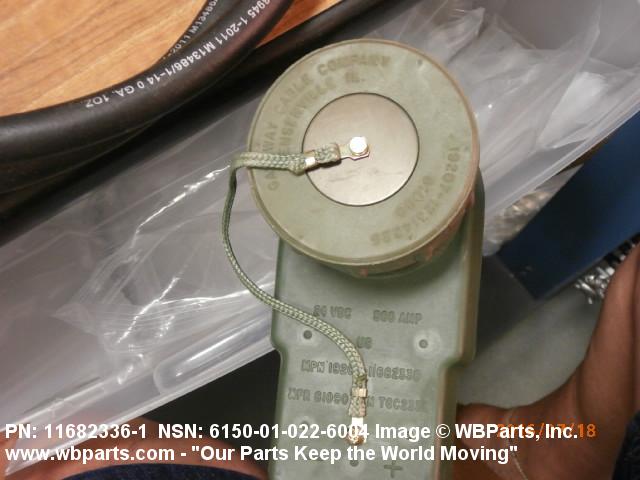

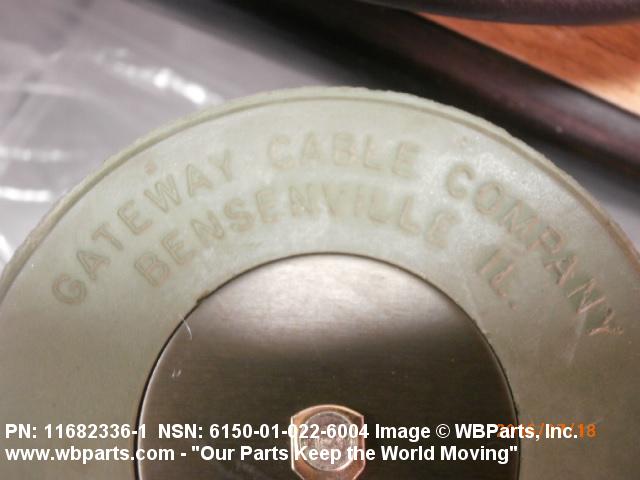

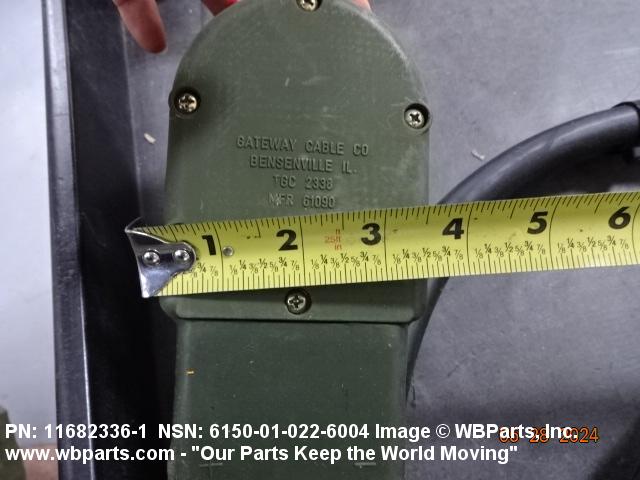

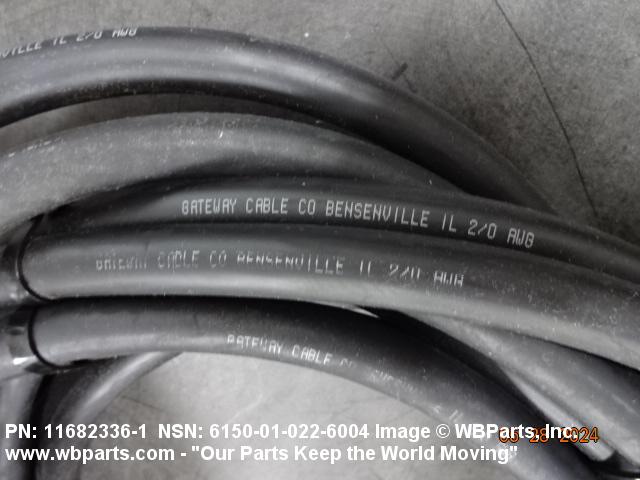

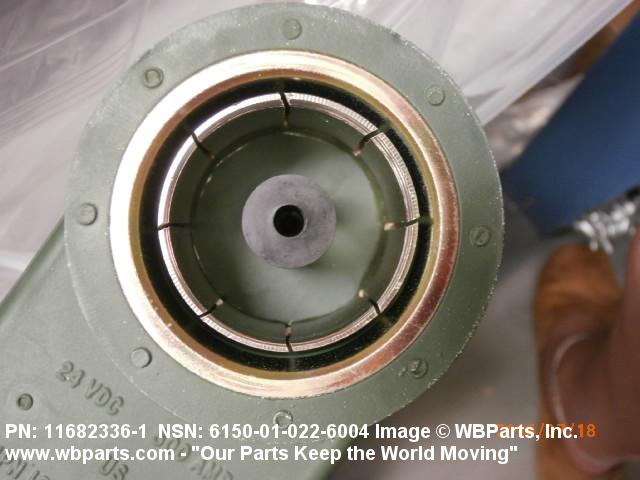

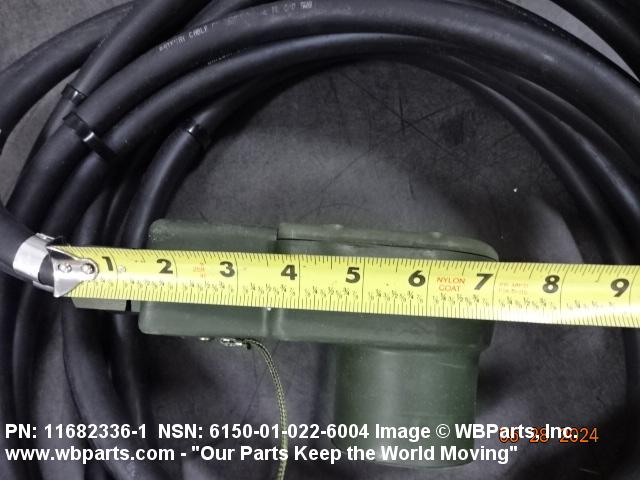

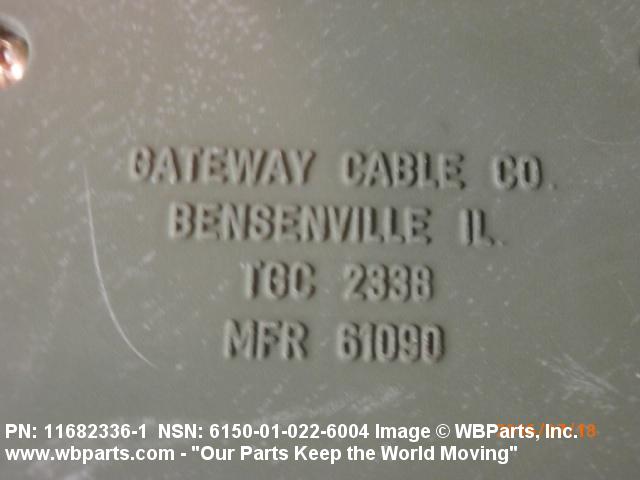

Drawings & Photos | NSN 6150-01-022-6004
Demand History | NSN 6150-01-022-6004
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6150-01-022-6004 | 2024-09-268 | 10 | us |
| 6150-01-022-6004 | 2024-09-268 | 15 | us |
| 6150-01-022-6004 | 2024-09-268 | 65 | us |
| 6150-01-022-6004 | 2024-08-241 | 5 | US |
| 6150-01-022-6004 | 2024-06-180 | 1 | US |
| 6150-01-022-6004 | 2024-05-127 | 1 | United States |
| 6150-01-022-6004 | 2024-04-109 | 25 | us |
| 6150-01-022-6004 | 2024-04-100 | 3259 | DIBBS |
| 6150-01-022-6004 | 2024-03-78 | 40 | United States |
| 6150-01-022-6004 | 2024-03-73 | 40 | United States |
| 6150-01-022-6004 | 2024-03-72 | 57 | United States |
| 6150-01-022-6004 | 2024-03-72 | 50 | United States |
| 6150-01-022-6004 | 2024-03-68 | 50 | United States |
| 6150-01-022-6004 | 2024-02-53 | 40 | United States |
| 6150-01-022-6004 | 2024-01-25 | 40 | United States |
| 6150-01-022-6004 | 2024-01-12 | 1278 | DIBBS |
| 6150-01-022-6004 | 2023-12-359 | 879 | DIBBS |
| 6150-01-022-6004 | 2023-12-355 | 40 | United States |
| 6150-01-022-6004 | 2023-12-349 | 2 | US |
| 6150-01-022-6004 | 2023-12-339 | 20 | United States |
| 6150-01-022-6004 | 2023-11-320 | 1 | CA |
| 6150-01-022-6004 | 2023-11-306 | 20 | United States |
| 6150-01-022-6004 | 2023-11-306 | 1218 | DIBBS |
| 6150-01-022-6004 | 2023-10-297 | 40 | United States |
| 6150-01-022-6004 | 2023-10-276 | 38 | United States |
| 6150-01-022-6004 | 2023-09-265 | 40 | United States |
| 6150-01-022-6004 | 2023-09-248 | 40 | United States |
| 6150-01-022-6004 | 2023-08-241 | 45 | United States |
| 6150-01-022-6004 | 2023-08-234 | 165 | DIBBS |
| 6150-01-022-6004 | 2023-08-221 | 120 | US |
| 6150-01-022-6004 | 2023-07-211 | 688 | DIBBS |
| 6150-01-022-6004 | 2023-07-188 | 176 | United States |
| 6150-01-022-6004 | 2023-05-124 | 25 | United States |
| 6150-01-022-6004 | 2023-04-104 | 1219 | DIBBS |
| 6150-01-022-6004 | 2023-02-46 | 25 | MANUAL |
| 6150-01-022-6004 | 2022-03-73 | 70 | UK |
| 6150-01-022-6004 | 2022-03-73 | 4 | Poland |
| 116823361 | 2021-09-259 | 1 | US |
| 6150-01-022-6004 | 2021-09-253 | 6 | Germany |
| 6150-01-022-6004 | 2021-03-60 | 1 | United States |
| 6150-01-022-6004 | 2020-11-322 | 18 | AE |
| 116823361 | 2020-11-316 | 2 | United States |
| 6150-01-022-6004 | 2020-10-280 | 2 | us |
| 6150-01-022-6004 | 2020-09-274 | 2 | United States |
| 6150-01-022-6004 | 2018-12-351 | 1 | United States |
| 6150-01-022-6004 | 2018-11-331 | 20 | SA |
| 6150-01-022-6004 | 2017-11-320 | 1 | United States |
| 6150-01-022-6004 | 2017-11-307 | 122 | Australia |
| 6150-01-022-6004 | 2017-08-242 | 5 | US |
| 6150-01-022-6004 | 2017-08-216 | 4 | United States |
| 6150-01-022-6004 | 2017-08-216 | 6 | United States |
| 6150-01-022-6004 | 2017-02-55 | 1 | US |
| 6150-01-022-6004 | 2017-02-53 | 1 | United Arab Emirates |
| 6150-01-022-6004 | 2017-01-04 | 587 | DIBBS |
| 6150-01-022-6004 | 2016-10-294 | 65 | DIBBS |
| 6150-01-022-6004 | 2016-10-285 | 1 | DIBBS-RFPs |
| 6150-01-022-6004 | 2016-09-267 | 1 | DIBBS-RFPs |
| 6150-01-022-6004 | 2016-09-264 | 484 | DIBBS |
| 6150-01-022-6004 | 2016-06-182 | 1 | United States |
| 6150-01-022-6004 | 2016-06-182 | 1 | United States |
| 6150-01-022-6004 | 2016-06-182 | 1 | United States |
| 6150-01-022-6004 | 2016-06-160 | 145 | DIBBS |
| 6150-01-022-6004 | 2016-01-05 | 4 | United States |
| 6150-01-022-6004 | 2014-01-09 | 1 | US |
| 6150-01-022-6004 | 2013-08-225 | 1 | US |
| 6150-01-022-6004 | 2013-04-116 | 1 | US |
| 6150-01-022-6004 | 2013-04-101 | 22 | GR |
| 6150-01-022-6004 | 2013-03-79 | 34 | United States |
| 116823361 | 2013-01-21 | 5 | US |
| 116823361 | 2012-11-325 | 16 | United States |
| 6150-01-022-6004 | 2012-06-172 | 1 | United States |
| 116823361 | 2010-07-188 | 23 | US |
| 116823361 | 2010-03-84 | 1 | US |
| 6150-01-022-6004 | 2008-08-238 | 495 | DIBBS |
| 6150-01-022-6004 | 2008-08-231 | 513 | DIBBS |
| 6150-01-022-6004 | 2008-08-226 | 2 | US |
Cross Reference | NSN 6150-01-022-6004
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 11682336-1 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
| 1307560 | 45152 | OSHKOSH CORPORATION |
| 6150000090 | 0125B | GENERAL DYNAMICS EUROPEAN LANDSYSTEMS - SANTA BARBARA SISTEMAS |
| 6150010226004 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| MA73-20000 | 34623 | AM GENERAL, LLC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6150-01-022-6004
Related Products | NSN 6150-01-022-6004
Technical Data | NSN 6150-01-022-6004
| Characteristic | Specifications |
|---|---|
| CONDUCTOR QUANTITY | 2 |
| CONDUCTOR FORM | STRANDED ALL CONDUCTORS |
| MATERIAL | COPPER CORE CONDUCTOR ALL CONDUCTORS |
| ROUND CONDUCTOR SIZE | 00 AWG ALL CONDUCTORS |
| STRAND QUANTITY PER CONDUCTOR | 7 ALL CONDUCTORS |
| STRAND AWG SIZE PER CONDUCTOR | 25 ALL CONDUCTORS |

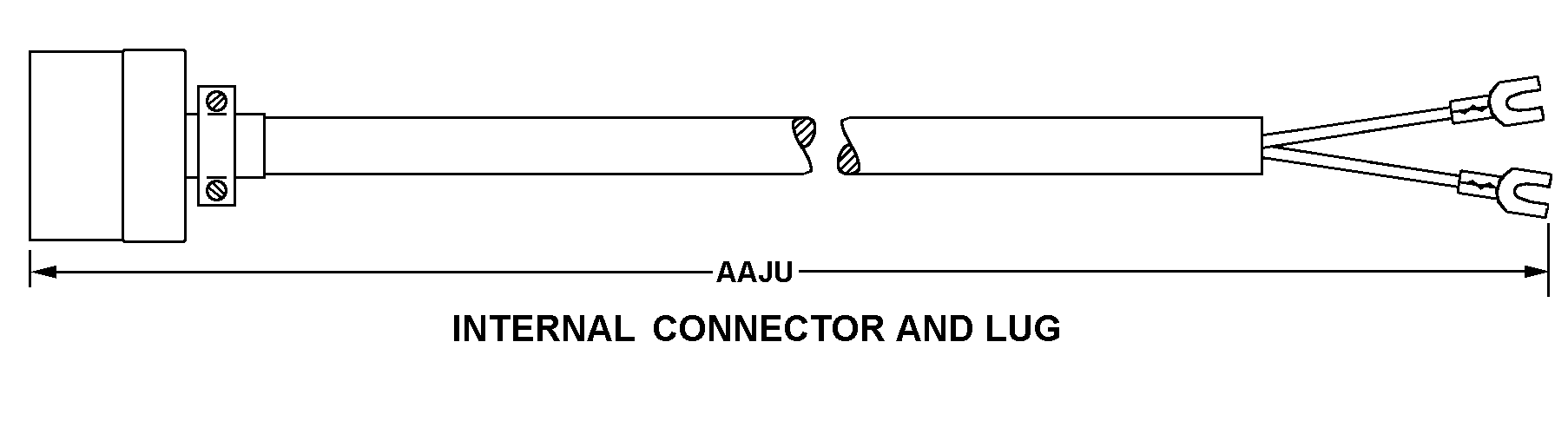

| STYLE DESIGNATOR | 18 INTERNAL CONNECTOR AND LUG |
| OVERALL LENGTH | 240.000 INCHES |
| CROSS-SECTIONAL SHAPE STYLE | 6 ROUND |

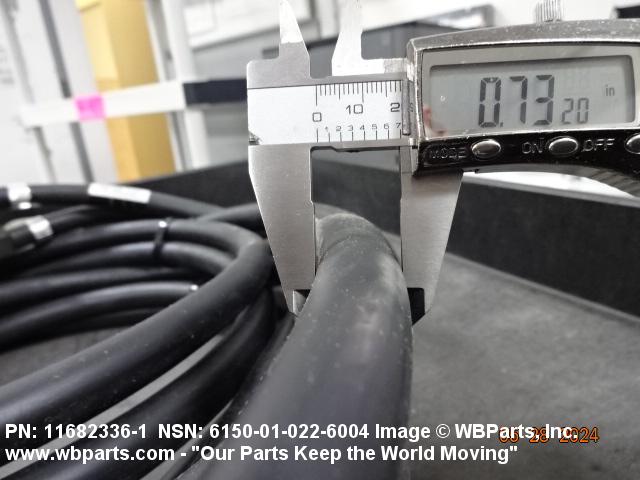

| CROSS SECTION OUTSIDE DIAMETER | 0.730 INCHES NOMINAL |
| TERMINATION TYPE | LUG TERMINAL W/MOUNTING HOLE BOTH ENDS ALL CONDUCTORS |
| TERMINAL LUG APERTURE SIZE | 0.385 INCHES 1ST END ALL CONDUCTORS |
| III END ITEM IDENTIFICATION | NSN 2320-01-318-9902 HET (HEAVY EQUIPMENT TRANSPORTER) |
Restrictions/Controls & Freight Information | NSN 6150-01-022-6004
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061130 | CABLE ASSEMBLY |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 743 | unknown |
| Originating Activity Code | AZ | U.S. Army Tank-Automotive and Armaments Command Warren, MI 48397-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6150-01-022-6004
Army
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | N | Tactical Vehicles |
| Weapons Systems/End Item or Homogeneous Group | NR | Heavy Expanded Mobility Tactical Trucks (HEMTT), all body types (ABT) M977, M978, M983, M984, M984A1, M985 |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 0 | Non-combat Essential End Item. End items that do not fit the definition of Code 1 items. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Echelon Identification Code | K | Reserved |
| Physical Category Code | 1 | Bin |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
