NSN 6150-01-355-4101 1214880301, 1214880-301, 01-355-4101
Product Details | ELECTRICAL POWER CABLE ASSEMBLY
6150-01-355-4101 A definite continuous length of CABLE, POWER, ELECTRICAL having one or both ends processed and/or terminated in fittings which provide for connection to other items. Excludes CABLE AND CONDUIT ASSEMBLY, ELECTRICAL and items having branches or forks. See also WIRING HARNESS.20511150037Nuclear Warheads and Warhead Sections11350043Fuzing and Firing Devices, Nuclear Ordnance11900057Specialized Test and Handling Equipment, Nuclear Ordnance5995000061500055Miscellaneous Electric Power and Distribution Equipment
Part Alternates: 1214880301, 1214880-301, 6150-01-355-4101, 01-355-4101, 6150013554101, 013554101
Electric Wire, and Power and Distribution Equipment | Miscellaneous Electric Power and Distribution Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 61 | 17 MAR 1992 | 01-355-4101 | 00485 ( CABLE ASSEMBLY, POWER, ELECTRICAL ) |
Drawings & Photos | NSN 6150-01-355-4101
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6150-01-355-4101
Technical Data | NSN 6150-01-355-4101
| Characteristic | Specifications |
|---|---|
| CONDUCTOR QUANTITY | 3 |
| CONDUCTOR FORM | STRANDED ALL CONDUCTORS |
| MATERIAL | COPPER CORE CONDUCTOR ALL CONDUCTORS PLASTIC POLYTETRAFLUOROETHYLENE 1ST POSITION PRIMARY INSULATION ALL CONDUCTORS COPPER 2ND POSITION SHIELD BRAID, METALLIC CABLE PLASTIC POLYTETRAFLUOROETHYLENE 3RD POSITION SHEATH CABLE |
| ROUND CONDUCTOR SIZE | 16 AWG ALL CONDUCTORS |
| STRAND QUANTITY PER CONDUCTOR | 19 ALL CONDUCTORS |
| STRAND AWG SIZE PER CONDUCTOR | 29 ALL CONDUCTORS |
| CONDUCTOR ARRANGEMENT AND QUANTITY | 3 SINGLES |
| COLOR | WHITE 1ST POSITION PRIMARY INSULATION FIRST CONDUCTOR BLACK 1ST POSITION PRIMARY INSULATION SECOND CONDUCTOR RED 1ST POSITION PRIMARY INSULATION THIRD CONDUCTOR WHITE 3RD POSITION SHEATH CABLE |

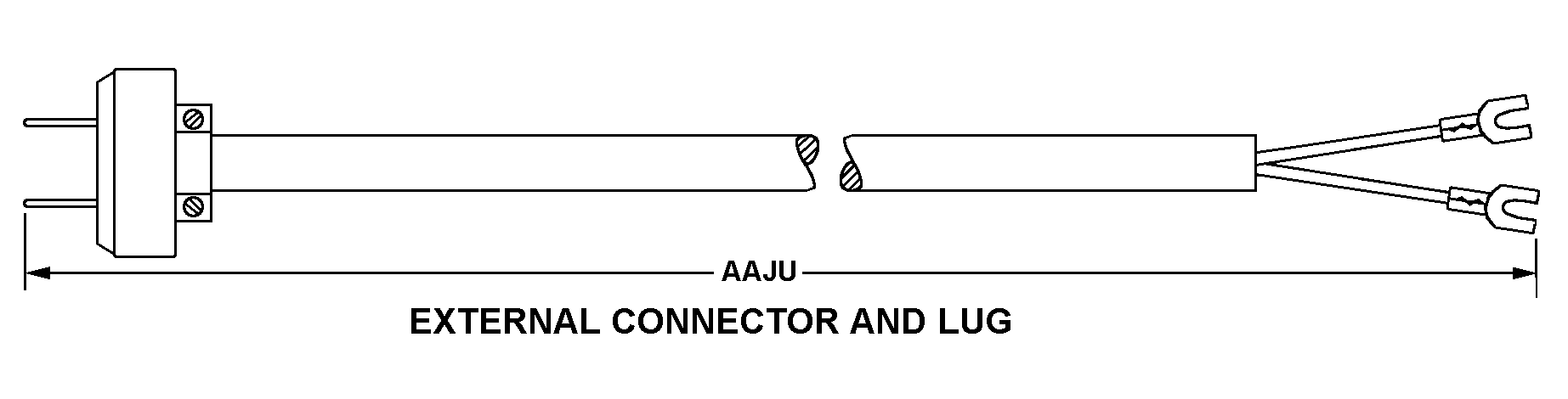

| STYLE DESIGNATOR | 16 EXTERNAL CONNECTOR AND LUG |
| OVERALL LENGTH | 55.000 INCHES |
| CROSS-SECTIONAL SHAPE STYLE | 6 ROUND |
| CROSS SECTION OUTSIDE DIAMETER | 0.212 INCHES NOMINAL |
| TERMINATION TYPE | LUG TERMINAL W/MOUNTING HOLE 1ST END ALL CONDUCTORS CONNECTOR PLUG 2ND END ALL CONDUCTORS |
| TERMINAL LUG APERTURE SIZE | 0.144 INCHES 1ST END ALL CONDUCTORS |
| TERMINAL MANUFACTURER IDENTIFYING REFERENCE NUMBER | MS25036-106 1ST END ALL CONDUCTORS WC596/13-3 2ND END ALL CONDUCTORS |
| TERMINAL COMMERCIAL AND GOVERNMENT ENTITY CODE | 96906 1ST END ALL CONDUCTORS 81348 2ND END ALL CONDUCTORS |
| INDIVIDUAL CONDUCTOR LENGTH | 3.000 INCHES NOMINAL 1ST END ALL CONDUCTORS |
| SPECIAL FEATURES | CABLE CONFORMS TO MIL-C-27072/89 P/N M27072/89FDDE9; 1ST END,RED WIRE FOLDED BACK AND NOT USED |
| III USAGE DESIGN | POWER |
| III END ITEM IDENTIFICATION | NEXT GENERATION RADAR (NEXRAD) |
Restrictions/Controls & Freight Information | NSN 6150-01-355-4101
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 6150-01-355-4101
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9P | Navy-owned stocks of National Weather Service Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | G13 | Department of Commerce National Oceanic and Atmospheric Administration National Weather Service - Engineering Division 1325 East-West Highway W/0S0322, SSMC2 Silver Springs, MD 20910 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
